OColor Class Reference

#include <color.h>

Collaboration diagram for OColor:

Public Member Functions
	OColor ()
	OColor (const OColor &c)
	OColor (float *c)
	OColor (float red, float green, float blue, float alpha=1.0f)
void	operator= (const OColor &c)
	operator float * ()
	operator const float * () const
unsigned int	getAsRGBA () const
void	setAsRGBA (const unsigned int val)
void	getAsHSB (float &hue, float &saturation, float &brightness) const
void	setAsHSB (const float hue, const float saturation, const float brightness)
void	clamp ()
OColor	clampCopy () const
bool	operator== (const OColor &other) const

Public Attributes
float	r
float	g
float	b
float	a

Static Public Attributes
static const OColor	BLACK = OColor(0.0f, 0.0f, 0.0f)
static const OColor	BLUE = OColor(0.0f, 0.0f, 1.0f)
static const OColor	GREEN = OColor(0.0f, 1.0f, 0.0f)
static const OColor	CYAN = OColor(0.0f, 1.0f, 1.0f)
static const OColor	RED = OColor(1.0f, 0.0f, 0.0f)
static const OColor	MAGENTA = OColor(1.0f, 0.0f, 1.0f)
static const OColor	YELLOW = OColor(1.0f, 1.0f, 0.0f)
static const OColor	WHITE = OColor(1.0f, 1.0f, 1.0f)

Static Protected Member Functions
static bool	float_eq (float a, float b, float epsilon=equality_threshold)

Static Protected Attributes
static const float	equality_threshold = 1e3f * std::numeric_limits<float>::epsilon()

Detailed Description

Classe definition un objet couleur.

Definition at line 30 of file color.h.

Constructor & Destructor Documentation

OColor() [1/4]

OColor::OColor ( )

inline

Constructeurs

Definition at line 107 of file color.h.

OColor() [2/4]

OColor::OColor ( const OColor &  c )

inline

Definition at line 109 of file color.h.

OColor() [3/4]

OColor::OColor ( float *  c )

inline

Definition at line 115 of file color.h.

OColor() [4/4]

OColor::OColor ( float  red, float  green, float  blue, float  alpha = 1.0f  )

inline

Definition at line 111 of file color.h.

Member Function Documentation

clamp()

void OColor::clamp

(

)

Clamp les couleurs entre [0, 1]

Definition at line 233 of file color.cpp.

Here is the caller graph for this function:

clampCopy()

OColor OColor::clampCopy

(

)

const

Definition at line 276 of file color.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

float_eq()

static bool OColor::float_eq ( float  a, float  b, float  epsilon = equality_threshold  )

inlinestaticprotected

Definition at line 98 of file color.h.

Here is the caller graph for this function:

getAsHSB()

void OColor::getAsHSB	(	float &	hue,
		float &	saturation,
		float &	brightness
	)		const

Get de la couleur en HSB (Hue, Saturation and Brightness)

Definition at line 91 of file color.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

getAsRGBA()

unsigned int OColor::getAsRGBA

(

)

const

Get de la couleur en RGBA

Definition at line 44 of file color.cpp.

Here is the caller graph for this function:

operator const float *()

OColor::operator const float * ( ) const

inline

Definition at line 136 of file color.h.

operator float *()

OColor::operator float * ( )

inline

Operateurs de cast

Definition at line 131 of file color.h.

operator=()

void OColor::operator= ( const OColor &  c )

inline

Operateur d'asignation

Definition at line 123 of file color.h.

operator==()

bool OColor::operator==

(

const OColor &

other

)

const

Definition at line 39 of file color.cpp.

Here is the call graph for this function:

setAsHSB()

void OColor::setAsHSB	(	const float	hue,
		const float	saturation,
		const float	brightness
	)

Set de la couleur en HSB (Hue, Saturation and Brightness)

Definition at line 141 of file color.cpp.

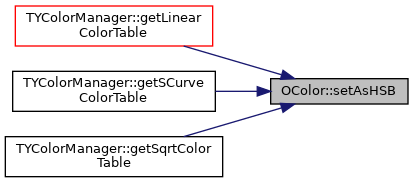

Here is the caller graph for this function:

setAsRGBA()

void OColor::setAsRGBA

(

const unsigned int

val

)

Set de la couleur en RGBA

Definition at line 71 of file color.cpp.

Here is the caller graph for this function:

Member Data Documentation

a

float OColor::a

Definition at line 33 of file color.h.

b

float OColor::b

Definition at line 33 of file color.h.

BLACK

const OColor OColor::BLACK = OColor(0.0f, 0.0f, 0.0f)

static

Constantes

Definition at line 86 of file color.h.

BLUE

const OColor OColor::BLUE = OColor(0.0f, 0.0f, 1.0f)

static

Definition at line 87 of file color.h.

CYAN

const OColor OColor::CYAN = OColor(0.0f, 1.0f, 1.0f)

static

Definition at line 89 of file color.h.

equality_threshold

const float OColor::equality_threshold = 1e3f * std::numeric_limits<float>::epsilon()

staticprotected

Definition at line 96 of file color.h.

g

float OColor::g

Definition at line 33 of file color.h.

GREEN

const OColor OColor::GREEN = OColor(0.0f, 1.0f, 0.0f)

static

Definition at line 88 of file color.h.

MAGENTA

const OColor OColor::MAGENTA = OColor(1.0f, 0.0f, 1.0f)

static

Definition at line 91 of file color.h.

r

float OColor::r

Definition at line 33 of file color.h.

RED

const OColor OColor::RED = OColor(1.0f, 0.0f, 0.0f)

static

Definition at line 90 of file color.h.

WHITE

const OColor OColor::WHITE = OColor(1.0f, 1.0f, 1.0f)

static

Definition at line 93 of file color.h.

YELLOW

const OColor OColor::YELLOW = OColor(1.0f, 1.0f, 0.0f)

static

Definition at line 92 of file color.h.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/core/color.h
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/core/color.cpp
