OThreadPool Class Reference

Slave threads collection. More...

#include <threading.h>

Inheritance diagram for OThreadPool:

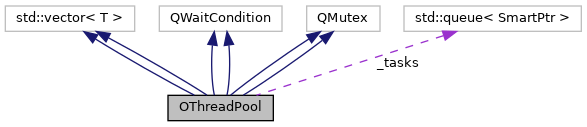

Collaboration diagram for OThreadPool:

Public Member Functions
	OThreadPool (unsigned int slaves)
	Build a threads collection and allocate "slaves" thread. More...
virtual	~OThreadPool ()
	Destructor. More...
virtual void	push (OTask *task)
	Add a task to the queue. More...
unsigned int	getTotalCount () const
	Return the total number of tasks. More...
unsigned int	getCount () const
	Return the counter. More...
void	begin (unsigned int count)
	Begin solver. More...
void	startPool ()
bool	end ()
	End solver. More...
	OThreadPool (unsigned int slaves)
	Build a threads collection and allocate "slaves" thread. More...
virtual	~OThreadPool ()
	Destructor. More...
virtual void	push (OTask *task)
unsigned int	getTotalCount () const
unsigned int	getCount () const
void	begin (unsigned int count)
void	startPool ()
bool	end ()

Protected Member Functions
void	stop ()
	Cancel the pending tasks. More...
void	stop ()
	Cancel the pending tasks. More...

Protected Attributes
std::queue< LPOTask >	_tasks
	Tasks queue. More...
unsigned int	_totalCount
	Total number of tasks to run. More...
unsigned int	_counter
	Total number of ended tasks. More...

Friends
class	OSlaveThread

Detailed Description

Slave threads collection.

This class define a slave threads collection which run tasks pending in a queue. A task is a simple object which contains the Task::main method. Simple example :

#include "threading.h"

class MyTask : public OTask { public: void main(void) { std::cout << "Hello world task!" << std::endl; } };

int main(int argc, char** argv) { OThreadPool pool(10); MyTask task; pool.push(task); ... task.wait(); return 0; }

Author

Projet_Tympan

Definition at line 224 of file threading.h.

Constructor & Destructor Documentation

OThreadPool() [1/2]

OThreadPool::OThreadPool

(

unsigned int

slaves

)

Build a threads collection and allocate "slaves" thread.

Definition at line 101 of file threading.cpp.

~OThreadPool() [1/2]

OThreadPool::~OThreadPool ( )

virtual

Destructor.

Definition at line 111 of file threading.cpp.

OThreadPool() [2/2]

OThreadPool::OThreadPool

(

unsigned int

slaves

)

Build a threads collection and allocate "slaves" thread.

~OThreadPool() [2/2]

virtual OThreadPool::~OThreadPool ( )

virtual

Destructor.

Member Function Documentation

begin() [1/2]

void OThreadPool::begin

(

unsigned int

count

)

Begin solver.

Definition at line 165 of file threading.cpp.

Here is the caller graph for this function:

begin() [2/2]

void OThreadPool::begin

(

unsigned int

count

)

end() [1/2]

bool OThreadPool::end

(

)

End solver.

Definition at line 183 of file threading.cpp.

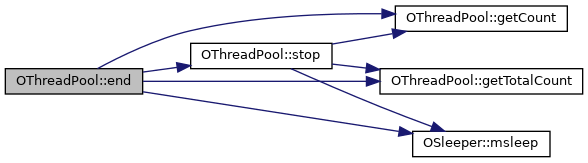

Here is the call graph for this function:

Here is the caller graph for this function:

end() [2/2]

bool OThreadPool::end

(

)

getCount() [1/2]

unsigned int OThreadPool::getCount

(

)

const

Return the counter.

Definition at line 159 of file threading.cpp.

Here is the caller graph for this function:

getCount() [2/2]

unsigned int OThreadPool::getCount

(

)

const

getTotalCount() [1/2]

unsigned int OThreadPool::getTotalCount

(

)

const

Return the total number of tasks.

Definition at line 153 of file threading.cpp.

Here is the caller graph for this function:

getTotalCount() [2/2]

unsigned int OThreadPool::getTotalCount

(

)

const

push() [1/2]

void OThreadPool::push ( OTask *  task )

virtual

Add a task to the queue.

Definition at line 142 of file threading.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

push() [2/2]

virtual void OThreadPool::push ( OTask *  task )

virtual

startPool() [1/2]

void OThreadPool::startPool

(

)

Definition at line 173 of file threading.cpp.

Here is the caller graph for this function:

startPool() [2/2]

void OThreadPool::startPool

(

)

stop() [1/2]

void OThreadPool::stop ( )

protected

Cancel the pending tasks.

Definition at line 198 of file threading.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

stop() [2/2]

void OThreadPool::stop ( )

protected

Cancel the pending tasks.

Friends And Related Function Documentation

OSlaveThread

OSlaveThread

friend

Definition at line 278 of file threading.h.

Member Data Documentation

_counter

unsigned int OThreadPool::_counter

protected

Total number of ended tasks.

Definition at line 276 of file threading.h.

_tasks

std::queue< LPOTask > OThreadPool::_tasks

protected

Tasks queue.

Definition at line 270 of file threading.h.

_totalCount

unsigned int OThreadPool::_totalCount

protected

Total number of tasks to run.

Definition at line 273 of file threading.h.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/solvers/9613Solver/threading.h
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/solvers/9613Solver/threading.cpp
