Sampler class and its sub-classes describe ray generators used in AcousticRayTracer. In these classes : More...

#include <Sampler.h>

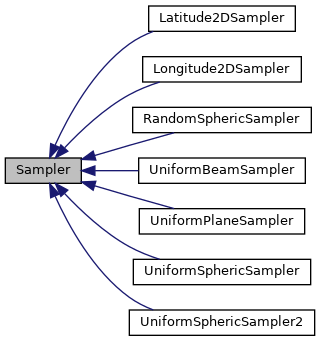

Inheritance diagram for Sampler:

[legend]

Public Member Functions
	Sampler (const unsigned int &nbRays=0, const decimal &Theta=(decimal) M_PIDIV2, const decimal &Phi=(decimal) M_2PI)
	Default constructor. More...

	Sampler (const Sampler &other)
	Copy constructors. More...

	Sampler (Sampler *sampler)

virtual Sampler *	Clone ()
	Clone a sample. More...

virtual	~Sampler ()
	Destructor. More...

virtual vec3	getSample ()
	Return the sample. More...

virtual bool	isAcceptableSample (vec3 v)
	Return true for an acceptable sample. More...

virtual void	init ()
	Initialize the sample. More...

virtual unsigned int	getNbRays () const
	Get/Set the number of rays to launch. More...

virtual void	setNbRays (const unsigned int &nbRays)

decimal	getTheta () const
	Get/Set the polar angle. More...

void	setTheta (const decimal &Theta)

decimal	getPhi () const
	Get/Set the equatorial polar angle. More...

void	setPhi (const decimal &Phi)

virtual unsigned int	computeDiffractionNbr (const decimal &theta)
	Return the number of rays to launch after a diffraction event. More...

Protected Attributes
unsigned int	_nb_rays
	Number of rays to launch. More...

decimal	_theta
	Global polar angle. More...

decimal	_phi
	Global equatorial angle. More...

Detailed Description

Sampler class and its sub-classes describe ray generators used in AcousticRayTracer. In these classes :

theta is the polar angle where 0 is on equatorial
phi is the equatorial angle. By default ray are sent on a sphere

Definition at line 29 of file Sampler.h.

Constructor & Destructor Documentation

◆ Sampler() [1/3]

Sampler::Sampler	(	const unsigned int &	nbRays = `0`,
		const decimal &	Theta = `(decimal)M_PIDIV2`,
		const decimal &	Phi = `(decimal)M_2PI`
	)

inline

Default constructor.

Definition at line 33 of file Sampler.h.

Here is the caller graph for this function:

◆ Sampler() [2/3]

Sampler::Sampler ( const Sampler & other )

inline

Copy constructors.

Definition at line 39 of file Sampler.h.

◆ Sampler() [3/3]

Sampler::Sampler ( Sampler * sampler )

inline

Definition at line 47 of file Sampler.h.

◆ ~Sampler()

virtual Sampler::~Sampler ( )

inlinevirtual

Destructor.

Definition at line 61 of file Sampler.h.

Member Function Documentation

◆ Clone()

virtual Sampler* Sampler::Clone ( )

inlinevirtual

Clone a sample.

Reimplemented in UniformSphericSampler2, UniformSphericSampler, UniformPlaneSampler, UniformBeamSampler, RandomSphericSampler, Longitude2DSampler, and Latitude2DSampler.

Definition at line 55 of file Sampler.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeDiffractionNbr()

virtual unsigned int Sampler::computeDiffractionNbr ( const decimal & theta )

inlinevirtual

Return the number of rays to launch after a diffraction event.

Reimplemented in UniformSphericSampler2, UniformSphericSampler, UniformBeamSampler, and RandomSphericSampler.

Definition at line 110 of file Sampler.h.

Here is the caller graph for this function:

◆ getNbRays()

virtual unsigned int Sampler::getNbRays ( ) const

inlinevirtual

Get/Set the number of rays to launch.

Definition at line 77 of file Sampler.h.

◆ getPhi()

decimal Sampler::getPhi ( ) const

inline

Get/Set the equatorial polar angle.

Definition at line 99 of file Sampler.h.

◆ getSample()

virtual vec3 Sampler::getSample ( )

inlinevirtual

Return the sample.

Reimplemented in UniformSphericSampler2, UniformSphericSampler, UniformPlaneSampler, UniformBeamSampler, RandomSphericSampler, Longitude2DSampler, and Latitude2DSampler.

Definition at line 64 of file Sampler.h.

Here is the caller graph for this function:

◆ getTheta()

decimal Sampler::getTheta ( ) const

inline

Get/Set the polar angle.

Definition at line 88 of file Sampler.h.

◆ init()

virtual void Sampler::init ( )

inlinevirtual

Initialize the sample.

Reimplemented in UniformSphericSampler2, UniformSphericSampler, UniformPlaneSampler, UniformBeamSampler, Longitude2DSampler, and Latitude2DSampler.

Definition at line 74 of file Sampler.h.

Here is the caller graph for this function:

◆ isAcceptableSample()

virtual bool Sampler::isAcceptableSample ( vec3 v )

inlinevirtual

Return true for an acceptable sample.

Reimplemented in UniformSphericSampler2, UniformSphericSampler, UniformPlaneSampler, UniformBeamSampler, RandomSphericSampler, Longitude2DSampler, and Latitude2DSampler.

Definition at line 69 of file Sampler.h.

◆ setNbRays()

virtual void Sampler::setNbRays ( const unsigned int & nbRays )

inlinevirtual

Definition at line 81 of file Sampler.h.

Here is the call graph for this function:

◆ setPhi()

void Sampler::setPhi ( const decimal & Phi )

inline

Definition at line 103 of file Sampler.h.

Here is the call graph for this function:

◆ setTheta()

void Sampler::setTheta ( const decimal & Theta )

inline

Definition at line 92 of file Sampler.h.

Here is the call graph for this function:

Member Data Documentation

◆ _nb_rays

unsigned int Sampler::_nb_rays

protected

Number of rays to launch.

Definition at line 116 of file Sampler.h.

◆ _phi

decimal Sampler::_phi

protected

Global equatorial angle.

Definition at line 118 of file Sampler.h.

◆ _theta

decimal Sampler::_theta

protected

Global polar angle.

Definition at line 117 of file Sampler.h.

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Geometry/Sampler.h
