TYHistoWidget Class Reference

classe de l'outil IHM pour un histogramme More...

#include <TYHistoWidget.h>

Inheritance diagram for TYHistoWidget:

Collaboration diagram for TYHistoWidget:

Public Member Functions
	TYHistoWidget (TYSpectreWidget *pSpectreWidget, bool dbType, QWidget *_pParent=NULL)
virtual	~TYHistoWidget ()
void	setDbType (bool dbType)
void	print ()

Protected Member Functions
virtual void	paintEvent (QPaintEvent *event)
void	paintInto (QPainter *painter, int w, int h)

Private Attributes
TYSpectreWidget *	_pSpectreWidget
bool	_dbType

Detailed Description

classe de l'outil IHM pour un histogramme

Definition at line 39 of file TYHistoWidget.h.

Constructor & Destructor Documentation

TYHistoWidget()

TYHistoWidget::TYHistoWidget	(	TYSpectreWidget *	pSpectreWidget,
		bool	dbType,
		QWidget *	_pParent = NULL
	)

Constructeur.

Definition at line 38 of file TYHistoWidget.cpp.

~TYHistoWidget()

TYHistoWidget::~TYHistoWidget ( )

virtual

Destructeur.

Definition at line 45 of file TYHistoWidget.cpp.

Member Function Documentation

paintEvent()

void TYHistoWidget::paintEvent ( QPaintEvent *  event )

protectedvirtual

Reimplementation du paintEvent

Definition at line 94 of file TYHistoWidget.cpp.

Here is the call graph for this function:

paintInto()

void TYHistoWidget::paintInto ( QPainter *  painter, int  w, int  h  )

protected

Dessiner dans

Definition at line 106 of file TYHistoWidget.cpp.

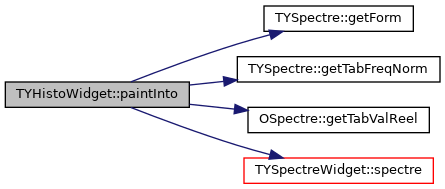

Here is the call graph for this function:

Here is the caller graph for this function:

print()

void TYHistoWidget::print

(

)

Imprimer l'histogramme

Definition at line 47 of file TYHistoWidget.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

setDbType()

void TYHistoWidget::setDbType ( bool  dbType )

inline

Modifier le type de db (db ou db/km)

Definition at line 58 of file TYHistoWidget.h.

Here is the caller graph for this function:

Member Data Documentation

_dbType

bool TYHistoWidget::_dbType

private

Definition at line 81 of file TYHistoWidget.h.

_pSpectreWidget

TYSpectreWidget* TYHistoWidget::_pSpectreWidget

private

Definition at line 80 of file TYHistoWidget.h.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/gui/widgets/TYHistoWidget.h
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/gui/widgets/TYHistoWidget.cpp
