Describes building material. More...
#include <entities.hpp>
Inheritance diagram for tympan::AcousticBuildingMaterial:
Collaboration diagram for tympan::AcousticBuildingMaterial:
Public Member Functions | |
| AcousticBuildingMaterial (const string &name_, const ComplexSpectrum &spectrum) | |
| Constructor. More... | |
| virtual | ~AcousticBuildingMaterial () |
| Destructor. More... | |
| virtual ComplexSpectrum | get_absorption (double incidence_angle, double length) |
| : Get material absorption at reflection point More... | |
| ComplexSpectrum | asEyring () const |
| Returns a spectrum with Eyring formulae. More... | |
 Public Member Functions inherited from tympan::AcousticMaterialBase | |
| AcousticMaterialBase (const string &name_) | |
| Constructor. More... | |
| virtual double | get_ISO9613_G () |
| Public Member Functions inherited from tympan::BaseEntity | |
| virtual | ~BaseEntity () |
| Constructor. More... | |
Public Attributes | |
| ComplexSpectrum | spectrum |
| Spectrum to store acoustic values at different frequencies. More... | |
| Public Attributes inherited from tympan::AcousticMaterialBase | |
| string | name |
| Material name. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from tympan::BaseEntity | |
| BaseEntity () | |
Detailed Description
Describes building material.
Definition at line 48 of file entities.hpp.
Constructor & Destructor Documentation
◆ AcousticBuildingMaterial()
| tympan::AcousticBuildingMaterial::AcousticBuildingMaterial | ( | const string & | name_, |
| const ComplexSpectrum & | spectrum | ||
| ) |
Constructor.
Definition at line 23 of file entities.cpp.
◆ ~AcousticBuildingMaterial()
|
inlinevirtual |
Destructor.
Definition at line 54 of file entities.hpp.
Member Function Documentation
◆ asEyring()
| ComplexSpectrum tympan::AcousticBuildingMaterial::asEyring | ( | ) | const |
Returns a spectrum with Eyring formulae.
Definition at line 28 of file entities.cpp.

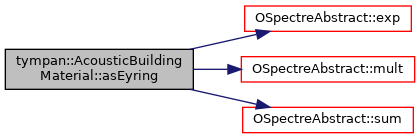

Here is the call graph for this function:
◆ get_absorption()
|
inlinevirtual |
: Get material absorption at reflection point
Reimplemented from tympan::AcousticMaterialBase.
Definition at line 60 of file entities.hpp.
Member Data Documentation
◆ spectrum
| ComplexSpectrum tympan::AcousticBuildingMaterial::spectrum |
Spectrum to store acoustic values at different frequencies.
Definition at line 67 of file entities.hpp.
The documentation for this class was generated from the following files:
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/solver/entities.hpp
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/solver/entities.cpp
