tympan::CommonFaceDirectivity Class Reference

BaseEntity class for directivity on face. More...

#include <entities.hpp>

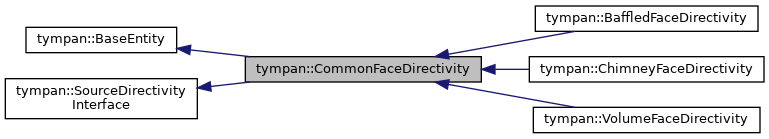

Inheritance diagram for tympan::CommonFaceDirectivity:

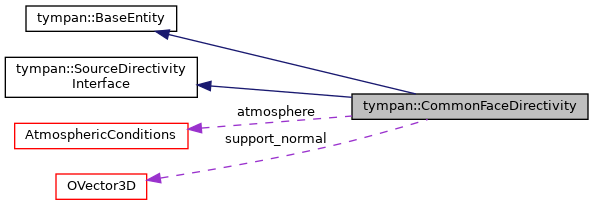

Collaboration diagram for tympan::CommonFaceDirectivity:

Public Member Functions
	CommonFaceDirectivity (const Vector &support_normal_, double support_size_)
	Constructor. More...
	~CommonFaceDirectivity ()
	Destructor. More...
Vector	get_normal ()
Public Member Functions inherited from tympan::BaseEntity
virtual	~BaseEntity ()
	Constructor. More...
Public Member Functions inherited from tympan::SourceDirectivityInterface
virtual Spectrum	lwAdjustment (Vector direction, double distance)=0
	< Pure virtual method to return directivity of the Source More...

Static Public Member Functions
static void	set_atmosphere (AtmosphericConditions *atmosphere_)

Protected Attributes
Vector	support_normal
double	support_size
	Normal of support face. More...

Static Protected Attributes
static AtmosphericConditions *	atmosphere = new AtmosphericConditions(101325., 20., 70.)
	Characteristic size of support face. More...

Additional Inherited Members
Protected Member Functions inherited from tympan::BaseEntity
	BaseEntity ()

Detailed Description

BaseEntity class for directivity on face.

Definition at line 234 of file entities.hpp.

Constructor & Destructor Documentation

CommonFaceDirectivity()

tympan::CommonFaceDirectivity::CommonFaceDirectivity ( const Vector &  support_normal_, double  support_size_  )

inline

Constructor.

Definition at line 238 of file entities.hpp.

~CommonFaceDirectivity()

tympan::CommonFaceDirectivity::~CommonFaceDirectivity ( )

inline

Destructor.

Definition at line 243 of file entities.hpp.

Member Function Documentation

get_normal()

Vector tympan::CommonFaceDirectivity::get_normal ( )

inline

Definition at line 245 of file entities.hpp.

set_atmosphere()

static void tympan::CommonFaceDirectivity::set_atmosphere ( AtmosphericConditions *  atmosphere_ )

inlinestatic

Definition at line 250 of file entities.hpp.

Member Data Documentation

atmosphere

AtmosphericConditions * tympan::CommonFaceDirectivity::atmosphere = new AtmosphericConditions(101325., 20., 70.)

staticprotected

Characteristic size of support face.

Pointer to current atmosphere

Definition at line 259 of file entities.hpp.

support_normal

Vector tympan::CommonFaceDirectivity::support_normal

protected

Definition at line 256 of file entities.hpp.

support_size

double tympan::CommonFaceDirectivity::support_size

protected

Normal of support face.

Definition at line 257 of file entities.hpp.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/solver/entities.hpp
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/solver/entities.cpp
