Representation of one of the most optimal path between source and receptor: S—>R. More...
#include <deque>#include "TYEtape.h"#include "Tympan/models/common/atmospheric_conditions.h"#include "Tympan/models/common/acoustic_path.h"

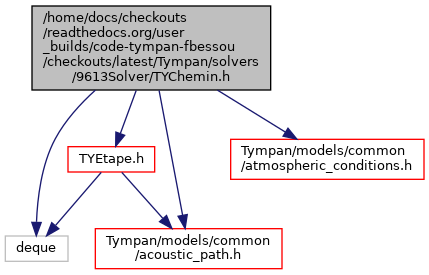

Include dependency graph for TYChemin.h:

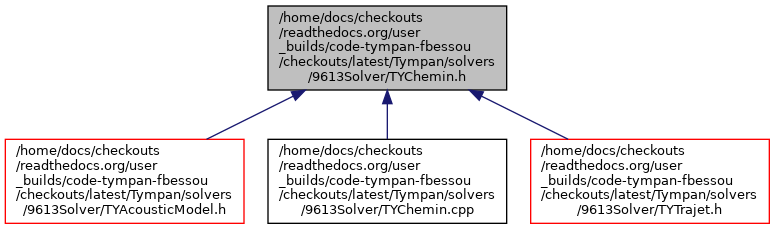

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | TYAttenuation |
| class | TYChemin |
| Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). More... | |
Typedefs | |
| typedef std::deque< TYChemin > | TYTabChemin |
| TYChemin collection. More... | |
Enumerations | |
| enum class | TYTypeChemin { CHEMIN_DIRECT , CHEMIN_SOL , CHEMIN_ECRAN , CHEMIN_REFLEX , CHEMIN_DIRECT , CHEMIN_DIRECT , CHEMIN_SOL , CHEMIN_SOL , CHEMIN_ECRAN , CHEMIN_ECRAN , CHEMIN_REFLEX , CHEMIN_REFLEX } |
| enum class | TYTypeAttenuation { DIRECTIVITY_INDEX , ATTENUATION_ATM , ATTENUATION_GND_S , ATTENUATION_GND_R , ATTENUATION_GND_M , DZ_TOP , DZ_LEFT , DZ_RIGHT , ATTENUATION_BAR_TOP , ATTENUATION_BAR_LEFT , ATTENUATION_BAR_RIGHT , ATTENUATION_BAR , ATTENUATION_REFLEX } |
Functions | |
| ::std::ostream & | operator<< (::std::ostream &out, const TYTypeChemin &value) |
Detailed Description
Representation of one of the most optimal path between source and receptor: S—>R.
- Version
- v1.1
Definition in file TYChemin.h.
Typedef Documentation
◆ TYTabChemin
| typedef std::deque<TYChemin> TYTabChemin |
TYChemin collection.
Definition at line 255 of file TYChemin.h.
Enumeration Type Documentation
◆ TYTypeAttenuation
|
strong |
Definition at line 41 of file TYChemin.h.
◆ TYTypeChemin
|
strong |
| Enumerator | |
|---|---|
| CHEMIN_DIRECT | |
| CHEMIN_SOL | |
| CHEMIN_ECRAN | |
| CHEMIN_REFLEX | |
| CHEMIN_DIRECT | |
| CHEMIN_DIRECT | |
| CHEMIN_SOL | |
| CHEMIN_SOL | |
| CHEMIN_ECRAN | |
| CHEMIN_ECRAN | |
| CHEMIN_REFLEX | |
| CHEMIN_REFLEX | |
Definition at line 31 of file TYChemin.h.
Function Documentation
◆ operator<<()
| ::std::ostream& operator<< | ( | ::std::ostream & | out, |
| const TYTypeChemin & | value | ||
| ) |
Definition at line 247 of file TYChemin.cpp.
