TYChemin Class Reference

Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). More...

#include <TYChemin.h>

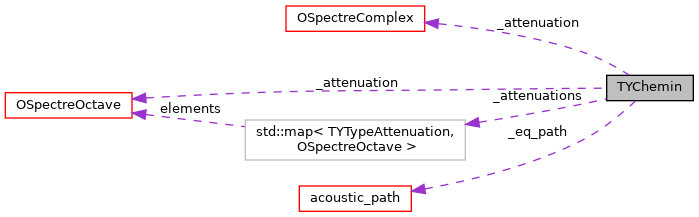

Collaboration diagram for TYChemin:

Public Member Functions
	TYChemin ()
	Constructor. More...
	TYChemin (const TYChemin &other)
	Copy contructor. More...
virtual	~TYChemin ()
	Destructor. More...
TYChemin &	operator= (const TYChemin &other)
	Operator =. More...
bool	operator== (const TYChemin &other) const
	Operator ==. More...
bool	operator!= (const TYChemin &other) const
	Operator !=. More...
void	calcAttenuation (const TYTabEtape &tabEtapes, const AtmosphericConditions &atmos, double dp=0.0, double hs=0.0, double hr=0.0, double Gs=0.5, double Gm=0.5, double Gr=0.5)
void	computeBarAttenuation (const OSpectreOctave &Dz, const bool vertical, const bool left)
OSpectreOctave &	getAttenuation (TYTypeAttenuation type)
OSpectreOctave &	getAttenuation ()
	Return the path attenuation. More...
const OSpectreOctave &	getAttenuation () const
void	setAttenuation (const TYTypeAttenuation &type, const OSpectreOctave &att)
void	setAttenuationBarWhenNoPath (bool vertical, bool left)
	Set attenuation bar to max to traduce the lack of diffracted ray on this path. More...
double	getLongueur ()
	Get/Set the path length. More...
const double	getLongueur () const
void	setLongueur (const double &longueur)
double	getDistance ()
	Get/Set the distance between source and receptor. More...
const double	getDistance () const
void	setDistance (const double &distance)
void	setType (const TYTypeChemin &type)
	Change the path type. More...
const TYTypeChemin	getType () const
void	build_eq_path (const TYTabEtape &tabEtapes)
acoustic_path *	get_ray (OPoint3D ptR)
	TYChemin ()
	TYChemin (const TYChemin &other)
virtual	~TYChemin ()
TYChemin &	operator= (const TYChemin &other)
	Operator =. More...
bool	operator== (const TYChemin &other) const
	Operator ==. More...
bool	operator!= (const TYChemin &other) const
	Operator !=. More...
void	calcAttenuation (const TYTabEtape &tabEtapes, const AtmosphericConditions &atmos)
	Compute the global attenuation on the path. More...
OSpectreComplex &	getAttenuation ()
const OSpectreComplex &	getAttenuation () const
void	setAttenuation (const OSpectreComplex &att)
	Set the attenuation. More...
double	getLongueur ()
const double	getLongueur () const
void	setLongueur (const double &longueur)
double	getDistance ()
const double	getDistance () const
void	setDistance (const double &distance)
void	setType (const int &type)
	Change the path type. More...
int	getType () const
void	build_eq_path (const TYTabEtape &tabEtapes)
acoustic_path *	get_ray (OPoint3D ptR)

Protected Attributes
TYTypeChemin	_typeChemin
	Path type (has an influence on the algorithm) More...
double	_longueur
	Total path length. More...
double	_distance
	Direct distance between source and receptor. More...
std::map< TYTypeAttenuation, OSpectreOctave >	_attenuations
	Attenuations spectra of the path. More...
OSpectreOctave	_attenuation
acoustic_path *	_eq_path
	Equivalent acoustic_path. More...
OSpectreComplex	_attenuation
	Attenuation spectrum of the path. More...

Private Member Functions
void	calcGroundAttenuations (double distance, double hs, double hr, double Gs, double Gm, double Gr)
OSpectreOctave	calcGroundAttenuationSR (double dp, double h, double G)
OSpectreOctave	calcGroundAttenuationM (double q, double Gm)

Detailed Description

Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class).

Definition at line 70 of file TYChemin.h.

Constructor & Destructor Documentation

TYChemin() [1/4]

TYChemin::TYChemin

(

)

Constructor.

Definition at line 19 of file TYChemin.cpp.

TYChemin() [2/4]

TYChemin::TYChemin

(

const TYChemin &

other

)

Copy contructor.

Definition at line 25 of file TYChemin.cpp.

~TYChemin() [1/2]

TYChemin::~TYChemin ( )

virtual

Destructor.

Definition at line 30 of file TYChemin.cpp.

Here is the call graph for this function:

TYChemin() [3/4]

TYChemin::TYChemin

(

)

TYChemin() [4/4]

TYChemin::TYChemin

(

const TYChemin &

other

)

~TYChemin() [2/2]

virtual TYChemin::~TYChemin ( )

virtual

Member Function Documentation

build_eq_path() [1/2]

void TYChemin::build_eq_path

(

const TYTabEtape &

tabEtapes

)

Definition at line 187 of file TYChemin.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

build_eq_path() [2/2]

void TYChemin::build_eq_path

(

const TYTabEtape &

tabEtapes

)

calcAttenuation() [1/2]

void TYChemin::calcAttenuation	(	const TYTabEtape &	tabEtapes,
		const AtmosphericConditions &	atmos
	)

Compute the global attenuation on the path.

Parameters

[in]	tabEtapes	Array of steps.
[in]	atmos	Atmospheric ocnditions.
[in]	dp	Distance 2D between source and receptor for considered path.
[in]	hs	Height of source.
[in]	hr	Height of receptor
[in]	Gs	Ground factor of the source zone.
[in]	Gm	Ground factor of the middle zone.
[in]	Gr	Ground factor of the receptor zone.

Definition at line 86 of file TYChemin.cpp.

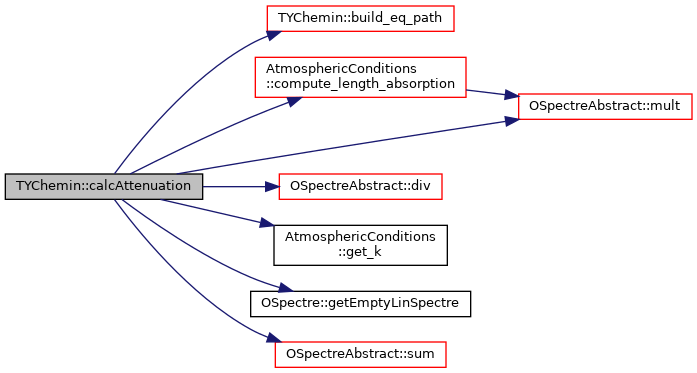

Here is the call graph for this function:

calcAttenuation() [2/2]

void TYChemin::calcAttenuation	(	const TYTabEtape &	tabEtapes,
		const AtmosphericConditions &	atmos,
		double	dp = 0.0,
		double	hs = 0.0,
		double	hr = 0.0,
		double	Gs = 0.5,
		double	Gm = 0.5,
		double	Gr = 0.5
	)

Definition at line 87 of file TYChemin.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

calcGroundAttenuationM()

OSpectreOctave TYChemin::calcGroundAttenuationM ( double  q, double  Gm  )

private

Definition at line 236 of file TYChemin.cpp.

Here is the caller graph for this function:

calcGroundAttenuations()

void TYChemin::calcGroundAttenuations ( double  distance, double  hs, double  hr, double  Gs, double  Gm, double  Gr  )

private

Definition at line 205 of file TYChemin.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

calcGroundAttenuationSR()

OSpectreOctave TYChemin::calcGroundAttenuationSR ( double  dp, double  h, double  G  )

private

Definition at line 223 of file TYChemin.cpp.

Here is the caller graph for this function:

computeBarAttenuation()

void TYChemin::computeBarAttenuation	(	const OSpectreOctave &	Dz,
		const bool	vertical,
		const bool	left
	)

\ brief compute barrier attenuation on the path

Definition at line 126 of file TYChemin.cpp.

get_ray() [1/2]

acoustic_path * TYChemin::get_ray

(

OPoint3D

ptR

)

Definition at line 196 of file TYChemin.cpp.

Here is the call graph for this function:

get_ray() [2/2]

acoustic_path* TYChemin::get_ray

(

OPoint3D

ptR

)

getAttenuation() [1/5]

OSpectreComplex & TYChemin::getAttenuation ( )

inline

Return the path attenuation.

const OSpectreComplex& getAttenuation()

Returns

_attenuation

Definition at line 134 of file TYChemin.h.

getAttenuation() [2/5]

OSpectreComplex& TYChemin::getAttenuation ( )

inline

Definition at line 83 of file TYChemin.h.

getAttenuation() [3/5]

const OSpectreOctave& TYChemin::getAttenuation ( ) const

inline

Definition at line 139 of file TYChemin.h.

getAttenuation() [4/5]

const OSpectreComplex& TYChemin::getAttenuation ( ) const

inline

Definition at line 87 of file TYChemin.h.

getAttenuation() [5/5]

OSpectreOctave & TYChemin::getAttenuation

(

TYTypeAttenuation

type

)

Definition at line 163 of file TYChemin.cpp.

Here is the caller graph for this function:

getDistance() [1/4]

double TYChemin::getDistance ( )

inline

Get/Set the distance between source and receptor.

const double getDistance() void setDistance(const double & distance)

Returns

_distance

Definition at line 188 of file TYChemin.h.

getDistance() [2/4]

double TYChemin::getDistance ( )

inline

Definition at line 129 of file TYChemin.h.

getDistance() [3/4]

const double TYChemin::getDistance ( ) const

inline

Definition at line 192 of file TYChemin.h.

getDistance() [4/4]

const double TYChemin::getDistance ( ) const

inline

Definition at line 133 of file TYChemin.h.

getLongueur() [1/4]

double TYChemin::getLongueur ( )

inline

Get/Set the path length.

const double getLongueur() void setLongueur(const double & longueur)

Returns

_longueur

Definition at line 166 of file TYChemin.h.

Here is the caller graph for this function:

getLongueur() [2/4]

double TYChemin::getLongueur ( )

inline

Definition at line 107 of file TYChemin.h.

getLongueur() [3/4]

const double TYChemin::getLongueur ( ) const

inline

Definition at line 170 of file TYChemin.h.

getLongueur() [4/4]

const double TYChemin::getLongueur ( ) const

inline

Definition at line 111 of file TYChemin.h.

getType() [1/2]

const TYTypeChemin TYChemin::getType ( ) const

inline

Definition at line 216 of file TYChemin.h.

Here is the caller graph for this function:

getType() [2/2]

int TYChemin::getType ( ) const

inline

Definition at line 159 of file TYChemin.h.

operator!=() [1/2]

bool TYChemin::operator!=

(

const TYChemin &

other

)

const

Operator !=.

Definition at line 82 of file TYChemin.cpp.

Here is the call graph for this function:

operator!=() [2/2]

bool TYChemin::operator!=

(

const TYChemin &

other

)

const

Operator !=.

operator=() [1/2]

TYChemin & TYChemin::operator=

(

const TYChemin &

other

)

Operator =.

Definition at line 39 of file TYChemin.cpp.

operator=() [2/2]

TYChemin& TYChemin::operator=

(

const TYChemin &

other

)

Operator =.

operator==() [1/2]

bool TYChemin::operator==

(

const TYChemin &

other

)

const

Operator ==.

Definition at line 53 of file TYChemin.cpp.

Here is the caller graph for this function:

operator==() [2/2]

bool TYChemin::operator==

(

const TYChemin &

other

)

const

Operator ==.

setAttenuation() [1/2]

void TYChemin::setAttenuation ( const OSpectreComplex &  att )

inline

Set the attenuation.

Definition at line 96 of file TYChemin.h.

setAttenuation() [2/2]

void TYChemin::setAttenuation ( const TYTypeAttenuation &  type, const OSpectreOctave &  att  )

inline

Definition at line 148 of file TYChemin.h.

setAttenuationBarWhenNoPath()

void TYChemin::setAttenuationBarWhenNoPath	(	bool	vertical,
		bool	left
	)

Set attenuation bar to max to traduce the lack of diffracted ray on this path.

Definition at line 168 of file TYChemin.cpp.

setDistance() [1/2]

void TYChemin::setDistance ( const double &  distance )

inline

Definition at line 197 of file TYChemin.h.

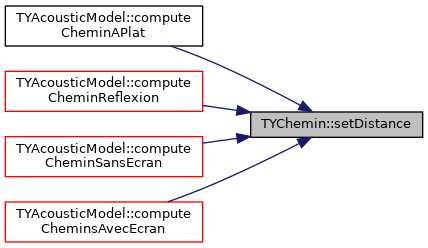

Here is the caller graph for this function:

setDistance() [2/2]

void TYChemin::setDistance ( const double &  distance )

inline

Definition at line 138 of file TYChemin.h.

setLongueur() [1/2]

void TYChemin::setLongueur ( const double &  longueur )

inline

Definition at line 175 of file TYChemin.h.

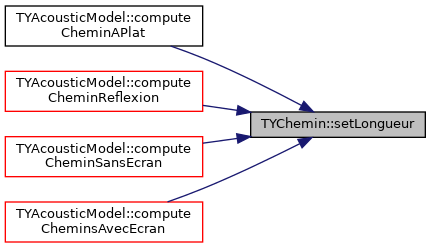

Here is the caller graph for this function:

setLongueur() [2/2]

void TYChemin::setLongueur ( const double &  longueur )

inline

Definition at line 116 of file TYChemin.h.

setType() [1/2]

void TYChemin::setType ( const int &  type )

inline

Change the path type.

Definition at line 147 of file TYChemin.h.

setType() [2/2]

void TYChemin::setType ( const TYTypeChemin &  type )

inline

Change the path type.

Definition at line 206 of file TYChemin.h.

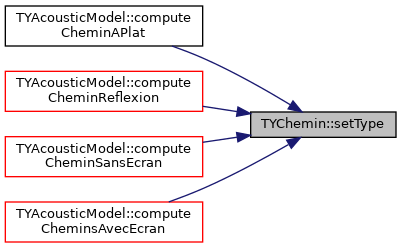

Here is the caller graph for this function:

Member Data Documentation

_attenuation [1/2]

OSpectreOctave TYChemin::_attenuation

protected

Definition at line 243 of file TYChemin.h.

_attenuation [2/2]

OSpectreComplex TYChemin::_attenuation

protected

Attenuation spectrum of the path.

Definition at line 182 of file TYChemin.h.

_attenuations

std::map<TYTypeAttenuation, OSpectreOctave> TYChemin::_attenuations

protected

Attenuations spectra of the path.

Definition at line 239 of file TYChemin.h.

_distance

double TYChemin::_distance

protected

Direct distance between source and receptor.

Definition at line 236 of file TYChemin.h.

_eq_path

acoustic_path * TYChemin::_eq_path

protected

Equivalent acoustic_path.

Definition at line 246 of file TYChemin.h.

_longueur

double TYChemin::_longueur

protected

Total path length.

Definition at line 233 of file TYChemin.h.

_typeChemin

TYTypeChemin TYChemin::_typeChemin

protected

Path type (has an influence on the algorithm)

Definition at line 230 of file TYChemin.h.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/solvers/9613Solver/TYChemin.h
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/solvers/9613Solver/TYChemin.cpp
