OGLElement Class Reference

#include <OGLElement.h>

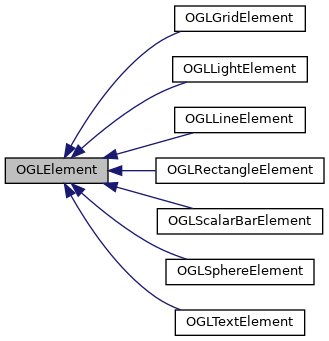

Inheritance diagram for OGLElement:

Public Member Functions
	OGLElement ()
virtual	~OGLElement ()
void	setDisplayPosition (double displayPositionX, double displayPositionY)
void	setVisibility (bool bVisible)
bool	getVisibility ()
void	setIs3D (bool bIs3D)
bool	getIs3D ()
virtual int	render ()

Protected Attributes
double	m_DisplayPositionX
double	m_DisplayPositionY
bool	m_bVisible
bool	m_bIs3D

Detailed Description

Classe de liste d'objets OGL a afficher

Definition at line 29 of file OGLElement.h.

Constructor & Destructor Documentation

OGLElement()

OGLElement::OGLElement ( )

inline

Constructeur.

Definition at line 35 of file OGLElement.h.

~OGLElement()

virtual OGLElement::~OGLElement ( )

inlinevirtual

Destructeur.

Definition at line 44 of file OGLElement.h.

Member Function Documentation

getIs3D()

bool OGLElement::getIs3D ( )

inline

Definition at line 63 of file OGLElement.h.

getVisibility()

bool OGLElement::getVisibility ( )

inline

Definition at line 55 of file OGLElement.h.

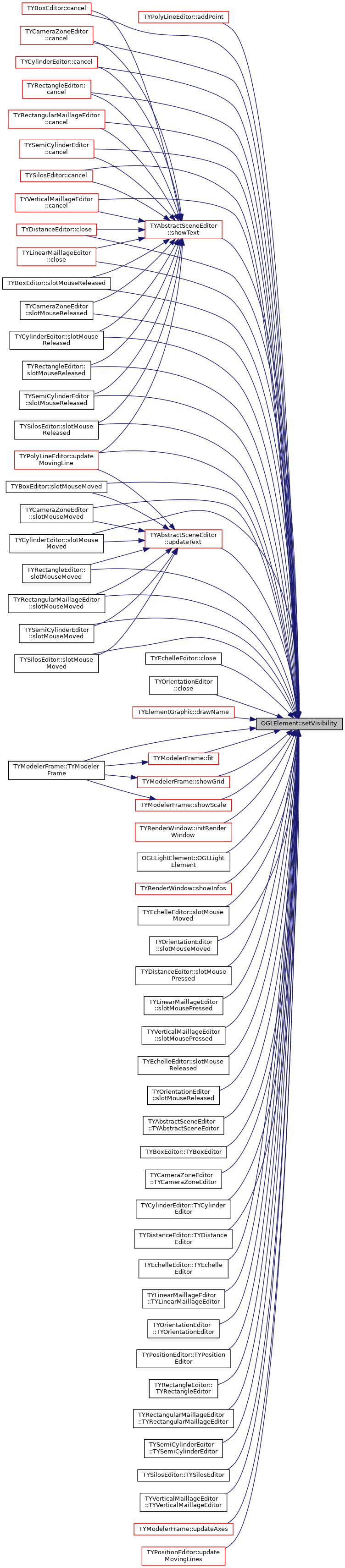

Here is the caller graph for this function:

render()

virtual int OGLElement::render ( )

inlinevirtual

Reimplemented in OGLTextElement, OGLSphereElement, OGLScalarBarElement, OGLRectangleElement, OGLLineElement, OGLLightElement, and OGLGridElement.

Definition at line 68 of file OGLElement.h.

setDisplayPosition()

void OGLElement::setDisplayPosition ( double  displayPositionX, double  displayPositionY  )

inline

Definition at line 46 of file OGLElement.h.

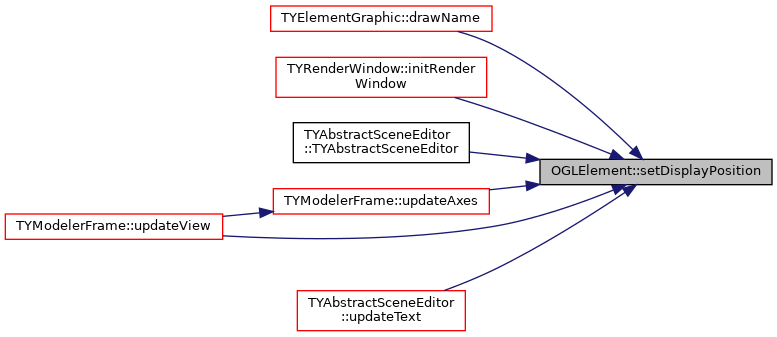

Here is the caller graph for this function:

setIs3D()

void OGLElement::setIs3D ( bool  bIs3D )

inline

Definition at line 59 of file OGLElement.h.

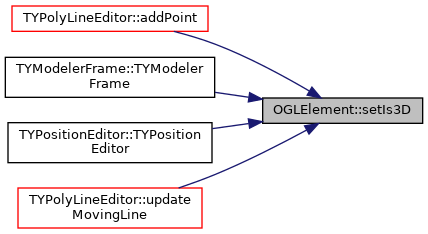

Here is the caller graph for this function:

setVisibility()

void OGLElement::setVisibility ( bool  bVisible )

inline

Definition at line 51 of file OGLElement.h.

Here is the caller graph for this function:

Member Data Documentation

m_bIs3D

bool OGLElement::m_bIs3D

protected

Definition at line 77 of file OGLElement.h.

m_bVisible

bool OGLElement::m_bVisible

protected

Definition at line 76 of file OGLElement.h.

m_DisplayPositionX

double OGLElement::m_DisplayPositionX

protected

Definition at line 74 of file OGLElement.h.

m_DisplayPositionY

double OGLElement::m_DisplayPositionY

protected

Definition at line 75 of file OGLElement.h.

---

The documentation for this class was generated from the following file:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/gui/tools/OGLElement.h
