Class Geometry utilities. More...

#include <3d.h>

Static Public Member Functions
static bool	intersDemiSegmentAvecSegment (const OPoint3D &ptS, const OPoint3D &ptA, const OPoint3D &ptB)
	Return true if the horizontal from the ptS point intersects the segment defined by ptA and ptB. More...

static int	intersDroitesPoints (const OPoint3D &ptA, const OPoint3D &ptB, const OPoint3D &ptC, const OPoint3D &ptD, OPoint3D &ptI)
	Calculate the intersection between two lines each defined by two points. More...

static int	intersDroitesPointVecteur (const OPoint3D &ptA, const OVector3D &vecA, const OPoint3D &ptB, const OVector3D &vecB, OPoint3D &ptI)
	Calculate the intersection between two lines each defined by a point and a vector. More...

static double	symPointDroite (const OPoint3D &ptA, const OPoint3D &ptB, const OPoint3D &ptP, OPoint3D &ptI)
	Calculate the symmetrical of a point with respect to a line (defined by two points). More...

static bool	pointInPolygonAngleSum (const OPoint3D &ptP, const OPoint3D *pts, int nbPts)
	Tests if a point is inside a polygon using angle sum algorithm. More...

static bool	pointInPolygonRayCasting (const OPoint3D &ptP, const OPoint3D *pts, int nbPts)
	Tests if a point is inside a polygon using ray casting algorithm. More...

static bool	shortestSegBetween2Lines (const OPoint3D &pt1, const OPoint3D &pt2, const OPoint3D &pt3, const OPoint3D &pt4, OPoint3D &ptA, OPoint3D &ptB, double mua, double mub)
	Calculates the line segment PaPb that is the shortest route between two lines P1P2 and P3P4. More...

static void	boundingBox (OPoint3D *pts, int nbPts, OPoint3D &ptMin, OPoint3D &ptMax)
	Computes the simple bounding box for a volume using min-max method. More...

static void	computeNormal (OPoint3D *pts, int nbPts, OVector3D &normal)
	Computes the normal of the list of points. More...

Detailed Description

Class Geometry utilities.

Definition at line 932 of file 3d.h.

Member Function Documentation

◆ boundingBox()

static void OGeometrie::boundingBox	(	OPoint3D *	pts,
		int	nbPts,
		OPoint3D &	ptMin,
		OPoint3D &	ptMax
	)

static

Computes the simple bounding box for a volume using min-max method.

Parameters

pts	An array of points defining the volume.
nbPts	The size of the previous array.
ptMin	The point with minimal values in X, Y and Z.
ptMax	The point with maximal values in X, Y and Z.

Definition at line 1109 of file 3d.cpp.

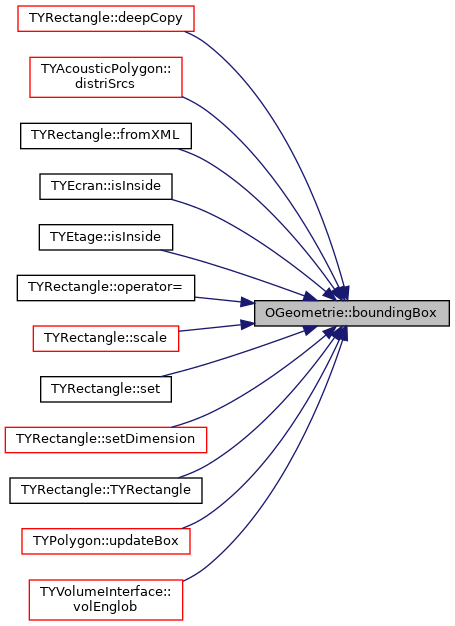

Here is the caller graph for this function:

◆ computeNormal()

static void OGeometrie::computeNormal	(	OPoint3D *	pts,
		int	nbPts,
		OVector3D &	normal
	)

static

Computes the normal of the list of points.

Parameters

pts	An array of the points defining the volume.
nbPts	The size of the previous array.
normal	The resulting normal.

Definition at line 1147 of file 3d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersDemiSegmentAvecSegment()

static bool OGeometrie::intersDemiSegmentAvecSegment	(	const OPoint3D &	ptS,
		const OPoint3D &	ptA,
		const OPoint3D &	ptB
	)

static

Return true if the horizontal from the ptS point intersects the segment defined by ptA and ptB.

Parameters

ptS	The point of the half segment.
ptA	The first point of the segment.
ptB	The second point of the segment.

Returns: true if intersection exists, false if not.

Definition at line 915 of file 3d.cpp.

Here is the caller graph for this function:

◆ intersDroitesPoints()

static int OGeometrie::intersDroitesPoints	(	const OPoint3D &	ptA,
		const OPoint3D &	ptB,
		const OPoint3D &	ptC,
		const OPoint3D &	ptD,
		OPoint3D &	ptI
	)

static

Calculate the intersection between two lines each defined by two points.

Parameters

ptA	A point of the first line.
ptB	A second point of the first line.
ptC	A point of the second line.
ptD	A second point of the second line.
ptI	The intersection point.

Returns: INTERS_OUI (1) if intersection exists, INTERS_NULLE (0) if not.

Definition at line 938 of file 3d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersDroitesPointVecteur()

static int OGeometrie::intersDroitesPointVecteur	(	const OPoint3D &	ptA,
		const OVector3D &	vecA,
		const OPoint3D &	ptB,
		const OVector3D &	vecB,
		OPoint3D &	ptI
	)

static

Calculate the intersection between two lines each defined by a point and a vector.

Parameters

ptA	Point of the first line.
vecA	Vector for the first line.
ptB	Point of the second line.
vecB	Vector for the second line.
ptI	The intersection point.

Returns: INTERS_OUI (1) if intersection exists, INTERS_NULLE (0) if not.

Definition at line 977 of file 3d.cpp.

Here is the call graph for this function:

◆ pointInPolygonAngleSum()

static bool OGeometrie::pointInPolygonAngleSum	(	const OPoint3D &	ptP,
		const OPoint3D *	pts,
		int	nbPts
	)

static

Tests if a point is inside a polygon using angle sum algorithm.

This solution was motivated by solution which consists to compute the sum of the angles made between the test point and each pair of points making up the polygon and correspondence with Reinier van Vliet and Remco Lam. If this sum is 2pi then the point is an interior point, if 0 then the point is an exterior point. To determine whether a point is on the interior of a convex polygon in 3D one might be tempted to first determine whether the point is on the plane, then determine it's interior status. Both of these can be accomplished at once by computing the sum of the angles between the test point (ptP) and every pair of edge points pts[i]->pts[i+1]. This sum will only be 2pi if both the point is on the plane of the polygon AND on the interior. The angle sum will tend to 0 the further away from the polygon point ptP becomes.

Parameters

ptP	The point.
pts	An array containing the polygon points.
nbPts	The size of the previous array (size should be >= 3).

Returns: true if the point is inside the polygon, false otherwise.

Definition at line 1016 of file 3d.cpp.

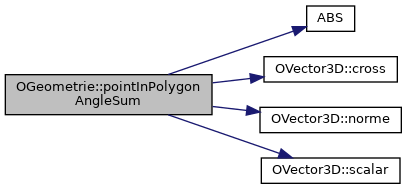

Here is the call graph for this function:

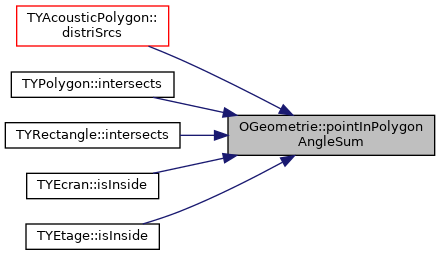

Here is the caller graph for this function:

◆ pointInPolygonRayCasting()

static bool OGeometrie::pointInPolygonRayCasting	(	const OPoint3D &	ptP,
		const OPoint3D *	pts,
		int	nbPts
	)

static

Tests if a point is inside a polygon using ray casting algorithm.

Parameters

ptP	The point.
pts	An array containing the polygon points.
nbPts	The size of the previous array (size should be >= 3).

Returns: true if the point is inside the polygon, false otherwise.

Definition at line 1046 of file 3d.cpp.

Here is the call graph for this function:

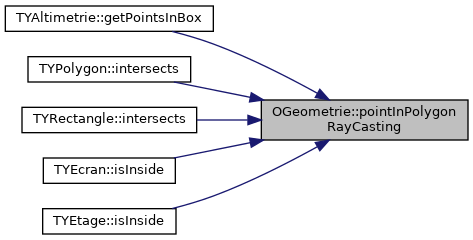

Here is the caller graph for this function:

◆ shortestSegBetween2Lines()

static bool OGeometrie::shortestSegBetween2Lines	(	const OPoint3D &	pt1,
		const OPoint3D &	pt2,
		const OPoint3D &	pt3,
		const OPoint3D &	pt4,
		OPoint3D &	ptA,
		OPoint3D &	ptB,
		double *	mua,
		double *	mub
	)

static

Calculates the line segment PaPb that is the shortest route between two lines P1P2 and P3P4.

Calculates also the values of mua and mub where: Pa = P1 + mua (P2 - P1) Pb = P3 + mub (P4 - P3)

Remark: The values of mua and mub range from negative to positive infinity. The line segments between P1 P2 and P3 P4 have their corresponding mu between 0 and 1.

Parameters

pt1	A 1st point on the 1st line.
pt2	A 2nd point on the 1st line.
pt3	A 1st point on the 2nd line.
pt4	A 2nd point on the 2nd line.
ptA	The 1st point of the resulting segment.
ptB	The 2nd point of the resulting segment.
mua	The mua value result.
mub	The mub value result.

Returns: false if no solution exists, true otherwise.

Definition at line 1063 of file 3d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ symPointDroite()

static double OGeometrie::symPointDroite	(	const OPoint3D &	ptA,
		const OPoint3D &	ptB,
		const OPoint3D &	ptP,
		OPoint3D &	ptI
	)

static

Calculate the symmetrical of a point with respect to a line (defined by two points).

Parameters

ptA	A point of the first line.
ptB	A second point of the first line.
ptP	The point we want the symmetrical
ptI	The symmetrical point.

Returns: The k coefficient (between 0 and 1 if the segment [ptP ptI] intersects the segment [ptA ptB]).

Definition at line 987 of file 3d.cpp.

Here is the caller graph for this function:
