The 3D vector class. More...

#include <3d.h>

Inheritance diagram for OVector3D:

Collaboration diagram for OVector3D:

Public Member Functions
	OVector3D ()
	Default constructor. More...

	OVector3D (const OVector3D &vector)
	Copy constructor. More...

	OVector3D (const OCoord3D &coord)
	Constructs a new vector from a 3D coordinate. Works like the copy constructor. More...

	OVector3D (const OCoord3D &coordFrom, const OCoord3D &coordTo)
	Constructs a new vector from 2 coordinates. More...

	OVector3D (double x, double y, double z)
	Constructs a new vector from 3 doubles. More...

virtual	~OVector3D ()
	Destructor. More...

void	reset ()
	Reset this vector. More...

OVector3D &	operator= (const OVector3D &vector)
	operators More...

bool	operator== (const OVector3D &vector) const

bool	operator!= (const OVector3D &vector) const

OVector3D	operator+ (const OVector3D &vector) const

OVector3D	operator- (const OVector3D &vector) const

OVector3D	operator* (const OVector3D &vector) const

OVector3D	operator* (const double a) const
	Multiplication with a scalar (commutative). More...

double	dot (const OVector3D &v)
	dot product (assuming an orthonormal reference frame) More...

OVector3D	cross (const OVector3D &vector) const
	Cross product. More...

void	balance (double c1, const OVector3D &vector2, double c2)
	Balances this vector. More...

double	scalar (const OVector3D &vector) const
	Performs the scalar product between this object and another vector. More...

double	norme () const
	Computes the length of this vector. More...

OVector3D	normal (const OVector3D &vector2, const OVector3D &vector3) const
	Computes the normal with this vector and 2 others. More...

void	normalize ()
	Normalizes this vector. More...

void	invert ()
	Inverts this vector. More...

double	angle (const OVector3D &vector) const
	Computes the angle between this vector and another vector. More...

OVector3D	getRotationOz (double alpha)
	Returns the vector after a rotation around z axis \ x -> xprime. Both of these vectors will be given in the \ original base. More...

OVector3D	getRotationOzBase2 (double alpha)
	Returns the vector after a rotation around z axis \ and gives back the coordinates of xprime or yprime in the \ new basis Bprime. More...

OVector3D	getRotationOy (double alpha)
	Returns the vector after a rotation around z axis. More...

OVector3D	getRotationOyBase2 (double alpha)
	Returns the vector after a rotation around y axis \ and gives back the coordinates of xprime or zprime in the \ new basis Bprime. More...

OVector3D	getRotationOzOy (double alpha, double theta)
	Returns the vector after 2 rotations around z axis and y axis. It gives the coordinates of xsecond, ysecond and zsecond in the first basis B. More...

Public Member Functions inherited from OCoord3D
	OCoord3D ()
	Default constructor. More...

	OCoord3D (const OCoord3D &coord)
	Copy constructor. More...

	OCoord3D (double x, double y, double z)
	Constructor with 3D point coordinates. More...

virtual	~OCoord3D ()
	Destructor. More...

OCoord3D &	operator= (const OCoord3D &coord)
	operator= More...

bool	operator== (const OCoord3D &coord) const
	operator== More...

bool	operator!= (const OCoord3D &coord) const
	operator!= More...

void	setCoords (double x, double y, double z)
	Sets the coordinates as an array of double. More...

void	setCoords (double coords[3])
	Sets the coordinates as an array of double. More...

void	getCoords (double coords[3])
	Gets the coordinates as an array of double. More...

double *	getCoords ()
	Gets the coordinates as an array of double. More...

	operator const double * () const

	operator double * ()

Friends
OVector3D	operator* (const double a, const OVector3D &vector)
	Multiplication with a scalar (commutative). More...

Additional Inherited Members
Public Attributes inherited from OCoord3D
union {
struct {
double _x
	x coordinate of OCoord3D More...

double _y
	y coordinate of OCoord3D More...

double _z
	z coordinate of OCoord3D More...

}

double _value [3]

};

Detailed Description

The 3D vector class.

Definition at line 297 of file 3d.h.

Constructor & Destructor Documentation

◆ OVector3D() [1/5]

OVector3D::OVector3D ( )

Default constructor.

Definition at line 113 of file 3d.cpp.

◆ OVector3D() [2/5]

OVector3D::OVector3D ( const OVector3D & vector )

Copy constructor.

Definition at line 115 of file 3d.cpp.

◆ OVector3D() [3/5]

OVector3D::OVector3D ( const OCoord3D & coord )

Constructs a new vector from a 3D coordinate. Works like the copy constructor.

Parameters

coord A 3D coordinate.

Definition at line 117 of file 3d.cpp.

◆ OVector3D() [4/5]

OVector3D::OVector3D	(	const OCoord3D &	coordFrom,
		const OCoord3D &	coordTo
	)

Constructs a new vector from 2 coordinates.

Parameters

coordFrom	The 1st coordinate.
coordTo	The 2nd coordinate.

Definition at line 119 of file 3d.cpp.

◆ OVector3D() [5/5]

OVector3D::OVector3D	(	double	x,
		double	y,
		double	z
	)

Constructs a new vector from 3 doubles.

Parameters

x	X coordinate.
y	Y coordinate.
z	Z coordinate.

Definition at line 126 of file 3d.cpp.

◆ ~OVector3D()

OVector3D::~OVector3D ( )

virtual

Destructor.

Definition at line 128 of file 3d.cpp.

Member Function Documentation

◆ angle()

double OVector3D::angle ( const OVector3D & vector ) const

Computes the angle between this vector and another vector.

Parameters

vector The vector to mesure the angle with this vector.

Definition at line 243 of file 3d.cpp.

Here is the call graph for this function:

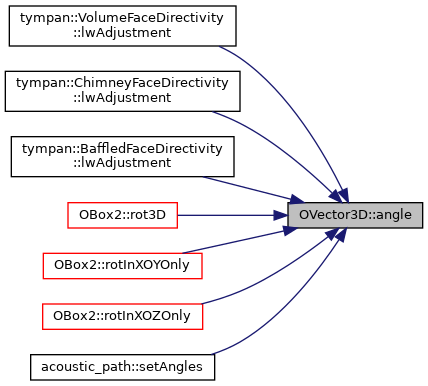

Here is the caller graph for this function:

◆ balance()

void OVector3D::balance	(	double	c1,
		const OVector3D &	vector2,
		double	c2
	)

Balances this vector.

Parameters

c1	The balance value for this vector.
vector2	The other member for the balance.
c2	The balance value for the second vector.

Definition at line 205 of file 3d.cpp.

◆ cross()

OVector3D OVector3D::cross ( const OVector3D & vector ) const

Cross product.

Parameters

vector The object reference with which this object is multiplicated.

Returns: The result of the cross product.

Definition at line 196 of file 3d.cpp.

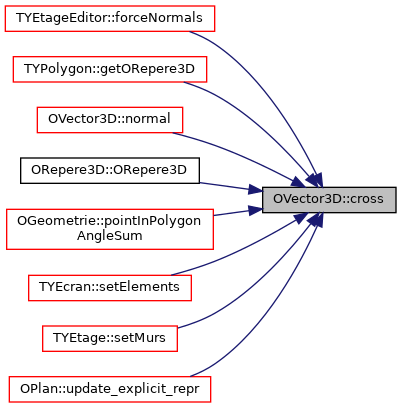

Here is the caller graph for this function:

◆ dot()

double OVector3D::dot ( const OVector3D & v )

inline

dot product (assuming an orthonormal reference frame)

Definition at line 362 of file 3d.h.

Here is the caller graph for this function:

◆ getRotationOy()

OVector3D OVector3D::getRotationOy ( double alpha )

Returns the vector after a rotation around z axis.

Definition at line 267 of file 3d.cpp.

Here is the caller graph for this function:

◆ getRotationOyBase2()

OVector3D OVector3D::getRotationOyBase2 ( double alpha )

Returns the vector after a rotation around y axis \ and gives back the coordinates of xprime or zprime in the \ new basis Bprime.

Definition at line 293 of file 3d.cpp.

◆ getRotationOz()

OVector3D OVector3D::getRotationOz ( double alpha )

Returns the vector after a rotation around z axis \ x -> xprime. Both of these vectors will be given in the \ original base.

Definition at line 254 of file 3d.cpp.

Here is the caller graph for this function:

◆ getRotationOzBase2()

OVector3D OVector3D::getRotationOzBase2 ( double alpha )

Returns the vector after a rotation around z axis \ and gives back the coordinates of xprime or yprime in the \ new basis Bprime.

Definition at line 280 of file 3d.cpp.

Here is the caller graph for this function:

◆ getRotationOzOy()

OVector3D OVector3D::getRotationOzOy	(	double	alpha,
		double	theta
	)

Returns the vector after 2 rotations around z axis and y axis. It gives the coordinates of xsecond, ysecond and zsecond in the first basis B.

Definition at line 306 of file 3d.cpp.

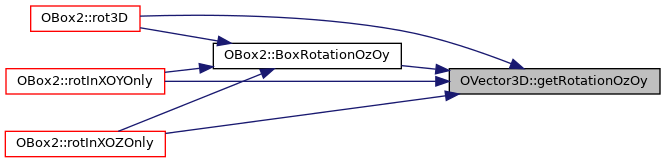

Here is the caller graph for this function:

◆ invert()

void OVector3D::invert ( )

Inverts this vector.

Definition at line 236 of file 3d.cpp.

◆ normal()

OVector3D OVector3D::normal	(	const OVector3D &	vector2,
		const OVector3D &	vector3
	)		const

Computes the normal with this vector and 2 others.

Returns: The normal.

Definition at line 220 of file 3d.cpp.

Here is the call graph for this function:

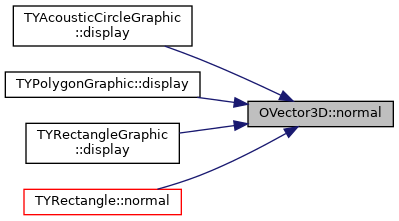

Here is the caller graph for this function:

◆ normalize()

void OVector3D::normalize ( )

Normalizes this vector.

Definition at line 225 of file 3d.cpp.

Here is the call graph for this function:

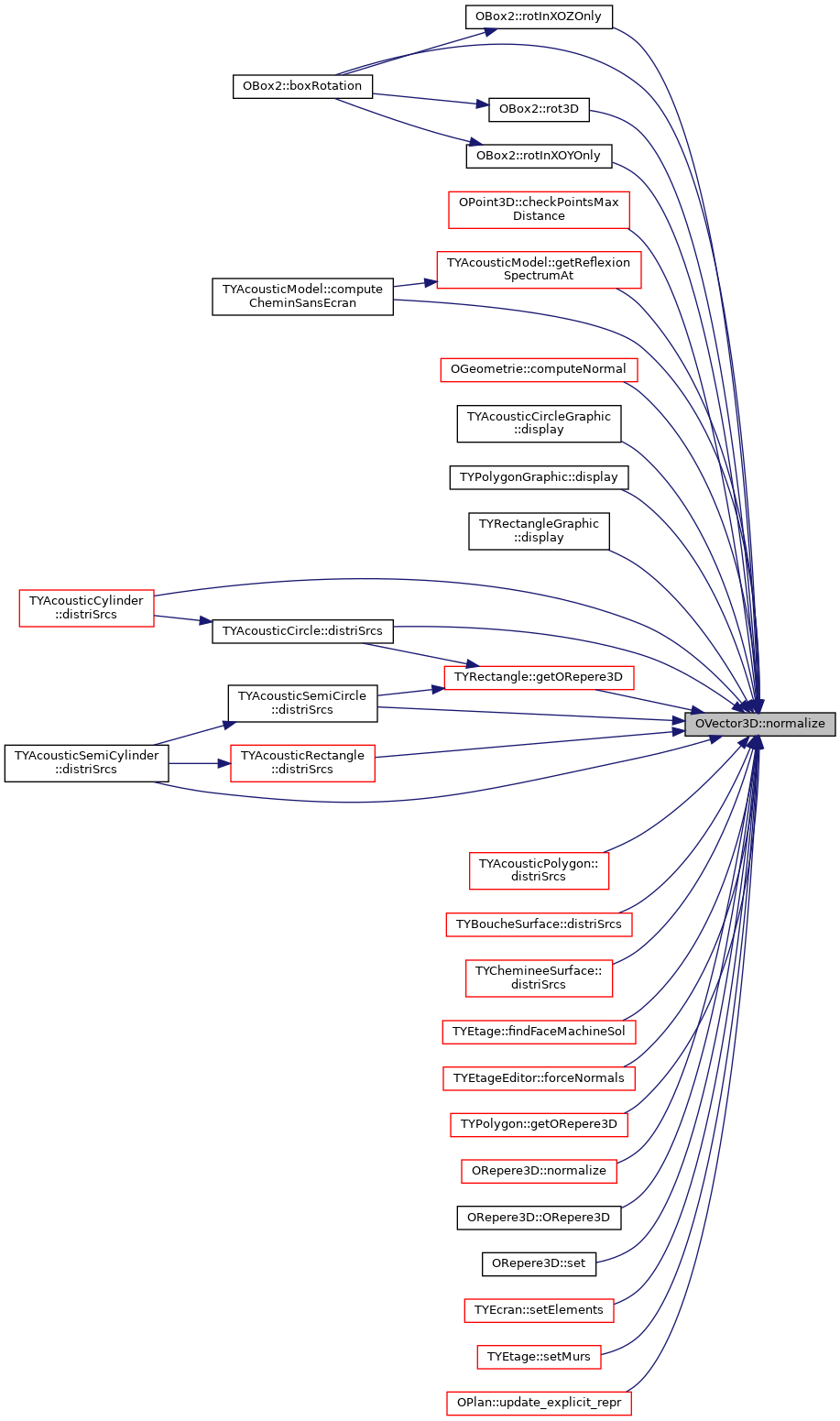

Here is the caller graph for this function:

◆ norme()

double OVector3D::norme ( ) const

Computes the length of this vector.

Returns: The length of this vector.

Definition at line 215 of file 3d.cpp.

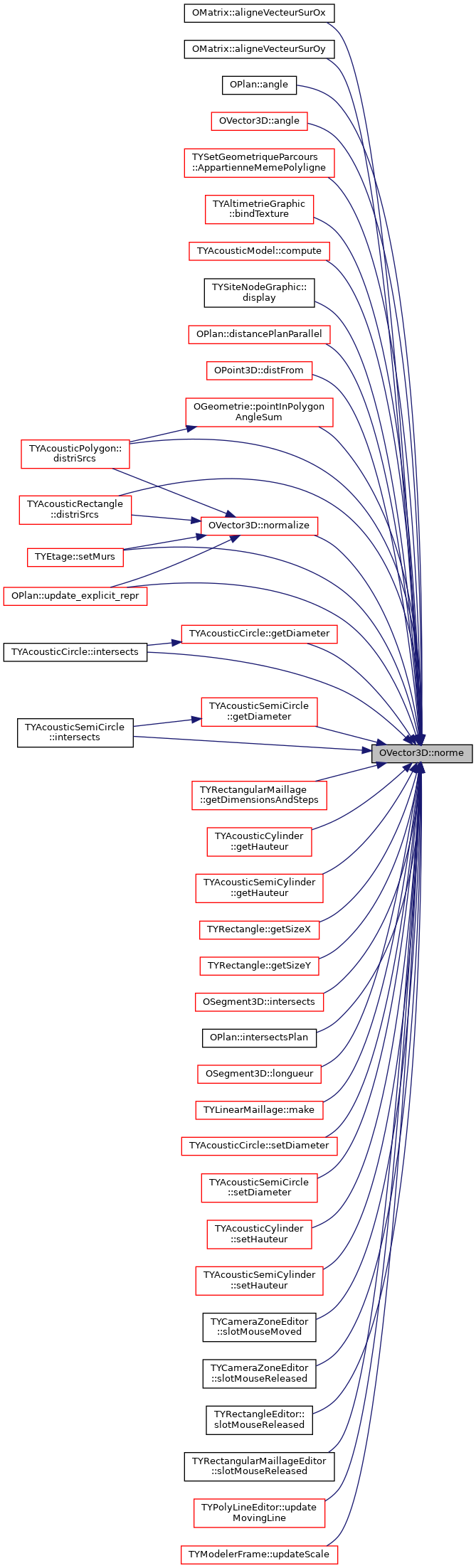

Here is the caller graph for this function:

◆ operator!=()

bool OVector3D::operator!= ( const OVector3D & vector ) const

Definition at line 148 of file 3d.cpp.

Here is the call graph for this function:

◆ operator*() [1/2]

OVector3D OVector3D::operator* ( const double a ) const

Multiplication with a scalar (commutative).

Parameters

a	A scalar value.

Definition at line 181 of file 3d.cpp.

◆ operator*() [2/2]

OVector3D OVector3D::operator* ( const OVector3D & vector ) const

Definition at line 171 of file 3d.cpp.

◆ operator+()

OVector3D OVector3D::operator+ ( const OVector3D & vector ) const

Definition at line 153 of file 3d.cpp.

◆ operator-()

OVector3D OVector3D::operator- ( const OVector3D & vector ) const

Definition at line 162 of file 3d.cpp.

◆ operator=()

OVector3D & OVector3D::operator= ( const OVector3D & vector )

operators

Definition at line 137 of file 3d.cpp.

Here is the call graph for this function:

◆ operator==()

bool OVector3D::operator== ( const OVector3D & vector ) const

Definition at line 143 of file 3d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

void OVector3D::reset ( )

Reset this vector.

Definition at line 130 of file 3d.cpp.

◆ scalar()

double OVector3D::scalar ( const OVector3D & vector ) const

Performs the scalar product between this object and another vector.

Parameters

vector The other member for the scalar product.

Returns: The result of the scalar product.

Definition at line 210 of file 3d.cpp.

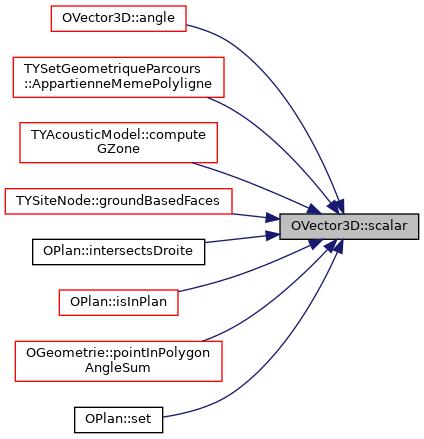

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator*

OVector3D operator*	(	const double	a,
		const OVector3D &	vector
	)

friend

Multiplication with a scalar (commutative).

Parameters

a	A scalar value.
vector	Vector to multiply.

Definition at line 187 of file 3d.cpp.
