#include <spectre.h>

Inheritance diagram for OSpectre:

[legend]

Collaboration diagram for OSpectre:

Public Member Functions
	OSpectre ()
	Default constructor, the spectrum module is defined by the _defaultValue. More...

	OSpectre (double defaultValue)
	Constructor, the spectrum module is defined by the defaultValue given in parameter. More...

	OSpectre (const OSpectre &other)
	Copy constructor. More...

	OSpectre (const OSpectreAbstract &other)
	Copy constructor from OSpectreAbstract. More...

	OSpectre (const double *valeurs, unsigned nbVal, unsigned decalage)
	Constructor from an array (needed for the Harmonoise model) More...

virtual	~OSpectre ()
	Destructor. More...

OSpectre &	operator= (const OSpectre &other)
	operator= More...

OSpectreAbstract &	operator= (const OSpectreAbstract &other) override
	operator= More...

virtual bool	operator== (const OSpectre &other) const
	operator== More...

virtual bool	operator!= (const OSpectre &other) const
	operator != More...

double *	getTabValReel () override

const double *	getTabValReel () const override

OSpectreAbstract *	getConcreteInstance () const override
	Return an instance of a concrete class of the same type as current. More...

void	setValue (const double &freq, const double &reel=0.0)

double	getValueReal (double freq)

bool	isTonalite () const
	Existence d'une tonalite marquee. More...

Public Member Functions inherited from OSpectreAbstract
	OSpectreAbstract ()
	Methods. More...

	OSpectreAbstract (TYSpectreForm form)

	OSpectreAbstract (bool isValid, TYSpectreType type, TYSpectreEtat etat, TYSpectreForm form)

virtual bool	operator== (const OSpectreAbstract &other) const
	operator== More...

virtual bool	operator!= (const OSpectreAbstract &other) const
	operator != More...

OSpectreAbstract &	operator+ (const double &valeur) const
	Add a constant value to all the spectrum. More...

OSpectreAbstract &	operator+ (const OSpectreAbstract &spectre) const
	Arithmetic sum of two spectrums in one-third Octave. More...

OSpectreAbstract &	operator- (const OSpectreAbstract &spectre) const
	Arithmetic subtraction of two spectrums in one-third Octave. More...

OSpectreAbstract &	operator* (const OSpectreAbstract &spectre) const
	Multiplication by a Spectre spectrum. More...

OSpectreAbstract &	operator* (const double &coefficient) const
	Multiplication by a double coefficient. More...

OSpectreAbstract &	sumdB (const OSpectreAbstract &spectre) const
	Energetic sum of two spectrums. More...

void	setDefaultValue (const double &valeur=TY_SPECTRE_DEFAULT_VALUE)

bool	isValid () const
	Check the spectrum validity. Invalidity is caused by: corrupted data, impossible calculation. More...

void	setValid (const bool &valid=true)

TYSpectreType	getType () const
	Get the spectrum type. More...

void	setType (TYSpectreType type)
	Set the spectrum type. More...

TYSpectreEtat	getEtat () const
	Get the spectrum state. More...

const TYSpectreEtat	getEtat ()

void	setEtat (TYSpectreEtat etat)
	Force the spectrum state (to use carefully ...) More...

TYSpectreForm	getForm () const
	Get the spectrum form. More...

void	setForm (TYSpectreForm form)
	Force the spectrum state (to use carefully ...) More...

unsigned int	getNbValues () const
	Number of values in the spectrum. More...

void	setDefaultValue (double module[], const unsigned int spectreNbElmt=TY_SPECTRE_DEFAULT_NB_ELMT, const double &valeur=TY_SPECTRE_DEFAULT_VALUE)

void	getRangeValueReal (double *valeurs, const short &nbVal, const short &decalage)

OSpectreAbstract &	sum (const OSpectreAbstract &spectre) const
	Arithmetic sum of two spectrums in one-third Octave. More...

OSpectreAbstract &	sum (const double &value) const
	Arithmetic sum of a spectrum and a double scalar. More...

OSpectreAbstract &	mult (const OSpectreAbstract &spectre) const
	Multiplication of two spectrums. More...

OSpectreAbstract &	mult (const double &coefficient) const
	Multiply this spectrum par a double scalar. More...

OSpectreAbstract &	div (const OSpectreAbstract &spectre) const
	Division of two spectrums. More...

OSpectreAbstract &	div (const double &coefficient) const
	Division of this spectrum by a double scalar. More...

OSpectreAbstract &	subst (const OSpectreAbstract &spectre) const
	Arithmetic subtraction of two spectrums in one-third Octave. More...

OSpectreAbstract &	subst (const double &valeur) const
	Subtract a constant value to this spectrum. More...

OSpectreAbstract &	invMult (const double &coefficient=1.0) const
	Division of a double constant by this spectrum. More...

OSpectreAbstract &	inv () const
	Division of one by this spectrum. More...

OSpectreAbstract &	power (const double &puissance) const
	Return a spectrum as this spectrum raised to a double power. More...

OSpectreAbstract &	log (const double &base=10.0) const
	Compute the log base n of this spectrum (n=10 by default). More...

OSpectreAbstract &	racine () const
	Compute the root square of this spectrum. More...

OSpectreAbstract &	exp (const double coef=1.0)
	Compute e^(coef * spectre) of this spectrum. More...

OSpectreAbstract &	sin () const
	Compute the sin of this spectrum. More...

OSpectreAbstract &	cos () const
	Compute the cos of this spectrum. More...

OSpectreAbstract &	abs () const
	Return the absolute value of this spectrum. More...

OSpectreAbstract &	sqrt () const
	Return the root square of a spectrum. More...

double	valMax ()
	Return the maximum value of a spectrum. More...

OSpectreAbstract &	seuillage (const double &min=-200.0, const double max=200.0)
	Limit the spectrum values (min and max) More...

double	sigma ()
	Sum the values of the spectrum. More...

const double	sigma () const

OSpectreAbstract &	toDB () const
	Converts to dB. More...

OSpectreAbstract &	toGPhy () const
	Converts to physical quantity. More...

double	valGlobDBLin () const
	Compute the global value dB[Lin] of a one-third Octave spectrum. More...

double	valGlobDBA () const
	Compute the global value dB[A] of a one-third Octave spectrum. More...

OSpectreAbstract &	toTOct () const
	Converts to one-third Octave. More...

OSpectreAbstract &	toOct () const
	Converts to Octave. More...

OSpectreAbstract &	round ()

virtual void	printme () const
	Print the spectrum. More...

Static Public Member Functions
static OSpectre	getEmptyLinSpectre (const double &valInit=1.0E-20)
	Create a physical quantity spectrum. More...

static OSpectre	makeOctSpect ()
	Make a spectrum in Octave. More...

static int	getIndice (const double &freq)
	Return the index associated to a frequency. More...

static void	setFMin (const double &fMin)
	Define minimal frequency. More...

static void	setFMax (const double &fMax)
	Define maximal frequency. More...

static OTabFreq	getTabFreqExact ()

static OSpectre	getOSpectreFreqExact ()
	Return the spectrum of the exact frequencies. More...

static std::map< double, int >	setMapFreqIndice ()
	Construction du tableau frequence/indice. More...

static OSpectre	pondA ()
	Build a weighted spectrum A. More...

static OSpectre	pondB ()
	Build a weighted spectrum B. More...

static OSpectre	pondC ()
	Build a weighted spectrum C. More...

static OSpectre	getLambda (const double &c)

Static Public Member Functions inherited from OSpectreAbstract
static OSpectreAbstract &	makeOctSpect ()
	Make a spectrum in Octave. More...

Protected Attributes
double	_module [TY_SPECTRE_DEFAULT_NB_ELMT]
	Real values array for module. More...

Protected Attributes inherited from OSpectreAbstract
bool	_valid
	Spectrum validity. More...

TYSpectreType	_type
	Spectrum type. More...

TYSpectreEtat	_etat
	Spectrum state (physical quantity or dB). More...

TYSpectreForm	_form
	Representation of the spectrum: one-third Octave, Octave, constant delta f, unstructured. More...

Static Protected Attributes
static const double	_freqNorm []
	Array of center frequencies (Hz) normalized in one-third Octave. More...

static double	_fMin = 16
	Minimal frequency. More...

static double	_fMax = 16000
	Maximal frequency. More...

static std::map< double, int >	_mapFreqIndice = setMapFreqIndice()
	Mapping between frequency and array index. More...

Static Protected Attributes inherited from OSpectreAbstract
static double	_defaultValue = TY_SPECTRE_DEFAULT_VALUE
	Default value for the spectrum. More...

Detailed Description

Definition at line 324 of file spectre.h.

Constructor & Destructor Documentation

◆ OSpectre() [1/5]

OSpectre::OSpectre ( )

Default constructor, the spectrum module is defined by the _defaultValue.

Definition at line 838 of file spectre.cpp.

Here is the caller graph for this function:

◆ OSpectre() [2/5]

OSpectre::OSpectre ( double defaultValue )

Constructor, the spectrum module is defined by the defaultValue given in parameter.

Definition at line 846 of file spectre.cpp.

◆ OSpectre() [3/5]

OSpectre::OSpectre ( const OSpectre & other )

Copy constructor.

Definition at line 870 of file spectre.cpp.

◆ OSpectre() [4/5]

OSpectre::OSpectre ( const OSpectreAbstract & other )

Copy constructor from OSpectreAbstract.

Definition at line 875 of file spectre.cpp.

◆ OSpectre() [5/5]

OSpectre::OSpectre	(	const double *	valeurs,
		unsigned	nbVal,
		unsigned	decalage
	)

Constructor from an array (needed for the Harmonoise model)

Parameters

valeurs	Array of values per frequency
nbVal	Array size
decalage	Frequency offset relative to the standard band TYMPAN (16-16000)

Definition at line 854 of file spectre.cpp.

◆ ~OSpectre()

OSpectre::~OSpectre ( )

virtual

Destructor.

Definition at line 880 of file spectre.cpp.

Member Function Documentation

◆ getConcreteInstance()

OSpectreAbstract * OSpectre::getConcreteInstance ( ) const

overridevirtual

Return an instance of a concrete class of the same type as current.

Implements OSpectreAbstract.

Definition at line 948 of file spectre.cpp.

Here is the call graph for this function:

◆ getEmptyLinSpectre()

OSpectre OSpectre::getEmptyLinSpectre ( const double & valInit = 1.0E-20 )

static

Create a physical quantity spectrum.

Definition at line 1115 of file spectre.cpp.

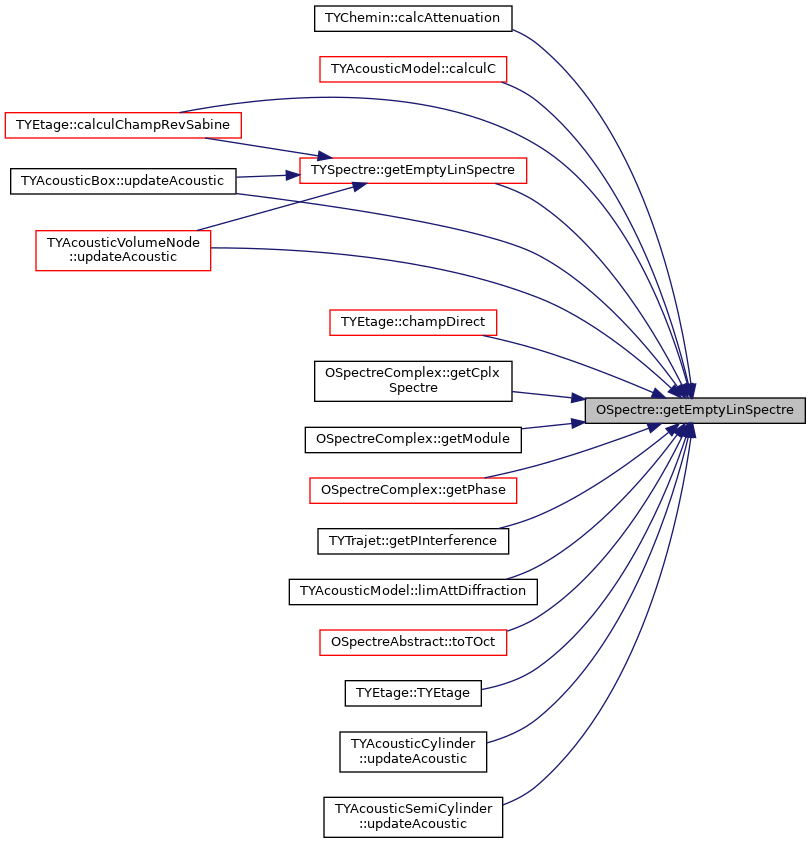

Here is the caller graph for this function:

◆ getIndice()

static int OSpectre::getIndice ( const double & freq )

inlinestatic

Return the index associated to a frequency.

Definition at line 397 of file spectre.h.

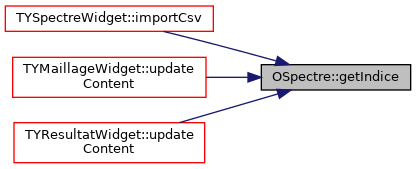

Here is the caller graph for this function:

◆ getLambda()

OSpectre OSpectre::getLambda ( const double & c )

static

Return a spectrum representating the wavelength associated to each frequency

Parameters

c	Wave propagating speed

Returns: An OSpectre

Definition at line 1062 of file spectre.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getOSpectreFreqExact()

OSpectre OSpectre::getOSpectreFreqExact ( )

static

Return the spectrum of the exact frequencies.

Returns: An OSpectre

Definition at line 989 of file spectre.cpp.

◆ getTabFreqExact()

OTabFreq OSpectre::getTabFreqExact ( )

static

Return the array of exact frequencies. The calling method should free the allocated memory for this array.

Returns: The array of exact frequencies.

Definition at line 979 of file spectre.cpp.

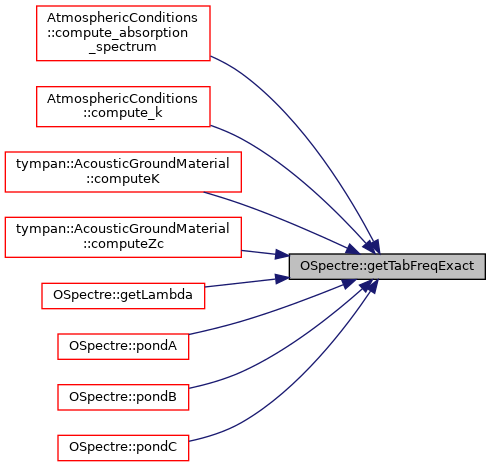

Here is the caller graph for this function:

◆ getTabValReel() [1/2]

const double* OSpectre::getTabValReel ( ) const

inlineoverridevirtual

Implements OSpectreAbstract.

Definition at line 360 of file spectre.h.

◆ getTabValReel() [2/2]

double* OSpectre::getTabValReel ( )

inlineoverridevirtual

XXX These are the modulus to put into the solver model. Get the array of real values

Implements OSpectreAbstract.

Definition at line 356 of file spectre.h.

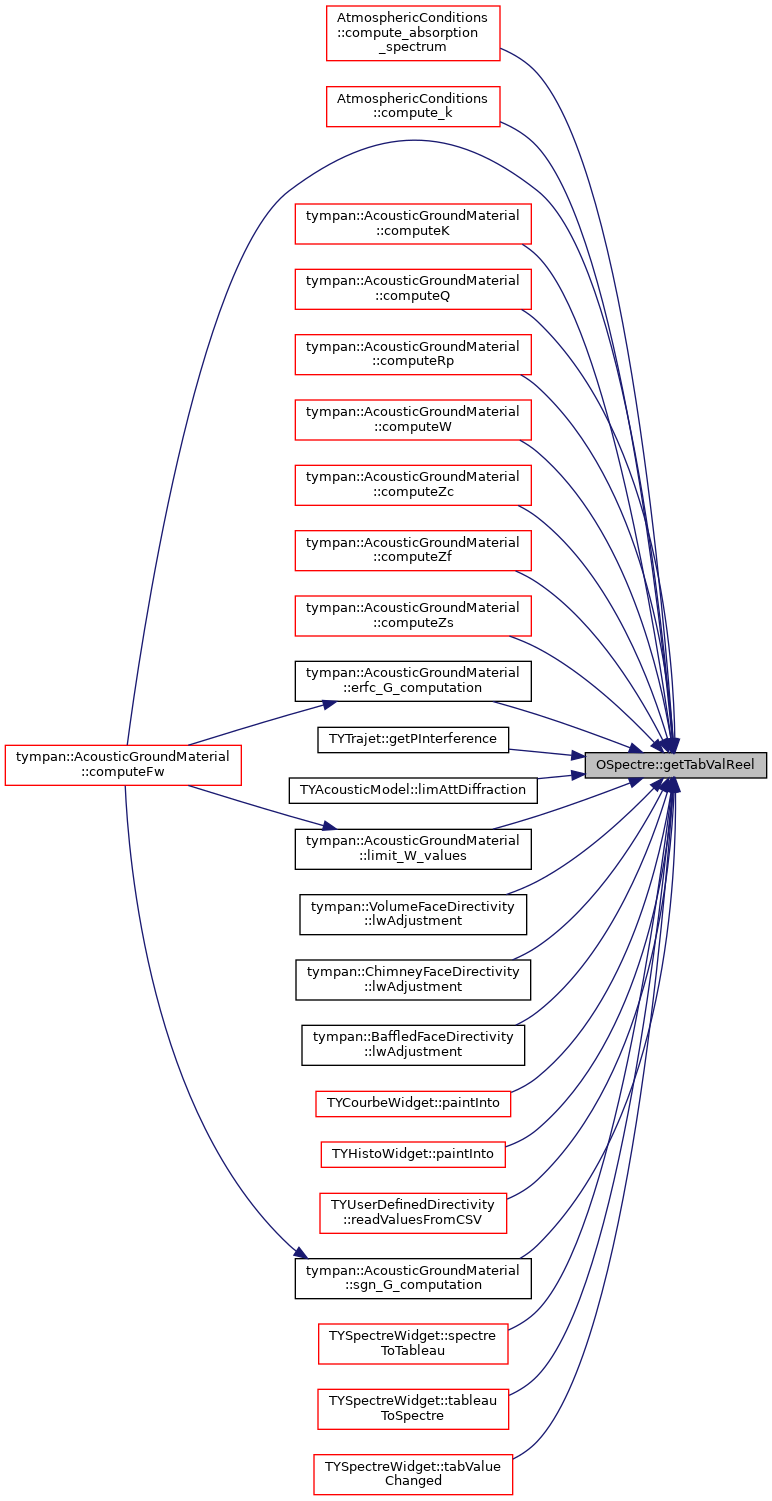

Here is the caller graph for this function:

◆ getValueReal()

double OSpectre::getValueReal ( double freq )

Get the value for a frequency.

Parameters

freq	Frequency.

Returns: The real number.

Definition at line 959 of file spectre.cpp.

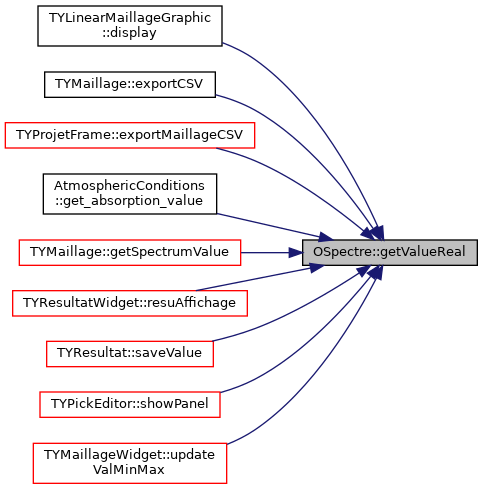

Here is the caller graph for this function:

◆ isTonalite()

bool OSpectre::isTonalite ( ) const

Existence d'une tonalite marquee.

Definition at line 1076 of file spectre.cpp.

Here is the caller graph for this function:

◆ makeOctSpect()

OSpectre OSpectre::makeOctSpect ( )

static

Make a spectrum in Octave.

Definition at line 1122 of file spectre.cpp.

Here is the caller graph for this function:

◆ operator!=()

bool OSpectre::operator!= ( const OSpectre & other ) const

virtual

operator !=

Definition at line 943 of file spectre.cpp.

Here is the call graph for this function:

◆ operator=() [1/2]

OSpectre & OSpectre::operator= ( const OSpectre & other )

operator=

Definition at line 882 of file spectre.cpp.

Here is the call graph for this function:

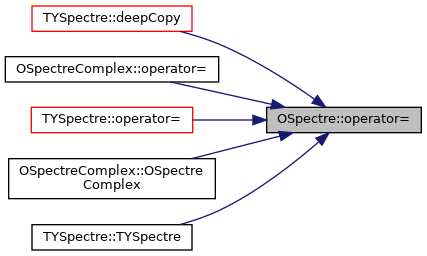

Here is the caller graph for this function:

◆ operator=() [2/2]

OSpectreAbstract & OSpectre::operator= ( const OSpectreAbstract & other )

overridevirtual

operator=

Reimplemented from OSpectreAbstract.

Reimplemented in OSpectreComplex.

Definition at line 895 of file spectre.cpp.

Here is the call graph for this function:

◆ operator==()

bool OSpectre::operator== ( const OSpectre & other ) const

virtual

operator==

Definition at line 924 of file spectre.cpp.

Here is the caller graph for this function:

◆ pondA()

OSpectre OSpectre::pondA ( )

static

Build a weighted spectrum A.

Definition at line 999 of file spectre.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pondB()

OSpectre OSpectre::pondB ( )

static

Build a weighted spectrum B.

Definition at line 1021 of file spectre.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pondC()

OSpectre OSpectre::pondC ( )

static

Build a weighted spectrum C.

Definition at line 1043 of file spectre.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setFMax()

static void OSpectre::setFMax ( const double & fMax )

inlinestatic

Define maximal frequency.

Definition at line 408 of file spectre.h.

◆ setFMin()

static void OSpectre::setFMin ( const double & fMin )

inlinestatic

Define minimal frequency.

Definition at line 403 of file spectre.h.

◆ setMapFreqIndice()

std::map< double, int > OSpectre::setMapFreqIndice ( )

static

Construction du tableau frequence/indice.

Definition at line 967 of file spectre.cpp.

◆ setValue()

void OSpectre::setValue	(	const double &	freq,
		const double &	reel = `0.0`
	)

Set a new value to the frequencies array.

Parameters

freq	Frequency to which a new value is given.
reel	Value.

Definition at line 953 of file spectre.cpp.

Member Data Documentation

◆ _fMax

double OSpectre::_fMax = 16000

staticprotected

Maximal frequency.

Definition at line 461 of file spectre.h.

◆ _fMin

double OSpectre::_fMin = 16

staticprotected

Minimal frequency.

Definition at line 458 of file spectre.h.

◆ _freqNorm

const double OSpectre::_freqNorm

staticprotected

Initial value:

= {
0,   20.0,    25.0,
5,   40.0,    50.0,
0,   80.0,    100.0,
0,  160.0,   200.0,
0,  315.0,   400.0,
0,  630.0,   800.0,
0, 1250.0,  1600.0,
0, 2500.0,  3150.0,
0, 5000.0,  6300.0,
0, 10000.0, 12500.0,
0}

Array of center frequencies (Hz) normalized in one-third Octave.

Definition at line 455 of file spectre.h.

◆ _mapFreqIndice

std::map< double, int > OSpectre::_mapFreqIndice = setMapFreqIndice()

staticprotected

Mapping between frequency and array index.

Definition at line 464 of file spectre.h.

◆ _module

double OSpectre::_module[TY_SPECTRE_DEFAULT_NB_ELMT]

protected

Real values array for module.

Definition at line 467 of file spectre.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/spectre.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/spectre.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ OSpectre() [1/5]

◆ OSpectre() [2/5]

◆ OSpectre() [3/5]

◆ OSpectre() [4/5]

◆ OSpectre() [5/5]

◆ ~OSpectre()

Member Function Documentation

◆ getConcreteInstance()

◆ getEmptyLinSpectre()

◆ getIndice()

◆ getLambda()

◆ getOSpectreFreqExact()

◆ getTabFreqExact()

◆ getTabValReel() [1/2]

◆ getTabValReel() [2/2]

◆ getValueReal()

◆ isTonalite()

◆ makeOctSpect()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ pondA()

◆ pondB()

◆ pondC()

◆ setFMax()

◆ setFMin()

◆ setMapFreqIndice()

◆ setValue()

Member Data Documentation

◆ _fMax

◆ _fMin

◆ _freqNorm

◆ _mapFreqIndice

◆ _module
