#include <spectre.h>

Inheritance diagram for OSpectreOctave:

Collaboration diagram for OSpectreOctave:

Public Member Functions
	OSpectreOctave ()

	OSpectreOctave (bool isValid, TYSpectreType type, TYSpectreEtat etat)

	OSpectreOctave (double defaultValue)

	OSpectreOctave (const double *valeurs, unsigned nbVal, unsigned decalage)

	OSpectreOctave (const OSpectreOctave &other)

	OSpectreOctave (const OSpectreAbstract &other)
	Copy constructor from OSpectreAbstract. More...

	OSpectreOctave (const OSpectre &other)

virtual	~OSpectreOctave ()

OSpectreOctave &	operator= (const OSpectreOctave &other)
	operators More...

OSpectreAbstract &	operator= (const OSpectreAbstract &other) override
	operator= More...

bool	operator== (const OSpectreOctave &other) const

bool	operator!= (const OSpectreOctave &other) const

double *	getTabValReel () override
	Get an array of the real values of the spectrum. More...

const double *	getTabValReel () const override

OSpectreAbstract *	getConcreteInstance () const override
	Return an instance of a concrete class of the same type as current. More...

void	setValue (const double &freq, const double &reel=0.0)

Public Member Functions inherited from OSpectreAbstract
	OSpectreAbstract ()
	Methods. More...

	OSpectreAbstract (TYSpectreForm form)

	OSpectreAbstract (bool isValid, TYSpectreType type, TYSpectreEtat etat, TYSpectreForm form)

virtual bool	operator== (const OSpectreAbstract &other) const
	operator== More...

virtual bool	operator!= (const OSpectreAbstract &other) const
	operator != More...

OSpectreAbstract &	operator+ (const double &valeur) const
	Add a constant value to all the spectrum. More...

OSpectreAbstract &	operator+ (const OSpectreAbstract &spectre) const
	Arithmetic sum of two spectrums in one-third Octave. More...

OSpectreAbstract &	operator- (const OSpectreAbstract &spectre) const
	Arithmetic subtraction of two spectrums in one-third Octave. More...

OSpectreAbstract &	operator* (const OSpectreAbstract &spectre) const
	Multiplication by a Spectre spectrum. More...

OSpectreAbstract &	operator* (const double &coefficient) const
	Multiplication by a double coefficient. More...

OSpectreAbstract &	sumdB (const OSpectreAbstract &spectre) const
	Energetic sum of two spectrums. More...

void	setDefaultValue (const double &valeur=TY_SPECTRE_DEFAULT_VALUE)

bool	isValid () const
	Check the spectrum validity. Invalidity is caused by: corrupted data, impossible calculation. More...

void	setValid (const bool &valid=true)

TYSpectreType	getType () const
	Get the spectrum type. More...

void	setType (TYSpectreType type)
	Set the spectrum type. More...

TYSpectreEtat	getEtat () const
	Get the spectrum state. More...

const TYSpectreEtat	getEtat ()

void	setEtat (TYSpectreEtat etat)
	Force the spectrum state (to use carefully ...) More...

TYSpectreForm	getForm () const
	Get the spectrum form. More...

void	setForm (TYSpectreForm form)
	Force the spectrum state (to use carefully ...) More...

unsigned int	getNbValues () const
	Number of values in the spectrum. More...

void	setDefaultValue (double module[], const unsigned int spectreNbElmt=TY_SPECTRE_DEFAULT_NB_ELMT, const double &valeur=TY_SPECTRE_DEFAULT_VALUE)

void	getRangeValueReal (double *valeurs, const short &nbVal, const short &decalage)

OSpectreAbstract &	sum (const OSpectreAbstract &spectre) const
	Arithmetic sum of two spectrums in one-third Octave. More...

OSpectreAbstract &	sum (const double &value) const
	Arithmetic sum of a spectrum and a double scalar. More...

OSpectreAbstract &	mult (const OSpectreAbstract &spectre) const
	Multiplication of two spectrums. More...

OSpectreAbstract &	mult (const double &coefficient) const
	Multiply this spectrum par a double scalar. More...

OSpectreAbstract &	div (const OSpectreAbstract &spectre) const
	Division of two spectrums. More...

OSpectreAbstract &	div (const double &coefficient) const
	Division of this spectrum by a double scalar. More...

OSpectreAbstract &	subst (const OSpectreAbstract &spectre) const
	Arithmetic subtraction of two spectrums in one-third Octave. More...

OSpectreAbstract &	subst (const double &valeur) const
	Subtract a constant value to this spectrum. More...

OSpectreAbstract &	invMult (const double &coefficient=1.0) const
	Division of a double constant by this spectrum. More...

OSpectreAbstract &	inv () const
	Division of one by this spectrum. More...

OSpectreAbstract &	power (const double &puissance) const
	Return a spectrum as this spectrum raised to a double power. More...

OSpectreAbstract &	log (const double &base=10.0) const
	Compute the log base n of this spectrum (n=10 by default). More...

OSpectreAbstract &	racine () const
	Compute the root square of this spectrum. More...

OSpectreAbstract &	exp (const double coef=1.0)
	Compute e^(coef * spectre) of this spectrum. More...

OSpectreAbstract &	sin () const
	Compute the sin of this spectrum. More...

OSpectreAbstract &	cos () const
	Compute the cos of this spectrum. More...

OSpectreAbstract &	abs () const
	Return the absolute value of this spectrum. More...

OSpectreAbstract &	sqrt () const
	Return the root square of a spectrum. More...

double	valMax ()
	Return the maximum value of a spectrum. More...

OSpectreAbstract &	seuillage (const double &min=-200.0, const double max=200.0)
	Limit the spectrum values (min and max) More...

double	sigma ()
	Sum the values of the spectrum. More...

const double	sigma () const

OSpectreAbstract &	toDB () const
	Converts to dB. More...

OSpectreAbstract &	toGPhy () const
	Converts to physical quantity. More...

double	valGlobDBLin () const
	Compute the global value dB[Lin] of a one-third Octave spectrum. More...

double	valGlobDBA () const
	Compute the global value dB[A] of a one-third Octave spectrum. More...

OSpectreAbstract &	toTOct () const
	Converts to one-third Octave. More...

OSpectreAbstract &	toOct () const
	Converts to Octave. More...

OSpectreAbstract &	round ()

virtual void	printme () const
	Print the spectrum. More...

Static Public Member Functions
static OSpectreOctave	getEmptyLinSpectre (const double &valInit=1.0E-20)
	Create a physical quantity spectrum. More...

static OTabFreq	getTabFreqExact ()

static OSpectreOctave	pondA ()
	Build a weighted spectrum A. More...

static OSpectreOctave	getLambda (const double &c)

static std::map< double, int >	setMapFreqIndice ()
	Build frequency/index map. More...

Static Public Member Functions inherited from OSpectreAbstract
static OSpectreAbstract &	makeOctSpect ()
	Make a spectrum in Octave. More...

Protected Attributes
double	_module [TY_SPECTRE_OCT_NB_ELMT]
	Real values array for module. More...

Protected Attributes inherited from OSpectreAbstract
bool	_valid
	Spectrum validity. More...

TYSpectreType	_type
	Spectrum type. More...

TYSpectreEtat	_etat
	Spectrum state (physical quantity or dB). More...

TYSpectreForm	_form
	Representation of the spectrum: one-third Octave, Octave, constant delta f, unstructured. More...

Static Protected Attributes
static std::map< double, int >	_mapFreqIndice = setMapFreqIndice()
	Mapping between frequency and array index. More...

static const double	_freqNorm [TY_SPECTRE_OCT_NB_ELMT] = {31.5, 63.0, 125.0, 250.0, 500.0, 1000.0, 2000.0, 4000.0, 8000.0}
	Array of center frequencies (Hz) normalized in one-third Octave. More...

static const double	_AWeighting [TY_SPECTRE_OCT_NB_ELMT] = {-39.5, -26.2, -16.1, -8.6, -3.2, 0.0, 1.2, 1.0, -1.1}
	A weighting for ponderation A computation. More...

Static Protected Attributes inherited from OSpectreAbstract
static double	_defaultValue = TY_SPECTRE_DEFAULT_VALUE
	Default value for the spectrum. More...

Detailed Description

Define an octave band spectrum

Definition at line 587 of file spectre.h.

Constructor & Destructor Documentation

◆ OSpectreOctave() [1/7]

OSpectreOctave::OSpectreOctave ( )

Definition at line 1422 of file spectre.cpp.

Here is the caller graph for this function:

◆ OSpectreOctave() [2/7]

OSpectreOctave::OSpectreOctave	(	bool	isValid,
		TYSpectreType	type,
		TYSpectreEtat	etat
	)

Definition at line 1430 of file spectre.cpp.

◆ OSpectreOctave() [3/7]

OSpectreOctave::OSpectreOctave ( double defaultValue )

Definition at line 1439 of file spectre.cpp.

◆ OSpectreOctave() [4/7]

OSpectreOctave::OSpectreOctave	(	const double *	valeurs,
		unsigned	nbVal,
		unsigned	decalage
	)

Definition at line 1447 of file spectre.cpp.

◆ OSpectreOctave() [5/7]

OSpectreOctave::OSpectreOctave ( const OSpectreOctave & other )

Definition at line 1463 of file spectre.cpp.

◆ OSpectreOctave() [6/7]

OSpectreOctave::OSpectreOctave ( const OSpectreAbstract & other )

Copy constructor from OSpectreAbstract.

Definition at line 1468 of file spectre.cpp.

◆ OSpectreOctave() [7/7]

OSpectreOctave::OSpectreOctave ( const OSpectre & other )

Constructor from a OSpectre

Definition at line 1473 of file spectre.cpp.

Here is the call graph for this function:

◆ ~OSpectreOctave()

OSpectreOctave::~OSpectreOctave ( )

virtual

Definition at line 1485 of file spectre.cpp.

Member Function Documentation

◆ getConcreteInstance()

OSpectreAbstract * OSpectreOctave::getConcreteInstance ( ) const

overridevirtual

Return an instance of a concrete class of the same type as current.

Implements OSpectreAbstract.

Definition at line 1562 of file spectre.cpp.

Here is the call graph for this function:

◆ getEmptyLinSpectre()

OSpectreOctave OSpectreOctave::getEmptyLinSpectre ( const double & valInit = 1.0E-20 )

static

Create a physical quantity spectrum.

Definition at line 1616 of file spectre.cpp.

Here is the caller graph for this function:

◆ getLambda()

OSpectreOctave OSpectreOctave::getLambda ( const double & c )

static

Return a spectrum representating the wavelength associated to each frequency

Parameters

c	Wave propagating speed

Returns: An OSpectreOctave

Definition at line 1591 of file spectre.cpp.

Here is the caller graph for this function:

◆ getTabFreqExact()

OTabFreq OSpectreOctave::getTabFreqExact ( )

static

Return the array of exact frequencies. The calling method should free the allocated memory for this array.

Returns: The array of exact frequencies.

Definition at line 1575 of file spectre.cpp.

◆ getTabValReel() [1/2]

const double* OSpectreOctave::getTabValReel ( ) const

inlineoverridevirtual

Implements OSpectreAbstract.

Definition at line 618 of file spectre.h.

◆ getTabValReel() [2/2]

double* OSpectreOctave::getTabValReel ( )

inlineoverridevirtual

Get an array of the real values of the spectrum.

Implements OSpectreAbstract.

Definition at line 613 of file spectre.h.

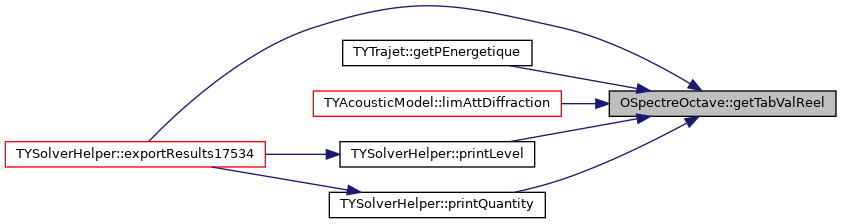

Here is the caller graph for this function:

◆ operator!=()

bool OSpectreOctave::operator!= ( const OSpectreOctave & other ) const

Definition at line 1557 of file spectre.cpp.

Here is the call graph for this function:

◆ operator=() [1/2]

OSpectreAbstract & OSpectreOctave::operator= ( const OSpectreAbstract & other )

overridevirtual

operator=

Reimplemented from OSpectreAbstract.

Definition at line 1500 of file spectre.cpp.

Here is the call graph for this function:

◆ operator=() [2/2]

OSpectreOctave & OSpectreOctave::operator= ( const OSpectreOctave & other )

operators

Definition at line 1487 of file spectre.cpp.

Here is the call graph for this function:

◆ operator==()

bool OSpectreOctave::operator== ( const OSpectreOctave & other ) const

Definition at line 1538 of file spectre.cpp.

Here is the caller graph for this function:

◆ pondA()

OSpectreOctave OSpectreOctave::pondA ( )

static

Build a weighted spectrum A.

Definition at line 1586 of file spectre.cpp.

◆ setMapFreqIndice()

std::map< double, int > OSpectreOctave::setMapFreqIndice ( )

static

Build frequency/index map.

Definition at line 1604 of file spectre.cpp.

◆ setValue()

void OSpectreOctave::setValue	(	const double &	freq,
		const double &	reel = `0.0`
	)

Set a new value to the frequencies array.

Parameters

freq	Frequency to which a new value is given.
reel	Value.

Definition at line 1567 of file spectre.cpp.

Member Data Documentation

◆ _AWeighting

const double OSpectreOctave::_AWeighting = {-39.5, -26.2, -16.1, -8.6, -3.2, 0.0, 1.2, 1.0, -1.1}

staticprotected

A weighting for ponderation A computation.

Definition at line 672 of file spectre.h.

◆ _freqNorm

const double OSpectreOctave::_freqNorm = {31.5, 63.0, 125.0, 250.0, 500.0, 1000.0, 2000.0, 4000.0, 8000.0}

staticprotected

Array of center frequencies (Hz) normalized in one-third Octave.

Definition at line 669 of file spectre.h.

◆ _mapFreqIndice

std::map< double, int > OSpectreOctave::_mapFreqIndice = setMapFreqIndice()

staticprotected

Mapping between frequency and array index.

Definition at line 666 of file spectre.h.

◆ _module

double OSpectreOctave::_module[TY_SPECTRE_OCT_NB_ELMT]

protected

Real values array for module.

Definition at line 677 of file spectre.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/spectre.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/spectre.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ OSpectreOctave() [1/7]

◆ OSpectreOctave() [2/7]

◆ OSpectreOctave() [3/7]

◆ OSpectreOctave() [4/7]

◆ OSpectreOctave() [5/7]

◆ OSpectreOctave() [6/7]

◆ OSpectreOctave() [7/7]

◆ ~OSpectreOctave()

Member Function Documentation

◆ getConcreteInstance()

◆ getEmptyLinSpectre()

◆ getLambda()

◆ getTabFreqExact()

◆ getTabValReel() [1/2]

◆ getTabValReel() [2/2]

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ pondA()

◆ setMapFreqIndice()

◆ setValue()

Member Data Documentation

◆ _AWeighting

◆ _freqNorm

◆ _mapFreqIndice

◆ _module
