#include <TYParoi.h>

Inheritance diagram for TYParoi:

Collaboration diagram for TYParoi:

Public Member Functions
	TYParoi ()

	TYParoi (const TYParoi &other)

virtual	~TYParoi ()

TYParoi &	operator= (const TYParoi &other)
	Operateur =. More...

bool	operator== (const TYParoi &other) const
	Operateur ==. More...

bool	operator!= (const TYParoi &other) const
	Operateur !=. More...

virtual bool	deepCopy (const TYElement *pOther, bool copyId=true, bool pUseCopyTag=false)

virtual std::string	toString () const

virtual DOM_Element	toXML (DOM_Element &domElement)

virtual int	fromXML (DOM_Element domElement)

double	getEpaisseur () const

void	setEpaisseur (double epaisseur)

TYMateriauConstruction *	getMatStruct ()

const TYMateriauConstruction *	getMatStruct () const

void	setMatStruct (const LPTYMateriauConstruction mat)

TYMateriauConstruction *	getMatFace1 ()

const TYMateriauConstruction *	getMatFace1 () const

void	setMatFace1 (const LPTYMateriauConstruction &mat)

TYMateriauConstruction *	getMatFace2 ()

const TYMateriauConstruction *	getMatFace2 () const

void	setMatFace2 (const LPTYMateriauConstruction &mat)

Public Member Functions inherited from TYElement
	TYElement ()

	TYElement (TYElement *pParent, bool PutInInstanceList=true)

	TYElement (const TYElement &other, bool PutInInstanceList=true)

virtual	~TYElement ()

void	setID (TYUUID id)

void	setID (const QString &str_id)

const TYUUID &	getID () const

QString	getStringID () const

bool	hasNullID () const

void	regenerateID ()

void	setName (QString name)

void	setName (std::string name)

virtual QString	getName () const

void	setParent (TYElement *pParent)

TYElement *	getParent () const

virtual void	setIsAcousticModified (bool isModified)

bool	getIsAcousticModified ()

virtual void	setIsGeometryModified (bool isModified)

bool	getIsGeometryModified ()

TYElement &	operator= (const TYElement &other)

bool	operator== (const TYElement &other) const

bool	operator!= (const TYElement &other) const

bool	callFromXMLIfEqual (DOM_Element &domElement, int *pRetVal=NULL)

std::string	getMetierName ()

void *	getAllUses ()

void	setAllUses (void *allUses)

void	cleanAllUses ()

virtual void	updateCurrentCalcul (TYListID &listID, bool recursif=true)

virtual void	getChilds (LPTYElementArray &childs, bool recursif=true)

virtual void	setInCurrentCalcul (bool state, bool recurschild=true, bool recursparent=true)

virtual bool	isInCurrentCalcul ()

void	addCopy ()
	Increment le compteur de nombre de copies. More...

void	setCopyCount (const unsigned int copyCount)
	Modifie la vaeur du compteur. More...

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Public Member Functions inherited from OPrototype
virtual	~OPrototype ()

virtual OPrototype *	clone () const =0

virtual const char *	getClassName () const

bool	isA (const char *className) const

Protected Attributes
double	_epaisseur
	Epaisseur. More...

LPTYMateriauConstruction	_matStruct
	Materiau interne. More...

LPTYMateriauConstruction	_matFace1
	Materiau face 1 (interieure) More...

LPTYMateriauConstruction	_matFace2
	Materiau face 2 (exterieure) More...

Protected Attributes inherited from TYElement
QString	_name
	Nom courant de l'element. More...

TYElement *	_pParent
	Reference sur l'element parent. More...

bool	_bPutInInstanceList

unsigned int	_copyCount

bool	_inCurrentCalcul
	Indique si cet element est actif dans le Calcul courant. More...

bool	_isAcousticModified
	Indicateur de modification acoustique. More...

bool	_isGeometryModified
	Indicateur de modification de la geometrie. More...

LPTYElementGraphic	_pGraphicObject
	L'object graphique metier associe a cet element. More...

void *	_allUses
	Multi purpose void pointer (use for compatibility actually) More...

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Additional Inherited Members
Static Public Member Functions inherited from TYElement
static LPTYElementArray	findTypeCollectionAndCallFromXML (DOM_Element parentElem, const char *type)

static void	setLogInstances (bool log)

static bool	getLogInstances ()

static TYElement *	getInstance (TYUUID uuid)

static void	purgeInstances ()

static bool	testId (const TYUUID &id, const TYElement *pElem)

static TYUUID	newID ()

static TYUUID	fromString (QString id)

static QString	toString (TYUUID &uuid)

static uint64	getConstructorCount ()

static uint64	getDestructorCount ()

static uint64	getIdGenerationCount ()

static bool	getIsSavedOk ()

static void	setIsSavedOk (const bool &toSave)

static void	setRegenerateID (const bool &bRegenerate)

static bool	getRegenerateID ()

Static Public Member Functions inherited from OPrototype
static OPrototype *	findAndClone (const char *className)

static int	findPrototype (const char *className)

static OPrototype *	safeDownCast (OPrototype *pObject)

static void	add_factory (const char *, IOProtoFactory::ptr_type factory)

Protected Member Functions inherited from OPrototype
	OPrototype ()

Detailed Description

Comprend les proprietes acoustiques et geometriques d'une paroi.

Definition at line 32 of file TYParoi.h.

Constructor & Destructor Documentation

◆ TYParoi() [1/2]

TYParoi::TYParoi ( )

Constructeur.

Definition at line 29 of file TYParoi.cpp.

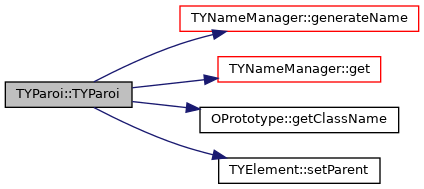

Here is the call graph for this function:

◆ TYParoi() [2/2]

TYParoi::TYParoi ( const TYParoi & other )

Constructeur par copie.

Definition at line 43 of file TYParoi.cpp.

◆ ~TYParoi()

TYParoi::~TYParoi ( )

virtual

Destructeur.

Definition at line 48 of file TYParoi.cpp.

Member Function Documentation

◆ deepCopy()

bool TYParoi::deepCopy	(	const TYElement *	pOther,
		bool	copyId = `true`,
		bool	pUseCopyTag = `false`
	)

virtual

Fonction de copie recursive (virtuelle)

Parameters

pOther	destination de la copy
copyId	vrai par defaut
pUseCopyTag	faux par defaut

Reimplemented from TYElement.

Definition at line 96 of file TYParoi.cpp.

Here is the call graph for this function:

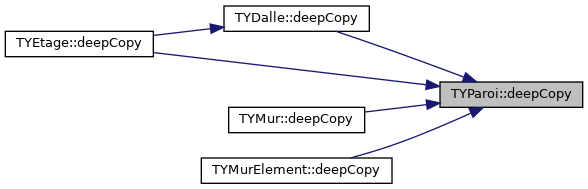

Here is the caller graph for this function:

◆ fromXML()

int TYParoi::fromXML ( DOM_Element domElement )

virtual

Extrait les informations a partir du noeud DOM passe afin de recuperer les parametres de la classe.

Parameters

domElement Le noeud DOM a partir duquel les parametres doivent etre recuperes.

Returns: 1 si la recuperation des parametres a reussie.

Reimplemented from TYElement.

Definition at line 132 of file TYParoi.cpp.

Here is the call graph for this function:

◆ getEpaisseur()

double TYParoi::getEpaisseur ( ) const

inline

Set/Get de l'epaisseur.

Definition at line 77 of file TYParoi.h.

◆ getMatFace1() [1/2]

TYMateriauConstruction* TYParoi::getMatFace1 ( )

inline

Set/Get du materiau face 1.

Definition at line 118 of file TYParoi.h.

Here is the caller graph for this function:

◆ getMatFace1() [2/2]

const TYMateriauConstruction* TYParoi::getMatFace1 ( ) const

inline

Set/Get du materiau face 1.

Definition at line 126 of file TYParoi.h.

◆ getMatFace2() [1/2]

TYMateriauConstruction* TYParoi::getMatFace2 ( )

inline

Set/Get du materiau face 2.

Definition at line 143 of file TYParoi.h.

Here is the caller graph for this function:

◆ getMatFace2() [2/2]

const TYMateriauConstruction* TYParoi::getMatFace2 ( ) const

inline

Set/Get du materiau face 2.

Definition at line 151 of file TYParoi.h.

◆ getMatStruct() [1/2]

TYMateriauConstruction* TYParoi::getMatStruct ( )

inline

Set/Get du materiau interne.

Definition at line 93 of file TYParoi.h.

Here is the caller graph for this function:

◆ getMatStruct() [2/2]

const TYMateriauConstruction* TYParoi::getMatStruct ( ) const

inline

Set/Get du materiau interne.

Definition at line 101 of file TYParoi.h.

◆ operator!=()

bool TYParoi::operator!= ( const TYParoi & other ) const

Operateur !=.

Definition at line 91 of file TYParoi.cpp.

Here is the call graph for this function:

◆ operator=()

TYParoi & TYParoi::operator= ( const TYParoi & other )

Operateur =.

Definition at line 50 of file TYParoi.cpp.

Here is the call graph for this function:

◆ operator==()

bool TYParoi::operator== ( const TYParoi & other ) const

Operateur ==.

Definition at line 63 of file TYParoi.cpp.

Here is the caller graph for this function:

◆ setEpaisseur()

void TYParoi::setEpaisseur ( double epaisseur )

inline

Set/Get de l'epaisseur.

Definition at line 85 of file TYParoi.h.

Here is the caller graph for this function:

◆ setMatFace1()

void TYParoi::setMatFace1 ( const LPTYMateriauConstruction & mat )

inline

Set/Get du materiau face 1.

Definition at line 134 of file TYParoi.h.

Here is the call graph for this function:

◆ setMatFace2()

void TYParoi::setMatFace2 ( const LPTYMateriauConstruction & mat )

inline

Set/Get du materiau face 2.

Definition at line 159 of file TYParoi.h.

Here is the call graph for this function:

◆ setMatStruct()

void TYParoi::setMatStruct ( const LPTYMateriauConstruction mat )

inline

Set/Get du materiau interne.

Definition at line 109 of file TYParoi.h.

Here is the call graph for this function:

◆ toString()

std::string TYParoi::toString ( ) const

virtual

Retourne une chaine de caractere donnant des informations sur cet objet (utile pour le debugage).

Returns: Une chaine de caractere informative sur cet objet.

Reimplemented from TYElement.

Definition at line 114 of file TYParoi.cpp.

◆ toXML()

DOM_Element TYParoi::toXML ( DOM_Element & domElement )

virtual

Construit une arborescence DOM a partir du noeud passe afin de sauvegarder les parametres au format XML.

Parameters

domElement Le noeud DOM parent a partir duquel l'arborescence doit etre creee.

Returns: Le noeud DOM nouvellement cree.

Reimplemented from TYElement.

Definition at line 119 of file TYParoi.cpp.

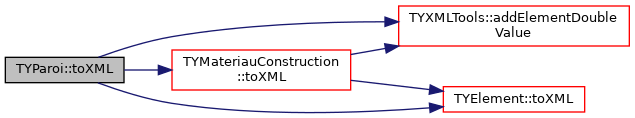

Here is the call graph for this function:

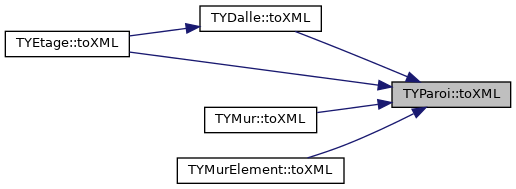

Here is the caller graph for this function:

Member Data Documentation

◆ _epaisseur

double TYParoi::_epaisseur

protected

Epaisseur.

Definition at line 168 of file TYParoi.h.

◆ _matFace1

LPTYMateriauConstruction TYParoi::_matFace1

protected

Materiau face 1 (interieure)

Definition at line 173 of file TYParoi.h.

◆ _matFace2

LPTYMateriauConstruction TYParoi::_matFace2

protected

Materiau face 2 (exterieure)

Definition at line 175 of file TYParoi.h.

◆ _matStruct

LPTYMateriauConstruction TYParoi::_matStruct

protected

Materiau interne.

Definition at line 171 of file TYParoi.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/infrastructure/TYParoi.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/infrastructure/TYParoi.cpp
