#include <TYElement.h>

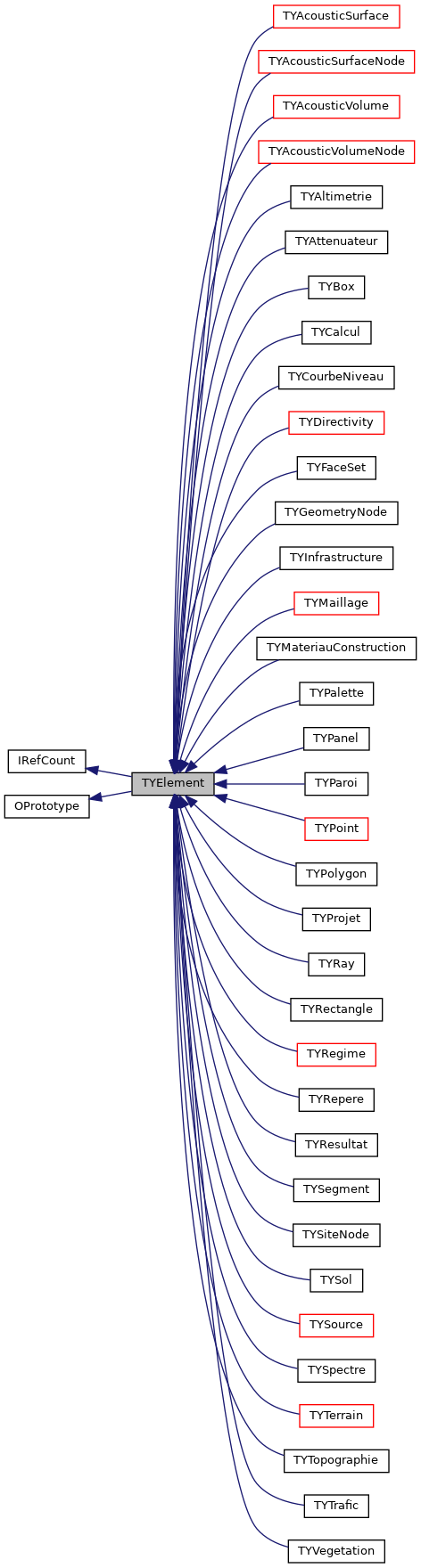

Inheritance diagram for TYElement:

[legend]

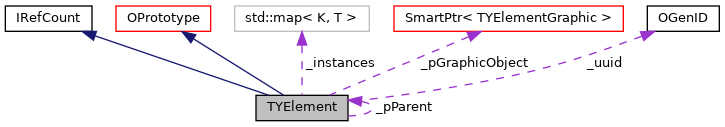

Collaboration diagram for TYElement:

[legend]

Public Member Functions
Construction et Destruction
	TYElement ()

	TYElement (TYElement *pParent, bool PutInInstanceList=true)

	TYElement (const TYElement &other, bool PutInInstanceList=true)

virtual	~TYElement ()

Interface XML
virtual DOM_Element	toXML (DOM_Element &domElement)

virtual int	fromXML (DOM_Element domElement)

Accesseurs
void	setID (TYUUID id)

void	setID (const QString &str_id)

const TYUUID &	getID () const

QString	getStringID () const

bool	hasNullID () const

void	regenerateID ()

void	setName (QString name)

void	setName (std::string name)

virtual QString	getName () const

void	setParent (TYElement *pParent)

TYElement *	getParent () const

Indicateurs de modification.
virtual void	setIsAcousticModified (bool isModified)

bool	getIsAcousticModified ()

virtual void	setIsGeometryModified (bool isModified)

bool	getIsGeometryModified ()

Operateurs
TYElement &	operator= (const TYElement &other)

bool	operator== (const TYElement &other) const

bool	operator!= (const TYElement &other) const

virtual bool	deepCopy (const TYElement *pOther, bool copyId=true, bool pUseCopyTag=false)

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Public Member Functions inherited from OPrototype
virtual	~OPrototype ()

virtual OPrototype *	clone () const =0

virtual const char *	getClassName () const

bool	isA (const char *className) const

Methodes Utilitaires
TYUUID	_uuid
	Identifiant unique de l'element. More...

QString	_name
	Nom courant de l'element. More...

TYElement *	_pParent
	Reference sur l'element parent. More...

bool	_bPutInInstanceList

unsigned int	_copyCount

bool	_inCurrentCalcul
	Indique si cet element est actif dans le Calcul courant. More...

bool	_isAcousticModified
	Indicateur de modification acoustique. More...

bool	_isGeometryModified
	Indicateur de modification de la geometrie. More...

LPTYElementGraphic	_pGraphicObject
	L'object graphique metier associe a cet element. More...

void *	_allUses
	Multi purpose void pointer (use for compatibility actually) More...

static bool	_logInstances = false
	Indique si on souhaite registrer toutes les instances de type TYElement et derivees. More...

static TYElementContainer *	_instances = NULL
	Collection de toutes les instances de type TYElement et derivees. More...

static bool	_toSave = false

static bool	_bRegenerateID = false
	Indicateur de regeneration d'ID true si regeneration d'ID a la lecture d'un fichier XML. More...

static uint64	ty_created_counter = 0

static uint64	ty_destroyed_counter = 0

static uint64	ty_regen_id_counter = 0

virtual std::string	toString () const

bool	callFromXMLIfEqual (DOM_Element &domElement, int *pRetVal=NULL)

std::string	getMetierName ()

void *	getAllUses ()

void	setAllUses (void *allUses)

void	cleanAllUses ()

void	addInstance ()

void	remInstance ()

static LPTYElementArray	findTypeCollectionAndCallFromXML (DOM_Element parentElem, const char *type)

static void	setLogInstances (bool log)

static bool	getLogInstances ()

static TYElement *	getInstance (TYUUID uuid)

static void	purgeInstances ()

static bool	testId (const TYUUID &id, const TYElement *pElem)

static TYUUID	newID ()

static TYUUID	fromString (QString id)

static QString	toString (TYUUID &uuid)

static uint64	getConstructorCount ()

static uint64	getDestructorCount ()

static uint64	getIdGenerationCount ()

static bool	getIsSavedOk ()

static void	setIsSavedOk (const bool &toSave)

static void	setRegenerateID (const bool &bRegenerate)

static bool	getRegenerateID ()

static TYElementContainer &	getInstances ()

Gestion du Calcul courant
virtual void	updateCurrentCalcul (TYListID &listID, bool recursif=true)

virtual void	getChilds (LPTYElementArray &childs, bool recursif=true)

virtual void	setInCurrentCalcul (bool state, bool recurschild=true, bool recursparent=true)

virtual bool	isInCurrentCalcul ()

void	addCopy ()
	Increment le compteur de nombre de copies. More...

void	setCopyCount (const unsigned int copyCount)
	Modifie la vaeur du compteur. More...

void	OnChildInCalculStatusChange ()

Additional Inherited Members
Static Public Member Functions inherited from OPrototype
static OPrototype *	findAndClone (const char *className)

static int	findPrototype (const char *className)

static OPrototype *	safeDownCast (OPrototype *pObject)

static void	add_factory (const char *, IOProtoFactory::ptr_type factory)

Protected Member Functions inherited from OPrototype
	OPrototype ()

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Detailed Description

Classe de base des composants et elements metiers.

Definition at line 450 of file TYElement.h.

Constructor & Destructor Documentation

◆ TYElement() [1/3]

TYElement::TYElement ( )

Definition at line 105 of file TYElement.cpp.

Here is the call graph for this function:

◆ TYElement() [2/3]

TYElement::TYElement	(	TYElement *	pParent,
		bool	PutInInstanceList = `true`
	)

Constructeur par defaut. Initialise un nouvel element metier. L'element parent permet de parcourir l'arborescence dans les elements metiers.

Parameters

pParent	: parent Ã associer
PutInInstanceList	: booleen indiquant si le TYElement cree utilisera la fonctionalite TYElement::getInstance(TYUUID uuid)

Definition at line 116 of file TYElement.cpp.

Here is the call graph for this function:

◆ TYElement() [3/3]

TYElement::TYElement	(	const TYElement &	other,
		bool	PutInInstanceList = `true`
	)

Constructeur par copie.

Parameters

other	: element Ã copier
PutInInstanceList	: booleen indiquant si le TYElement cree utilisera la fonctionalite TYElement::getInstance(TYUUID uuid)

Definition at line 128 of file TYElement.cpp.

Here is the call graph for this function:

◆ ~TYElement()

TYElement::~TYElement ( )

virtual

Destructeur.

Definition at line 139 of file TYElement.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ addCopy()

void TYElement::addCopy ( )

inline

Increment le compteur de nombre de copies.

Definition at line 549 of file TYElement.h.

◆ addInstance()

void TYElement::addInstance ( )

private

Ajoute l'instance this au tableau d'enregistrement des instances

Definition at line 226 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ callFromXMLIfEqual()

bool TYElement::callFromXMLIfEqual	(	DOM_Element &	domElement,
		int *	pRetVal = `NULL`
	)

Teste si l'element porte le meme nom que celui de la classe (sans le prefixe TY). Si tel est le cas, la methode 'fromXML' est appellee et true est retourne.

Parameters

domElement	Le noeud XML a tester.
pRetVal	Adresse d'un 'int' pour la valeur de retour de 'fromXML'.

Returns: true si l'element porte le meme nom que la classe.

Definition at line 544 of file TYElement.cpp.

Here is the call graph for this function:

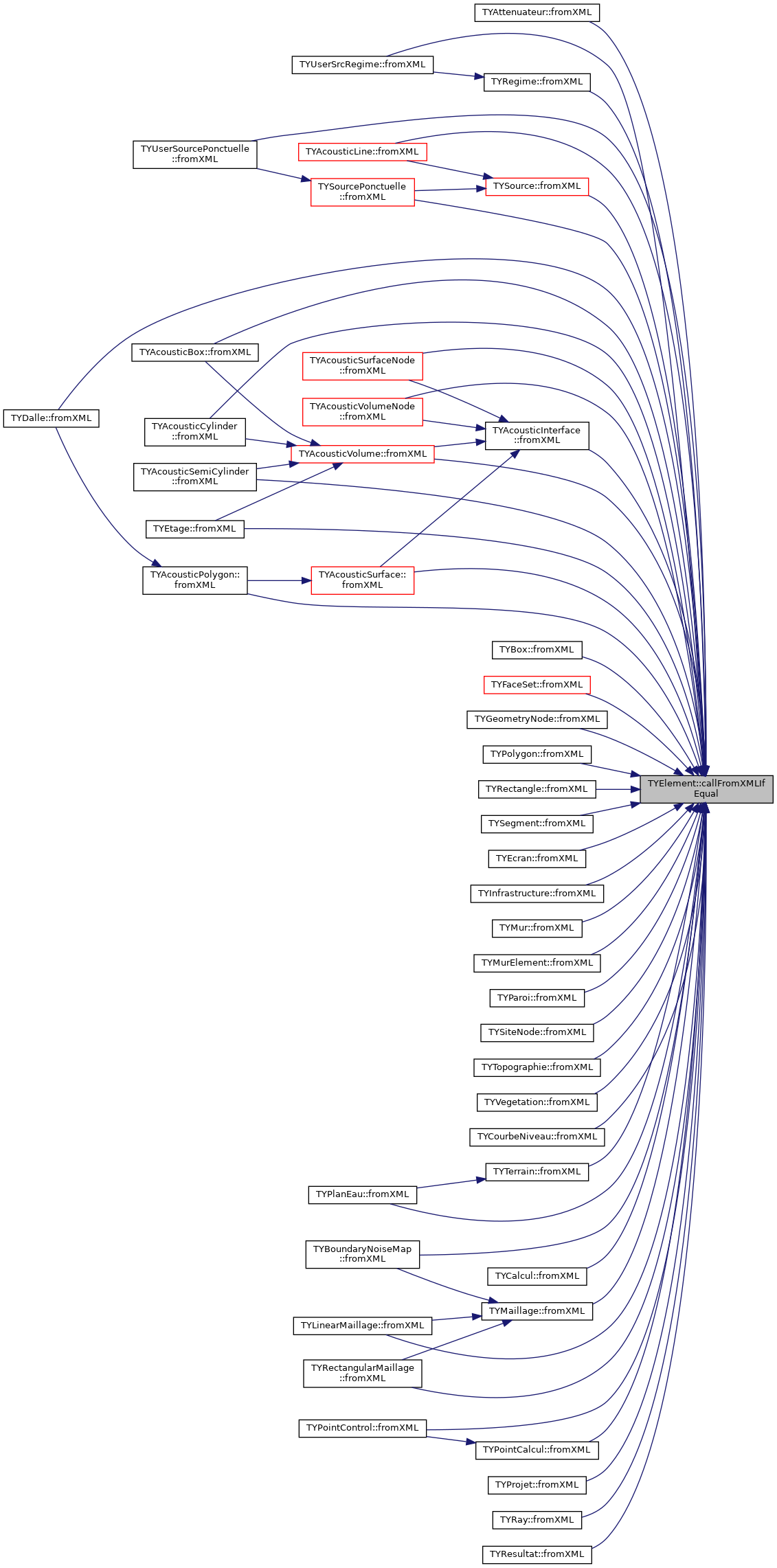

Here is the caller graph for this function:

◆ cleanAllUses()

void TYElement::cleanAllUses ( )

inline

Definition at line 940 of file TYElement.h.

Here is the caller graph for this function:

◆ deepCopy()

bool TYElement::deepCopy	(	const TYElement *	pOther,
		bool	copyId = `true`,
		bool	pUseCopyTag = `false`
	)

virtual

Effectue une copie en allouant de la memoire (deep copy) et non pas en copiant seulement les pointeurs (shallow copy). Cette methode s'utilise comme l'operateur egal. L'ID peut ne pas etre copie, le parent n'est jamais copie.

Parameters

pOther	L'element a copier.
copyId	Copie l'identifiant unique ou pas.
pUseCopyTag	utilisation du tag de copie

Returns: true si la copie est possible; false sinon.

Reimplemented in TYRectangularMaillage, TYPointControl, TYPointCalcul, TYPanel, TYPalette, TYMaillage, TYLinearMaillage, TYCalcul, TYBoundaryNoiseMap, TYTerrain, TYPlanEau, TYCourbeNiveau, TYAltimetrie, TYVegetation, TYSol, TYMateriauConstruction, TYTopographie, TYSiteNode, TYRoute, TYReseauTransport, TYParoi, TYMurElement, TYMur, TYMachine, TYInfrastructure, TYEtage, TYEcran, TYDalle, TYSegment, TYRepere, TYRectangle, TYPolygon, TYPoint, TYGeometryNode, TYFaceSet, TYBox, TYAcousticVolumeNode, TYAcousticVolume, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCylinder, TYAcousticSemiCircle, TYAcousticRectangleNode, TYAcousticRectangle, TYAcousticPolygon, TYAcousticLine, TYAcousticFaceSet, TYAcousticCylinder, TYAcousticCircle, TYAcousticBox, TYUserSrcRegime, TYUserSourcePonctuelle, TYTrafic, TYSpectre, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, TYSourceBafflee, TYSource, TYRegime, TYDirectivity, and TYAttenuateur.

Definition at line 307 of file TYElement.cpp.

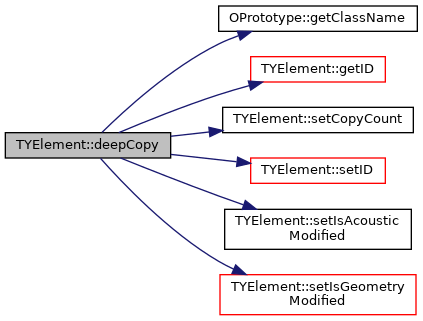

Here is the call graph for this function:

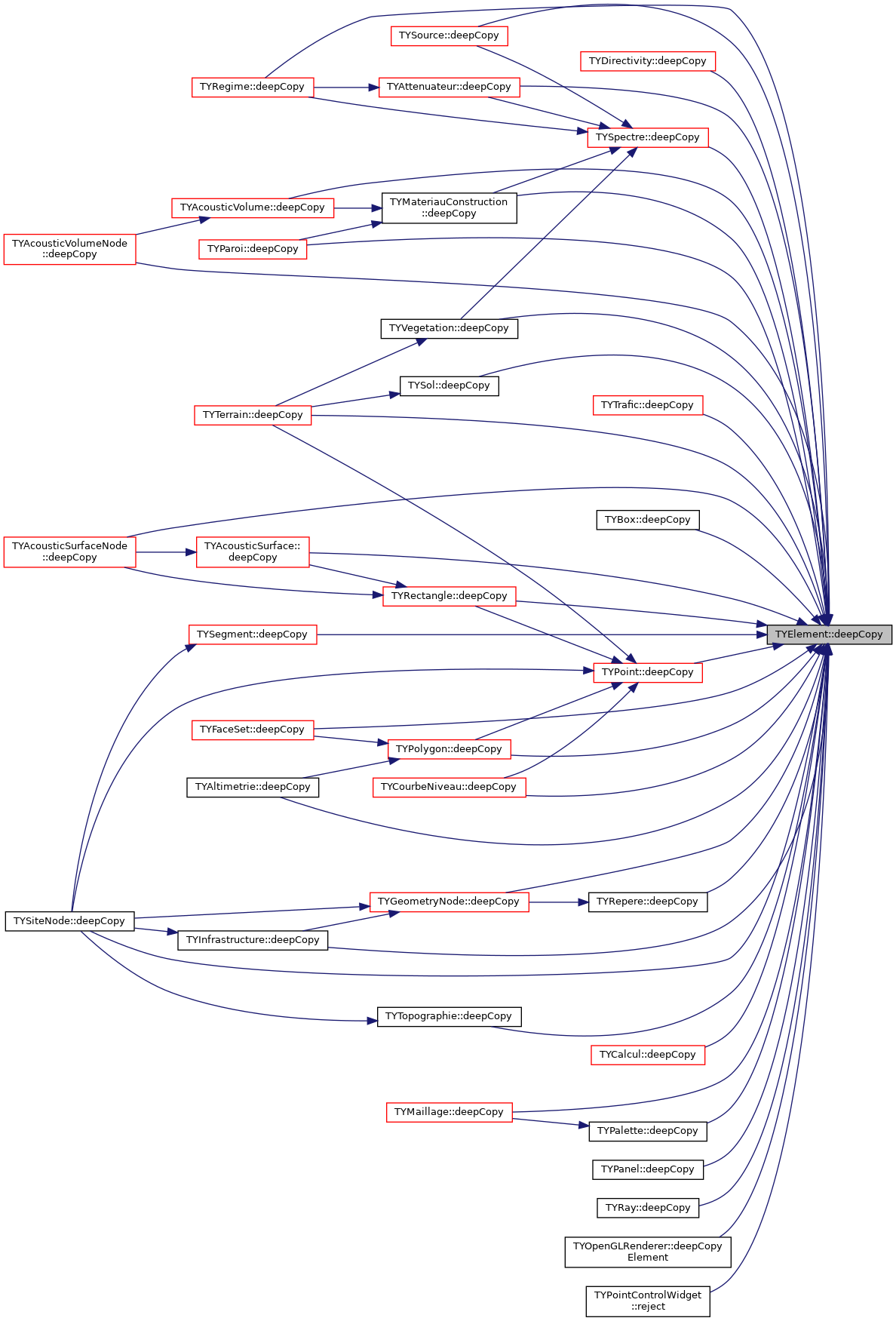

Here is the caller graph for this function:

◆ findTypeCollectionAndCallFromXML()

LPTYElementArray TYElement::findTypeCollectionAndCallFromXML	(	DOM_Element	parentElem,
		const char *	type
	)

static

Recherche un type particuler d'element ou un type derive dans un noeud XML et instancie un element du type trouve. Si des elements sont trouves, leur methode 'fromXML' est appelee.

Parameters

parentElem	L'element XML parent.
type	Le nom du type a chercher (ou un type derive).

Returns: Une instance du type trouve, sinon NULL.

Definition at line 572 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fromString()

TYUUID TYElement::fromString ( QString id )

static

conversion d'une string en identifiant 128 bits.

Definition at line 623 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fromXML()

int TYElement::fromXML ( DOM_Element domElement )

virtual

Extrait les informations a partir du noeud DOM passe afin de recuperer les parametres de la classe.

Parameters

domElement Le noeud DOM a partir duquel les parametres doivent etre recuperes.

Returns: 1 si la recuperation des parametres a reussie.

Reimplemented in TYResultat, TYRectangularMaillage, TYRay, TYProjet, TYPointControl, TYPointCalcul, TYPalette, TYMaillage, TYLinearMaillage, TYCalcul, TYBoundaryNoiseMap, TYTerrain, TYPlanEau, TYCoursEau, TYCourbeNiveau, TYAltimetrie, TYVegetation, TYSol, TYMateriauConstruction, TYTopographie, TYSiteNode, TYRoute, TYReseauTransport, TYParoi, TYMurElement, TYMur, TYMachine, TYInfrastructure, TYEtage, TYEcran, TYDalle, TYBatiment, TYSegment, TYRepere, TYRectangle, TYPolygon, TYPoint, TYGeometryNode, TYFaceSet, TYBox, TYChemineeSurface, TYBoucheSurface, TYAcousticVolumeNode, TYAcousticVolume, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCylinder, TYAcousticSemiCircle, TYAcousticRectangleNode, TYAcousticRectangle, TYAcousticPolygon, TYAcousticLine, TYAcousticFaceSet, TYAcousticCylinder, TYAcousticCircle, TYAcousticBox, TYUserSrcRegime, TYUserSourcePonctuelle, TYTrafic, TYSpectre, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, TYSourceBafflee, TYSource, TYRegime, TYComputedDirectivity, TYUserDefinedDirectivity, TYDirectivity, and TYAttenuateur.

Definition at line 381 of file TYElement.cpp.

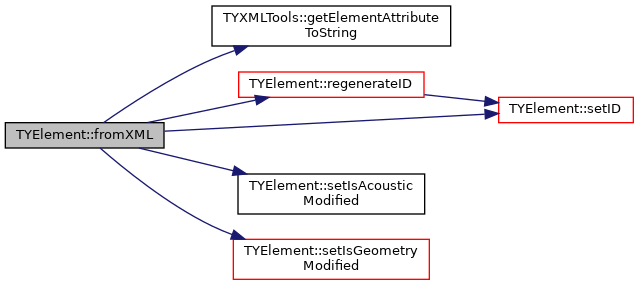

Here is the call graph for this function:

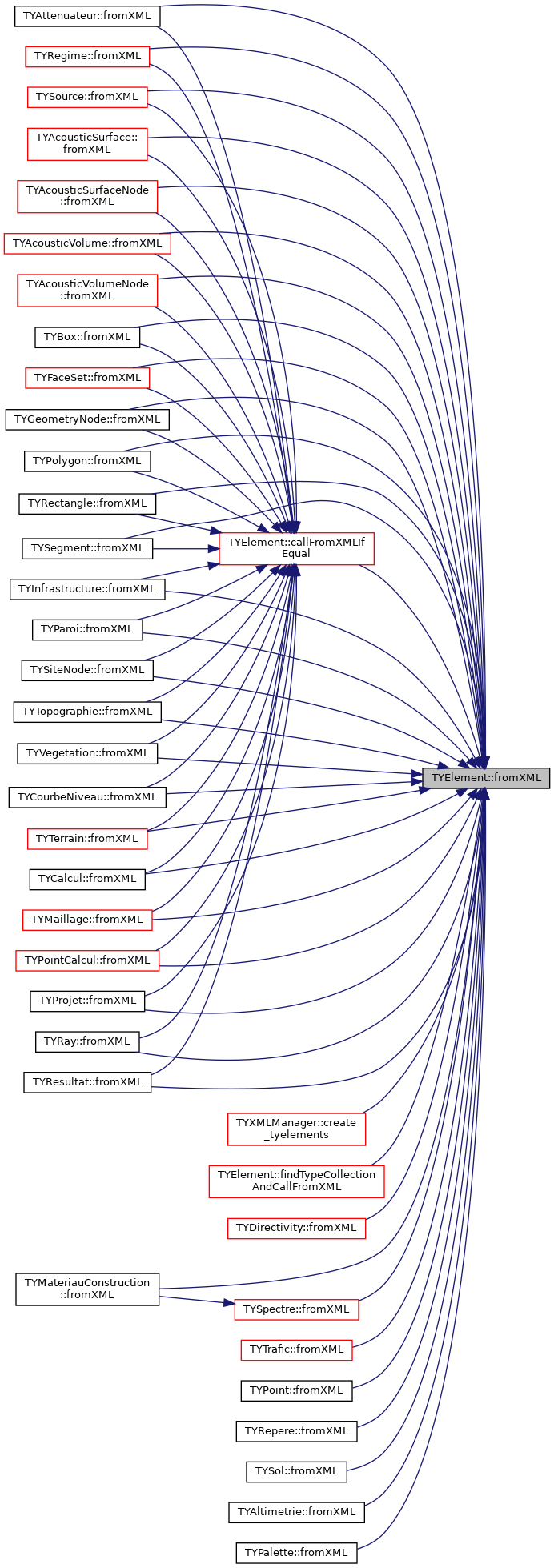

Here is the caller graph for this function:

◆ getAllUses()

void* TYElement::getAllUses ( )

inline

Definition at line 932 of file TYElement.h.

Here is the caller graph for this function:

◆ getChilds()

virtual void TYElement::getChilds	(	LPTYElementArray &	childs,
		bool	recursif = `true`
	)

inlinevirtual

Collecte les enfants de cet element de facon recursive ou non.

Reimplemented in TYSiteNode, TYInfrastructure, TYEtage, TYEcran, TYGeometryNode, TYAcousticVolumeNode, TYAcousticSurfaceNode, TYAcousticSemiCylinder, TYAcousticFaceSet, TYAcousticCylinder, and TYAcousticBox.

Definition at line 532 of file TYElement.h.

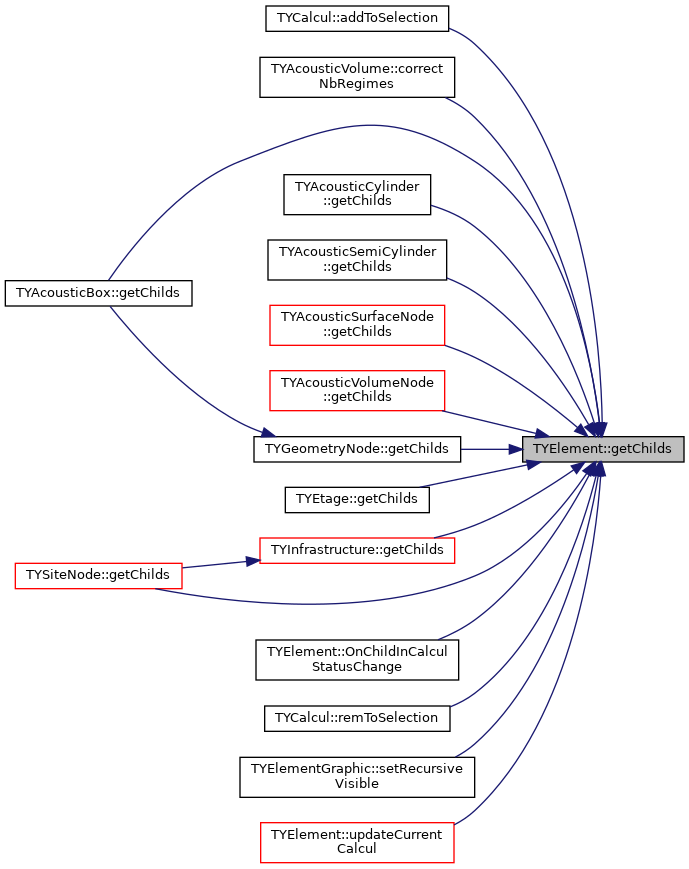

Here is the caller graph for this function:

◆ getConstructorCount()

uint64 TYElement::getConstructorCount ( )

static

Renvoie le nombre d'appels aux constructeurs d'objets metiers. (utilise pour faire des tests de performance)

Definition at line 634 of file TYElement.cpp.

◆ getDestructorCount()

uint64 TYElement::getDestructorCount ( )

static

Renvoie le nombre d'appels aux destructeurs d'objets metiers. (utilise pour faire des tests de performance)

Definition at line 638 of file TYElement.cpp.

◆ getID()

const TYUUID & TYElement::getID ( ) const

Set/Get de l'identifiant de l'element.

Definition at line 176 of file TYElement.cpp.

Here is the call graph for this function:

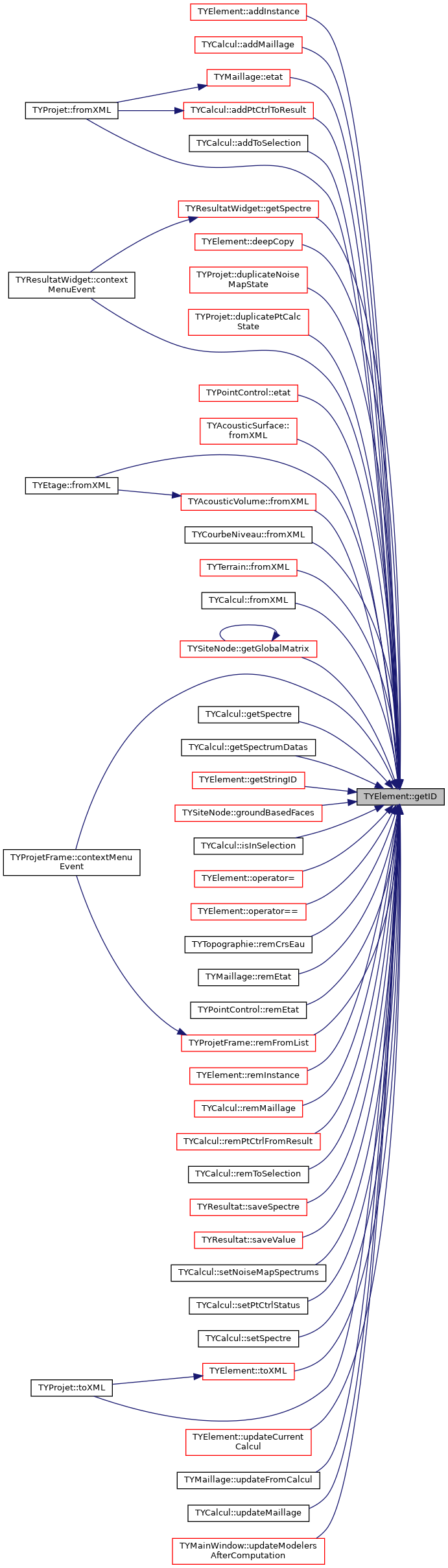

Here is the caller graph for this function:

◆ getIdGenerationCount()

uint64 TYElement::getIdGenerationCount ( )

static

Renvoie le nombre de (re)generation of UUID (utilise pour faire des tests de performance)

Definition at line 643 of file TYElement.cpp.

◆ getInstance()

TYElement * TYElement::getInstance ( TYUUID uuid )

static

Recherche une instance particuliere de type TYElement ou derive a partir de son ID.

Parameters

uuid	L'ID de l'element a rechercher.

Returns: L'instance ayant l'ID correspondant, sinon NULL.

Definition at line 158 of file TYElement.cpp.

Here is the call graph for this function:

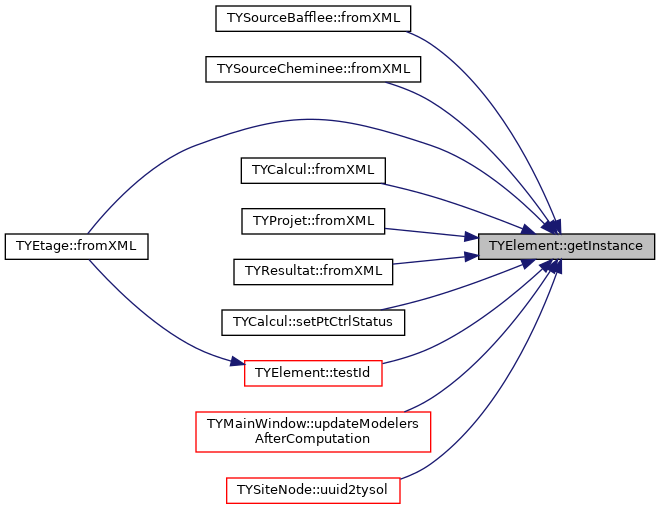

Here is the caller graph for this function:

◆ getInstances()

TYElementContainer & TYElement::getInstances ( )

staticprivate

Definition at line 95 of file TYElement.cpp.

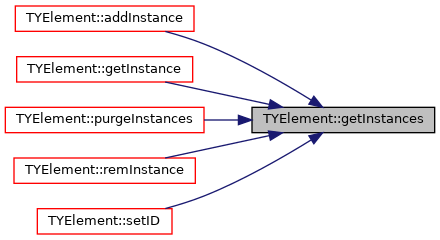

Here is the caller graph for this function:

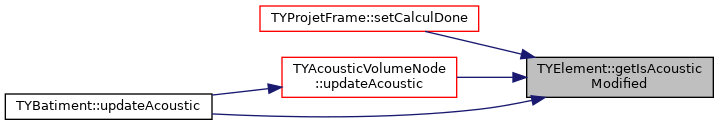

◆ getIsAcousticModified()

bool TYElement::getIsAcousticModified ( )

inline

Set/Get de l'indicateur de modification acoustique.

Definition at line 718 of file TYElement.h.

Here is the caller graph for this function:

◆ getIsGeometryModified()

bool TYElement::getIsGeometryModified ( )

inline

Set/Get de l'indicateur de modification de la geometrie.

Definition at line 731 of file TYElement.h.

◆ getIsSavedOk()

static bool TYElement::getIsSavedOk ( )

inlinestatic

Get/Set de l'etat de l'indicateur de sauvegarde

Definition at line 907 of file TYElement.h.

Here is the caller graph for this function:

◆ getLogInstances()

static bool TYElement::getLogInstances ( )

inlinestatic

Retourne l'etat de l'indicateur d'enregistrement des instances de type TYElement ou derive.

Returns: L'etat de l'enregistrement.

Definition at line 842 of file TYElement.h.

◆ getMetierName()

std::string TYElement::getMetierName ( )

Retourne le nom de la donnee metier associee a cette classe. Ce nom est utilise pour le nom des tables en BDD ainsi que pour le nom des noeuds XML.

Returns: Le nom de la donnee metier.

Definition at line 567 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getName()

virtual QString TYElement::getName ( ) const

inlinevirtual

Set/Get du nom de l'element.

Definition at line 684 of file TYElement.h.

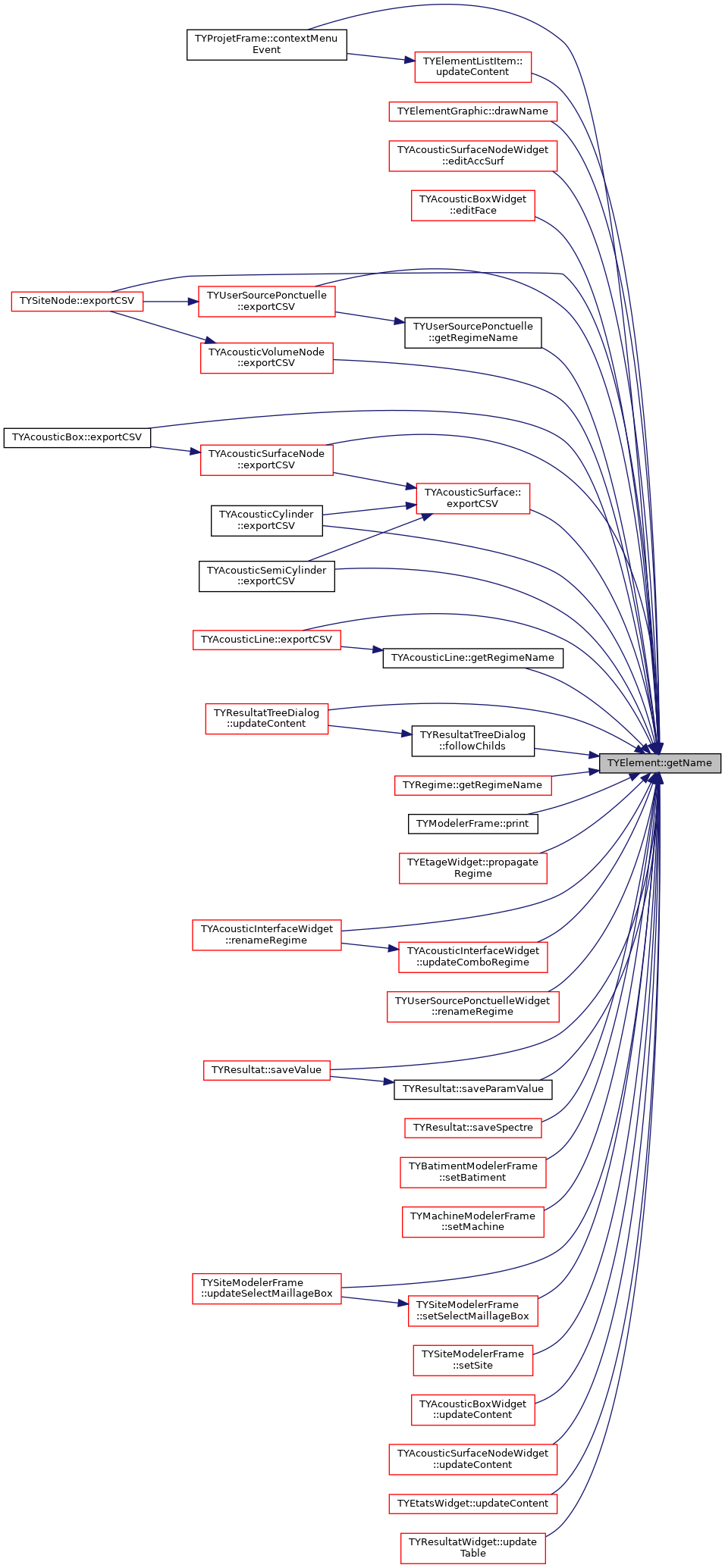

Here is the caller graph for this function:

◆ getParent()

TYElement* TYElement::getParent ( ) const

inline

Set/Get de la reference sur le parent de cet element.

Definition at line 699 of file TYElement.h.

Here is the caller graph for this function:

◆ getRegenerateID()

static bool TYElement::getRegenerateID ( )

inlinestatic

Definition at line 927 of file TYElement.h.

Here is the caller graph for this function:

◆ getStringID()

QString TYElement::getStringID ( ) const

inline

Get de l'identifiant de l'element sous forme de string.

Definition at line 653 of file TYElement.h.

Here is the call graph for this function:

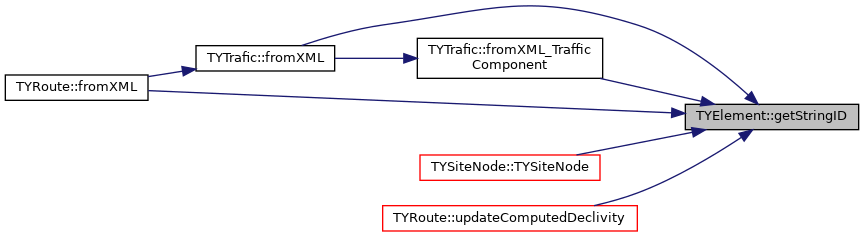

Here is the caller graph for this function:

◆ hasNullID()

bool TYElement::hasNullID ( ) const

inline

Definition at line 658 of file TYElement.h.

Here is the caller graph for this function:

◆ isInCurrentCalcul()

virtual bool TYElement::isInCurrentCalcul ( )

inlinevirtual

Set/Get de l'indicateur d'appartenance au Calcul courant.

Definition at line 541 of file TYElement.h.

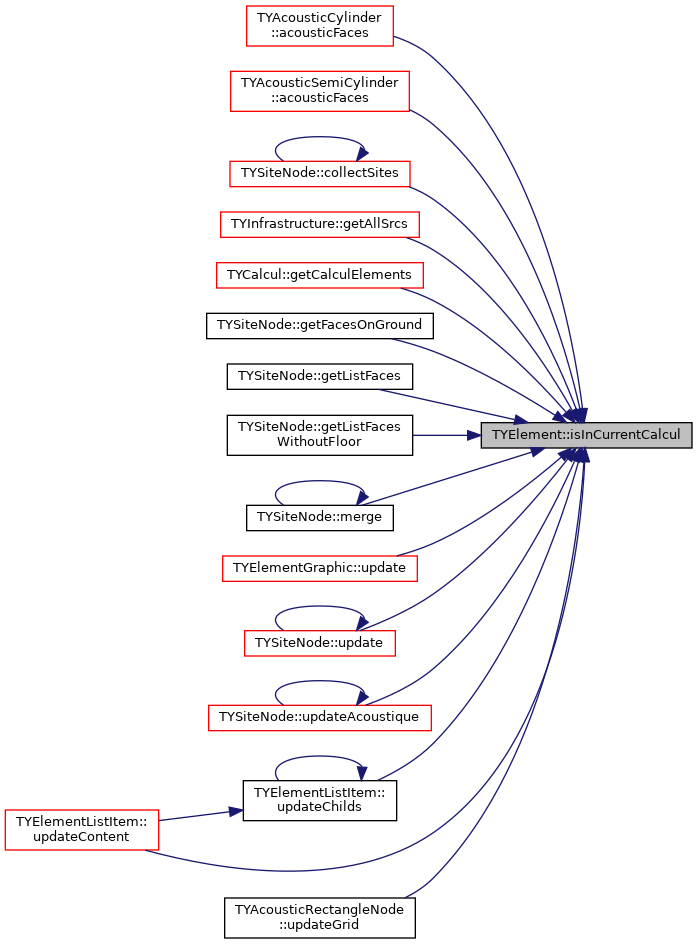

Here is the caller graph for this function:

◆ newID()

TYUUID TYElement::newID ( )

static

Retourne un nouvel identifiant unique.

Returns: Un nouvel identifiant unique.

Definition at line 615 of file TYElement.cpp.

Here is the caller graph for this function:

◆ OnChildInCalculStatusChange()

void TYElement::OnChildInCalculStatusChange ( )

private

Called by children to inform parents that they change their "in calcul" state.

Definition at line 440 of file TYElement.cpp.

Here is the call graph for this function:

◆ operator!=()

bool TYElement::operator!= ( const TYElement & other ) const

Operateur de comparaison.

Definition at line 302 of file TYElement.cpp.

Here is the call graph for this function:

◆ operator=()

TYElement & TYElement::operator= ( const TYElement & other )

Operateur de copie.

Definition at line 265 of file TYElement.cpp.

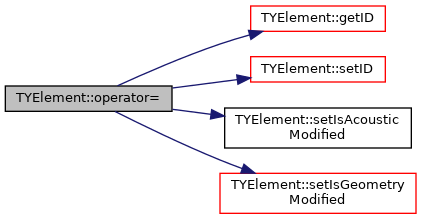

Here is the call graph for this function:

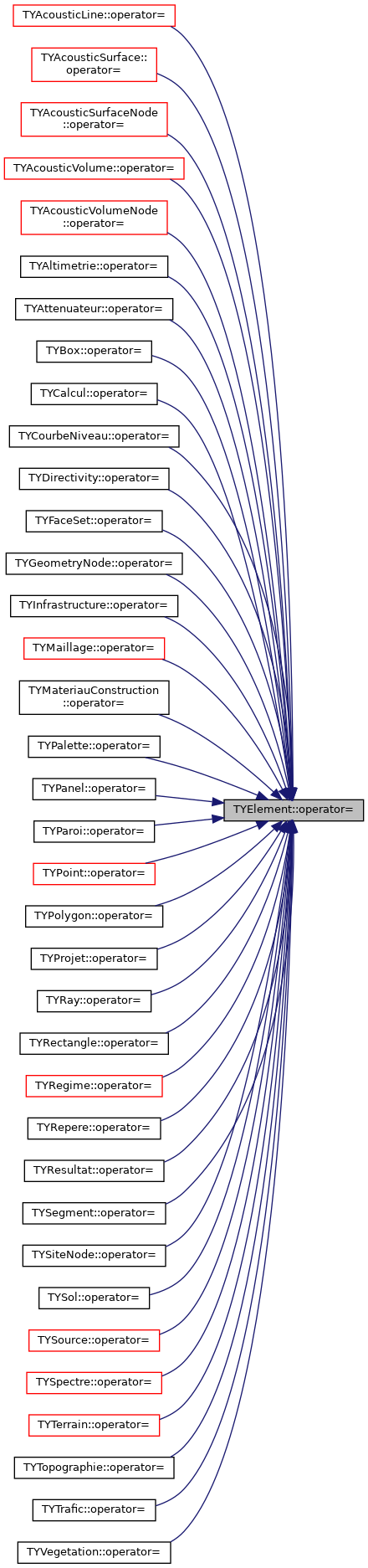

Here is the caller graph for this function:

◆ operator==()

bool TYElement::operator== ( const TYElement & other ) const

Operateur de comparaison.

Definition at line 282 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ purgeInstances()

void TYElement::purgeInstances ( )

static

Vide le tableau de l'enregistrement des instances.

Definition at line 171 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ regenerateID()

void TYElement::regenerateID ( )

Genere un nouvel Id pour l'element (utilise lors de l'import d'un element dans un projet)

Definition at line 243 of file TYElement.cpp.

Here is the call graph for this function:

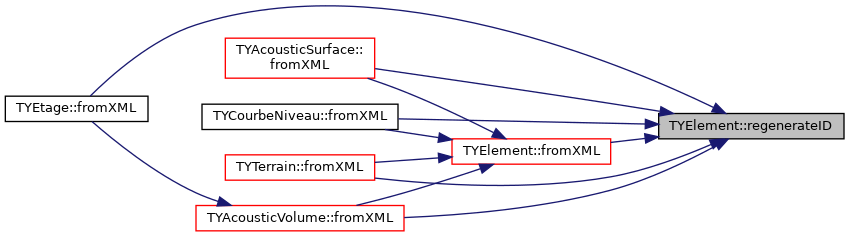

Here is the caller graph for this function:

◆ remInstance()

void TYElement::remInstance ( )

private

Supprime une instance au tableau d'enregistrement des instances

Definition at line 235 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setAllUses()

void TYElement::setAllUses ( void * allUses )

inline

Definition at line 936 of file TYElement.h.

Here is the caller graph for this function:

◆ setCopyCount()

void TYElement::setCopyCount ( const unsigned int copyCount )

inline

Modifie la vaeur du compteur.

Definition at line 557 of file TYElement.h.

Here is the caller graph for this function:

◆ setID() [1/2]

void TYElement::setID ( const QString & str_id )

Definition at line 210 of file TYElement.cpp.

Here is the call graph for this function:

◆ setID() [2/2]

void TYElement::setID ( TYUUID id )

Set/Get de l'identifiant de l'element.

Definition at line 186 of file TYElement.cpp.

Here is the call graph for this function:

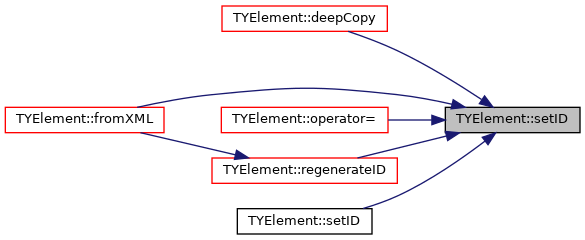

Here is the caller graph for this function:

◆ setInCurrentCalcul()

void TYElement::setInCurrentCalcul	(	bool	state,
		bool	recurschild = `true`,
		bool	recursparent = `true`
	)

virtual

Set/Get de l'indicateur d'appartenance au Calcul courant.

Definition at line 410 of file TYElement.cpp.

Here is the call graph for this function:

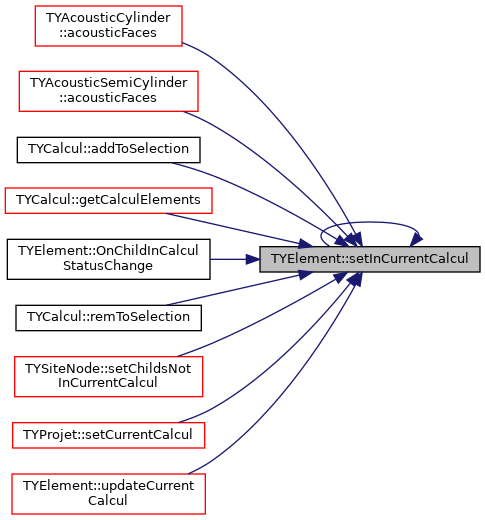

Here is the caller graph for this function:

◆ setIsAcousticModified()

void TYElement::setIsAcousticModified ( bool isModified )

virtual

Set/Get de l'indicateur de modification acoustique.

Reimplemented in TYAcousticVolume, TYAcousticSurfaceNode, and TYAcousticSurface.

Definition at line 248 of file TYElement.cpp.

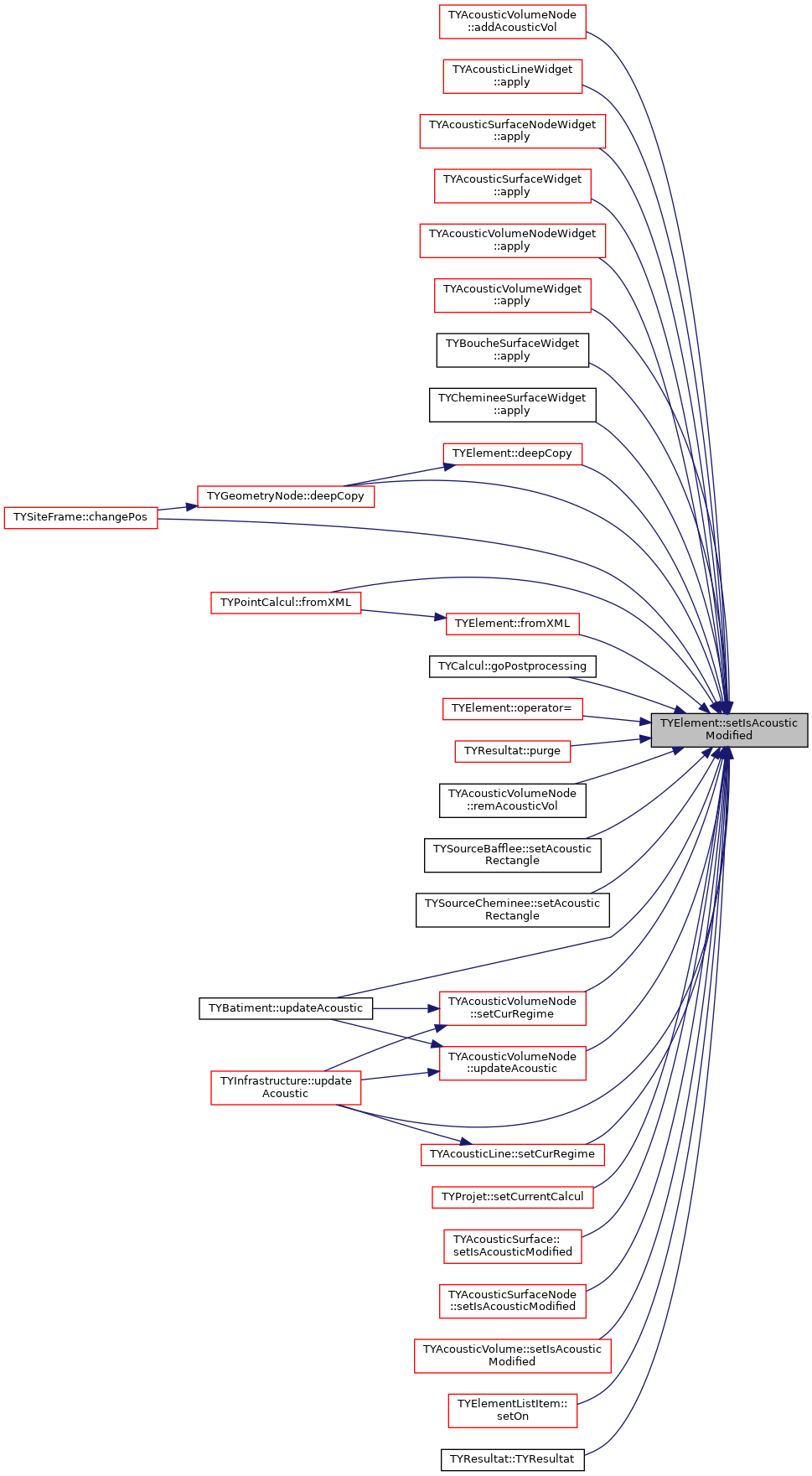

Here is the caller graph for this function:

◆ setIsGeometryModified()

void TYElement::setIsGeometryModified ( bool isModified )

virtual

Set/Get de l'indicateur de modification de la geometrie.

Reimplemented in TYPlanEau, TYCourbeNiveau, TYTopographie, and TYSiteNode.

Definition at line 253 of file TYElement.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setIsSavedOk()

static void TYElement::setIsSavedOk ( const bool & toSave )

inlinestatic

Get/Set de l'etat de l'indicateur de sauvegarde

Definition at line 915 of file TYElement.h.

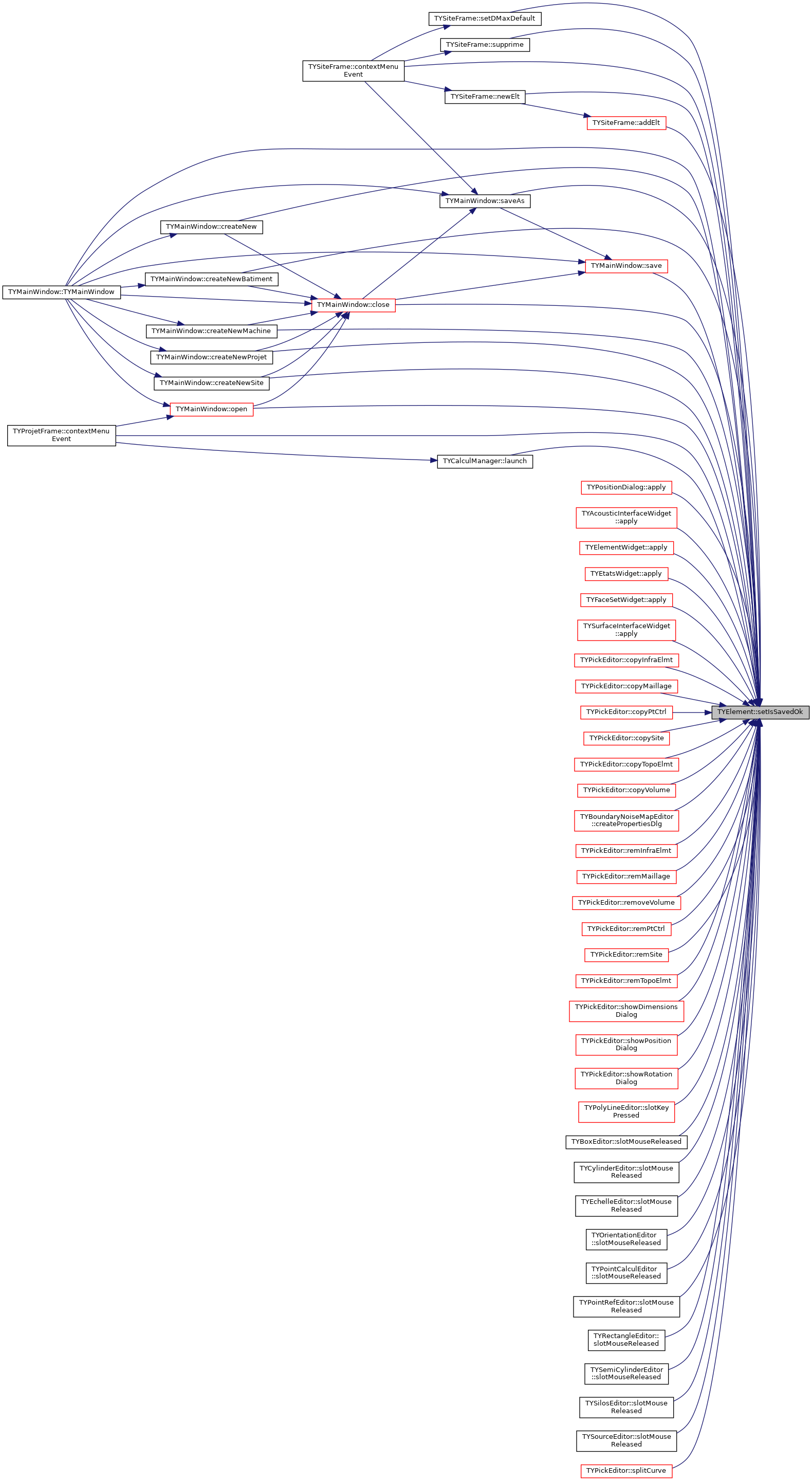

Here is the caller graph for this function:

◆ setLogInstances()

static void TYElement::setLogInstances ( bool log )

inlinestatic

Active ou desactive l'enregistrement de toutes les instances creees de type TYElement ou derive.

Parameters

log	Active ou desactive.

Definition at line 832 of file TYElement.h.

Here is the caller graph for this function:

◆ setName() [1/2]

void TYElement::setName ( QString name )

inline

Set/Get du nom de l'element.

Definition at line 671 of file TYElement.h.

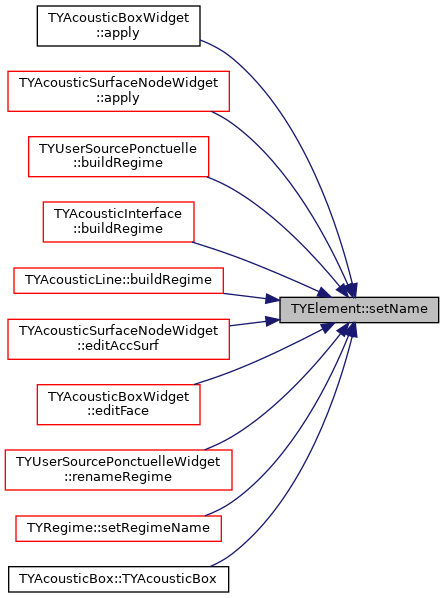

Here is the caller graph for this function:

◆ setName() [2/2]

void TYElement::setName ( std::string name )

inline

Definition at line 676 of file TYElement.h.

◆ setParent()

void TYElement::setParent ( TYElement * pParent )

inline

Set/Get de la reference sur le parent de cet element.

Definition at line 692 of file TYElement.h.

Here is the caller graph for this function:

◆ setRegenerateID()

static void TYElement::setRegenerateID ( const bool & bRegenerate )

inlinestatic

Get/Set de l'etat de regerneration d'ID

Definition at line 923 of file TYElement.h.

Here is the caller graph for this function:

◆ testId()

bool TYElement::testId	(	const TYUUID &	id,
		const TYElement *	pElem
	)

static

Verification de l'existence d'un doublon dans la liste des instances

Definition at line 216 of file TYElement.cpp.

Here is the call graph for this function:

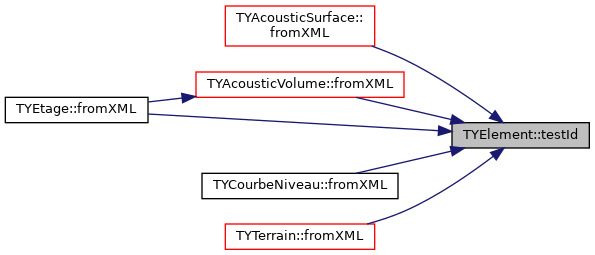

Here is the caller graph for this function:

◆ toString() [1/2]

virtual std::string TYElement::toString ( ) const

inlinevirtual

Retourne une chaine de caractere donnant des informations sur cet objet (utile pour le debugage).

Returns: Une chaine de caractere informative sur cet objet.

Reimplemented in TYResultat, TYRectangularMaillage, TYProjet, TYPointControl, TYPointCalcul, TYPanel, TYPalette, TYMaillage, TYLinearMaillage, TYCalcul, TYBoundaryNoiseMap, TYTerrain, TYPlanEau, TYCoursEau, TYCourbeNiveau, TYAltimetrie, TYVegetation, TYSol, TYMateriauConstruction, TYTopographie, TYSiteNode, TYRoute, TYReseauTransport, TYParoi, TYMurElement, TYMur, TYMachine, TYInfrastructure, TYEtage, TYEcran, TYDalle, TYBatiment, TYSegment, TYRepere, TYRectangle, TYPolygon, TYPoint, TYFaceSet, TYBox, TYChemineeSurface, TYBoucheSurface, TYAcousticVolumeNode, TYAcousticVolume, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCylinder, TYAcousticSemiCircle, TYAcousticRectangleNode, TYAcousticRectangle, TYAcousticPolygon, TYAcousticLine, TYAcousticFaceSet, TYAcousticCylinder, TYAcousticCircle, TYAcousticBox, TYUserSrcRegime, TYUserSourcePonctuelle, TYTrafic, TYSpectre, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, TYSourceBafflee, TYSource, TYRegime, TYDirectivity, and TYAttenuateur.

Definition at line 786 of file TYElement.h.

Here is the caller graph for this function:

◆ toString() [2/2]

QString TYElement::toString ( TYUUID & uuid )

static

conversion d'un identifiant 128 bits en string.

Definition at line 629 of file TYElement.cpp.

◆ toXML()

DOM_Element TYElement::toXML ( DOM_Element & domElement )

virtual

Construit une arborescence DOM a partir du noeud passe afin de sauvegarder les parametres au format XML.

Parameters

domElement Le noeud DOM parent a partir duquel l'arborescence doit etre creee.

Returns: Le noeud DOM nouvellement cree.

Reimplemented in TYResultat, TYRectangularMaillage, TYRay, TYProjet, TYPointControl, TYPointCalcul, TYPalette, TYMaillage, TYLinearMaillage, TYCalcul, TYBoundaryNoiseMap, TYTerrain, TYPlanEau, TYCoursEau, TYCourbeNiveau, TYAltimetrie, TYVegetation, TYSol, TYMateriauConstruction, TYTopographie, TYSiteNode, TYRoute, TYReseauTransport, TYParoi, TYMurElement, TYMur, TYMachine, TYInfrastructure, TYEtage, TYEcran, TYDalle, TYBatiment, TYSegment, TYRepere, TYRectangle, TYPolygon, TYPoint, TYGeometryNode, TYFaceSet, TYBox, TYAcousticVolumeNode, TYAcousticVolume, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCylinder, TYAcousticSemiCircle, TYAcousticRectangleNode, TYAcousticRectangle, TYAcousticPolygon, TYAcousticLine, TYAcousticFaceSet, TYAcousticCylinder, TYAcousticCircle, TYAcousticBox, TYUserSrcRegime, TYUserSourcePonctuelle, TYTrafic, TYSpectre, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, TYSourceBafflee, TYSource, TYRegime, TYComputedDirectivity, TYUserDefinedDirectivity, TYDirectivity, and TYAttenuateur.

Definition at line 368 of file TYElement.cpp.

Here is the call graph for this function:

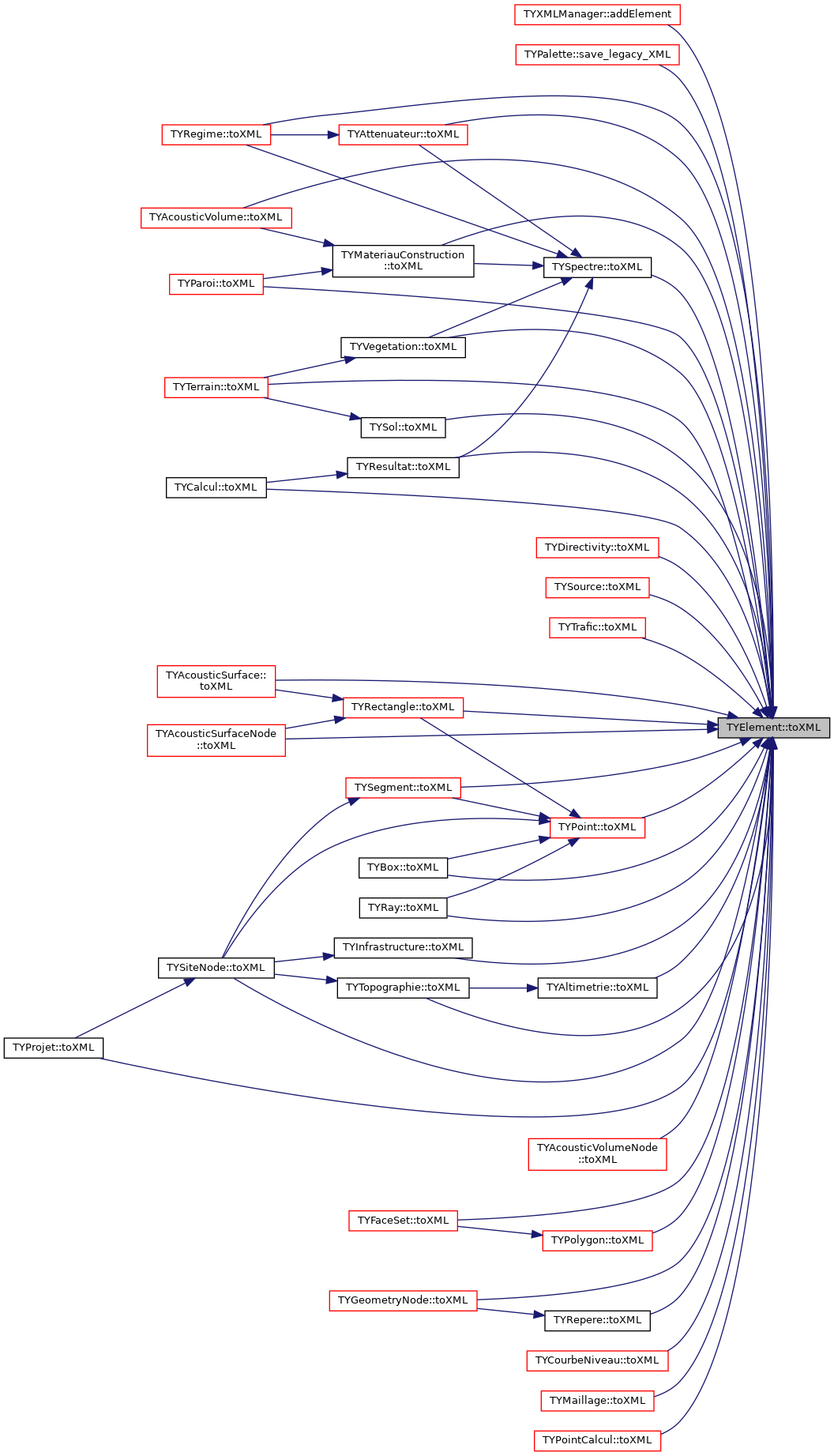

Here is the caller graph for this function:

◆ updateCurrentCalcul()

void TYElement::updateCurrentCalcul	(	TYListID &	listID,
		bool	recursif = `true`
	)

virtual

Verifie si cet element est present dans la liste d'ID passee. S'il est present cela signifie qu'il est actif dans le Calcul courant, c'est cet etat qui est retourne.

Parameters

listID	La liste d'ID du Calcul courant.
recursif	Indique si la mise a jour du Calcul courant doit etre recursive.

Reimplemented in TYTopographie, TYSiteNode, and TYInfrastructure.

Definition at line 460 of file TYElement.cpp.

Here is the call graph for this function:

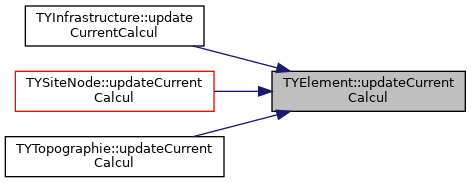

Here is the caller graph for this function:

Member Data Documentation

◆ _allUses

void* TYElement::_allUses

protected

Multi purpose void pointer (use for compatibility actually)

Definition at line 990 of file TYElement.h.

◆ _bPutInInstanceList

bool TYElement::_bPutInInstanceList

protected

Definition at line 972 of file TYElement.h.

◆ _bRegenerateID

bool TYElement::_bRegenerateID = false

staticprivate

Indicateur de regeneration d'ID true si regeneration d'ID a la lecture d'un fichier XML.

Definition at line 1003 of file TYElement.h.

◆ _copyCount

unsigned int TYElement::_copyCount

protected

Definition at line 975 of file TYElement.h.

◆ _inCurrentCalcul

bool TYElement::_inCurrentCalcul

protected

Indique si cet element est actif dans le Calcul courant.

Definition at line 978 of file TYElement.h.

◆ _instances

TYElementContainer * TYElement::_instances = NULL

staticprivate

Collection de toutes les instances de type TYElement et derivees.

Definition at line 997 of file TYElement.h.

◆ _isAcousticModified

bool TYElement::_isAcousticModified

protected

Indicateur de modification acoustique.

Definition at line 981 of file TYElement.h.

◆ _isGeometryModified

bool TYElement::_isGeometryModified

protected

Indicateur de modification de la geometrie.

Definition at line 984 of file TYElement.h.

◆ _logInstances

bool TYElement::_logInstances = false

staticprivate

Indique si on souhaite registrer toutes les instances de type TYElement et derivees.

Le log des instances ne doit absolument pas etre active au lancement de l'application, le log des instances statiques provoque un crash.

Definition at line 994 of file TYElement.h.

◆ _name

QString TYElement::_name

protected

Nom courant de l'element.

Definition at line 966 of file TYElement.h.

◆ _pGraphicObject

LPTYElementGraphic TYElement::_pGraphicObject

protected

L'object graphique metier associe a cet element.

Definition at line 987 of file TYElement.h.

◆ _pParent

TYElement* TYElement::_pParent

protected

Reference sur l'element parent.

Definition at line 969 of file TYElement.h.

◆ _toSave

bool TYElement::_toSave = false

staticprivate

Indicateur de modification. Passe a true si un TYElement a ete modifie, Indique la necessite de sauvegarder

Definition at line 1001 of file TYElement.h.

◆ _uuid

TYUUID TYElement::_uuid

mutableprivate

Identifiant unique de l'element.

Definition at line 962 of file TYElement.h.

◆ ty_created_counter

uint64 TYElement::ty_created_counter = 0

staticprivate

Definition at line 1005 of file TYElement.h.

◆ ty_destroyed_counter

uint64 TYElement::ty_destroyed_counter = 0

staticprivate

Definition at line 1006 of file TYElement.h.

◆ ty_regen_id_counter

uint64 TYElement::ty_regen_id_counter = 0

staticprivate

Definition at line 1007 of file TYElement.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/TYElement.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/TYElement.cpp

Public Member Functions

Methodes Utilitaires

Gestion du Calcul courant

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TYElement() [1/3]

◆ TYElement() [2/3]

◆ TYElement() [3/3]

◆ ~TYElement()

Member Function Documentation

◆ addCopy()

◆ addInstance()

◆ callFromXMLIfEqual()

◆ cleanAllUses()

◆ deepCopy()

◆ findTypeCollectionAndCallFromXML()

◆ fromString()

◆ fromXML()

◆ getAllUses()

◆ getChilds()

◆ getConstructorCount()

◆ getDestructorCount()

◆ getID()

◆ getIdGenerationCount()

◆ getInstance()

◆ getInstances()

◆ getIsAcousticModified()

◆ getIsGeometryModified()

◆ getIsSavedOk()

◆ getLogInstances()

◆ getMetierName()

◆ getName()

◆ getParent()

◆ getRegenerateID()

◆ getStringID()

◆ hasNullID()

◆ isInCurrentCalcul()

◆ newID()

◆ OnChildInCalculStatusChange()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ purgeInstances()

◆ regenerateID()

◆ remInstance()

◆ setAllUses()

◆ setCopyCount()

◆ setID() [1/2]

◆ setID() [2/2]

◆ setInCurrentCalcul()

◆ setIsAcousticModified()

◆ setIsGeometryModified()

◆ setIsSavedOk()

◆ setLogInstances()

◆ setName() [1/2]

◆ setName() [2/2]

◆ setParent()

◆ setRegenerateID()

◆ testId()

◆ toString() [1/2]

◆ toString() [2/2]

◆ toXML()

◆ updateCurrentCalcul()

Member Data Documentation

◆ _allUses

◆ _bPutInInstanceList

◆ _bRegenerateID

◆ _copyCount

◆ _inCurrentCalcul

◆ _instances

◆ _isAcousticModified

◆ _isGeometryModified

◆ _logInstances

◆ _name

◆ _pGraphicObject

◆ _pParent

◆ _toSave

◆ _uuid

◆ ty_created_counter
