#include <TYSource.h>

Inheritance diagram for TYSource:

[legend]

Collaboration diagram for TYSource:

Public Member Functions
	TYSource ()

	TYSource (const TYSource &other)

virtual	~TYSource ()

TYSource &	operator= (const TYSource &other)
	Operateur =. More...

bool	operator== (const TYSource &other) const
	Operateur ==. More...

bool	operator!= (const TYSource &other) const
	Operateur !=. More...

virtual bool	deepCopy (const TYElement *pOther, bool copyId=true, bool pUseCopyTag=false)

virtual std::string	toString () const

virtual DOM_Element	toXML (DOM_Element &domElement)

virtual int	fromXML (DOM_Element domElement)

virtual TYSpectre *	getSpectre (int regime=-1) const

virtual TYSpectre *	getCurrentSpectre () const

virtual void	setSpectre (LPTYSpectre pSpectre)

Public Member Functions inherited from TYElement
	TYElement ()

	TYElement (TYElement *pParent, bool PutInInstanceList=true)

	TYElement (const TYElement &other, bool PutInInstanceList=true)

virtual	~TYElement ()

void	setID (TYUUID id)

void	setID (const QString &str_id)

const TYUUID &	getID () const

QString	getStringID () const

bool	hasNullID () const

void	regenerateID ()

void	setName (QString name)

void	setName (std::string name)

virtual QString	getName () const

void	setParent (TYElement *pParent)

TYElement *	getParent () const

virtual void	setIsAcousticModified (bool isModified)

bool	getIsAcousticModified ()

virtual void	setIsGeometryModified (bool isModified)

bool	getIsGeometryModified ()

TYElement &	operator= (const TYElement &other)

bool	operator== (const TYElement &other) const

bool	operator!= (const TYElement &other) const

bool	callFromXMLIfEqual (DOM_Element &domElement, int *pRetVal=NULL)

std::string	getMetierName ()

void *	getAllUses ()

void	setAllUses (void *allUses)

void	cleanAllUses ()

virtual void	updateCurrentCalcul (TYListID &listID, bool recursif=true)

virtual void	getChilds (LPTYElementArray &childs, bool recursif=true)

virtual void	setInCurrentCalcul (bool state, bool recurschild=true, bool recursparent=true)

virtual bool	isInCurrentCalcul ()

void	addCopy ()
	Increment le compteur de nombre de copies. More...

void	setCopyCount (const unsigned int copyCount)
	Modifie la vaeur du compteur. More...

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Public Member Functions inherited from OPrototype
virtual	~OPrototype ()

virtual OPrototype *	clone () const =0

virtual const char *	getClassName () const

bool	isA (const char *className) const

Protected Attributes
LPTYSpectre	_pSpectre

Protected Attributes inherited from TYElement
QString	_name
	Nom courant de l'element. More...

TYElement *	_pParent
	Reference sur l'element parent. More...

bool	_bPutInInstanceList

unsigned int	_copyCount

bool	_inCurrentCalcul
	Indique si cet element est actif dans le Calcul courant. More...

bool	_isAcousticModified
	Indicateur de modification acoustique. More...

bool	_isGeometryModified
	Indicateur de modification de la geometrie. More...

LPTYElementGraphic	_pGraphicObject
	L'object graphique metier associe a cet element. More...

void *	_allUses
	Multi purpose void pointer (use for compatibility actually) More...

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Additional Inherited Members
Static Public Member Functions inherited from TYElement
static LPTYElementArray	findTypeCollectionAndCallFromXML (DOM_Element parentElem, const char *type)

static void	setLogInstances (bool log)

static bool	getLogInstances ()

static TYElement *	getInstance (TYUUID uuid)

static void	purgeInstances ()

static bool	testId (const TYUUID &id, const TYElement *pElem)

static TYUUID	newID ()

static TYUUID	fromString (QString id)

static QString	toString (TYUUID &uuid)

static uint64	getConstructorCount ()

static uint64	getDestructorCount ()

static uint64	getIdGenerationCount ()

static bool	getIsSavedOk ()

static void	setIsSavedOk (const bool &toSave)

static void	setRegenerateID (const bool &bRegenerate)

static bool	getRegenerateID ()

Static Public Member Functions inherited from OPrototype
static OPrototype *	findAndClone (const char *className)

static int	findPrototype (const char *className)

static OPrototype *	safeDownCast (OPrototype *pObject)

static void	add_factory (const char *, IOProtoFactory::ptr_type factory)

Protected Member Functions inherited from OPrototype
	OPrototype ()

Detailed Description

Classe de base des sources.

Definition at line 31 of file TYSource.h.

Constructor & Destructor Documentation

◆ TYSource() [1/2]

TYSource::TYSource ( )

Constructeur.

Definition at line 25 of file TYSource.cpp.

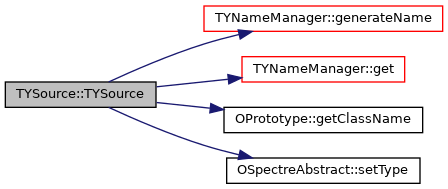

Here is the call graph for this function:

◆ TYSource() [2/2]

TYSource::TYSource ( const TYSource & other )

Constructeur par copie.

Definition at line 33 of file TYSource.cpp.

◆ ~TYSource()

TYSource::~TYSource ( )

virtual

Destructeur.

Definition at line 38 of file TYSource.cpp.

Member Function Documentation

◆ deepCopy()

bool TYSource::deepCopy	(	const TYElement *	pOther,
		bool	copyId = `true`,
		bool	pUseCopyTag = `false`
	)

virtual

Fonction de copie recursive (virtuelle)

Parameters

pOther	destination de la copy
copyId	vrai par defaut
pUseCopyTag	faux par defaut

Reimplemented from TYElement.

Reimplemented in TYRoute, TYReseauTransport, TYAcousticLine, TYUserSourcePonctuelle, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, and TYSourceBafflee.

Definition at line 71 of file TYSource.cpp.

Here is the call graph for this function:

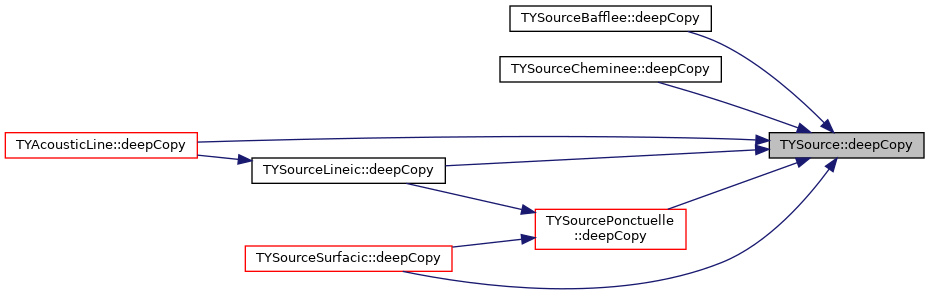

Here is the caller graph for this function:

◆ fromXML()

int TYSource::fromXML ( DOM_Element domElement )

virtual

Extrait les informations a partir du noeud DOM passe afin de recuperer les parametres de la classe.

Parameters

domElement Le noeud DOM a partir duquel les parametres doivent etre recuperes.

Returns: 1 si la recuperation des parametres a reussie.

Reimplemented from TYElement.

Reimplemented in TYCoursEau, TYRoute, TYReseauTransport, TYAcousticLine, TYUserSourcePonctuelle, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, and TYSourceBafflee.

Definition at line 97 of file TYSource.cpp.

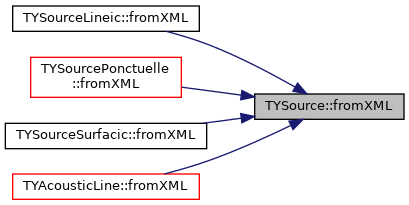

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCurrentSpectre()

virtual TYSpectre* TYSource::getCurrentSpectre ( ) const

inlinevirtual

Get/Set du Spectre (independemment d'un eventuel attenuateur) - utilise par le widget -

Reimplemented in TYUserSourcePonctuelle.

Definition at line 84 of file TYSource.h.

Here is the caller graph for this function:

◆ getSpectre()

virtual TYSpectre* TYSource::getSpectre ( int regime = -1 ) const

inlinevirtual

Set/Get du spectre.

Reimplemented in TYAcousticLine, and TYUserSourcePonctuelle.

Definition at line 76 of file TYSource.h.

Here is the caller graph for this function:

◆ operator!=()

bool TYSource::operator!= ( const TYSource & other ) const

Operateur !=.

Definition at line 66 of file TYSource.cpp.

Here is the call graph for this function:

◆ operator=()

TYSource & TYSource::operator= ( const TYSource & other )

Operateur =.

Definition at line 40 of file TYSource.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator==()

bool TYSource::operator== ( const TYSource & other ) const

Operateur ==.

Definition at line 50 of file TYSource.cpp.

Here is the caller graph for this function:

◆ setSpectre()

virtual void TYSource::setSpectre ( LPTYSpectre pSpectre )

inlinevirtual

Definition at line 89 of file TYSource.h.

Here is the caller graph for this function:

◆ toString()

std::string TYSource::toString ( ) const

virtual

Retourne une chaine de caractere donnant des informations sur cet objet (utile pour le debugage).

Returns: Une chaine de caractere informative sur cet objet.

Reimplemented from TYElement.

Reimplemented in TYCoursEau, TYRoute, TYReseauTransport, TYAcousticLine, TYUserSourcePonctuelle, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, and TYSourceBafflee.

Definition at line 85 of file TYSource.cpp.

◆ toXML()

DOM_Element TYSource::toXML ( DOM_Element & domElement )

virtual

Construit une arborescence DOM a partir du noeud passe afin de sauvegarder les parametres au format XML.

Parameters

domElement Le noeud DOM parent a partir duquel l'arborescence doit etre creee.

Returns: Le noeud DOM nouvellement cree.

Reimplemented from TYElement.

Reimplemented in TYCoursEau, TYRoute, TYReseauTransport, TYAcousticLine, TYUserSourcePonctuelle, TYSourceSurfacic, TYSourcePonctuelle, TYSourceLineic, TYSourceCheminee, and TYSourceBafflee.

Definition at line 90 of file TYSource.cpp.

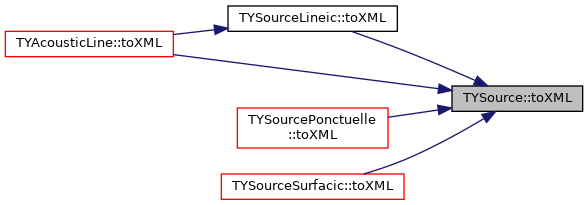

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _pSpectre

LPTYSpectre TYSource::_pSpectre

protected

Definition at line 96 of file TYSource.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/acoustic/TYSource.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/acoustic/TYSource.cpp
