Describes the ground material, a specific AcousticBuildingMaterial. More...

#include <entities.hpp>

Inheritance diagram for tympan::AcousticGroundMaterial:

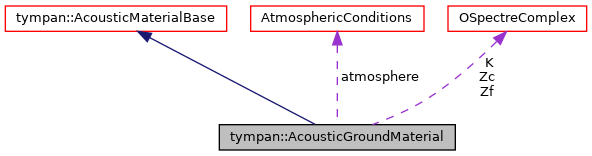

Collaboration diagram for tympan::AcousticGroundMaterial:

[legend]

Public Member Functions
	AcousticGroundMaterial (const string &name_, double resistivity_, double deviation_, double length_, double factor_g_)
	Constructor. More...

virtual	~AcousticGroundMaterial ()
	Destructor. More...

virtual ComplexSpectrum	get_absorption (double incidence_angle, double length)
	Get material absorption at reflection point. More...

const ComplexSpectrum &	get_Zc () const
	Get characteristic impedance. More...

const ComplexSpectrum &	get_K () const
	Get wave number. More...

void	set_thickness (double thickness_)
	Set thickness. More...

void	set_deviation (double deviation_)
	Set deviation. More...

void	set_length (double length_)
	Set wave length. More...

double	get_ISO9613_G ()
	Absorption given by ISO9613. More...

bool	compare (const string &name, double resistivity, double deviation, double length, double factor_g)
	Compare this AcousticGroundMaterial to another one. More...

Public Member Functions inherited from tympan::AcousticMaterialBase
	AcousticMaterialBase (const string &name_)
	Constructor. More...

Public Member Functions inherited from tympan::BaseEntity
virtual	~BaseEntity ()
	Constructor. More...

Static Public Member Functions
static void	set_atmosphere (AtmosphericConditions *atmosphere_)
	Set pointer to current atmosphere. More...

Protected Member Functions
void	computeZc ()
	Compute characteristic impedance. More...

void	computeK ()
	Compute wave number. More...

void	computeZs (double angle, ComplexSpectrum Z, ComplexSpectrum &spectrum)
	Compute specific impedance. More...

void	computeZf (double angle, ComplexSpectrum Zs)
	Compute effective impedance in rough ground. More...

void	computeRp (double angle, const ComplexSpectrum &Zs, ComplexSpectrum &Rp)
	Compute reflection coefficient for plane waves. More...

void	computeW (double angle, double length, const ComplexSpectrum &Zs, ComplexSpectrum &W)
	Compute numeric distance. More...

void	computeFw (ComplexSpectrum localW, ComplexSpectrum &Fw)
	Compute function of numeric distance. More...

void	computeQ (double angle, ComplexSpectrum &Rp, ComplexSpectrum &Fw, ComplexSpectrum &Q)
	Compute reflection coefficient. More...

Protected Member Functions inherited from tympan::BaseEntity
	BaseEntity ()

Protected Attributes
double	resistivity
	XXX. More...

double	thickness

double	deviation

double	length

double	factor_g

ComplexSpectrum	Zc
	Characteristic impedance. More...

ComplexSpectrum	K
	Wave number. More...

ComplexSpectrum	Zf
	Effective impedance. More...

Static Protected Attributes
static AtmosphericConditions *	atmosphere = new AtmosphericConditions(101325., 20., 70.)
	Pointer to current atmosphere. More...

Private Member Functions
void	init ()

TYComplex	erfcCas1 (const TYComplex &wValue) const
	: Functions used in Fw computation More...

TYComplex	erfcCas2 (const TYComplex &wValue) const

TYComplex	erfcCas3 (const TYComplex &wValue) const

TYComplex	sgnReIm (const TYComplex &W, const TYComplex &G) const
	: function used in G computation More...

void	limit_W_values (ComplexSpectrum &localW)

void	erfc_G_computation (const ComplexSpectrum &localW, ComplexSpectrum &G)

void	sgn_G_computation (const ComplexSpectrum &localW, ComplexSpectrum &G)

double	gaussianSpectrum (double const k, double const sigma, double const lc)

double	trapz (std::vector< double > u, std::vector< double > integrande)

Additional Inherited Members
Public Attributes inherited from tympan::AcousticMaterialBase
string	name
	Material name. More...

Detailed Description

Describes the ground material, a specific AcousticBuildingMaterial.

Definition at line 75 of file entities.hpp.

Constructor & Destructor Documentation

◆ AcousticGroundMaterial()

tympan::AcousticGroundMaterial::AcousticGroundMaterial	(	const string &	name_,
		double	resistivity_,
		double	deviation_,
		double	length_,
		double	factor_g_
	)

Constructor.

Definition at line 37 of file entities.cpp.

Here is the call graph for this function:

◆ ~AcousticGroundMaterial()

virtual tympan::AcousticGroundMaterial::~AcousticGroundMaterial ( )

inlinevirtual

Destructor.

Definition at line 82 of file entities.hpp.

Member Function Documentation

◆ compare()

bool tympan::AcousticGroundMaterial::compare	(	const string &	name,
		double	resistivity,
		double	deviation,
		double	length,
		double	factor_g
	)

Compare this AcousticGroundMaterial to another one.

Parameters

name	Name of the other AcousticGroundMaterial
resistivity	Resistivity of the other AcousticGroundMaterial
deviation	Deviation of the other AcousticGroundMaterial
length	Length of the other AcousticGroundMaterial
factor_g	Ground factor G of the other AcousticGroundMaterial

Returns: True if other AcousticGroundMaterial has same name and characteristics, else False

Definition at line 51 of file entities.cpp.

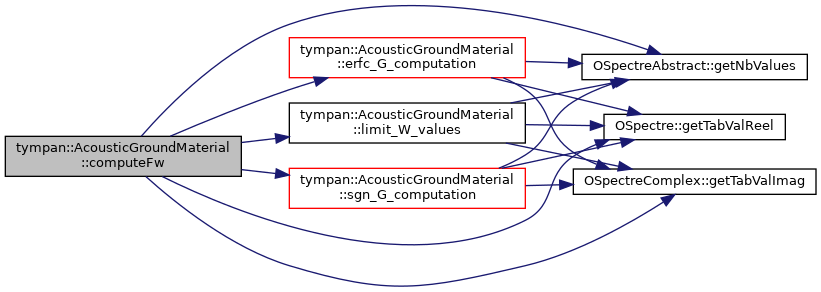

◆ computeFw()

void tympan::AcousticGroundMaterial::computeFw	(	ComplexSpectrum	localW,
		ComplexSpectrum &	Fw
	)

protected

Compute function of numeric distance.

Definition at line 276 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

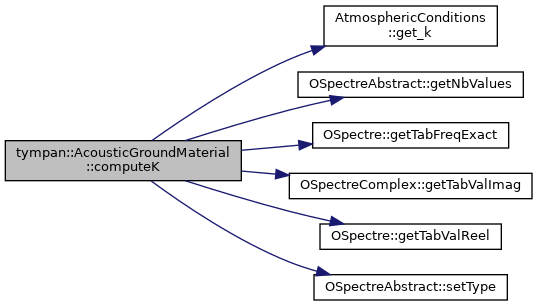

◆ computeK()

void tympan::AcousticGroundMaterial::computeK ( )

protected

Compute wave number.

Definition at line 97 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

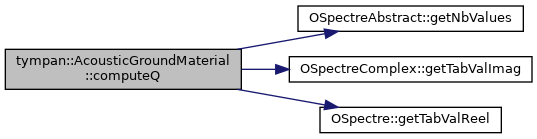

◆ computeQ()

void tympan::AcousticGroundMaterial::computeQ	(	double	angle,
		ComplexSpectrum &	Rp,
		ComplexSpectrum &	Fw,
		ComplexSpectrum &	Q
	)

protected

Compute reflection coefficient.

Definition at line 397 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeRp()

void tympan::AcousticGroundMaterial::computeRp	(	double	angle,
		const ComplexSpectrum &	Zs,
		ComplexSpectrum &	Rp
	)

protected

Compute reflection coefficient for plane waves.

Definition at line 236 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

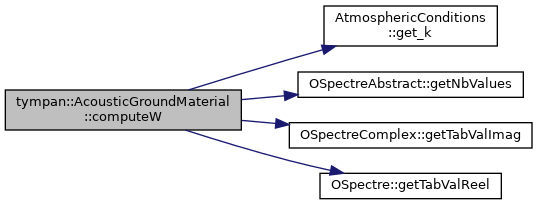

◆ computeW()

void tympan::AcousticGroundMaterial::computeW	(	double	angle,
		double	length,
		const ComplexSpectrum &	Zs,
		ComplexSpectrum &	W
	)

protected

Compute numeric distance.

Definition at line 253 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

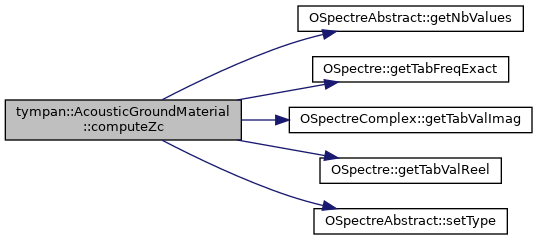

◆ computeZc()

void tympan::AcousticGroundMaterial::computeZc ( )

protected

Compute characteristic impedance.

Definition at line 81 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

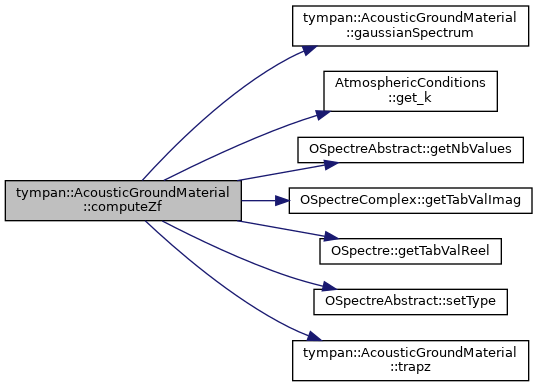

◆ computeZf()

void tympan::AcousticGroundMaterial::computeZf	(	double	angle,
		ComplexSpectrum	Zs
	)

protected

Compute effective impedance in rough ground.

Definition at line 139 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

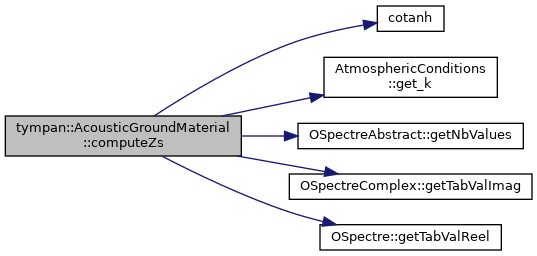

◆ computeZs()

void tympan::AcousticGroundMaterial::computeZs	(	double	angle,
		ComplexSpectrum	Z,
		ComplexSpectrum &	spectrum
	)

protected

Compute specific impedance.

Definition at line 116 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

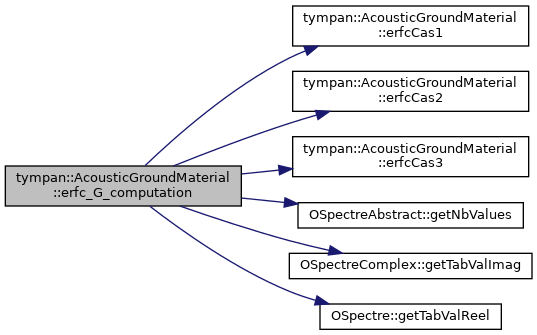

◆ erfc_G_computation()

void tympan::AcousticGroundMaterial::erfc_G_computation	(	const ComplexSpectrum &	localW,
		ComplexSpectrum &	G
	)

private

Definition at line 323 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ erfcCas1()

TYComplex tympan::AcousticGroundMaterial::erfcCas1 ( const TYComplex & wValue ) const

private

: Functions used in Fw computation

Definition at line 414 of file entities.cpp.

Here is the caller graph for this function:

◆ erfcCas2()

TYComplex tympan::AcousticGroundMaterial::erfcCas2 ( const TYComplex & wValue ) const

private

Definition at line 483 of file entities.cpp.

Here is the caller graph for this function:

◆ erfcCas3()

TYComplex tympan::AcousticGroundMaterial::erfcCas3 ( const TYComplex & wValue ) const

private

Definition at line 494 of file entities.cpp.

Here is the caller graph for this function:

◆ gaussianSpectrum()

double tympan::AcousticGroundMaterial::gaussianSpectrum	(	double const	k,
		double const	sigma,
		double const	lc
	)

private

Definition at line 222 of file entities.cpp.

Here is the caller graph for this function:

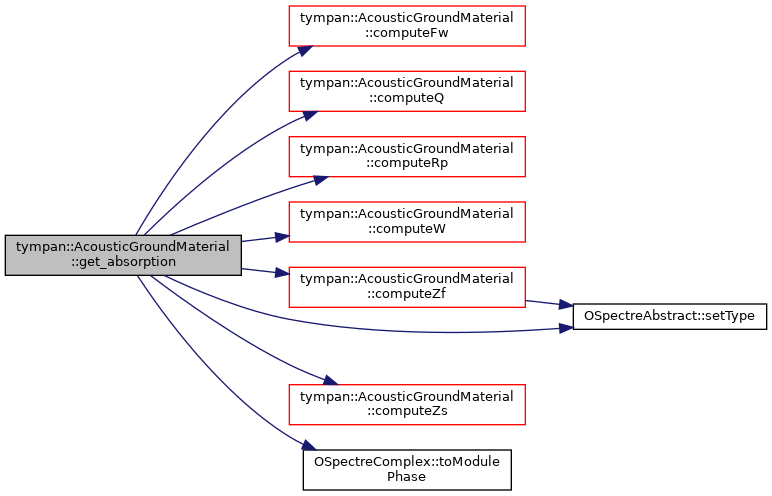

◆ get_absorption()

ComplexSpectrum tympan::AcousticGroundMaterial::get_absorption	(	double	incidence_angle,
		double	length
	)

virtual

Get material absorption at reflection point.

Parameters

incidence_angle	Angle incidence
length	Wave length

Returns: A ComplexSpectrum

Reimplemented from tympan::AcousticMaterialBase.

Definition at line 60 of file entities.cpp.

Here is the call graph for this function:

◆ get_ISO9613_G()

double tympan::AcousticGroundMaterial::get_ISO9613_G ( )

virtual

Absorption given by ISO9613.

Reimplemented from tympan::AcousticMaterialBase.

Definition at line 76 of file entities.cpp.

◆ get_K()

const ComplexSpectrum& tympan::AcousticGroundMaterial::get_K ( ) const

inline

Get wave number.

Definition at line 97 of file entities.hpp.

◆ get_Zc()

const ComplexSpectrum& tympan::AcousticGroundMaterial::get_Zc ( ) const

inline

Get characteristic impedance.

Definition at line 93 of file entities.hpp.

◆ init()

void tympan::AcousticGroundMaterial::init ( )

private

Definition at line 45 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

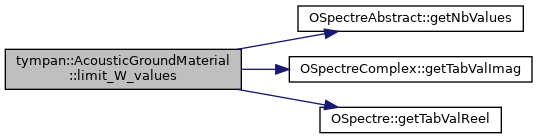

◆ limit_W_values()

void tympan::AcousticGroundMaterial::limit_W_values ( ComplexSpectrum & localW )

private

Definition at line 304 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_atmosphere()

static void tympan::AcousticGroundMaterial::set_atmosphere ( AtmosphericConditions * atmosphere_ )

inlinestatic

Set pointer to current atmosphere.

Definition at line 116 of file entities.hpp.

◆ set_deviation()

void tympan::AcousticGroundMaterial::set_deviation ( double deviation_ )

inline

Set deviation.

Definition at line 106 of file entities.hpp.

◆ set_length()

void tympan::AcousticGroundMaterial::set_length ( double length_ )

inline

Set wave length.

Definition at line 110 of file entities.hpp.

◆ set_thickness()

void tympan::AcousticGroundMaterial::set_thickness ( double thickness_ )

inline

Set thickness.

Definition at line 102 of file entities.hpp.

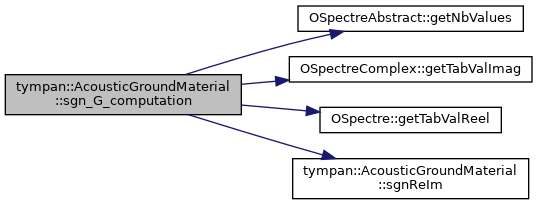

◆ sgn_G_computation()

void tympan::AcousticGroundMaterial::sgn_G_computation	(	const ComplexSpectrum &	localW,
		ComplexSpectrum &	G
	)

private

Definition at line 352 of file entities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sgnReIm()

TYComplex tympan::AcousticGroundMaterial::sgnReIm	(	const TYComplex &	W,
		const TYComplex &	G
	)		const

private

: function used in G computation

Definition at line 505 of file entities.cpp.

Here is the caller graph for this function:

◆ trapz()

double tympan::AcousticGroundMaterial::trapz	(	std::vector< double >	u,
		std::vector< double >	integrande
	)

private

Definition at line 227 of file entities.cpp.

Here is the caller graph for this function:

Member Data Documentation

◆ atmosphere

AtmosphericConditions * tympan::AcousticGroundMaterial::atmosphere = new AtmosphericConditions(101325., 20., 70.)

staticprotected

Pointer to current atmosphere.

Definition at line 147 of file entities.hpp.

◆ deviation

double tympan::AcousticGroundMaterial::deviation

protected

Definition at line 174 of file entities.hpp.

◆ factor_g

double tympan::AcousticGroundMaterial::factor_g

protected

Definition at line 176 of file entities.hpp.

◆ K

ComplexSpectrum tympan::AcousticGroundMaterial::K

protected

Wave number.

Definition at line 179 of file entities.hpp.

◆ length

double tympan::AcousticGroundMaterial::length

protected

Definition at line 175 of file entities.hpp.

◆ resistivity

double tympan::AcousticGroundMaterial::resistivity

protected

XXX.

Todo:: put SI unit.

Definition at line 172 of file entities.hpp.

◆ thickness

double tympan::AcousticGroundMaterial::thickness

protected

Definition at line 173 of file entities.hpp.

◆ Zc

ComplexSpectrum tympan::AcousticGroundMaterial::Zc

protected

Characteristic impedance.

Definition at line 178 of file entities.hpp.

◆ Zf

ComplexSpectrum tympan::AcousticGroundMaterial::Zf

protected

Effective impedance.

Definition at line 180 of file entities.hpp.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/solver/entities.hpp
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/solver/entities.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AcousticGroundMaterial()

◆ ~AcousticGroundMaterial()

Member Function Documentation

◆ compare()

◆ computeFw()

◆ computeK()

◆ computeQ()

◆ computeRp()

◆ computeW()

◆ computeZc()

◆ computeZf()

◆ computeZs()

◆ erfc_G_computation()

◆ erfcCas1()

◆ erfcCas2()

◆ erfcCas3()

◆ gaussianSpectrum()

◆ get_absorption()

◆ get_ISO9613_G()

◆ get_K()

◆ get_Zc()

◆ init()

◆ limit_W_values()

◆ set_atmosphere()

◆ set_deviation()

◆ set_length()

◆ set_thickness()

◆ sgn_G_computation()

◆ sgnReIm()

◆ trapz()

Member Data Documentation

◆ atmosphere

◆ deviation

◆ factor_g

◆ K

◆ length

◆ resistivity

◆ thickness

◆ Zc

◆ Zf
