Utilities to ease (and wrap) use of CGAL. More...
#include <boost/array.hpp>#include <boost/foreach.hpp>#include <boost/range.hpp>#include <boost/range/iterator_range.hpp>#include <CGAL/Exact_predicates_inexact_constructions_kernel.h>#include <CGAL/Triangulation_face_base_with_info_2.h>#include <CGAL/Triangulation_vertex_base_with_info_2.h>#include <CGAL/Constrained_Delaunay_triangulation_2.h>#include <CGAL/Constrained_triangulation_plus_2.h>#include <CGAL/Polygon_2.h>#include <CGAL/Polygon_2_algorithms.h>#include <CGAL/centroid.h>#include <CGAL/box_intersection_d.h>#include <CGAL/intersections.h>#include "Tympan/models/common/3d.h"#include "Tympan/models/common/plan.h"

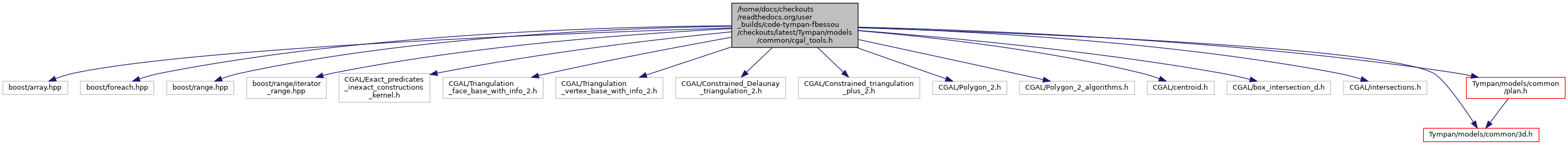

Include dependency graph for cgal_tools.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | tympan::PolygonTriangulator |
| This class provides triangulating simple polygons without holes. More... | |
| struct | tympan::PolygonTriangulator::VertexInfo |
| struct | tympan::PolygonTriangulator::FaceInfo |
Namespaces | |
| tympan | |
Typedefs | |
| typedef CGAL::Exact_predicates_inexact_constructions_kernel | tympan::CGAL_K |
| typedef CGAL_K | tympan::CGAL_Gt |
| typedef CGAL::Point_2< CGAL_Gt > | tympan::CGAL_Point2 |
| typedef CGAL::Point_3< CGAL_Gt > | tympan::CGAL_Point3 |
| typedef CGAL::Vector_2< CGAL_Gt > | tympan::CGAL_Vector2 |
| typedef CGAL::Vector_3< CGAL_Gt > | tympan::CGAL_Vector3 |
| typedef CGAL::Polygon_2< CGAL_Gt > | tympan::CGAL_Polygon |
| typedef CGAL::Plane_3< CGAL_Gt > | tympan::CGAL_Plane |
| typedef CGAL::Triangle_3< CGAL_Gt > | tympan::CGAL_Triangle |
| typedef std::deque< CGAL_Triangle > | tympan::CGAL_Triangles |
| typedef CGAL::Box_intersection_d::Box_with_handle_d< double, 3, CGAL_Triangles::iterator > | tympan::CGAL_TBox |
| typedef CGAL::Aff_transformation_3< CGAL_Gt > | tympan::CGAL_Transform3 |
Functions | |
| OPoint3D | tympan::from_cgal (const CGAL_Point3 &cp) |
| Convert a CGAL_Point3 to OPoint3D. More... | |
| CGAL_Point3 | tympan::to_cgal (const OPoint3D &op) |
| Convert a OPoint3D to a CGAL_Point3. More... | |
| OVector3D | tympan::from_cgal (const CGAL_Vector3 &cp) |
| Convert a CGAL_Vector3 to OVector3D. More... | |
| CGAL_Vector3 | tympan::to_cgal (const OVector3D &op) |
| Convert a OVector3D to CGAL_Vector3. More... | |
| CGAL_Plane | tympan::to_cgal (const OPlan &oplan) |
| Convert a OPlan to CGAL_Plane. More... | |
| std::deque< CGAL_Point3 > | tympan::build_box (float w, float h, CGAL_Point3 pta, CGAL_Point3 ptb) |
| return 4 points defining a 3D parallelepiped More... | |
| std::deque< size_t > | tympan::intersected_triangles (CGAL_Triangles &triangle_soup, std::deque< CGAL_Point3 > query_triangle, float l, float w, float h) |
Find the triangles from triangle_soup that are intersected by the 3D box including the points of query_triangle More... | |
| CGAL_Vector3 | tympan::normalize (CGAL_Vector3 v) |
| normalize vector v More... | |
Detailed Description
Utilities to ease (and wrap) use of CGAL.
Definition in file cgal_tools.h.
