Plan defined by its equation : ax+by+cz+d=0. More...

#include <plan.h>

Collaboration diagram for OPlan:

Public Member Functions
	OPlan ()
	Default constructor With a=b=c=d=0. More...

	OPlan (const OPlan &plan)
	Copy constructor. More...

	OPlan (double a, double b, double c, double d)
	Constructor with the a, b, c and d parameters. More...

	OPlan (const OPoint3D &pt1, const OPoint3D &pt2, const OPoint3D &pt3)
	Constructs a new plan from 3 points. More...

	OPlan (const OPoint3D &pt, const OVector3D &normale)
	Constructs a new plan from 1 point and a normal. More...

virtual	~OPlan ()
	Destructor. More...

OPlan &	operator= (const OPlan &plan)
	Assignment operator. More...

bool	operator== (const OPlan &plan) const
	The equality operator. More...

bool	operator!= (const OPlan &plan) const
	The inequality operator. More...

void	set (double a, double b, double c, double d)
	Sets a, b, c and d parameters directly. More...

void	set (const OPoint3D &pt1, const OPoint3D &pt2, const OPoint3D &pt3)
	Sets with 3 points. More...

void	set (const OPoint3D &pt, const OVector3D &normale)
	Sets with 1 point and a normal. More...

int	intersectsSegment (const OPoint3D &pt1, const OPoint3D &pt2, OPoint3D &ptIntersec) const
	Calculate the intersection of this plane with a segment defined by two points. More...

int	intersectsDroite (const OPoint3D &pt, const OVector3D &vector, OPoint3D &ptIntersec)
	Calculate the intersection of this plane with a line defined by a point and a vector. More...

int	intersectsPlan (const OPlan &plan, OVector3D &vectorIntersec)
	Calculate the intersection of this plane with another plane. More...

int	intersectsSurface (const TabPoint3D &contour, OSegment3D &segment) const
	Compute intersection between a plan and a surface defined by his bounds. More...

bool	isInPlan (const OPoint3D &pt)
	Check if a point belongs to a plane. More...

bool	is_valid ()
	Check whether the plane is valid. More...

bool	is_null ()

bool	is_NaN ()

double	angle (const OPlan &plan)
	Calculation of the angle between this plane and another plane. More...

double	distance (const OPoint3D &pt)
	Calculation of the minimal distance between a point and this plane. More...

OPoint3D	symPtPlan (const OPoint3D &pt)
	Calculate the symmetrical of a point relative to the plane. More...

OPoint3D	projPtPlan (const OPoint3D &pt)
	Calculate the projection of a point on the plane. More...

bool	distancePlanParallel (const OPlan &plan, double &distance)
	Calculate the distance between this plan and another parallel plane. More...

bool	isParallel (const OPlan &plan)
	Check if this plane is parallel with another plane. More...

bool	isOrthogonal (const OPlan &plan)
	Check if this plan is perpendicular to another plan. More...

Public Attributes
double	_a
	The a parameter in the equation ax+by+cz+d=0. More...

double	_b
	The b parameter in the equation ax+by+cz+d=0. More...

double	_c
	The c parameter in the equation ax+by+cz+d=0. More...

double	_d
	The d parameter in the equation ax+by+cz+d=0. More...

ORepere3D	rframe

Protected Member Functions

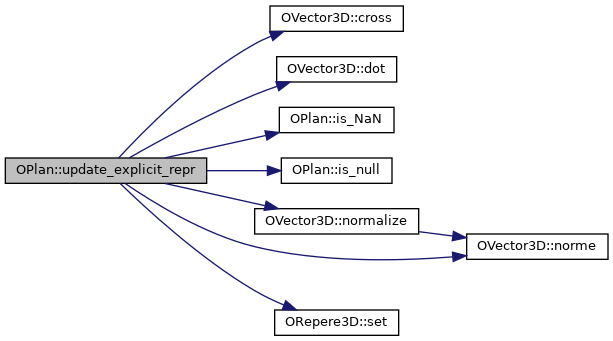

void	update_explicit_repr (OVector3D hint=OVector3D(1, 1, 1))
	updates the implicit representation of the plane More...

Detailed Description

Plan defined by its equation : ax+by+cz+d=0.

Definition at line 30 of file plan.h.

Constructor & Destructor Documentation

◆ OPlan() [1/5]

OPlan::OPlan ( )

Default constructor With a=b=c=d=0.

Definition at line 25 of file plan.cpp.

◆ OPlan() [2/5]

OPlan::OPlan ( const OPlan & plan )

Copy constructor.

Parameters

plan	The object to be copied.

Definition at line 30 of file plan.cpp.

Here is the call graph for this function:

◆ OPlan() [3/5]

OPlan::OPlan	(	double	a,
		double	b,
		double	c,
		double	d
	)

Constructor with the a, b, c and d parameters.

Parameters

a	The a parameter in the equation ax+by+cz+d=0.
b	The b parameter in the equation ax+by+cz+d=0.
c	The c parameter in the equation ax+by+cz+d=0.
d	The d parameter in the equation ax+by+cz+d=0.

Definition at line 36 of file plan.cpp.

Here is the call graph for this function:

◆ OPlan() [4/5]

OPlan::OPlan	(	const OPoint3D &	pt1,
		const OPoint3D &	pt2,
		const OPoint3D &	pt3
	)

Constructs a new plan from 3 points.

We calculate normal vector N to the plane.
All plan vectors are normal to N ! => Scalar product P1P.N = 0 Nx*(Px-P1x) + Ny*(Py-P1y) + Nz*(Pz-P1z) = 0 Can be written as : a*Px + b*Py + c*Pz + d = 0 == Plane equation

Parameters

pt1	Point 1.
pt2	Point 2.
pt3	Point 3.

Definition at line 41 of file plan.cpp.

Here is the call graph for this function:

◆ OPlan() [5/5]

OPlan::OPlan	(	const OPoint3D &	pt,
		const OVector3D &	normale
	)

Constructs a new plan from 1 point and a normal.

All plan vectors are normal to N ! => Scalar product P1P.N = 0 Nx*(Px-P1x) + Ny*(Py-P1y) + Nz*(Pz-P1z) = 0 Can be written as : a*Px + b*Py + c*Pz + d = 0 == Equation du plan

Parameters

pt	The point.
normale	The normal.

Definition at line 46 of file plan.cpp.

Here is the call graph for this function:

◆ ~OPlan()

OPlan::~OPlan ( )

virtual

Destructor.

Definition at line 51 of file plan.cpp.

Member Function Documentation

◆ angle()

double OPlan::angle ( const OPlan & plan )

Calculation of the angle between this plane and another plane.

Parameters

plan	Another plane.

Returns: The angle between the 2 planes.

Definition at line 363 of file plan.cpp.

Here is the call graph for this function:

◆ distance()

double OPlan::distance ( const OPoint3D & pt )

Calculation of the minimal distance between a point and this plane.

Parameters

pt A point.

Returns: The minimal distance between a point and this plane.

Definition at line 371 of file plan.cpp.

Here is the caller graph for this function:

◆ distancePlanParallel()

bool OPlan::distancePlanParallel	(	const OPlan &	plan,
		double &	distance
	)

Calculate the distance between this plan and another parallel plane.

Parameters

plan	Another plane.
distance	The distance between 2 planes if they are parallel.

Returns: true if the two planes are parallel; false if not.

Definition at line 410 of file plan.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersectsDroite()

int OPlan::intersectsDroite	(	const OPoint3D &	pt,
		const OVector3D &	vector,
		OPoint3D &	ptIntersec
	)

Calculate the intersection of this plane with a line defined by a point and a vector.

Parameters

pt	A point belonging to the line.
vector	A vector defining the line.
ptIntersec	The intersection point.

Returns: INTERS_OUI (1) if the intersection exists, INTERS_CONFONDU (2) if the elements are overlaid, INTERS_NULLE (0) if no intersection exists.

Definition at line 251 of file plan.cpp.

Here is the call graph for this function:

◆ intersectsPlan()

int OPlan::intersectsPlan	(	const OPlan &	plan,
		OVector3D &	vectorIntersec
	)

Calculate the intersection of this plane with another plane.

Parameters

plan	An another plane.
vectorIntersec	The vector defining the intersection.

Returns: INTERS_OUI (1) if the intersection exists, INTERS_CONFONDU (2) if the elements are overlaid, INTERS_NULLE (0) if no intersection exists.

Definition at line 275 of file plan.cpp.

Here is the call graph for this function:

◆ intersectsSegment()

int OPlan::intersectsSegment	(	const OPoint3D &	pt1,
		const OPoint3D &	pt2,
		OPoint3D &	ptIntersec
	)		const

Calculate the intersection of this plane with a segment defined by two points.

Note : In case the segment belongs to the plane, the result is INTERS_CONFONDU, and the coordinates of the intersection are not updated.

Algorithm :

The plane is defined by : . a*x+b*y+c*z+d=0
The segment is defined by : . x=x1+t*(x2-x1) . y=y1+t*(y2-y1) . z=z1+t*(z2-z1) . with 0 <= t <= 1
We solve the system : . t = -(a*x1+b*y1+c*z1+d)/D . with D = a*(x2-x1)+b*(y2-y1)+c*(z2-z1) . and D = scalar product between the plane normal and . the segment vector, so if D is zero, then . the segment is parallel to the plane and we test . if a point of the segment belongs to the plane to . confirm that the segment belongs to the plane or not...

Parameters

pt1	The segment first point.
pt2	The segment second point.
ptIntersec	The intersection point.

Returns: INTERS_OUI (1) if the intersection exists, INTERS_CONFONDU (2) if the elements are overlaid, INTERS_NULLE (0) if no intersection exists.

Definition at line 141 of file plan.cpp.

Here is the call graph for this function:

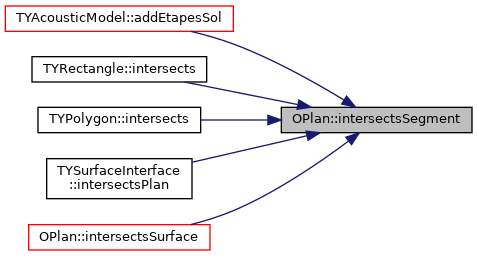

Here is the caller graph for this function:

◆ intersectsSurface()

int OPlan::intersectsSurface	(	const TabPoint3D &	contour,
		OSegment3D &	segment
	)		const

Compute intersection between a plan and a surface defined by his bounds.

Definition at line 323 of file plan.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_NaN()

bool OPlan::is_NaN ( )

Definition at line 127 of file plan.cpp.

Here is the caller graph for this function:

◆ is_null()

bool OPlan::is_null ( )

Definition at line 122 of file plan.cpp.

Here is the caller graph for this function:

◆ is_valid()

bool OPlan::is_valid ( )

Check whether the plane is valid.

a OPlan object can be invalid, i.e. not actually represent a plane, in case two cases :

the normal vector (_a, _b, _c) is null. This is the case when a OPlan is default constructed.
the normal vector, the origin, ... has not component which is NaN This can happen when points with NaN component are used.

Definition at line 133 of file plan.cpp.

Here is the call graph for this function:

◆ isInPlan()

bool OPlan::isInPlan ( const OPoint3D & pt )

Check if a point belongs to a plane.

Definition at line 235 of file plan.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isOrthogonal()

bool OPlan::isOrthogonal ( const OPlan & plan )

Check if this plan is perpendicular to another plan.

Parameters

plan	Another plane.

Returns: true if the 2 planes are perpendicular; false if not.

Definition at line 437 of file plan.cpp.

Here is the caller graph for this function:

◆ isParallel()

bool OPlan::isParallel ( const OPlan & plan )

Check if this plane is parallel with another plane.

Parameters

plan	Another plane.

Returns: true if two planes are parallel; false if not.

Definition at line 422 of file plan.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator!=()

bool OPlan::operator!= ( const OPlan & plan ) const

The inequality operator.

Parameters

plan	The object reference with which this object is compared.

Definition at line 89 of file plan.cpp.

Here is the call graph for this function:

◆ operator=()

OPlan & OPlan::operator= ( const OPlan & plan )

Assignment operator.

Parameters

plan	The source to be assigned.

Definition at line 53 of file plan.cpp.

◆ operator==()

bool OPlan::operator== ( const OPlan & plan ) const

The equality operator.

Parameters

plan	The object reference with which this object is compared.

Definition at line 65 of file plan.cpp.

Here is the caller graph for this function:

◆ projPtPlan()

OPoint3D OPlan::projPtPlan ( const OPoint3D & pt )

Calculate the projection of a point on the plane.

Definition at line 396 of file plan.cpp.

◆ set() [1/3]

void OPlan::set	(	const OPoint3D &	pt,
		const OVector3D &	normale
	)

Sets with 1 point and a normal.

We calculate normal vector N to the plane.
All plan vectors are normal to N ! => Scalar product P1P.N = 0 Nx*(Px-P1x) + Ny*(Py-P1y) + Nz*(Pz-P1z) = 0 Can be written as : a*Px + b*Py + c*Pz + d = 0 == Plane equation

Parameters

pt	The point.
normale	The normal.

Definition at line 113 of file plan.cpp.

Here is the call graph for this function:

◆ set() [2/3]

void OPlan::set	(	const OPoint3D &	pt1,
		const OPoint3D &	pt2,
		const OPoint3D &	pt3
	)

Sets with 3 points.

We calculate normal vector N to the plane.
All plan vectors are normal to N ! => Scalar product P1P.N = 0 Nx*(Px-P1x) + Ny*(Py-P1y) + Nz*(Pz-P1z) = 0 Can be written as : a*Px + b*Py + c*Pz + d = 0 == Plane equation

Parameters

pt1	Point 1.
pt2	Point 2.
pt3	Point 3.

Definition at line 103 of file plan.cpp.

Here is the call graph for this function:

◆ set() [3/3]

void OPlan::set	(	double	a,
		double	b,
		double	c,
		double	d
	)

Sets a, b, c and d parameters directly.

Parameters

a	The a parameter in the equation ax+by+cz+d=0.
b	The b parameter in the equation ax+by+cz+d=0.
c	The c parameter in the equation ax+by+cz+d=0.
d	The d parameter in the equation ax+by+cz+d=0.

Definition at line 94 of file plan.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ symPtPlan()

OPoint3D OPlan::symPtPlan ( const OPoint3D & pt )

Calculate the symmetrical of a point relative to the plane.

Definition at line 376 of file plan.cpp.

◆ update_explicit_repr()

void OPlan::update_explicit_repr ( OVector3D hint = OVector3D(1, 1, 1) )

protected

updates the implicit representation of the plane

We derive a reference frame for the plane (vector u and v) from the implicit equation which is the primary representation of the plane.

Definition at line 446 of file plan.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _a

double OPlan::_a

The a parameter in the equation ax+by+cz+d=0.

Definition at line 325 of file plan.h.

◆ _b

double OPlan::_b

The b parameter in the equation ax+by+cz+d=0.

Definition at line 327 of file plan.h.

◆ _c

double OPlan::_c

The c parameter in the equation ax+by+cz+d=0.

Definition at line 329 of file plan.h.

◆ _d

double OPlan::_d

The d parameter in the equation ax+by+cz+d=0.

Definition at line 331 of file plan.h.

◆ rframe

ORepere3D OPlan::rframe

Definition at line 333 of file plan.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/plan.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/plan.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ OPlan() [1/5]

◆ OPlan() [2/5]

◆ OPlan() [3/5]

◆ OPlan() [4/5]

◆ OPlan() [5/5]

◆ ~OPlan()

Member Function Documentation

◆ angle()

◆ distance()

◆ distancePlanParallel()

◆ intersectsDroite()

◆ intersectsPlan()

◆ intersectsSegment()

◆ intersectsSurface()

◆ is_NaN()

◆ is_null()

◆ is_valid()

◆ isInPlan()

◆ isOrthogonal()

◆ isParallel()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ projPtPlan()

◆ set() [1/3]

◆ set() [2/3]

◆ set() [3/3]

◆ symPtPlan()

◆ update_explicit_repr()

Member Data Documentation

◆ _a

◆ _b

◆ _c

◆ _d

◆ rframe
