K-d tree Accelerator (based on space splitting) More...

#include <KdtreeAccelerator.h>

Inheritance diagram for KdtreeAccelerator:

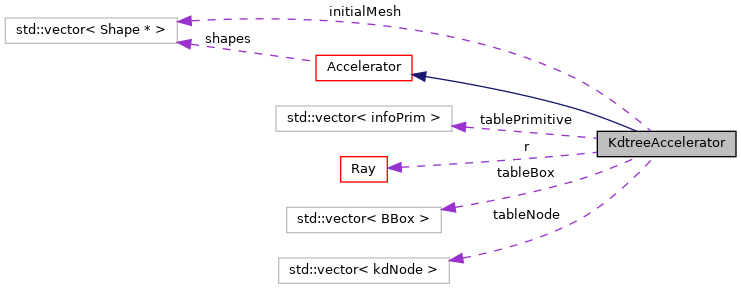

Collaboration diagram for KdtreeAccelerator:

[legend]

Public Member Functions
	KdtreeAccelerator (std::vector< Shape * > *_initialMesh=NULL, BBox _globalBox=BBox())
	Constructor. More...

virtual	~KdtreeAccelerator ()
	Destructor. More...

virtual bool	build ()
	Build this accelerator. More...

virtual decimal	traverse (Ray *r, std::list< Intersection > &result) const
	Run this accelerator. More...

void	setMaxProfondeur (int _maxProfondeur)
	Set maximal depth. More...

int	getMaxProfondeur ()
	Get maximal depth. More...

void	setMaxPrimPerLeaf (int _maxPrimPerLeaf)
	Set maximal primitives per leaf. More...

int	getMaxPrimPerLeaf ()
	Get maximal primitives per leaf. More...

std::vector< BBox > &	getBBox ()
	Get the vector of bounding boxes. More...

void	print ()
	Print the tree (not implemented yet) More...

Public Member Functions inherited from Accelerator
	Accelerator ()
	Constructors. More...

	Accelerator (std::vector< Shape * > *_shapes, BBox &_globalBox)

	Accelerator (const Accelerator &other)
	Copy constructor. More...

virtual	~Accelerator ()
	Destructor. More...

leafTreatment::treatment	getIntersectionChoice ()
	Get/Set the Intersection choice. More...

void	setIntersectionChoice (leafTreatment::treatment _intersectionChoice=leafTreatment::FIRST)

Public Attributes
bool	alreadyFail
	Unused attribute. More...

unsigned int	nbFail
	Unused attribute. More...

Ray	r
	Unused attribute. More...

bool	trace
	Unused attribute. More...

Protected Member Functions
void	generateMidKdTree (int currentProfondeur, BBox &localBox, unsigned int nbPrims, unsigned int *prims)
	Generate the tree by middle subdivision. More...

void	generateSAHKdTree (int currentProfondeur, BBox &localBox, TaBRecBoundEdge edges[3], unsigned int nbPrims, unsigned int prims)
	Generate the tree with SAH (Surface Area Heuristic) method. More...

Protected Member Functions inherited from Accelerator
void	defineLeafFunction ()
	To define leaf function. More...

Protected Attributes
std::vector< Shape * > *	initialMesh
	Pointer to the mesh. More...

std::vector< InfoPrim >	tablePrimitive
	List of primitives and their bounding box. More...

std::vector< BBox >	tableBox
	Bounding boxes list of the tree. More...

std::vector< KDNode >	tableNode

int	maxProfondeur
	Maximal depth. More...

int	maxPrimPerLeaf
	Maximal primitives per leaf. More...

int	realMaxProfondeur
	Real max depth. More...

float	isectCost
	Parameter for best splitting. More...

float	emptyBonus
	Parameter for best splitting. More...

float	traversalCost
	Parameter for best splitting. More...

Protected Attributes inherited from Accelerator
decimal(*	pLeafTreatmentFunction )(std::list< Intersection > &, decimal)
	Pointer to the treatment function of leaf. More...

leafTreatment::treatment	intersectionChoice
	Intersection choice. More...

std::vector< Shape * > *	shapes
	Vector of pointers to shapes. More...

BBox	globalBox
	Global bounding box. More...

Detailed Description

K-d tree Accelerator (based on space splitting)

Definition at line 153 of file KdtreeAccelerator.h.

Constructor & Destructor Documentation

◆ KdtreeAccelerator()

KdtreeAccelerator::KdtreeAccelerator	(	std::vector< Shape * > *	_initialMesh = `NULL`,
		BBox	_globalBox = `BBox()`
	)

Constructor.

Definition at line 50 of file KdtreeAccelerator.cpp.

◆ ~KdtreeAccelerator()

KdtreeAccelerator::~KdtreeAccelerator ( )

virtual

Destructor.

Definition at line 70 of file KdtreeAccelerator.cpp.

Member Function Documentation

◆ build()

bool KdtreeAccelerator::build ( )

virtual

Build this accelerator.

Reimplemented from Accelerator.

Definition at line 72 of file KdtreeAccelerator.cpp.

Here is the call graph for this function:

◆ generateMidKdTree()

void KdtreeAccelerator::generateMidKdTree	(	int	currentProfondeur,
		BBox &	localBox,
		unsigned int	nbPrims,
		unsigned int *	prims
	)

protected

Generate the tree by middle subdivision.

Definition at line 106 of file KdtreeAccelerator.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generateSAHKdTree()

void KdtreeAccelerator::generateSAHKdTree	(	int	currentProfondeur,
		BBox &	localBox,
		TaBRecBoundEdge *	edges[3],
		unsigned int	nbPrims,
		unsigned int *	prims
	)

protected

Generate the tree with SAH (Surface Area Heuristic) method.

Definition at line 320 of file KdtreeAccelerator.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getBBox()

std::vector<BBox>& KdtreeAccelerator::getBBox ( )

inline

Get the vector of bounding boxes.

Definition at line 188 of file KdtreeAccelerator.h.

◆ getMaxPrimPerLeaf()

int KdtreeAccelerator::getMaxPrimPerLeaf ( )

inline

Get maximal primitives per leaf.

Definition at line 183 of file KdtreeAccelerator.h.

◆ getMaxProfondeur()

int KdtreeAccelerator::getMaxProfondeur ( )

inline

Get maximal depth.

Definition at line 172 of file KdtreeAccelerator.h.

◆ print()

void KdtreeAccelerator::print ( )

Print the tree (not implemented yet)

Definition at line 301 of file KdtreeAccelerator.cpp.

◆ setMaxPrimPerLeaf()

void KdtreeAccelerator::setMaxPrimPerLeaf ( int _maxPrimPerLeaf )

inline

Set maximal primitives per leaf.

Definition at line 178 of file KdtreeAccelerator.h.

◆ setMaxProfondeur()

void KdtreeAccelerator::setMaxProfondeur ( int _maxProfondeur )

inline

Set maximal depth.

Definition at line 167 of file KdtreeAccelerator.h.

◆ traverse()

decimal KdtreeAccelerator::traverse	(	Ray *	r,
		std::list< Intersection > &	result
	)		const

virtual

Run this accelerator.

Reimplemented from Accelerator.

Definition at line 178 of file KdtreeAccelerator.cpp.

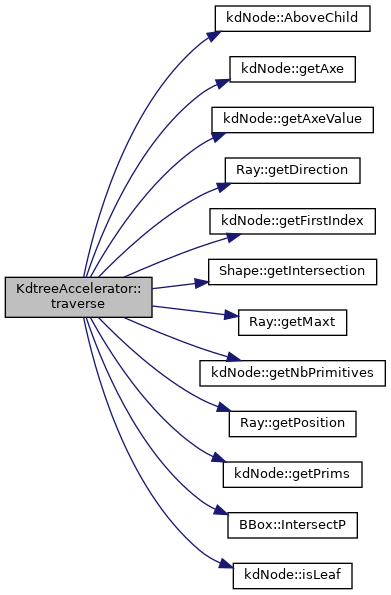

Here is the call graph for this function:

Member Data Documentation

◆ alreadyFail

bool KdtreeAccelerator::alreadyFail

Unused attribute.

Definition at line 195 of file KdtreeAccelerator.h.

◆ emptyBonus

float KdtreeAccelerator::emptyBonus

protected

Parameter for best splitting.

Definition at line 219 of file KdtreeAccelerator.h.

◆ initialMesh

std::vector<Shape*>* KdtreeAccelerator::initialMesh

protected

Pointer to the mesh.

Definition at line 206 of file KdtreeAccelerator.h.

◆ isectCost

float KdtreeAccelerator::isectCost

protected

Parameter for best splitting.

Definition at line 218 of file KdtreeAccelerator.h.

◆ maxPrimPerLeaf

int KdtreeAccelerator::maxPrimPerLeaf

protected

Maximal primitives per leaf.

Definition at line 214 of file KdtreeAccelerator.h.

◆ maxProfondeur

int KdtreeAccelerator::maxProfondeur

protected

Maximal depth.

Definition at line 213 of file KdtreeAccelerator.h.

◆ nbFail

unsigned int KdtreeAccelerator::nbFail

Unused attribute.

Definition at line 196 of file KdtreeAccelerator.h.

◆ r

Ray KdtreeAccelerator::r

Unused attribute.

Definition at line 197 of file KdtreeAccelerator.h.

◆ realMaxProfondeur

int KdtreeAccelerator::realMaxProfondeur

protected

Real max depth.

Definition at line 216 of file KdtreeAccelerator.h.

◆ tableBox

std::vector<BBox> KdtreeAccelerator::tableBox

protected

Bounding boxes list of the tree.

Definition at line 210 of file KdtreeAccelerator.h.

◆ tableNode

std::vector<KDNode> KdtreeAccelerator::tableNode

protected

Definition at line 211 of file KdtreeAccelerator.h.

◆ tablePrimitive

std::vector<InfoPrim> KdtreeAccelerator::tablePrimitive

protected

List of primitives and their bounding box.

Definition at line 209 of file KdtreeAccelerator.h.

◆ trace

bool KdtreeAccelerator::trace

Unused attribute.

Definition at line 198 of file KdtreeAccelerator.h.

◆ traversalCost

float KdtreeAccelerator::traversalCost

protected

Parameter for best splitting.

Definition at line 220 of file KdtreeAccelerator.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Accelerator/KdtreeAccelerator.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Accelerator/KdtreeAccelerator.cpp
