: Describes a ray by a pair of unsigned int. The first one gives the source number (in the range 0-4095) and the receptor number (in the range 0-1048576) as a bit field. The second one describes the sequences of events by their types (user could decide what 1 represent, may be REFLEXION or DIFFRACTION) More...

#include <Ray.h>

Inheritance diagram for Ray:

[legend]

Collaboration diagram for Ray:

[legend]

Public Member Functions
	Ray ()
	Constructors. More...

	Ray (const vec3 &_position, const vec3 &_direction)

	Ray (const Ray &other)
	Copy constructors. More...

	Ray (Ray *other)

virtual	~Ray ()
	Destructor. More...

decimal	computeEventsSequenceLength ()
	Compute the length of the sequence of events. More...

void	computeLongueur ()
	Compute the distance traveled (length) by the ray and the result is set into the longueur attribute. More...

decimal	computeTrueLength (const vec3 &ref, const vec3 &lastPos, vec3 &closestPoint)
	Compute ray length from source to closestPoint. More...

decimal	computePertinentLength (const vec3 &ref, const vec3 &lastPos, vec3 &closestPoint)
	Compute ray length from last pertinent event (i.e. source or last diffraction) to the nearest point of the "event" located at ref position. More...

Base *	getLastPertinentEventOrSource (typeevent evType=DIFFRACTION)
	Return a pointer to the last event of type evType or source if none. More...

vec3	computeLocalOrigin (Base *ev)
	Return position of ev which might be a source or an event. More...

double	getLongueur () const
	Return the traveled distance by the ray. More...

unsigned int	getDiff () const
	Return the diffractions number encountered by the ray. More...

unsigned int	getReflex () const
	Return the reflections number encountered by the ray. More...

unsigned int	getNbEvents () const
	Return the total number of events. More...

std::vector< boost::shared_ptr< Event > > *	getEvents ()
	Return the events array encountered by the ray. More...

const std::vector< boost::shared_ptr< Event > > *	getEvents () const
	Return the events array encountered by the ray. More...

vector< unsigned int >	getFaceHistory ()
	Return the array of faces id encountered by the ray. More...

vector< unsigned int >	getPrimitiveHistory ()
	Return the array of primitives id encountered by the ray. More...

Source *	getSource ()
	Return the ray source. More...

void *	getRecepteur ()
	Return the ray receptor. More...

signature	getSignature (const typeevent &typeEv=SPECULARREFLEXION)
	Compute the signature (i.e. std::pair<unsigned int, unsigned int>) of the ray) More...

decimal	getThickness (const decimal &distance, bool diffraction)
	Compute the thickness of the ray after having traveled a certain distance depending on the type of source which generated the ray (spherical or diffraction source) More...

decimal	getSolidAngle (bool &diffraction)
	Compute the solid angle associated with the ray (depends on the type of source which generated the ray and the number of rays it generated) More...

bitSet	getSRBitSet (const unsigned int &source_id, const unsigned int &receptor_id)
	Compute the bitSet associated with a source and a receptor. More...

bitSet	getEventsBitSet (const typeevent &typeEv)
	Compute the bitSet associated with a list of events of type evType. More...

decimal	getCumulDelta () const
	Return the cumulative difference between the rays length and its length when ignoring diffractions and taking the direct path between reflections instead. More...

decimal	getCumulDistance () const
	Return the cumulative length since the last reflection event. More...

unsigned long long int	getConstructId () const
	Return Ray id. More...

decimal	getMint () const
	Return mint. More...

decimal	getMaxt () const
	Return maxt. More...

vec3	getFinalPosition () const
	Return ending point of the ray (this ending point is set when a the ray hits a receptor in engine.searchForReceptor) More...

vec3	getDirection () const
	Return direction of the ray. More...

vec3	getPosition () const
	Return starting point ray. More...

void	setPosition (vec3 _position)
	set the starting point ray More...

void	setDirection (vec3 _direction)
	set the direction if the ray More...

void	setFinalPosition (vec3 _finalPosition)
	set the ending point of the ray More...

void	setMint (decimal _mint)
	set the Mint More...

void	setMaxt (decimal _maxt)
	set the maxt More...

void	setSource (Source *_source)
	set the pointer to the source of the ray More...

void	setRecepteur (void *_recepteur)
	set the pointer to the receptor of the ray More...

void	setLongueur (decimal _longueur)
	set the distance traveled by the ray More...

void	setConstructId (unsigned long long int _constructId)
	set the ray id More...

void	setNbReflexion (unsigned int _nbReflexion)
	set the reflections number for the ray More...

void	setNbDiffraction (unsigned int _nbDiffraction)
	set the diffractions number for the ray More...

void	setCumulDistance (decimal _cumulDistance)
	set the cumulative distance by the ray computed at each step More...

void	setCumulDelta (decimal _cumulDelta)
	set the cumulative walking step difference by the ray computed at each step More...

void	addEvent (boost::shared_ptr< Event > _event)

vector< unsigned int >	getEventSignature ()

Public Member Functions inherited from Base
	Base ()
	Default constructor. More...

	Base (const Base &other)
	Copy constructor. More...

virtual	~Base ()
	Destructor. More...

std::string	getName ()
	Get the name of the object. More...

void	setName (const std::string &_name)
	Set the name of the object. More...

Protected Attributes
vec3	position
	Starting point ray. More...

vec3	direction
	Direction vector for the ray at the source. More...

vec3	finalPosition
	Ending point of the ray. More...

decimal	mint

decimal	maxt

Source *	source
	Pointer to the source of the ray. More...

void *	recepteur
	Pointer to the receptor of the ray. More...

decimal	longueur
	Distance traveled by the ray. More...

unsigned long long int	constructId
	Ray id. More...

unsigned int	nbReflexion
	Reflections number for the ray. More...

unsigned int	nbDiffraction
	Diffractions number for the ray. More...

decimal	cumulDistance
	Cumulative length since last valid reflexion. More...

decimal	cumulDelta
	Cumulative difference by the ray computed at each step. More...

std::vector< boost::shared_ptr< Event > >	events
	Events list for the ray. More...

Protected Attributes inherited from Base
std::string	name
	Each instantiated object may be named. More...

Detailed Description

: Describes a ray by a pair of unsigned int. The first one gives the source number (in the range 0-4095) and the receptor number (in the range 0-1048576) as a bit field. The second one describes the sequences of events by their types (user could decide what 1 represent, may be REFLEXION or DIFFRACTION)

Definition at line 37 of file Ray.h.

Constructor & Destructor Documentation

◆ Ray() [1/4]

Ray::Ray ( )

inline

Constructors.

Definition at line 42 of file Ray.h.

◆ Ray() [2/4]

Ray::Ray	(	const vec3 &	_position,
		const vec3 &	_direction
	)

inline

Definition at line 49 of file Ray.h.

◆ Ray() [3/4]

Ray::Ray ( const Ray & other )

inline

Copy constructors.

Definition at line 56 of file Ray.h.

◆ Ray() [4/4]

Ray::Ray ( Ray * other )

inline

Definition at line 76 of file Ray.h.

◆ ~Ray()

virtual Ray::~Ray ( )

inlinevirtual

Destructor.

Definition at line 96 of file Ray.h.

Member Function Documentation

◆ addEvent()

void Ray::addEvent ( boost::shared_ptr< Event > _event )

inline

Definition at line 496 of file Ray.h.

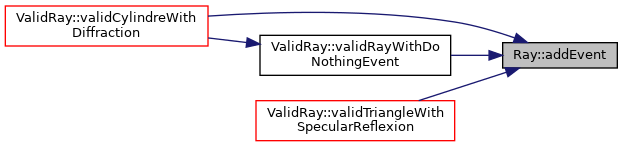

Here is the caller graph for this function:

◆ computeEventsSequenceLength()

decimal Ray::computeEventsSequenceLength ( )

Compute the length of the sequence of events.

Definition at line 76 of file Ray.cpp.

Here is the caller graph for this function:

◆ computeLocalOrigin()

vec3 Ray::computeLocalOrigin ( Base * ev )

inline

Return position of ev which might be a source or an event.

Definition at line 137 of file Ray.h.

Here is the caller graph for this function:

◆ computeLongueur()

void Ray::computeLongueur ( )

Compute the distance traveled (length) by the ray and the result is set into the longueur attribute.

Definition at line 24 of file Ray.cpp.

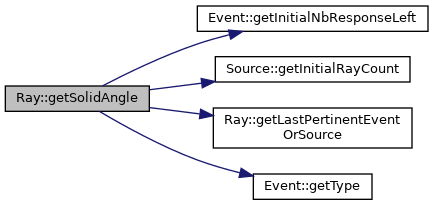

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computePertinentLength()

decimal Ray::computePertinentLength	(	const vec3 &	ref,
		const vec3 &	lastPos,
		vec3 &	closestPoint
	)

Compute ray length from last pertinent event (i.e. source or last diffraction) to the nearest point of the "event" located at ref position.

Definition at line 149 of file Ray.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeTrueLength()

decimal Ray::computeTrueLength	(	const vec3 &	ref,
		const vec3 &	lastPos,
		vec3 &	closestPoint
	)

Compute ray length from source to closestPoint.

Parameters

ref	: reference point
lastPos	: last position
closestPoint	: closestPoint is the projection of ref on the line passing by lastPos and the position of the last event (or source if the ray has no events)

Definition at line 103 of file Ray.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getConstructId()

unsigned long long int Ray::getConstructId ( ) const

inline

Return Ray id.

Definition at line 306 of file Ray.h.

◆ getCumulDelta()

decimal Ray::getCumulDelta ( ) const

inline

Return the cumulative difference between the rays length and its length when ignoring diffractions and taking the direct path between reflections instead.

Definition at line 286 of file Ray.h.

Here is the caller graph for this function:

◆ getCumulDistance()

decimal Ray::getCumulDistance ( ) const

inline

Return the cumulative length since the last reflection event.

Definition at line 296 of file Ray.h.

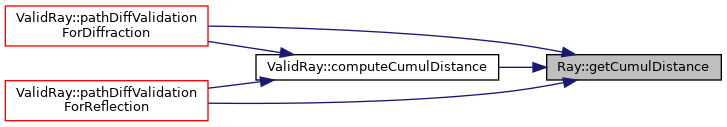

Here is the caller graph for this function:

◆ getDiff()

unsigned int Ray::getDiff ( ) const

inline

Return the diffractions number encountered by the ray.

Returns: Reflections diffractions encountered by the ray.

Definition at line 166 of file Ray.h.

Here is the caller graph for this function:

◆ getDirection()

vect3 Ray::getDirection ( ) const

inline

Return direction of the ray.

Definition at line 346 of file Ray.h.

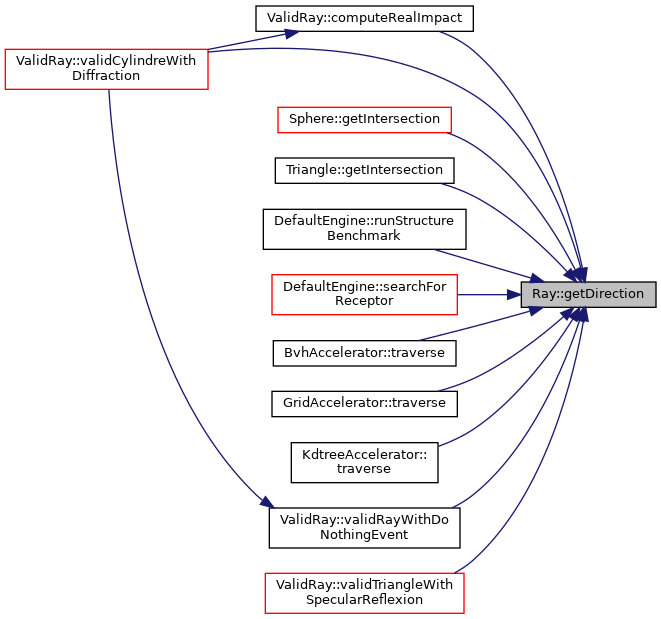

Here is the caller graph for this function:

◆ getEvents() [1/2]

std::vector< boost::shared_ptr< Event > > * Ray::getEvents ( )

inline

Return the events array encountered by the ray.

Returns: Events array encountered by the ray.

Definition at line 195 of file Ray.h.

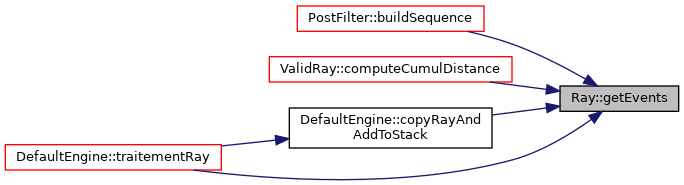

Here is the caller graph for this function:

◆ getEvents() [2/2]

const std::vector< boost::shared_ptr< Event > > * Ray::getEvents ( ) const

inline

Return the events array encountered by the ray.

Returns: Events array encountered by the ray.

Definition at line 205 of file Ray.h.

◆ getEventsBitSet()

bitSet Ray::getEventsBitSet ( const typeevent & typeEv )

Compute the bitSet associated with a list of events of type evType.

Definition at line 322 of file Ray.cpp.

Here is the caller graph for this function:

◆ getEventSignature()

vector< unsigned int > Ray::getEventSignature ( )

Definition at line 309 of file Ray.cpp.

Here is the call graph for this function:

◆ getFaceHistory()

Ray::getFaceHistory ( )

Return the array of faces id encountered by the ray.

Definition at line 240 of file Ray.cpp.

Here is the call graph for this function:

◆ getFinalPosition()

vec3 Ray::getFinalPosition ( ) const

inline

Return ending point of the ray (this ending point is set when a the ray hits a receptor in engine.searchForReceptor)

Definition at line 336 of file Ray.h.

◆ getLastPertinentEventOrSource()

void * Ray::getLastPertinentEventOrSource ( typeevent evType = DIFFRACTION )

Return a pointer to the last event of type evType or source if none.

Definition at line 225 of file Ray.cpp.

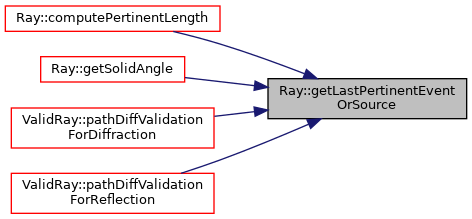

Here is the caller graph for this function:

◆ getLongueur()

double Ray::getLongueur ( ) const

inline

Return the traveled distance by the ray.

Returns: Traveled distance by the ray.

Definition at line 156 of file Ray.h.

◆ getMaxt()

decimal Ray::getMaxt ( ) const

inline

Return maxt.

Definition at line 326 of file Ray.h.

Here is the caller graph for this function:

◆ getMint()

decimal Ray::getMint ( ) const

inline

Return mint.

Definition at line 316 of file Ray.h.

Here is the caller graph for this function:

◆ getNbEvents()

unsigned int Ray::getNbEvents ( ) const

inline

Return the total number of events.

Definition at line 185 of file Ray.h.

Here is the caller graph for this function:

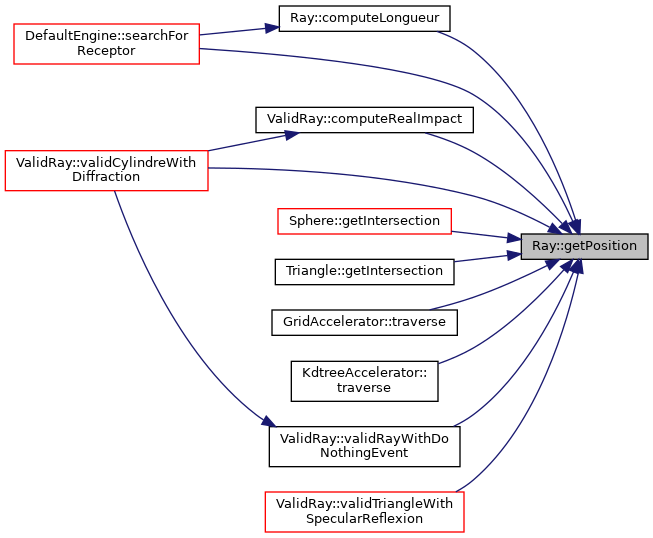

◆ getPosition()

vect3 Ray::getPosition ( ) const

inline

Return starting point ray.

Definition at line 356 of file Ray.h.

Here is the caller graph for this function:

◆ getPrimitiveHistory()

Ray::getPrimitiveHistory ( )

Return the array of primitives id encountered by the ray.

Definition at line 253 of file Ray.cpp.

Here is the call graph for this function:

◆ getRecepteur()

Recepteur * Ray::getRecepteur ( )

inline

Return the ray receptor.

Returns: Pointer to the ray receptor. NULL if the ray has no associated receptor

Definition at line 237 of file Ray.h.

◆ getReflex()

unsigned int Ray::getReflex ( ) const

inline

Return the reflections number encountered by the ray.

Returns: Reflections number encountered by the ray.

Definition at line 176 of file Ray.h.

Here is the caller graph for this function:

◆ getSignature()

signature Ray::getSignature ( const typeevent & typeEv = SPECULARREFLEXION )

Compute the signature (i.e. std::pair<unsigned int, unsigned int>) of the ray)

Definition at line 301 of file Ray.cpp.

Here is the call graph for this function:

◆ getSolidAngle()

decimal Ray::getSolidAngle ( bool & diffraction )

Compute the solid angle associated with the ray (depends on the type of source which generated the ray and the number of rays it generated)

Parameters

diffraction Set diffraction true if last pertinent event is a diffraction

Definition at line 278 of file Ray.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSource()

Source * Ray::getSource ( )

inline

Return the ray source.

Returns: Pointer to the source

Definition at line 227 of file Ray.h.

Here is the caller graph for this function:

◆ getSRBitSet()

bitSet Ray::getSRBitSet	(	const unsigned int &	source_id,
		const unsigned int &	receptor_id
	)

inline

Compute the bitSet associated with a source and a receptor.

Definition at line 266 of file Ray.h.

Here is the caller graph for this function:

◆ getThickness()

decimal Ray::getThickness	(	const decimal &	distance,
		bool	diffraction
	)

Compute the thickness of the ray after having traveled a certain distance depending on the type of source which generated the ray (spherical or diffraction source)

Definition at line 266 of file Ray.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

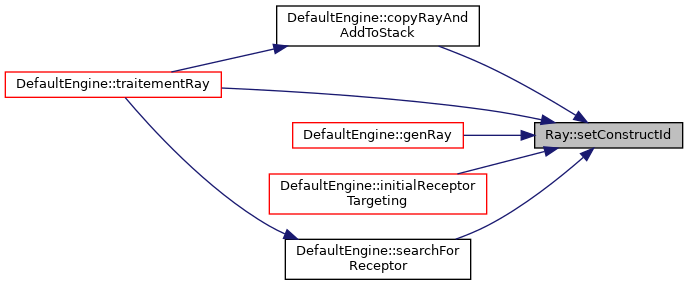

◆ setConstructId()

void Ray::setConstructId ( unsigned long long int _constructId )

inline

set the ray id

Definition at line 446 of file Ray.h.

Here is the caller graph for this function:

◆ setCumulDelta()

void Ray::setCumulDelta ( decimal _cumulDelta )

inline

set the cumulative walking step difference by the ray computed at each step

Definition at line 486 of file Ray.h.

Here is the caller graph for this function:

◆ setCumulDistance()

void Ray::setCumulDistance ( decimal _cumulDistance )

inline

set the cumulative distance by the ray computed at each step

Definition at line 476 of file Ray.h.

Here is the caller graph for this function:

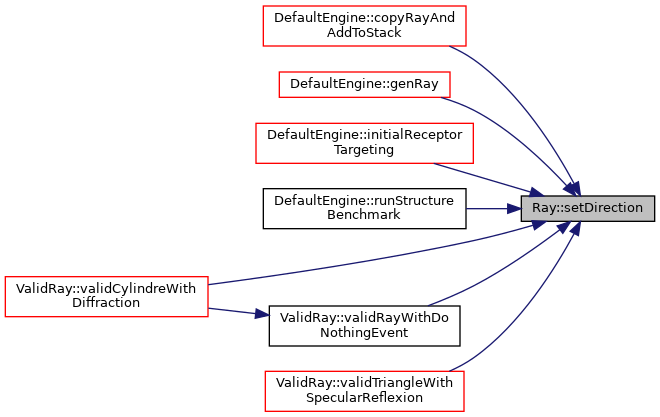

◆ setDirection()

void Ray::setDirection ( vec3 _direction )

inline

set the direction if the ray

Definition at line 376 of file Ray.h.

Here is the caller graph for this function:

◆ setFinalPosition()

void Ray::setFinalPosition ( vec3 _finalPosition )

inline

set the ending point of the ray

Definition at line 386 of file Ray.h.

Here is the caller graph for this function:

◆ setLongueur()

void Ray::setLongueur ( decimal _longueur )

inline

set the distance traveled by the ray

Definition at line 436 of file Ray.h.

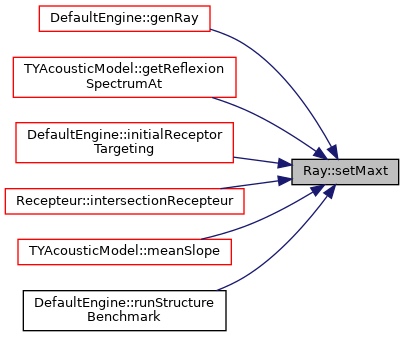

◆ setMaxt()

void Ray::setMaxt ( decimal _maxt )

inline

set the maxt

Definition at line 406 of file Ray.h.

Here is the caller graph for this function:

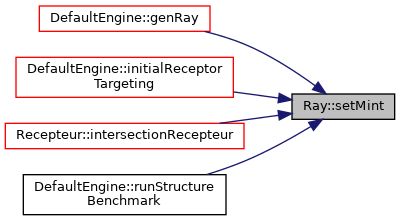

◆ setMint()

void Ray::setMint ( decimal _mint )

inline

set the Mint

Definition at line 396 of file Ray.h.

Here is the caller graph for this function:

◆ setNbDiffraction()

void Ray::setNbDiffraction ( unsigned int _nbDiffraction )

inline

set the diffractions number for the ray

Definition at line 466 of file Ray.h.

Here is the caller graph for this function:

◆ setNbReflexion()

void Ray::setNbReflexion ( unsigned int _nbReflexion )

inline

set the reflections number for the ray

Definition at line 456 of file Ray.h.

Here is the caller graph for this function:

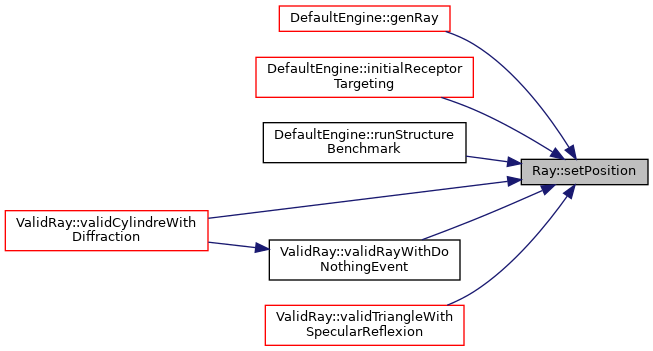

◆ setPosition()

void Ray::setPosition ( vec3 _position )

inline

set the starting point ray

Definition at line 366 of file Ray.h.

Here is the caller graph for this function:

◆ setRecepteur()

void Ray::setRecepteur ( void * _recepteur )

inline

set the pointer to the receptor of the ray

Definition at line 426 of file Ray.h.

Here is the caller graph for this function:

◆ setSource()

void Ray::setSource ( Source * _source )

inline

set the pointer to the source of the ray

Definition at line 416 of file Ray.h.

Here is the caller graph for this function:

Member Data Documentation

◆ constructId

unsigned long long int Ray::constructId

protected

Ray id.

Definition at line 512 of file Ray.h.

◆ cumulDelta

decimal Ray::cumulDelta

protected

Cumulative difference by the ray computed at each step.

Definition at line 516 of file Ray.h.

◆ cumulDistance

decimal Ray::cumulDistance

protected

Cumulative length since last valid reflexion.

Definition at line 515 of file Ray.h.

◆ direction

vec3 Ray::direction

protected

Direction vector for the ray at the source.

Definition at line 505 of file Ray.h.

◆ events

std::vector<boost::shared_ptr<Event> > Ray::events

protected

Events list for the ray.

Definition at line 517 of file Ray.h.

◆ finalPosition

vec3 Ray::finalPosition

protected

Ending point of the ray.

Definition at line 506 of file Ray.h.

◆ longueur

decimal Ray::longueur

protected

Distance traveled by the ray.

Definition at line 511 of file Ray.h.

◆ maxt

decimal Ray::maxt

protected

Definition at line 508 of file Ray.h.

◆ mint

decimal Ray::mint

protected

Definition at line 507 of file Ray.h.

◆ nbDiffraction

unsigned int Ray::nbDiffraction

protected

Diffractions number for the ray.

Definition at line 514 of file Ray.h.

◆ nbReflexion

unsigned int Ray::nbReflexion

protected

Reflections number for the ray.

Definition at line 513 of file Ray.h.

◆ position

vec3 Ray::position

protected

Starting point ray.

Definition at line 504 of file Ray.h.

◆ recepteur

void* Ray::recepteur

protected

Pointer to the receptor of the ray.

Definition at line 510 of file Ray.h.

◆ source

Source* Ray::source

protected

Pointer to the source of the ray.

Definition at line 509 of file Ray.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Ray/Ray.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Ray/Ray.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Ray() [1/4]

◆ Ray() [2/4]

◆ Ray() [3/4]

◆ Ray() [4/4]

◆ ~Ray()

Member Function Documentation

◆ addEvent()

◆ computeEventsSequenceLength()

◆ computeLocalOrigin()

◆ computeLongueur()

◆ computePertinentLength()

◆ computeTrueLength()

◆ getConstructId()

◆ getCumulDelta()

◆ getCumulDistance()

◆ getDiff()

◆ getDirection()

◆ getEvents() [1/2]

◆ getEvents() [2/2]

◆ getEventsBitSet()

◆ getEventSignature()

◆ getFaceHistory()

◆ getFinalPosition()

◆ getLastPertinentEventOrSource()

◆ getLongueur()

◆ getMaxt()

◆ getMint()

◆ getNbEvents()

◆ getPosition()

◆ getPrimitiveHistory()

◆ getRecepteur()

◆ getReflex()

◆ getSignature()

◆ getSolidAngle()

◆ getSource()

◆ getSRBitSet()

◆ getThickness()

◆ setConstructId()

◆ setCumulDelta()

◆ setCumulDistance()

◆ setDirection()

◆ setFinalPosition()

◆ setLongueur()

◆ setMaxt()

◆ setMint()

◆ setNbDiffraction()

◆ setNbReflexion()

◆ setPosition()

◆ setRecepteur()

◆ setSource()

Member Data Documentation

◆ constructId

◆ cumulDelta

◆ cumulDistance

◆ direction

◆ events

◆ finalPosition

◆ longueur

◆ maxt

◆ mint

◆ nbDiffraction

◆ nbReflexion

◆ position

◆ recepteur

◆ source
