Class to define a box (not necessary parallel to the axis as OBox) More...

#include <3d.h>

Inheritance diagram for OBox2:

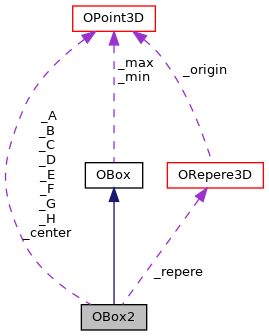

Collaboration diagram for OBox2:

[legend]

Public Member Functions
	OBox2 ()
	Default constructor. More...

	OBox2 (const OBox2 &box)
	Copy constructor. More...

	OBox2 (const OBox &box)
	Constructor from a box and its local coordinate system. More...

	OBox2 (const double &length, const double &width, const double &height)
	build a box centered on [0, 0, 0] from its length, width and height More...

virtual	~OBox2 ()
	Destructor. More...

virtual OBox2 &	operator= (const OBox2 &box)

virtual bool	operator== (const OBox2 &box) const

virtual bool	operator!= (const OBox2 &box) const

OPoint3D	BoxCoord (int N) const
	Returns the coordinates of one of the box corner. \ We consider that the first corner is the one on the bottom left side \ and then we go clockwise, upper and the same. \ N must be between 0 and 8, where 0 represents the box center. \ 1(0,0,0) 2(0,1,0) 3(1,1,0) 4(1,0,0) 5(1,0,1) 6(0,0,1) 7(0,1,1) 8(1,1,1) More...

virtual bool	isInside (const OPoint3D &pt) const
	Test whether the point is inside the box or not. More...

virtual bool	isInside2D (const OPoint3D &pt) const
	Test whether the point is inside the box or not (from upper point of view). More...

virtual void	Translate (const OVector3D &vect)
	Translate this box. More...

OBox2	boxRotation (const OPoint3D &O, const OPoint3D &P2)

void	BoxRotationOzOy (double alpha, double theta)
	Computes the box rotation around Oz and Oy (usual coordinates system). More...

void	moveAndRotate (const OPoint3D &origin, const OVector3D &vec)
	Move and rotate the box. More...

Public Member Functions inherited from OBox
	OBox ()
	Default constructor. More...

	OBox (const OBox &box)
	Copy constructor. More...

	OBox (const OCoord3D &min, const OCoord3D &max)

	OBox (double x1, double y1, double z1, double x2, double y2, double z2)

virtual	~OBox ()
	Destructor. More...

virtual OBox &	operator= (const OBox &box)

virtual bool	operator== (const OBox &box) const

virtual bool	operator!= (const OBox &box) const

virtual bool	isInContact (const OBox &box) const
	Test whether the boxes are in contact or not. More...

virtual void	Enlarge (const OPoint3D &pt)
	Enlarge the box with the point if the point is outside the box. More...

virtual void	Enlarge (float x, float y, float z)
	Enlarge the box with the point (x,y, z) if the point is outside the box. More...

virtual void	Enlarge (const OBox &box)
	Enlarge this box with the box passed if this box does not contain the box passed. More...

virtual void	Translate (const OPoint3D &vectorTranslate)
	Translate this box. More...

Public Attributes
ORepere3D	_repere

OPoint3D	_center

OPoint3D	_A

OPoint3D	_B

OPoint3D	_C

OPoint3D	_D

OPoint3D	_E

OPoint3D	_F

OPoint3D	_G

OPoint3D	_H

double	_length

double	_height

double	_width

Public Attributes inherited from OBox
OPoint3D	_min
	Minimal coordinates of the OBox. More...

OPoint3D	_max
	Maximal coordinates of the OBox. More...

Private Member Functions
	OBox2 (const OBox2 &box, const ORepere3D &repere, const OPoint3D &centre)
	Constructor from a box and its local coordinate system. More...

OBox2	rotInXOYOnly (const OVector3D &v1, const OVector3D &v2, const OPoint3D &O, const OPoint3D &P2)

OBox2	rotInXOZOnly (const OVector3D &v1, const OVector3D &v2, const OPoint3D &O, const OPoint3D &P2)

OBox2	rot3D (const OVector3D &v1, const OVector3D &v2, const OPoint3D &O, const OPoint3D &P2)

Detailed Description

Class to define a box (not necessary parallel to the axis as OBox)

Definition at line 1379 of file 3d.h.

Constructor & Destructor Documentation

◆ OBox2() [1/5]

OBox2::OBox2 ( )

Default constructor.

Definition at line 1700 of file 3d.cpp.

Here is the caller graph for this function:

◆ OBox2() [2/5]

OBox2::OBox2 ( const OBox2 & box )

Copy constructor.

Definition at line 1707 of file 3d.cpp.

◆ OBox2() [3/5]

OBox2::OBox2 ( const OBox & box )

Constructor from a box and its local coordinate system.

Parameters

box	The box define in the local coordinate system

Definition at line 1712 of file 3d.cpp.

◆ OBox2() [4/5]

OBox2::OBox2	(	const double &	length,
		const double &	width,
		const double &	height
	)

build a box centered on [0, 0, 0] from its length, width and height

Definition at line 1753 of file 3d.cpp.

◆ OBox2() [5/5]

OBox2::OBox2	(	const OBox2 &	box,
		const ORepere3D &	repere,
		const OPoint3D &	centre
	)

private

Constructor from a box and its local coordinate system.

Parameters

box	The box define in the local coordinate system
repere	The global coordinate system of the box
centre	Is the box center, this point is the middle of [S'R]

Definition at line 1734 of file 3d.cpp.

◆ ~OBox2()

virtual OBox2::~OBox2 ( )

inlinevirtual

Destructor.

Definition at line 1412 of file 3d.h.

Member Function Documentation

◆ BoxCoord()

OPoint3D OBox2::BoxCoord ( int N ) const

Returns the coordinates of one of the box corner. \ We consider that the first corner is the one on the bottom left side \ and then we go clockwise, upper and the same. \ N must be between 0 and 8, where 0 represents the box center. \ 1(0,0,0) 2(0,1,0) 3(1,1,0) 4(1,0,0) 5(1,0,1) 6(0,0,1) 7(0,1,1) 8(1,1,1)

Parameters

N	is the corner we want the coordinates of.

Definition at line 1859 of file 3d.cpp.

Here is the caller graph for this function:

◆ boxRotation()

OBox2 OBox2::boxRotation	(	const OPoint3D &	O,
		const OPoint3D &	P2
	)

brief return a box rotated by two vectors

Definition at line 1927 of file 3d.cpp.

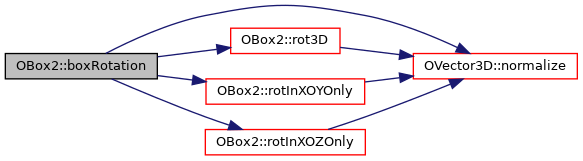

Here is the call graph for this function:

◆ BoxRotationOzOy()

void OBox2::BoxRotationOzOy	(	double	alpha,
		double	theta
	)

Computes the box rotation around Oz and Oy (usual coordinates system).

Parameters

alpha	Angle around Oz
theta	Angle around Oy

Definition at line 1976 of file 3d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isInside()

bool OBox2::isInside ( const OPoint3D & pt ) const

virtual

Test whether the point is inside the box or not.

Parameters

pt	The point to test.

Reimplemented from OBox.

Definition at line 1887 of file 3d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isInside2D()

bool OBox2::isInside2D ( const OPoint3D & pt ) const

virtual

Test whether the point is inside the box or not (from upper point of view).

Parameters

pt	The point to test.

Reimplemented from OBox.

Definition at line 1900 of file 3d.cpp.

Here is the call graph for this function:

◆ moveAndRotate()

void OBox2::moveAndRotate	(	const OPoint3D &	origin,
		const OVector3D &	vec
	)

Move and rotate the box.

Definition at line 2090 of file 3d.cpp.

Here is the call graph for this function:

◆ operator!=()

virtual bool OBox2::operator!= ( const OBox2 & box ) const

inlinevirtual

Definition at line 1416 of file 3d.h.

Here is the call graph for this function:

◆ operator=()

OBox2 & OBox2::operator= ( const OBox2 & box )

virtual

Definition at line 1769 of file 3d.cpp.

Here is the call graph for this function:

◆ operator==()

bool OBox2::operator== ( const OBox2 & box ) const

virtual

Definition at line 1791 of file 3d.cpp.

Here is the caller graph for this function:

◆ rot3D()

OBox2 OBox2::rot3D	(	const OVector3D &	v1,
		const OVector3D &	v2,
		const OPoint3D &	O,
		const OPoint3D &	P2
	)

private

fn OBox2 rot3D(const OVector3D& v1, const OVector3D& v2) brief return a box rotated by two vectors

Definition at line 2050 of file 3d.cpp.

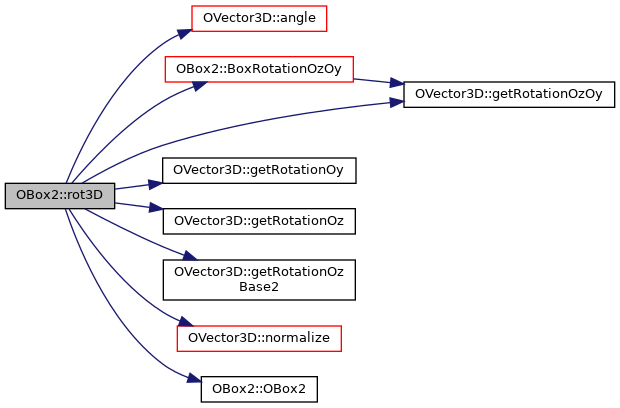

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotInXOYOnly()

OBox2 OBox2::rotInXOYOnly	(	const OVector3D &	v1,
		const OVector3D &	v2,
		const OPoint3D &	O,
		const OPoint3D &	P2
	)

private

fn OBox2 rotInXOYOnly(const OVector3D& v1, const OVector3D& v2) brief return a box rotated by two vectors

Definition at line 2009 of file 3d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotInXOZOnly()

OBox2 OBox2::rotInXOZOnly	(	const OVector3D &	v1,
		const OVector3D &	v2,
		const OPoint3D &	O,
		const OPoint3D &	P2
	)

private

fn OBox2 rotInXOZOnly(const OVector3D& v1, const OVector3D& v2) brief return a box rotated by two vectors

Definition at line 2028 of file 3d.cpp.

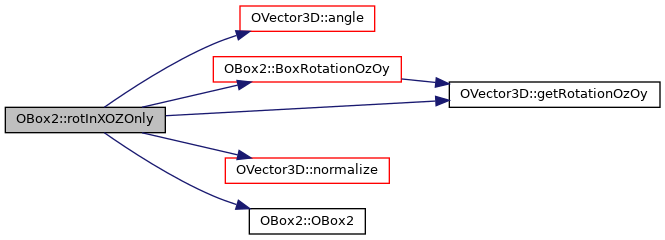

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Translate()

void OBox2::Translate ( const OVector3D & vect )

virtual

Translate this box.

Parameters

vect	translation.

Definition at line 1914 of file 3d.cpp.

Member Data Documentation

◆ _A

OPoint3D OBox2::_A

Definition at line 1485 of file 3d.h.

◆ _B

OPoint3D OBox2::_B

Definition at line 1486 of file 3d.h.

◆ _C

OPoint3D OBox2::_C

Definition at line 1487 of file 3d.h.

◆ _center

OPoint3D OBox2::_center

Definition at line 1484 of file 3d.h.

◆ _D

OPoint3D OBox2::_D

Definition at line 1488 of file 3d.h.

◆ _E

OPoint3D OBox2::_E

Definition at line 1489 of file 3d.h.

◆ _F

OPoint3D OBox2::_F

Definition at line 1490 of file 3d.h.

◆ _G

OPoint3D OBox2::_G

Definition at line 1491 of file 3d.h.

◆ _H

OPoint3D OBox2::_H

Definition at line 1492 of file 3d.h.

◆ _height

double OBox2::_height

Definition at line 1494 of file 3d.h.

◆ _length

double OBox2::_length

Definition at line 1493 of file 3d.h.

◆ _repere

ORepere3D OBox2::_repere

Definition at line 1483 of file 3d.h.

◆ _width

double OBox2::_width

Definition at line 1495 of file 3d.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/3d.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/common/3d.cpp
