Class describing an event (reflection, diffraction, ...) More...

#include <Event.h>

Inheritance diagram for Event:

[legend]

Collaboration diagram for Event:

[legend]

Public Member Functions
	Event (const vec3 &position=vec3(0.0, 0.0, 0.0), const vec3 &incomingDirection=vec3(0.0, 0.0, 0.0), Shape *_shape=NULL)
	Default constructor. More...

	Event (const Event &other)
	Copy constructor. More...

virtual	~Event ()
	Destructor. More...

const vec3 &	getPosition () const
	Return a reference to the event location point. More...

void	setPosition (const vec3 &_pos)
	Set a new point to the event. More...

vec3	getIncomingDirection ()
	Return the direction of the incoming vector. More...

void	setIncomingDirection (const vec3 &_from)
	Set a new incoming vector. More...

bool	isReponseLeft ()
	Return true if it remains rays to launch. More...

int	getNbResponseLeft ()
	Return the number of remaining rays to launch. More...

virtual void	setNbResponseLeft (int _nbResponseLeft)
	Set the number of remaining rays to launch. More...

virtual int	getInitialNbResponseLeft () const
	Return the number of rays to launch after event. More...

Shape *	getShape ()
	Return the primitive of the impact. More...

const Shape *	getShape () const

void	setShape (Shape *_shape)
	Set the impacted primitive of the event. More...

virtual bool	getResponse (vec3 &r, bool force=false)
	Return a direction vector for the impact. Ray direction vector in response of the event. More...

virtual bool	isAcceptableResponse (vec3 &test)
	Return true if the ray direction vector in response of the event is acceptable. More...

virtual bool	generateTest (std::vector< vec3 > &succededTest, std::vector< vec3 > &failTest, unsigned int nbResponses)

virtual bool	generateResponse (std::vector< vec3 > &responses, unsigned int nbResponses)

virtual bool	appendTarget (vec3 target, bool force=false)

virtual int	getType () const
	Return the event type. More...

virtual void	setType (const typeevent &_type)
	Added by DTh to make possible simple test of rays. More...

virtual double	getAngle () const
	Get incident angle. More...

const decimal	distance (const Event &other) const
	Return distance from another event. More...

Public Member Functions inherited from Base
	Base ()
	Default constructor. More...

	Base (const Base &other)
	Copy constructor. More...

virtual	~Base ()
	Destructor. More...

std::string	getName ()
	Get the name of the object. More...

void	setName (const std::string &_name)
	Set the name of the object. More...

Protected Attributes
vec3	pos
	Location point of the event. More...

vec3	from
	Direction vector of the incoming ray. More...

int	nbResponseLeft
	Number of remaining rays to launch. More...

int	initialNbResponse
	Number of rays to launch after event. More...

Sampler *	sampler
	Pointer to a Sampler. More...

Shape *	shape
	The impact primitive. More...

typeevent	type
	Event type. More...

Protected Attributes inherited from Base
std::string	name
	Each instantiated object may be named. More...

Detailed Description

Class describing an event (reflection, diffraction, ...)

Definition at line 36 of file Event.h.

Constructor & Destructor Documentation

◆ Event() [1/2]

Event::Event	(	const vec3 &	position = `vec3(0.0, 0.0, 0.0)`,
		const vec3 &	incomingDirection = `vec3(0.0, 0.0, 0.0)`,
		Shape *	_shape = `NULL`
	)

inline

Default constructor.

Definition at line 40 of file Event.h.

◆ Event() [2/2]

Event::Event ( const Event & other )

inline

Copy constructor.

Definition at line 48 of file Event.h.

◆ ~Event()

virtual Event::~Event ( )

inlinevirtual

Destructor.

Definition at line 66 of file Event.h.

Member Function Documentation

◆ appendTarget()

virtual bool Event::appendTarget	(	vec3	target,
		bool	force = `false`
	)

inlinevirtual

Definition at line 194 of file Event.h.

◆ distance()

const decimal Event::distance ( const Event & other ) const

inline

Return distance from another event.

Parameters

other : event from which distance must be measured

Definition at line 230 of file Event.h.

Here is the call graph for this function:

◆ generateResponse()

virtual bool Event::generateResponse	(	std::vector< vec3 > &	responses,
		unsigned int	nbResponses
	)

inlinevirtual

Definition at line 189 of file Event.h.

◆ generateTest()

virtual bool Event::generateTest	(	std::vector< vec3 > &	succededTest,
		std::vector< vec3 > &	failTest,
		unsigned int	nbResponses
	)

inlinevirtual

Reimplemented in Diffraction.

Definition at line 183 of file Event.h.

◆ getAngle()

virtual double Event::getAngle ( ) const

inlinevirtual

Get incident angle.

Definition at line 220 of file Event.h.

◆ getIncomingDirection()

vec3 * Event::getIncomingDirection ( )

inline

Return the direction of the incoming vector.

Returns: The direction of the incoming vector

Definition at line 102 of file Event.h.

◆ getInitialNbResponseLeft()

virtual int Event::getInitialNbResponseLeft ( ) const

inlinevirtual

Return the number of rays to launch after event.

Definition at line 133 of file Event.h.

Here is the caller graph for this function:

◆ getNbResponseLeft()

int Event::getNbResponseLeft ( )

inline

Return the number of remaining rays to launch.

Definition at line 123 of file Event.h.

◆ getPosition()

const vec3 & Event::getPosition ( ) const

inline

Return a reference to the event location point.

Returns: Vector with coordinates of the point.

Definition at line 82 of file Event.h.

Here is the caller graph for this function:

◆ getResponse()

virtual bool Event::getResponse	(	vec3 &	r,
		bool	force = `false`
	)

inlinevirtual

Return a direction vector for the impact. Ray direction vector in response of the event.

Returns: New direction vector

Warning: Should be overloaded by the inherited classes of Event

Reimplemented in SpecularReflexion, DoNothing, and Diffraction.

Definition at line 167 of file Event.h.

◆ getShape() [1/2]

Shape * Event::getShape ( )

inline

Return the primitive of the impact.

Returns: The impacted primitive of the event

Definition at line 143 of file Event.h.

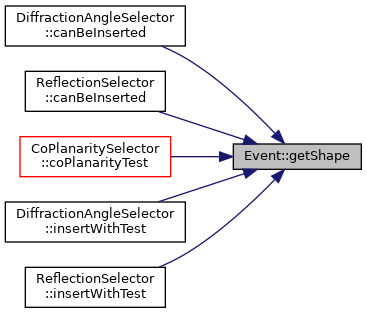

Here is the caller graph for this function:

◆ getShape() [2/2]

const Shape* Event::getShape ( ) const

inline

Definition at line 148 of file Event.h.

◆ getType()

int Event::getType ( ) const

inlinevirtual

Return the event type.

Returns: Event type

Warning: Should be overloaded by the inherited classes of Event

Definition at line 205 of file Event.h.

Here is the caller graph for this function:

◆ isAcceptableResponse()

bool Event::isAcceptableResponse ( vec3 & test )

inlinevirtual

Return true if the ray direction vector in response of the event is acceptable.

Returns: True if the response is acceptable

Warning: Should be overloaded by the inherited classes of Event

Reimplemented in SpecularReflexion, and DoNothing.

Definition at line 178 of file Event.h.

Here is the caller graph for this function:

◆ isReponseLeft()

bool Event::isReponseLeft ( )

inline

Return true if it remains rays to launch.

Definition at line 118 of file Event.h.

◆ setIncomingDirection()

void Event::setIncomingDirection ( const vec3 & _from )

inline

Set a new incoming vector.

Parameters

_from : New incoming vector

Definition at line 112 of file Event.h.

◆ setNbResponseLeft()

virtual void Event::setNbResponseLeft ( int _nbResponseLeft )

inlinevirtual

Set the number of remaining rays to launch.

Reimplemented in Diffraction.

Definition at line 128 of file Event.h.

◆ setPosition()

void Event::setPosition ( const vec3 & _pos )

inline

Set a new point to the event.

Parameters

_pos	: New point.

Definition at line 92 of file Event.h.

◆ setShape()

void Event::setShape ( Shape * _shape )

inline

Set the impacted primitive of the event.

Definition at line 157 of file Event.h.

◆ setType()

void Event::setType ( const typeevent & _type )

inlinevirtual

Added by DTh to make possible simple test of rays.

Definition at line 214 of file Event.h.

Member Data Documentation

◆ from

vec3 Event::from

protected

Direction vector of the incoming ray.

Definition at line 237 of file Event.h.

◆ initialNbResponse

int Event::initialNbResponse

protected

Number of rays to launch after event.

Definition at line 239 of file Event.h.

◆ nbResponseLeft

int Event::nbResponseLeft

protected

Number of remaining rays to launch.

Definition at line 238 of file Event.h.

◆ pos

vec3 Event::pos

protected

Location point of the event.

Definition at line 236 of file Event.h.

◆ sampler

Sampler* Event::sampler

protected

Pointer to a Sampler.

Definition at line 240 of file Event.h.

◆ shape

Shape* Event::shape

protected

The impact primitive.

Definition at line 241 of file Event.h.

◆ type

typeevent Event::type

protected

Event type.

Definition at line 242 of file Event.h.

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Acoustic/Event.h
