This namespace contains all the functions needed for a ray validation. More...

Functions
bool	validTriangleWithSpecularReflexion (Ray r, Intersection inter)

bool	validCylindreWithDiffraction (Ray r, Intersection inter)

bool	validRayWithDoNothingEvent (Ray r, Intersection inter)

bool	computeRealImpact (Ray r, Intersection inter, Cylindre *cylindre, vec3 &impact)
	Try to compute the intersection of the ray and the ridge. More...

bool	isRayPassesNearRidge (Ray *r, const vec3 &impact, const vec3 &realImpact)
	Return True if ray passes near enough the ridge for it be in the thickness of the ray. More...

bool	pathDiffValidationForDiffraction (Ray *r, const vec3 &impact)
	Tests if the addition of a diffraction event at position impact does not cause the pathDifference to exceed MaxPathDifference. (NB: L = length of the ray from source to impact l = length of the ray from source to impact taking a direct path between reflexions while ignoring diffractions pathDifference = L- l. More...

bool	pathDiffValidationForReflection (Ray *r, const vec3 &impact)
	Tests if the addition of a reflection event at position impact does not cause the pathDifference to exceed MaxPathDifference. (NB: L = length of the ray from source to impact l = length of the ray from source to impact taking a direct path between reflexions while ignoring diffractions pathDifference = L- l. More...

void	computeCumulDistance (Ray *r, const vec3 &impact)
	adds the distance between impact and the last REFLECTION/SOURCE of the ray to the cumulDistance of the ray More...

Detailed Description

This namespace contains all the functions needed for a ray validation.

Function Documentation

◆ computeCumulDistance()

void ValidRay::computeCumulDistance	(	Ray *	r,
		const vec3 &	impact
	)

adds the distance between impact and the last REFLECTION/SOURCE of the ray to the cumulDistance of the ray

Definition at line 85 of file ValidRay.cpp.

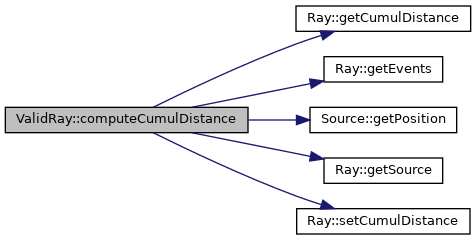

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeRealImpact()

bool ValidRay::computeRealImpact	(	Ray *	r,
		Intersection *	inter,
		Cylindre *	cylindre,
		vec3 &	impact
	)

Try to compute the intersection of the ray and the ridge.

Returns: False if not possible

Definition at line 139 of file ValidRay.cpp.

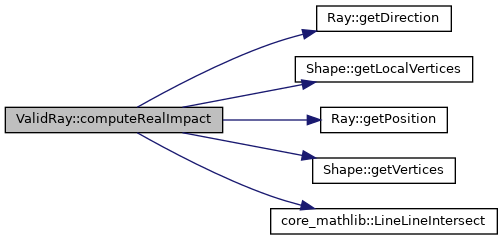

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isRayPassesNearRidge()

bool ValidRay::isRayPassesNearRidge	(	Ray *	r,
		const vec3 &	impact,
		const vec3 &	realImpact
	)

Return True if ray passes near enough the ridge for it be in the thickness of the ray.

Definition at line 168 of file ValidRay.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pathDiffValidationForDiffraction()

bool ValidRay::pathDiffValidationForDiffraction	(	Ray *	r,
		const vec3 &	impact
	)

Tests if the addition of a diffraction event at position impact does not cause the pathDifference to exceed MaxPathDifference. (NB: L = length of the ray from source to impact l = length of the ray from source to impact taking a direct path between reflexions while ignoring diffractions pathDifference = L- l.

Definition at line 121 of file ValidRay.cpp.

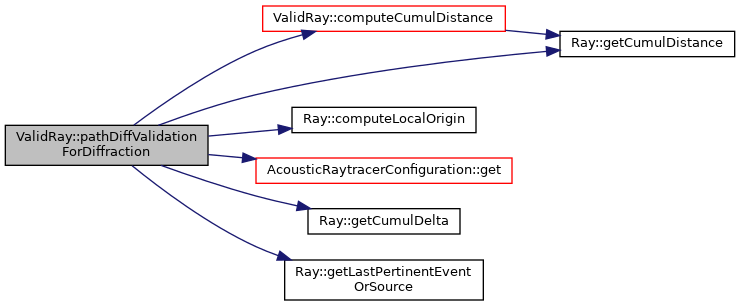

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pathDiffValidationForReflection()

bool ValidRay::pathDiffValidationForReflection	(	Ray *	r,
		const vec3 &	impact
	)

Tests if the addition of a reflection event at position impact does not cause the pathDifference to exceed MaxPathDifference. (NB: L = length of the ray from source to impact l = length of the ray from source to impact taking a direct path between reflexions while ignoring diffractions pathDifference = L- l.

Definition at line 100 of file ValidRay.cpp.

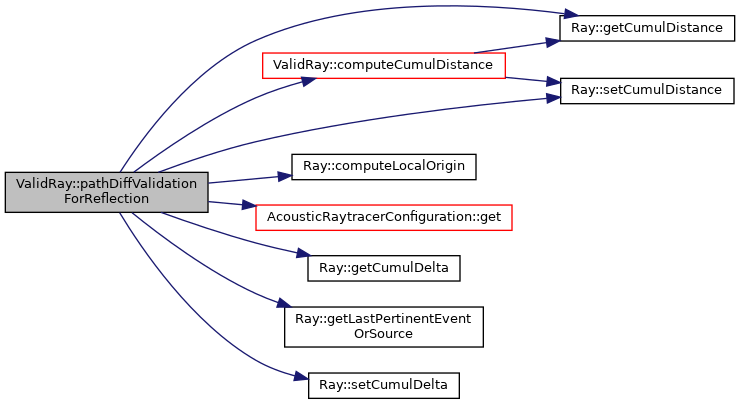

Here is the call graph for this function:
