#include <Diffraction.h>

Inheritance diagram for Diffraction:

Collaboration diagram for Diffraction:

Public Member Functions
	Diffraction (const vec3 &position=vec3(0.0, 0.0, 0.0), const vec3 &incomingDirection=vec3(0.0, 0.0, 0.0), Cylindre *c=NULL)
	Constructor. More...

	Diffraction (const Diffraction &other)
	Copy constructor. More...

virtual	~Diffraction ()
	Destructor. More...

virtual void	setNbResponseLeft (int _nbResponseLeft)
	Set the number of remaining rays to launch. More...

virtual bool	getResponse (vec3 &r, bool force=false)
	Computes the next response of the event in function of the number of responses left. More...

void	setAngleOuverture (decimal angle)
	Set the aperture angle of the cone of Keller. More...

decimal	getAngleOuverture ()
	Get the aperture angle of the cone of Keller. More...

decimal	getDeltaTheta () const
	Get the angle between 2 consecutive responses. More...

virtual double	getAngle ()
	Get the angle between the incident ray and the diffraction edge. More...

virtual bool	generateTest (std::vector< vec3 > &succededTest, std::vector< vec3 > &failTest, unsigned int nbResponses)

virtual const Repere &	getRepere () const
	Get the local frame. More...

Public Member Functions inherited from Event
	Event (const vec3 &position=vec3(0.0, 0.0, 0.0), const vec3 &incomingDirection=vec3(0.0, 0.0, 0.0), Shape *_shape=NULL)
	Default constructor. More...

	Event (const Event &other)
	Copy constructor. More...

virtual	~Event ()
	Destructor. More...

const vec3 &	getPosition () const
	Return a reference to the event location point. More...

void	setPosition (const vec3 &_pos)
	Set a new point to the event. More...

vec3	getIncomingDirection ()
	Return the direction of the incoming vector. More...

void	setIncomingDirection (const vec3 &_from)
	Set a new incoming vector. More...

bool	isReponseLeft ()
	Return true if it remains rays to launch. More...

int	getNbResponseLeft ()
	Return the number of remaining rays to launch. More...

virtual int	getInitialNbResponseLeft () const
	Return the number of rays to launch after event. More...

Shape *	getShape ()
	Return the primitive of the impact. More...

const Shape *	getShape () const

void	setShape (Shape *_shape)
	Set the impacted primitive of the event. More...

virtual bool	isAcceptableResponse (vec3 &test)
	Return true if the ray direction vector in response of the event is acceptable. More...

virtual bool	generateResponse (std::vector< vec3 > &responses, unsigned int nbResponses)

virtual bool	appendTarget (vec3 target, bool force=false)

virtual int	getType () const
	Return the event type. More...

virtual void	setType (const typeevent &_type)
	Added by DTh to make possible simple test of rays. More...

virtual double	getAngle () const
	Get incident angle. More...

const decimal	distance (const Event &other) const
	Return distance from another event. More...

Public Member Functions inherited from Base
	Base ()
	Default constructor. More...

	Base (const Base &other)
	Copy constructor. More...

virtual	~Base ()
	Destructor. More...

std::string	getName ()
	Get the name of the object. More...

void	setName (const std::string &_name)
	Set the name of the object. More...

Public Attributes
bool(*	responseValidator )(const vec3 &, const vec3 &, const vec3 &, vec3 &)
	Filter generated response (or not) More...

void(*	getTheta )(const decimal &, const decimal &, const decimal &, decimal &)

Protected Member Functions
void	buildRepere ()
	Build local frame. More...

void	computeAngle ()
	Compute the angle between the incident ray and the diffraction edge. More...

void	computeDTheta ()
	Compute the angle step between two responses in function of the aperture angle and the number of responses left. More...

Protected Attributes
Repere	localRepere
	Local frame. More...

decimal	angleOuverture
	Angle formed by the two faces of the diffraction edge. More...

decimal	angleArrive
	Incident ray angle. More...

decimal	delta_theta
	Angle step between two rays to send. More...

vec3	N1
	Face 1 normal. More...

vec3	N2
	Face 2 normal. More...

Protected Attributes inherited from Event
vec3	pos
	Location point of the event. More...

vec3	from
	Direction vector of the incoming ray. More...

int	nbResponseLeft
	Number of remaining rays to launch. More...

int	initialNbResponse
	Number of rays to launch after event. More...

Sampler *	sampler
	Pointer to a Sampler. More...

Shape *	shape
	The impact primitive. More...

typeevent	type
	Event type. More...

Protected Attributes inherited from Base
std::string	name
	Each instantiated object may be named. More...

Detailed Description

Diffraction class Event.

Definition at line 30 of file Diffraction.h.

Constructor & Destructor Documentation

◆ Diffraction() [1/2]

Diffraction::Diffraction	(	const vec3 &	position = `vec3(0.0, 0.0, 0.0)`,
		const vec3 &	incomingDirection = `vec3(0.0, 0.0, 0.0)`,
		Cylindre *	c = `NULL`
	)

Constructor.

Definition at line 87 of file Diffraction.cpp.

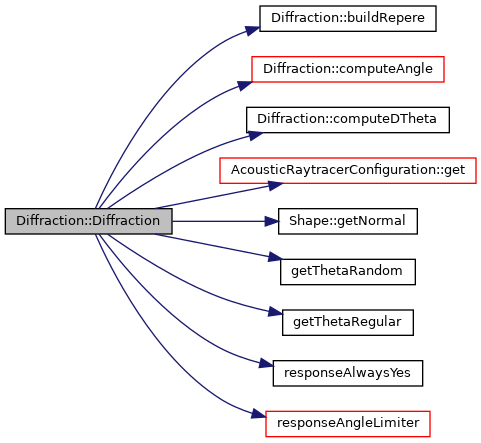

Here is the call graph for this function:

◆ Diffraction() [2/2]

Diffraction::Diffraction ( const Diffraction & other )

Copy constructor.

Definition at line 125 of file Diffraction.cpp.

Here is the call graph for this function:

◆ ~Diffraction()

virtual Diffraction::~Diffraction ( )

inlinevirtual

Destructor.

Definition at line 39 of file Diffraction.h.

Member Function Documentation

◆ buildRepere()

void Diffraction::buildRepere ( )

protected

Build local frame.

Definition at line 188 of file Diffraction.cpp.

Here is the caller graph for this function:

◆ computeAngle()

void Diffraction::computeAngle ( )

protected

Compute the angle between the incident ray and the diffraction edge.

Definition at line 215 of file Diffraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeDTheta()

void Diffraction::computeDTheta ( )

inlineprotected

Compute the angle step between two responses in function of the aperture angle and the number of responses left.

Definition at line 123 of file Diffraction.h.

Here is the caller graph for this function:

◆ generateTest()

bool Diffraction::generateTest	(	std::vector< vec3 > &	succededTest,
		std::vector< vec3 > &	failTest,
		unsigned int	nbResponses
	)

virtual

Reimplemented from Event.

Definition at line 230 of file Diffraction.cpp.

Here is the call graph for this function:

◆ getAngle()

virtual double Diffraction::getAngle ( )

inlinevirtual

Get the angle between the incident ray and the diffraction edge.

Definition at line 90 of file Diffraction.h.

Here is the caller graph for this function:

◆ getAngleOuverture()

decimal Diffraction::getAngleOuverture ( )

inline

Get the aperture angle of the cone of Keller.

Definition at line 74 of file Diffraction.h.

◆ getDeltaTheta()

decimal Diffraction::getDeltaTheta ( ) const

inline

Get the angle between 2 consecutive responses.

Definition at line 82 of file Diffraction.h.

◆ getRepere()

virtual const Repere& Diffraction::getRepere ( ) const

inlinevirtual

Get the local frame.

Definition at line 97 of file Diffraction.h.

◆ getResponse()

bool Diffraction::getResponse	(	vec3 &	r,
		bool	force = `false`
	)

virtual

Computes the next response of the event in function of the number of responses left.

Reimplemented from Event.

Definition at line 138 of file Diffraction.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setAngleOuverture()

void Diffraction::setAngleOuverture ( decimal angle )

inline

Set the aperture angle of the cone of Keller.

Definition at line 65 of file Diffraction.h.

Here is the call graph for this function:

◆ setNbResponseLeft()

virtual void Diffraction::setNbResponseLeft ( int _nbResponseLeft )

inlinevirtual

Set the number of remaining rays to launch.

Reimplemented from Event.

Definition at line 41 of file Diffraction.h.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ angleArrive

decimal Diffraction::angleArrive

protected

Incident ray angle.

Definition at line 132 of file Diffraction.h.

◆ angleOuverture

decimal Diffraction::angleOuverture

protected

Angle formed by the two faces of the diffraction edge.

Definition at line 131 of file Diffraction.h.

◆ delta_theta

decimal Diffraction::delta_theta

protected

Angle step between two rays to send.

Definition at line 134 of file Diffraction.h.

◆ getTheta

void(* Diffraction::getTheta) (const decimal &, const decimal &, const decimal &, decimal &)

Get the angle of the next response around Keller's cone. (returns only angles that result in a response pointing outside the obstacle)

Definition at line 60 of file Diffraction.h.

◆ localRepere

Repere Diffraction::localRepere

protected

Local frame.

Definition at line 129 of file Diffraction.h.

◆ N1

vec3 Diffraction::N1

protected

Face 1 normal.

Definition at line 136 of file Diffraction.h.

◆ N2

vec3 Diffraction::N2

protected

Face 2 normal.

Definition at line 137 of file Diffraction.h.

◆ responseValidator

bool(* Diffraction::responseValidator) (const vec3 &, const vec3 &, const vec3 &, vec3 &)

Filter generated response (or not)

Definition at line 56 of file Diffraction.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Acoustic/Diffraction.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/geometric_methods/AcousticRaytracer/Acoustic/Diffraction.cpp
