classe graphique pour un maillage rectangulaire More...

#include <TYRectangularMaillageGraphic.h>

Inheritance diagram for TYRectangularMaillageGraphic:

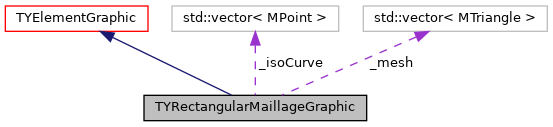

Collaboration diagram for TYRectangularMaillageGraphic:

[legend]

Public Types
enum	RenderingMode { RENDER_SURF , RENDER_LINES , RENDER_MIXED }

Public Member Functions
	TYRectangularMaillageGraphic (TYRectangularMaillage *pElement)

virtual	~TYRectangularMaillageGraphic ()

virtual void	update (bool force=false)

virtual void	display (TYElement *pModelerElement=nullptr, GLenum mode=GL_RENDER)

virtual void	computeBoundingBox ()

virtual void	setRendering (int mode)

Public Member Functions inherited from TYElementGraphic
virtual	~TYElementGraphic ()

void	setElement (TYElement *pElt)

TYElement *	getTYElement ()

void	updateTree ()

void	setModified (bool modified=true)

bool	getModified (bool andReset=false)

void	setVisible (bool visible=true)

bool	getVisible ()

void	setRecursiveVisible (bool visible=true)

void	setTexture (bool state=true)

bool	getTexture ()

OBox	GetBox ()

virtual void	getChilds (TYListPtrTYElementGraphic &childs, bool recursif=true)

void	highlight (bool state=true)

bool	getHighlightState ()

void	viewOnlyHighlight (bool state=true)

bool	getOnlyHighlight ()

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Public Attributes
enum TYRectangularMaillageGraphic::RenderingMode	_Rendering

Protected Member Functions
virtual void	displaySurface (GLenum mode=GL_RENDER)

virtual void	displayLines (GLenum mode=GL_RENDER, bool invertColors=false)

virtual void	displayMixed (GLenum mode=GL_RENDER)

Protected Member Functions inherited from TYElementGraphic
	TYElementGraphic (TYElement *pElt)

void	displayNormal (OVector3D normal, OPoint3D p1)

void	glVertex3fAndEnlargeBB (GLfloat x, GLfloat y, GLfloat z)

void	glVertex3dAndEnlargeBB (GLdouble x, GLdouble y, GLdouble z)

void	gluDiskAndEnlargeBB (GLUquadric *qobj, GLdouble innerRadius, GLdouble outerRadius, GLint slices, GLint loops)

void	gluCylinderAndEnlargeBB (GLUquadric *qobj, GLdouble baseRadius, GLdouble topRadius, GLdouble height, GLint slices, GLint stacks)

void	gluPartialDiskAndEnlargeBB (GLUquadric *qobj, GLdouble innerRadius, GLdouble outerRadius, GLint slices, GLint loops, GLdouble startAngle, GLdouble sweepAngle)

void	drawBoundingBox ()

void	drawLineBoundingBox ()

void	drawName (TYElement *pModelerElement=nullptr)

Protected Attributes
std::vector< MTriangle >	_mesh

std::vector< MPoint >	_isoCurve

double	_scalarX

double	_scalarY

double	_scalarW

double	_scalarH

double	_panelW

double	_panelH

Protected Attributes inherited from TYElementGraphic
OBox	_boundingBox

TYElement *	_pElement
	L'element metier auquel cet element graphique metier est associe. More...

bool	_highlight
	Indique si le highlight est active pour cet element. More...

bool	_texture
	Indique si le texturing est active pour cet element. More...

bool	_visible
	Inique si l'element est visible. More...

bool	_bFirstDisp

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Private Member Functions
int	nextPoint (const TYTabLPPointCalcul *pPtsCalcul, const int &index1, const int &index2)

Additional Inherited Members
Static Public Attributes inherited from TYElementGraphic
static OBox	_globalBoundingBox

static bool	_gDrawNormals = false
	Indique si les normals doivent etre visible. More...

static bool	_gDrawPlafond = true
	Indique si les plafonds doivent etre visible. More...

Detailed Description

classe graphique pour un maillage rectangulaire

Definition at line 43 of file TYRectangularMaillageGraphic.h.

Member Enumeration Documentation

◆ RenderingMode

enum TYRectangularMaillageGraphic::RenderingMode

Enumerator
RENDER_SURF
RENDER_LINES
RENDER_MIXED

Definition at line 50 of file TYRectangularMaillageGraphic.h.

Constructor & Destructor Documentation

◆ TYRectangularMaillageGraphic()

TYRectangularMaillageGraphic::TYRectangularMaillageGraphic ( TYRectangularMaillage * pElement )

Constructor

Definition at line 35 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:

◆ ~TYRectangularMaillageGraphic()

TYRectangularMaillageGraphic::~TYRectangularMaillageGraphic ( )

virtual

Destructor

Definition at line 60 of file TYRectangularMaillageGraphic.cpp.

Member Function Documentation

◆ computeBoundingBox()

void TYRectangularMaillageGraphic::computeBoundingBox ( )

virtual

Build the bounding box, with the min and max of each coordinate

Reimplemented from TYElementGraphic.

Definition at line 80 of file TYRectangularMaillageGraphic.cpp.

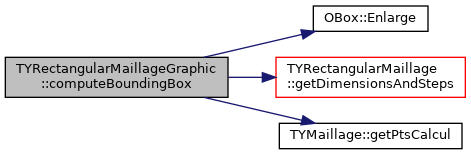

Here is the call graph for this function:

Here is the caller graph for this function:

◆ display()

void TYRectangularMaillageGraphic::display	(	TYElement *	pModelerElement = `nullptr`,
		GLenum	mode = `GL_RENDER`
	)

virtual

Fonction d'affichage

Parameters

pModelerElement	element du modeleur a afficher
mode	mode d'affichage

Reimplemented from TYElementGraphic.

Definition at line 112 of file TYRectangularMaillageGraphic.cpp.

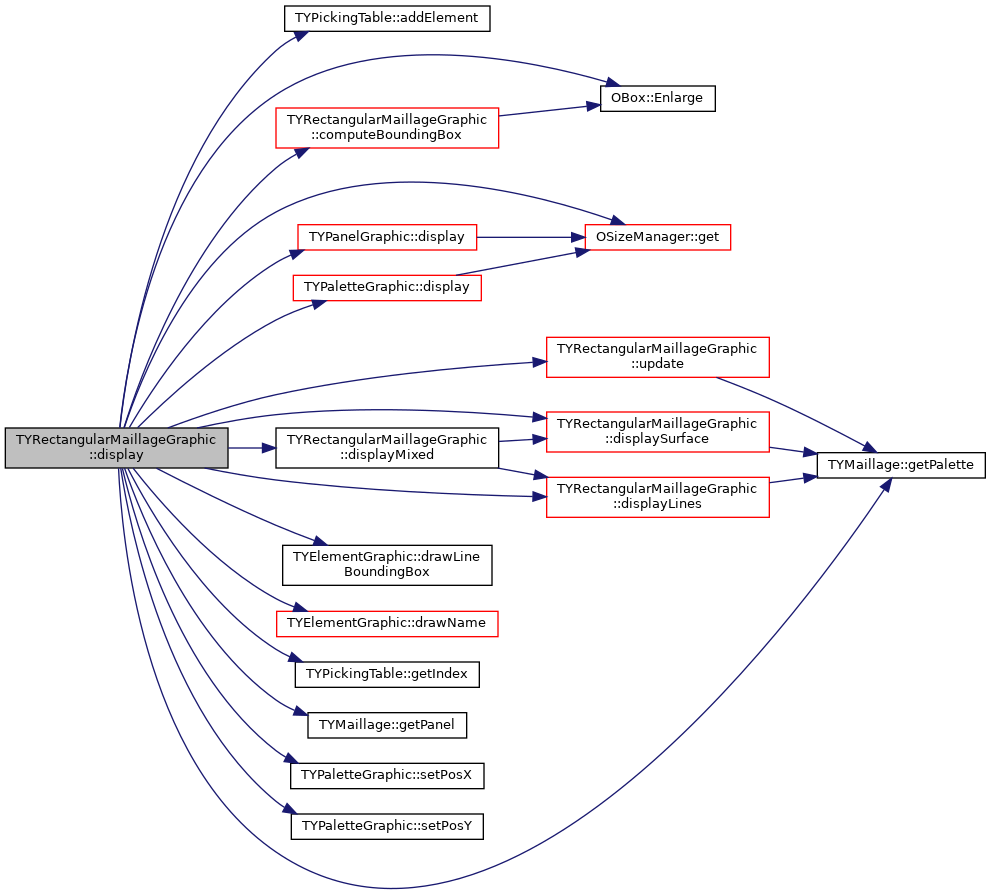

Here is the call graph for this function:

◆ displayLines()

void TYRectangularMaillageGraphic::displayLines	(	GLenum	mode = `GL_RENDER`,
		bool	invertColors = `false`
	)

protectedvirtual

Definition at line 306 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ displayMixed()

void TYRectangularMaillageGraphic::displayMixed ( GLenum mode = GL_RENDER )

protectedvirtual

Definition at line 355 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ displaySurface()

void TYRectangularMaillageGraphic::displaySurface ( GLenum mode = GL_RENDER )

protectedvirtual

Definition at line 202 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nextPoint()

int TYRectangularMaillageGraphic::nextPoint	(	const TYTabLPPointCalcul *	pPtsCalcul,
		const int &	index1,
		const int &	index2
	)

private

calcul le point suivant du maillage (traitement des maillages irreguliers)

Definition at line 361 of file TYRectangularMaillageGraphic.cpp.

◆ setRendering()

virtual void TYRectangularMaillageGraphic::setRendering ( int mode )

inlinevirtual

Definition at line 90 of file TYRectangularMaillageGraphic.h.

◆ update()

void TYRectangularMaillageGraphic::update ( bool force = false )

virtual

Updates the 3D object associated to this object Note : When this method is overloaded, the parent implementation (TYElementGraphic::update()) must be called at the end

Parameters

force overstep the state of the flag 'modified' and apply the update.

Reimplemented from TYElementGraphic.

Definition at line 62 of file TYRectangularMaillageGraphic.cpp.

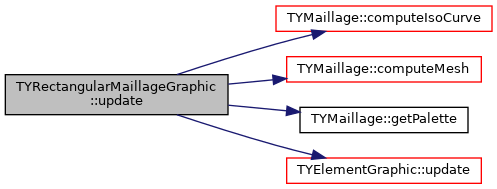

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _isoCurve

std::vector<MPoint> TYRectangularMaillageGraphic::_isoCurve

protected

Definition at line 103 of file TYRectangularMaillageGraphic.h.

◆ _mesh

std::vector<MTriangle> TYRectangularMaillageGraphic::_mesh

protected

Definition at line 102 of file TYRectangularMaillageGraphic.h.

◆ _panelH

double TYRectangularMaillageGraphic::_panelH

protected

Definition at line 110 of file TYRectangularMaillageGraphic.h.

◆ _panelW

double TYRectangularMaillageGraphic::_panelW

protected

Definition at line 109 of file TYRectangularMaillageGraphic.h.

◆ _Rendering

enum TYRectangularMaillageGraphic::RenderingMode TYRectangularMaillageGraphic::_Rendering

◆ _scalarH

double TYRectangularMaillageGraphic::_scalarH

protected

Definition at line 108 of file TYRectangularMaillageGraphic.h.

◆ _scalarW

double TYRectangularMaillageGraphic::_scalarW

protected

Definition at line 107 of file TYRectangularMaillageGraphic.h.

◆ _scalarX

double TYRectangularMaillageGraphic::_scalarX

protected

Definition at line 105 of file TYRectangularMaillageGraphic.h.

◆ _scalarY

double TYRectangularMaillageGraphic::_scalarY

protected

Definition at line 106 of file TYRectangularMaillageGraphic.h.
