classe graphique pour un element de base More...

#include <TYElementGraphic.h>

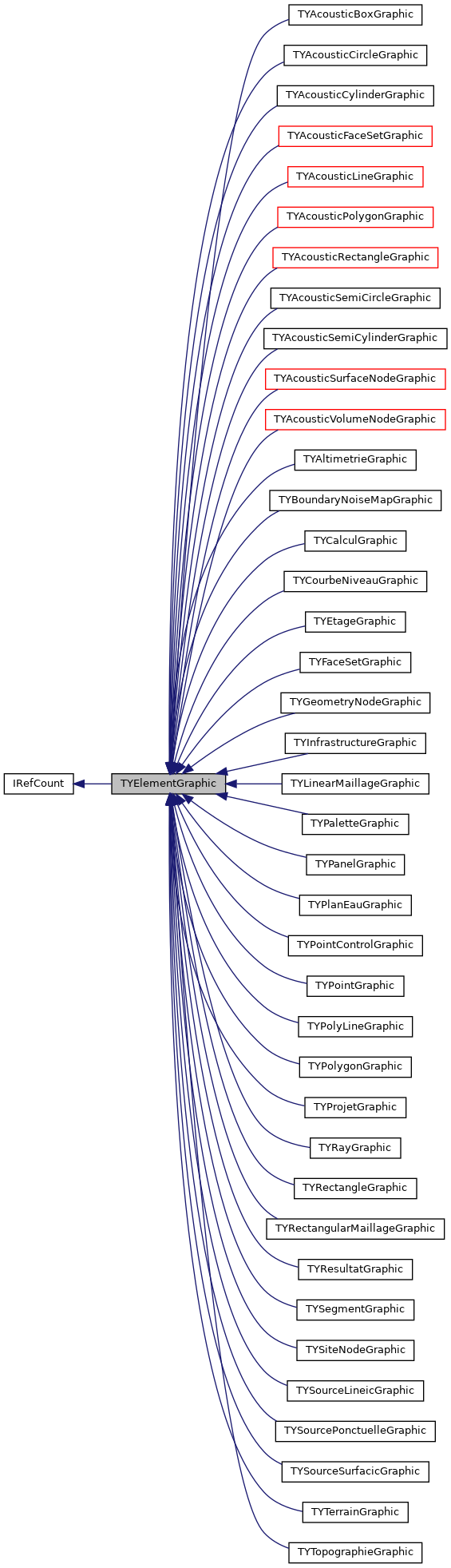

Inheritance diagram for TYElementGraphic:

[legend]

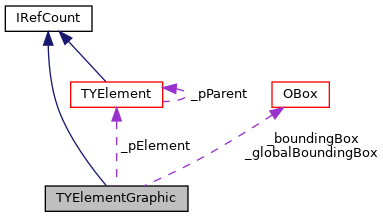

Collaboration diagram for TYElementGraphic:

[legend]

Public Member Functions
virtual	~TYElementGraphic ()

void	setElement (TYElement *pElt)

TYElement *	getTYElement ()

void	updateTree ()

virtual void	update (bool force=false)

virtual void	display (TYElement *pModelerElement=nullptr, GLenum mode=GL_RENDER)

void	setModified (bool modified=true)

bool	getModified (bool andReset=false)

void	setVisible (bool visible=true)

bool	getVisible ()

void	setRecursiveVisible (bool visible=true)

void	setTexture (bool state=true)

bool	getTexture ()

OBox	GetBox ()

virtual void	computeBoundingBox ()

virtual void	getChilds (TYListPtrTYElementGraphic &childs, bool recursif=true)

void	highlight (bool state=true)

bool	getHighlightState ()

void	viewOnlyHighlight (bool state=true)

bool	getOnlyHighlight ()

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Static Public Attributes
static OBox	_globalBoundingBox

static bool	_gDrawNormals = false
	Indique si les normals doivent etre visible. More...

static bool	_gDrawPlafond = true
	Indique si les plafonds doivent etre visible. More...

Protected Member Functions
	TYElementGraphic (TYElement *pElt)

void	displayNormal (OVector3D normal, OPoint3D p1)

void	glVertex3fAndEnlargeBB (GLfloat x, GLfloat y, GLfloat z)

void	glVertex3dAndEnlargeBB (GLdouble x, GLdouble y, GLdouble z)

void	gluDiskAndEnlargeBB (GLUquadric *qobj, GLdouble innerRadius, GLdouble outerRadius, GLint slices, GLint loops)

void	gluCylinderAndEnlargeBB (GLUquadric *qobj, GLdouble baseRadius, GLdouble topRadius, GLdouble height, GLint slices, GLint stacks)

void	gluPartialDiskAndEnlargeBB (GLUquadric *qobj, GLdouble innerRadius, GLdouble outerRadius, GLint slices, GLint loops, GLdouble startAngle, GLdouble sweepAngle)

void	drawBoundingBox ()

void	drawLineBoundingBox ()

void	drawName (TYElement *pModelerElement=nullptr)

Protected Attributes
OBox	_boundingBox

TYElement *	_pElement
	L'element metier auquel cet element graphique metier est associe. More...

bool	_highlight
	Indique si le highlight est active pour cet element. More...

bool	_texture
	Indique si le texturing est active pour cet element. More...

bool	_visible
	Inique si l'element est visible. More...

bool	_bFirstDisp

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Private Attributes
bool	_modified
	Indique si l'element associe a ete modifie. More...

bool	_viewOnlyHighlight
	Inique si on affiche la bounding box seule. More...

Detailed Description

classe graphique pour un element de base

Definition at line 69 of file TYElementGraphic.h.

Constructor & Destructor Documentation

◆ ~TYElementGraphic()

TYElementGraphic::~TYElementGraphic ( )

virtual

Destructeur.

Definition at line 55 of file TYElementGraphic.cpp.

◆ TYElementGraphic()

TYElementGraphic::TYElementGraphic ( TYElement * pElt )

protected

Constructeur.

Definition at line 41 of file TYElementGraphic.cpp.

Member Function Documentation

◆ computeBoundingBox()

void TYElementGraphic::computeBoundingBox ( )

virtual

Build the bounding box, with the min and max of each coordinate

Reimplemented in TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourcePonctuelleGraphic, TYSourceLineicGraphic, TYSegmentGraphic, TYRectangularMaillageGraphic, TYRectangleGraphic, TYRayGraphic, TYPolyLineGraphic, TYPolygonGraphic, TYPointGraphic, TYPointControlGraphic, TYPlanEauGraphic, TYLinearMaillageGraphic, TYGeometryNodeGraphic, TYFaceSetGraphic, TYEtageGraphic, TYCourbeNiveauGraphic, TYBoundaryNoiseMapGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticSemiCircleGraphic, TYAcousticRectangleNodeGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticFaceSetGraphic, TYAcousticCylinderGraphic, TYAcousticCircleGraphic, and TYAcousticBoxGraphic.

Definition at line 373 of file TYElementGraphic.cpp.

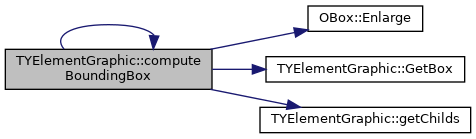

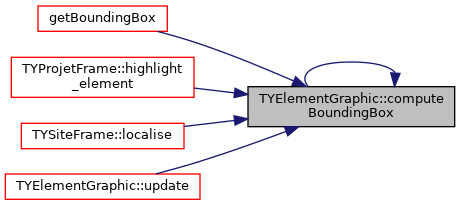

Here is the call graph for this function:

Here is the caller graph for this function:

◆ display()

void TYElementGraphic::display	(	TYElement *	pModelerElement = `nullptr`,
		GLenum	mode = `GL_RENDER`
	)

virtual

Effectue le trace openGL de l'objet graphique

Parameters

pModelerElement	element du modeleur a afficher
mode	Gere les modes rendu et select pour le picking.

Reimplemented in TYTopographieGraphic, TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourcePonctuelleGraphic, TYSourceLineicGraphic, TYSiteNodeGraphic, TYSegmentGraphic, TYResultatGraphic, TYRectangularMaillageGraphic, TYRectangleGraphic, TYRayGraphic, TYProjetGraphic, TYPolyLineGraphic, TYPolygonGraphic, TYPointGraphic, TYPointControlGraphic, TYPlanEauGraphic, TYPanelGraphic, TYPaletteGraphic, TYLinearMaillageGraphic, TYInfrastructureGraphic, TYGeometryNodeGraphic, TYFaceSetGraphic, TYEtageGraphic, TYEcranGraphic, TYCourbeNiveauGraphic, TYCalculGraphic, TYBoundaryNoiseMapGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticSemiCircleGraphic, TYAcousticRectangleNodeGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticFaceSetGraphic, TYAcousticCylinderGraphic, TYAcousticCircleGraphic, and TYAcousticBoxGraphic.

Definition at line 350 of file TYElementGraphic.cpp.

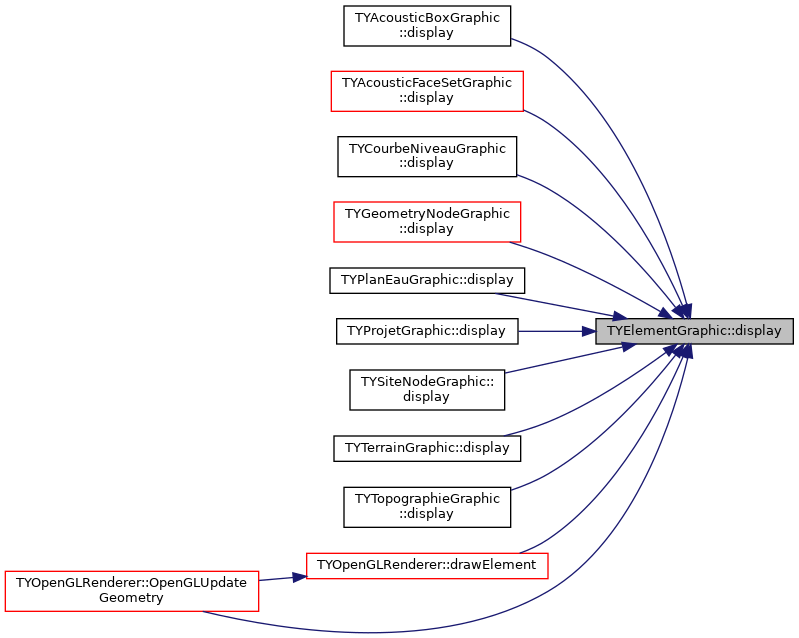

Here is the caller graph for this function:

◆ displayNormal()

void TYElementGraphic::displayNormal	(	OVector3D	normal,
		OPoint3D	p1
	)

protected

Definition at line 126 of file TYElementGraphic.cpp.

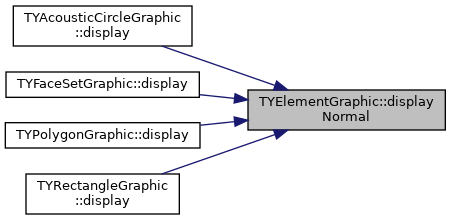

Here is the caller graph for this function:

◆ drawBoundingBox()

void TYElementGraphic::drawBoundingBox ( )

protected

Definition at line 258 of file TYElementGraphic.cpp.

◆ drawLineBoundingBox()

void TYElementGraphic::drawLineBoundingBox ( )

protected

Definition at line 143 of file TYElementGraphic.cpp.

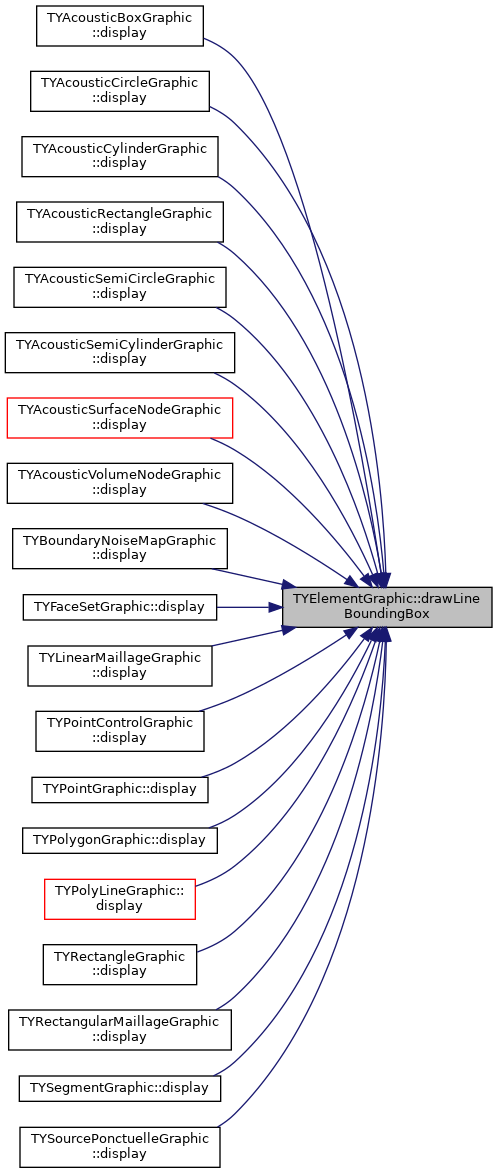

Here is the caller graph for this function:

◆ drawName()

void TYElementGraphic::drawName ( TYElement * pModelerElement = nullptr )

protected

Definition at line 204 of file TYElementGraphic.cpp.

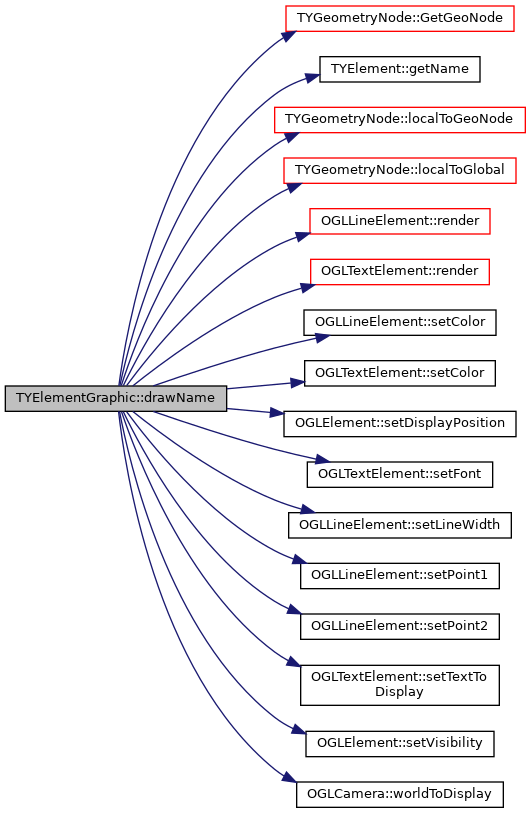

Here is the call graph for this function:

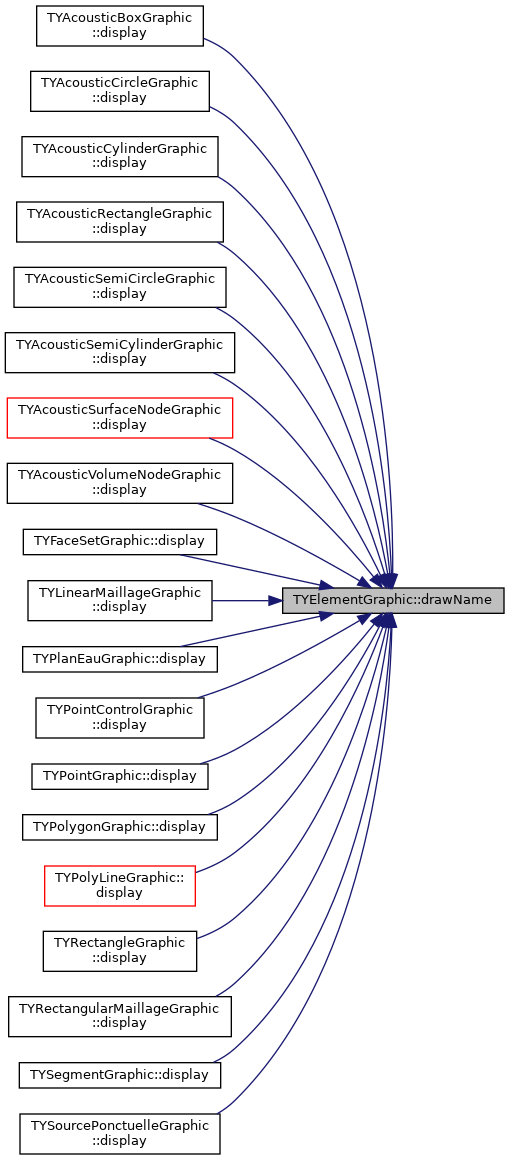

Here is the caller graph for this function:

◆ GetBox()

OBox TYElementGraphic::GetBox ( )

inline

Get des extremites de la boite englobante de l'objet.

Definition at line 164 of file TYElementGraphic.h.

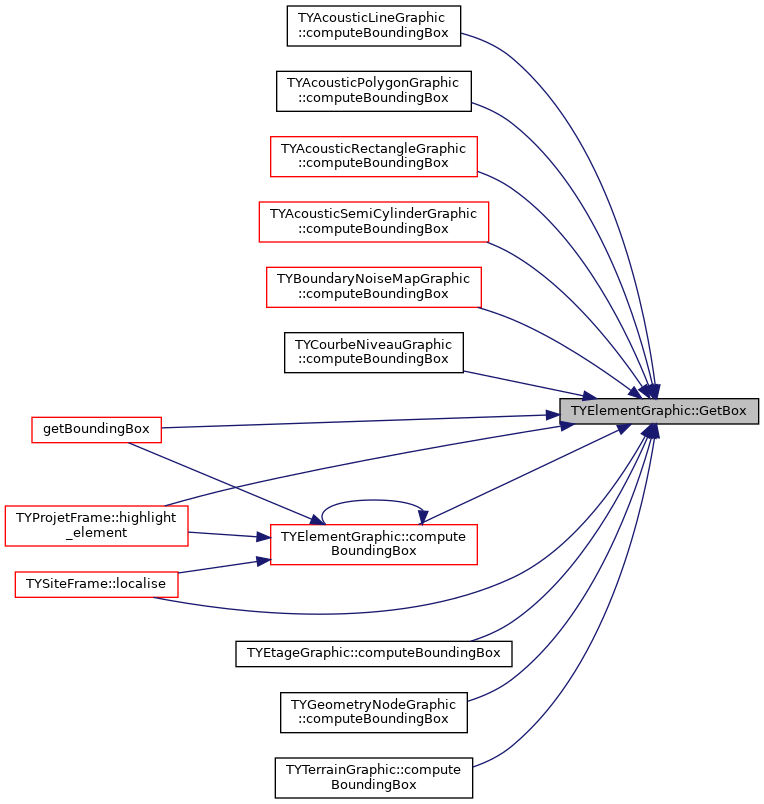

Here is the caller graph for this function:

◆ getChilds()

virtual void TYElementGraphic::getChilds	(	TYListPtrTYElementGraphic &	childs,
		bool	recursif = `true`
	)

inlinevirtual

Store each child of the box in childs. If recursif is true, also store the children of each child

Reimplemented in TYBoundaryNoiseMapGraphic, TYTopographieGraphic, TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourceLineicGraphic, TYSiteNodeGraphic, TYProjetGraphic, TYPlanEauGraphic, TYInfrastructureGraphic, TYGeometryNodeGraphic, TYEtageGraphic, TYCourbeNiveauGraphic, TYCalculGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticCylinderGraphic, and TYAcousticBoxGraphic.

Definition at line 178 of file TYElementGraphic.h.

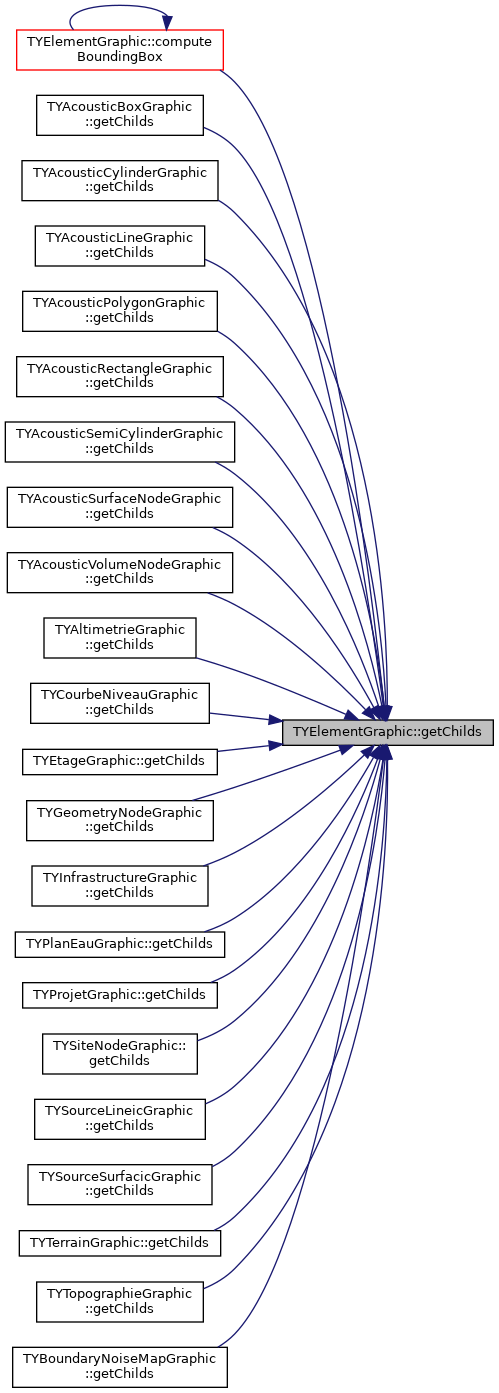

Here is the caller graph for this function:

◆ getHighlightState()

bool TYElementGraphic::getHighlightState ( )

Retourne l'etat du Highlight.

Definition at line 337 of file TYElementGraphic.cpp.

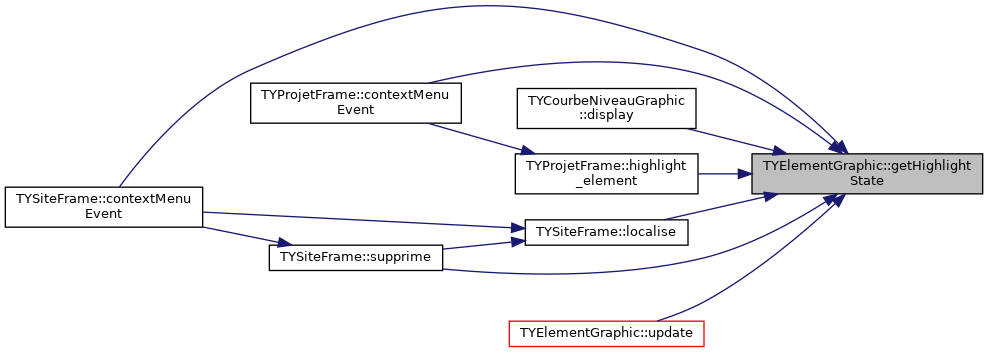

Here is the caller graph for this function:

◆ getModified()

bool TYElementGraphic::getModified ( bool andReset = false )

Set/Get du flag indiquant si l'element associe a ete modifie.

Definition at line 108 of file TYElementGraphic.cpp.

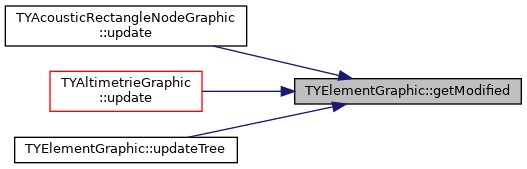

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getOnlyHighlight()

bool TYElementGraphic::getOnlyHighlight ( )

inline

Retourn l'etat d'affichage de la bounding box seule.

Definition at line 198 of file TYElementGraphic.h.

◆ getTexture()

bool TYElementGraphic::getTexture ( )

inline

Set/Get du flag indiquant si l'element est texture.

Definition at line 156 of file TYElementGraphic.h.

◆ getTYElement()

TYElement* TYElementGraphic::getTYElement ( )

inline

Renvoie l'element associe a cet objet (la methode getElement n'est pas membre de la classe de base TYElementGraphic!).

Definition at line 86 of file TYElementGraphic.h.

◆ getVisible()

bool TYElementGraphic::getVisible ( )

inline

Set/Get du flag indiquant si l'element est visible.

Definition at line 137 of file TYElementGraphic.h.

◆ gluCylinderAndEnlargeBB()

void TYElementGraphic::gluCylinderAndEnlargeBB	(	GLUquadric *	qobj,
		GLdouble	baseRadius,
		GLdouble	topRadius,
		GLdouble	height,
		GLint	slices,
		GLint	stacks
	)

protected

Definition at line 324 of file TYElementGraphic.cpp.

◆ gluDiskAndEnlargeBB()

void TYElementGraphic::gluDiskAndEnlargeBB	(	GLUquadric *	qobj,
		GLdouble	innerRadius,
		GLdouble	outerRadius,
		GLint	slices,
		GLint	loops
	)

protected

Definition at line 318 of file TYElementGraphic.cpp.

Here is the caller graph for this function:

◆ gluPartialDiskAndEnlargeBB()

void TYElementGraphic::gluPartialDiskAndEnlargeBB	(	GLUquadric *	qobj,
		GLdouble	innerRadius,
		GLdouble	outerRadius,
		GLint	slices,
		GLint	loops,
		GLdouble	startAngle,
		GLdouble	sweepAngle
	)

protected

Definition at line 330 of file TYElementGraphic.cpp.

Here is the caller graph for this function:

◆ glVertex3dAndEnlargeBB()

void TYElementGraphic::glVertex3dAndEnlargeBB	(	GLdouble	x,
		GLdouble	y,
		GLdouble	z
	)

protected

Definition at line 312 of file TYElementGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ glVertex3fAndEnlargeBB()

void TYElementGraphic::glVertex3fAndEnlargeBB	(	GLfloat	x,
		GLfloat	y,
		GLfloat	z
	)

protected

Definition at line 306 of file TYElementGraphic.cpp.

Here is the call graph for this function:

◆ highlight()

void TYElementGraphic::highlight ( bool state = true )

Highlight la bounding box de l'objet graphique de l'element metier ou de l'ensemble des objets graphiques le composant.

Definition at line 120 of file TYElementGraphic.cpp.

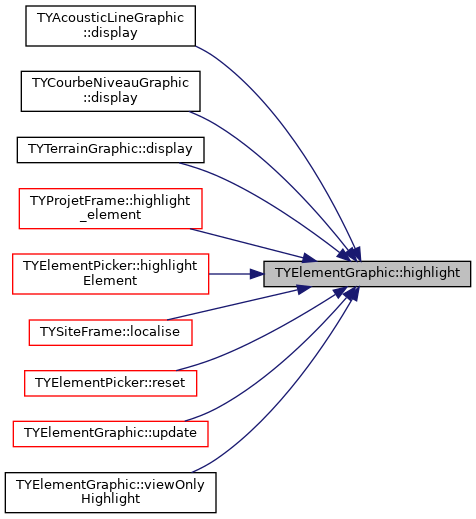

Here is the caller graph for this function:

◆ setElement()

void TYElementGraphic::setElement ( TYElement * pElt )

Definit l'element associe a cet objet.

Definition at line 57 of file TYElementGraphic.cpp.

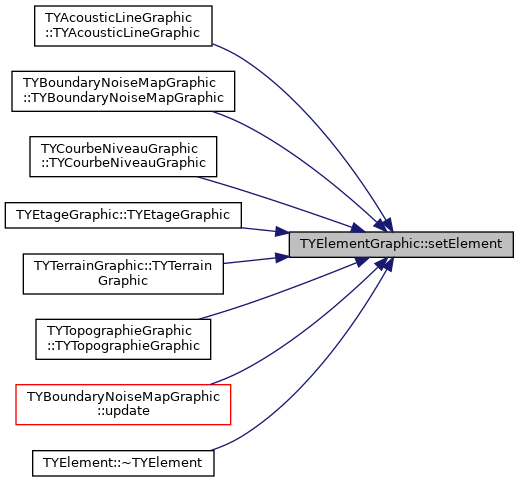

Here is the caller graph for this function:

◆ setModified()

void TYElementGraphic::setModified ( bool modified = true )

inline

Set/Get du flag indiquant si l'element associe a ete modifie.

Definition at line 118 of file TYElementGraphic.h.

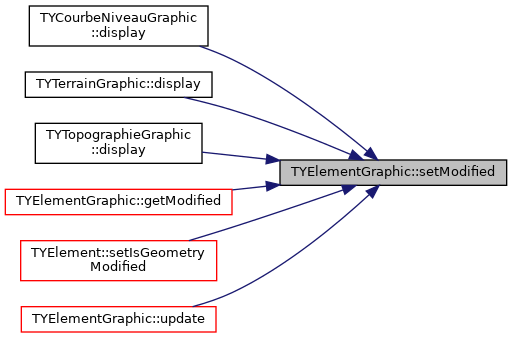

Here is the caller graph for this function:

◆ setRecursiveVisible()

void TYElementGraphic::setRecursiveVisible ( bool visible = true )

Set/Get du flag indiquant si l'element est visible recursivement.

Definition at line 361 of file TYElementGraphic.cpp.

Here is the call graph for this function:

◆ setTexture()

void TYElementGraphic::setTexture ( bool state = true )

inline

Set/Get du flag indiquant si l'element est texture.

Definition at line 149 of file TYElementGraphic.h.

◆ setVisible()

void TYElementGraphic::setVisible ( bool visible = true )

inline

Set/Get du flag indiquant si l'element est visible.

Definition at line 130 of file TYElementGraphic.h.

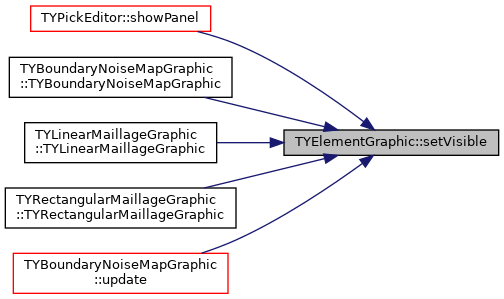

Here is the caller graph for this function:

◆ update()

void TYElementGraphic::update ( bool force = false )

virtual

Mets a jour l'objet 3D associe a cet objet graphique metier. Remarque : Lorsque cette methode est surchargee, un appel de l'implementation parent (TYElementGraphic::update()) doit etre fait a la fin.

Parameters

force Outrepasse l'etat du flag 'modified' et effectue la mise a jour.

Reimplemented in TYTopographieGraphic, TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourcePonctuelleGraphic, TYSourceLineicGraphic, TYSiteNodeGraphic, TYSegmentGraphic, TYResultatGraphic, TYRectangularMaillageGraphic, TYRectangleGraphic, TYRayGraphic, TYProjetGraphic, TYPolyLineGraphic, TYPolygonGraphic, TYPointGraphic, TYPointControlGraphic, TYPlanEauGraphic, TYPanelGraphic, TYPaletteGraphic, TYLinearMaillageGraphic, TYInfrastructureGraphic, TYGeometryNodeGraphic, TYFaceSetGraphic, TYEtageGraphic, TYCourbeNiveauGraphic, TYCalculGraphic, TYBoundaryNoiseMapGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticSemiCircleGraphic, TYAcousticRectangleNodeGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticFaceSetGraphic, TYAcousticCylinderGraphic, TYAcousticCircleGraphic, and TYAcousticBoxGraphic.

Definition at line 80 of file TYElementGraphic.cpp.

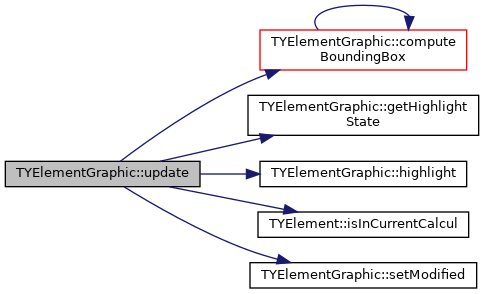

Here is the call graph for this function:

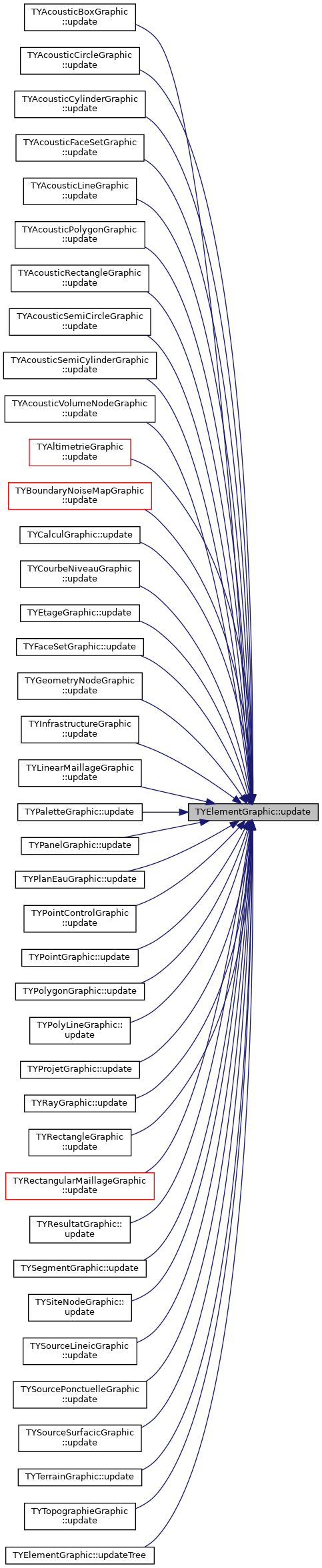

Here is the caller graph for this function:

◆ updateTree()

void TYElementGraphic::updateTree ( )

Mets a jour le graph de scene. Si l'element a un parent l'update est propage dans le graph.

Definition at line 62 of file TYElementGraphic.cpp.

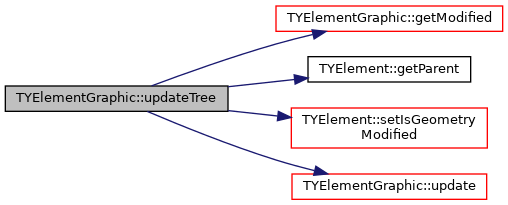

Here is the call graph for this function:

◆ viewOnlyHighlight()

void TYElementGraphic::viewOnlyHighlight ( bool state = true )

Affiche uniquement la bounding box.

Definition at line 342 of file TYElementGraphic.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ _bFirstDisp

bool TYElementGraphic::_bFirstDisp

protected

Definition at line 267 of file TYElementGraphic.h.

◆ _boundingBox

OBox TYElementGraphic::_boundingBox

protected

Definition at line 254 of file TYElementGraphic.h.

◆ _gDrawNormals

bool TYElementGraphic::_gDrawNormals = false

static

Indique si les normals doivent etre visible.

Definition at line 241 of file TYElementGraphic.h.

◆ _gDrawPlafond

bool TYElementGraphic::_gDrawPlafond = true

static

Indique si les plafonds doivent etre visible.

Definition at line 244 of file TYElementGraphic.h.

◆ _globalBoundingBox

OBox TYElementGraphic::_globalBoundingBox

static

Definition at line 217 of file TYElementGraphic.h.

◆ _highlight

bool TYElementGraphic::_highlight

protected

Indique si le highlight est active pour cet element.

Definition at line 259 of file TYElementGraphic.h.

◆ _modified

bool TYElementGraphic::_modified

private

Indique si l'element associe a ete modifie.

Definition at line 248 of file TYElementGraphic.h.

◆ _pElement

TYElement* TYElementGraphic::_pElement

protected

L'element metier auquel cet element graphique metier est associe.

Definition at line 256 of file TYElementGraphic.h.

◆ _texture

bool TYElementGraphic::_texture

protected

Indique si le texturing est active pour cet element.

Definition at line 262 of file TYElementGraphic.h.

◆ _viewOnlyHighlight

bool TYElementGraphic::_viewOnlyHighlight

private

Inique si on affiche la bounding box seule.

Definition at line 251 of file TYElementGraphic.h.

◆ _visible

bool TYElementGraphic::_visible

protected

Inique si l'element est visible.

Definition at line 265 of file TYElementGraphic.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/gui/gl/TYElementGraphic.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/gui/gl/TYElementGraphic.cpp

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~TYElementGraphic()

◆ TYElementGraphic()

Member Function Documentation

◆ computeBoundingBox()

◆ display()

◆ displayNormal()

◆ drawBoundingBox()

◆ drawLineBoundingBox()

◆ drawName()

◆ GetBox()

◆ getChilds()

◆ getHighlightState()

◆ getModified()

◆ getOnlyHighlight()

◆ getTexture()

◆ getTYElement()

◆ getVisible()

◆ gluCylinderAndEnlargeBB()

◆ gluDiskAndEnlargeBB()

◆ gluPartialDiskAndEnlargeBB()

◆ glVertex3dAndEnlargeBB()

◆ glVertex3fAndEnlargeBB()

◆ highlight()

◆ setElement()

◆ setModified()

◆ setRecursiveVisible()

◆ setTexture()

◆ setVisible()

◆ update()

◆ updateTree()

◆ viewOnlyHighlight()

Member Data Documentation

◆ _bFirstDisp

◆ _boundingBox

◆ _gDrawNormals

◆ _gDrawPlafond

◆ _globalBoundingBox

◆ _highlight

◆ _modified

◆ _pElement

◆ _texture

◆ _viewOnlyHighlight

◆ _visible
