#include <TYSurfaceInterface.h>

Inheritance diagram for TYSurfaceInterface:

[legend]

Public Member Functions
Construction et Destruction
	TYSurfaceInterface ()

virtual	~TYSurfaceInterface ()

Interface Surface
virtual double	surface () const =0

virtual OVector3D	normal () const =0

virtual OPlan	plan () const =0

virtual TYTabPoint	getContour (int n=-1) const =0

virtual TYTabPoint3D	getOContour (int n=-1) const =0

virtual int	intersects (const OPoint3D &pt) const =0

virtual int	intersects (const OSegment3D &seg, OPoint3D &pt) const =0

virtual int	intersects (const TYSurfaceInterface *pSurf, OSegment3D &seg) const

virtual int	intersectsPlan (const OPlan &plan, OSegment3D &seg) const

virtual void	inverseNormale ()

virtual void	exportMesh (std::deque< OPoint3D > &points, std::deque< OTriangle > &triangles, const TYGeometryNode &geonode) const
	Exports the surface as a triangular mesh inglobal reference frame. More...

Detailed Description

Classe abstraite qui offre une interface utilisable par des composants ayant des proprietes geometriques surfaciques.

Definition at line 35 of file TYSurfaceInterface.h.

Constructor & Destructor Documentation

◆ TYSurfaceInterface()

TYSurfaceInterface::TYSurfaceInterface ( )

inline

Constructeur par defaut.

Definition at line 47 of file TYSurfaceInterface.h.

◆ ~TYSurfaceInterface()

virtual TYSurfaceInterface::~TYSurfaceInterface ( )

inlinevirtual

Destructeur.

Definition at line 51 of file TYSurfaceInterface.h.

Member Function Documentation

◆ exportMesh()

void TYSurfaceInterface::exportMesh	(	std::deque< OPoint3D > &	points,
		std::deque< OTriangle > &	triangles,
		const TYGeometryNode &	geonode
	)		const

virtual

Exports the surface as a triangular mesh inglobal reference frame.

NB : This function expect empty deques and will clear the deque passed.

This method is semantically PURE virtual and should actually be, but the OPROTO system does not permit that. This is a dirty workaround.

Parameters

points	output argument filled with the vertices of the triangulation
triangles	output argument filled with the faces of the triangulation
geonode	node associé

Reimplemented in TYRectangle, TYPolygon, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

Definition at line 135 of file TYSurfaceInterface.cpp.

◆ getContour()

virtual TYTabPoint TYSurfaceInterface::getContour ( int n = -1 ) const

pure virtual

Retourne un tableau de points correspondant au contour de cette surface.

Parameters

n	Le nombre de portion pour le decoupage. Si n=-1, n sera calcule a partir de la precision de distance definie par defaut. Pour certaine surface, le nombre de portion demande ne sera pas forcement le nombre de points obtenus.

Returns: Un tableau de points representant le contour de cette surface.

Implemented in TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

◆ getOContour()

virtual TYTabPoint3D TYSurfaceInterface::getOContour ( int n = -1 ) const

pure virtual

Implemented in TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

Here is the caller graph for this function:

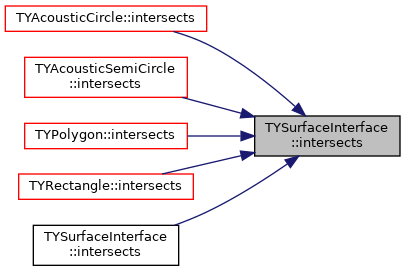

◆ intersects() [1/3]

virtual int TYSurfaceInterface::intersects ( const OPoint3D & pt ) const

pure virtual

Test si le point se trouve a l'interieur de la surface, sur le meme plan.

Parameters

pt	Le point pour lequel on effectue le test.

Returns: INTERS_OUI (1) si le point est a l'interieur de la surface, INTERS_NULLE (0) si le point est a l'exterieur de la surface.

Implemented in TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticPolygon, and TYAcousticCircle.

Here is the caller graph for this function:

◆ intersects() [2/3]

virtual int TYSurfaceInterface::intersects	(	const OSegment3D &	seg,
		OPoint3D &	pt
	)		const

pure virtual

Calcule le point d'intersection avec un segment.

Parameters

seg	Le segment dont on cherche l'intersection.
pt	Le point resultant de l'intersection.

Returns: INTERS_OUI (1) si l'intersection existe, INTERS_CONFONDU (2) si les elements sont confondus, INTERS_NULLE (0) s'il n'y a pas d'intersection.

Implemented in TYMurElement, TYMur, TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

◆ intersects() [3/3]

int TYSurfaceInterface::intersects	(	const TYSurfaceInterface *	pSurf,
		OSegment3D &	seg
	)		const

virtual

Calcule le segment d'intersection avec une autre surface.

Parameters

pSurf	La surface dont on cherche l'intersection.
seg	Le segment resultant de l'intersection.

Returns: INTERS_OUI (1) si l'intersection existe, INTERS_CONFONDU (2) si les elements sont confondus, INTERS_NULLE (0) s'il n'y a pas d'intersection.

Reimplemented in TYMurElement, TYMur, TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

Definition at line 23 of file TYSurfaceInterface.cpp.

Here is the call graph for this function:

◆ intersectsPlan()

int TYSurfaceInterface::intersectsPlan	(	const OPlan &	plan,
		OSegment3D &	seg
	)		const

virtual

Calcule le segment d'intersection entre cette surface et un plan.

Parameters

plan	La surface dont on cherche l'intersection.
seg	Le segment resultant de l'intersection.

Returns: INTERS_OUI (1) si l'intersection existe, INTERS_CONFONDU (2) si les elements sont confondus, INTERS_NULLE (0) s'il n'y a pas d'intersection.

Definition at line 94 of file TYSurfaceInterface.cpp.

Here is the call graph for this function:

◆ inverseNormale()

virtual void TYSurfaceInterface::inverseNormale ( )

inlinevirtual

Inverse la normale a la surface

Reimplemented in TYRectangle, TYPolygon, TYAcousticRectangle, and TYAcousticPolygon.

Definition at line 142 of file TYSurfaceInterface.h.

Here is the caller graph for this function:

◆ normal()

virtual OVector3D TYSurfaceInterface::normal ( ) const

pure virtual

Calcule la normale a cette surface.

Implemented in TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

◆ plan()

virtual OPlan TYSurfaceInterface::plan ( ) const

pure virtual

Calcule le plan dans lequel cette surface est inscrit.

Implemented in TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

Here is the caller graph for this function:

◆ surface()

virtual double TYSurfaceInterface::surface ( ) const

pure virtual

Calcule l'aire de la surface totale.

Implemented in TYMurElement, TYMur, TYRectangle, TYPolygon, TYAcousticSurfaceNode, TYAcousticSurface, TYAcousticSemiCircle, TYAcousticRectangle, TYAcousticPolygon, and TYAcousticCircle.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/geometry/TYSurfaceInterface.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/models/business/geometry/TYSurfaceInterface.cpp
