classe graphique pour un panel d'informations More...

#include <TYPanelGraphic.h>

Inheritance diagram for TYPanelGraphic:

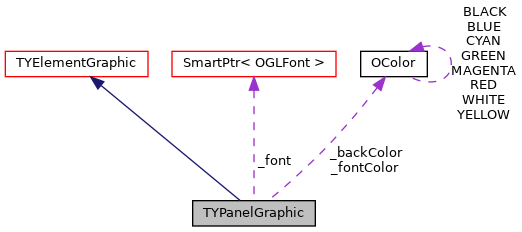

Collaboration diagram for TYPanelGraphic:

[legend]

Public Member Functions
	TYPanelGraphic (TYPanel *pElement)

virtual	~TYPanelGraphic ()

virtual void	update (bool force=false)

virtual void	display (TYElement *pModelerElement=nullptr, GLenum mode=GL_RENDER)

double	getPosX () const

void	setPosX (double x)

double	getPosY () const

void	setPosY (double y)

double	getWidth () const

void	setWidth (double width)

double	getHeight () const

void	setHeight (double height)

OColor	getBackColor () const

void	setBackColor (const OColor &backColor)

OColor	getFontColor () const

void	setFontColor (const OColor &fontColor)

Public Member Functions inherited from TYElementGraphic
virtual	~TYElementGraphic ()

void	setElement (TYElement *pElt)

TYElement *	getTYElement ()

void	updateTree ()

void	setModified (bool modified=true)

bool	getModified (bool andReset=false)

void	setVisible (bool visible=true)

bool	getVisible ()

void	setRecursiveVisible (bool visible=true)

void	setTexture (bool state=true)

bool	getTexture ()

OBox	GetBox ()

virtual void	computeBoundingBox ()

virtual void	getChilds (TYListPtrTYElementGraphic &childs, bool recursif=true)

void	highlight (bool state=true)

bool	getHighlightState ()

void	viewOnlyHighlight (bool state=true)

bool	getOnlyHighlight ()

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Protected Attributes
LPOGLFont	_font

double	_posX

double	_posY

double	_width

double	_height

OColor	_backColor

OColor	_fontColor

Protected Attributes inherited from TYElementGraphic
OBox	_boundingBox

TYElement *	_pElement
	L'element metier auquel cet element graphique metier est associe. More...

bool	_highlight
	Indique si le highlight est active pour cet element. More...

bool	_texture
	Indique si le texturing est active pour cet element. More...

bool	_visible
	Inique si l'element est visible. More...

bool	_bFirstDisp

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Additional Inherited Members
Static Public Attributes inherited from TYElementGraphic
static OBox	_globalBoundingBox

static bool	_gDrawNormals = false
	Indique si les normals doivent etre visible. More...

static bool	_gDrawPlafond = true
	Indique si les plafonds doivent etre visible. More...

Protected Member Functions inherited from TYElementGraphic
	TYElementGraphic (TYElement *pElt)

void	displayNormal (OVector3D normal, OPoint3D p1)

void	glVertex3fAndEnlargeBB (GLfloat x, GLfloat y, GLfloat z)

void	glVertex3dAndEnlargeBB (GLdouble x, GLdouble y, GLdouble z)

void	gluDiskAndEnlargeBB (GLUquadric *qobj, GLdouble innerRadius, GLdouble outerRadius, GLint slices, GLint loops)

void	gluCylinderAndEnlargeBB (GLUquadric *qobj, GLdouble baseRadius, GLdouble topRadius, GLdouble height, GLint slices, GLint stacks)

void	gluPartialDiskAndEnlargeBB (GLUquadric *qobj, GLdouble innerRadius, GLdouble outerRadius, GLint slices, GLint loops, GLdouble startAngle, GLdouble sweepAngle)

void	drawBoundingBox ()

void	drawLineBoundingBox ()

void	drawName (TYElement *pModelerElement=nullptr)

Detailed Description

classe graphique pour un panel d'informations

Definition at line 40 of file TYPanelGraphic.h.

Constructor & Destructor Documentation

◆ TYPanelGraphic()

TYPanelGraphic::TYPanelGraphic ( TYPanel * pElement )

Definition at line 32 of file TYPanelGraphic.cpp.

◆ ~TYPanelGraphic()

TYPanelGraphic::~TYPanelGraphic ( )

virtual

Definition at line 48 of file TYPanelGraphic.cpp.

Member Function Documentation

◆ display()

void TYPanelGraphic::display	(	TYElement *	pModelerElement = `nullptr`,
		GLenum	mode = `GL_RENDER`
	)

virtual

Fonction d'affichage

Parameters

pModelerElement	element du modeleur a afficher
mode	mode d'affichage

Reimplemented from TYElementGraphic.

Definition at line 55 of file TYPanelGraphic.cpp.

Here is the call graph for this function:

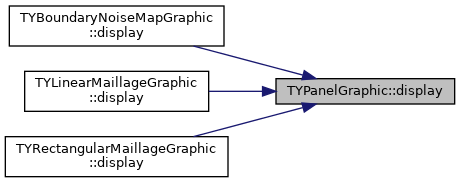

Here is the caller graph for this function:

◆ getBackColor()

OColor TYPanelGraphic::getBackColor ( ) const

inline

Get de la couleur du fond

Definition at line 127 of file TYPanelGraphic.h.

◆ getFontColor()

OColor TYPanelGraphic::getFontColor ( ) const

inline

Get de la couleur du texte

Definition at line 143 of file TYPanelGraphic.h.

◆ getHeight()

double TYPanelGraphic::getHeight ( ) const

inline

Get de la hauteur

Definition at line 111 of file TYPanelGraphic.h.

Here is the caller graph for this function:

◆ getPosX()

double TYPanelGraphic::getPosX ( ) const

inline

Get de la position en x

Definition at line 63 of file TYPanelGraphic.h.

◆ getPosY()

double TYPanelGraphic::getPosY ( ) const

inline

Get de la position en y

Definition at line 79 of file TYPanelGraphic.h.

◆ getWidth()

double TYPanelGraphic::getWidth ( ) const

inline

Get de la largeur

Definition at line 95 of file TYPanelGraphic.h.

Here is the caller graph for this function:

◆ setBackColor()

void TYPanelGraphic::setBackColor ( const OColor & backColor )

inline

Set de la couleur du fond

Definition at line 135 of file TYPanelGraphic.h.

◆ setFontColor()

void TYPanelGraphic::setFontColor ( const OColor & fontColor )

inline

Set de la couleur du fond

Definition at line 151 of file TYPanelGraphic.h.

◆ setHeight()

void TYPanelGraphic::setHeight ( double height )

inline

Set de la hauteur

Definition at line 119 of file TYPanelGraphic.h.

◆ setPosX()

void TYPanelGraphic::setPosX ( double x )

inline

Set de la position en x

Definition at line 71 of file TYPanelGraphic.h.

◆ setPosY()

void TYPanelGraphic::setPosY ( double y )

inline

Set de la position en y

Definition at line 87 of file TYPanelGraphic.h.

◆ setWidth()

void TYPanelGraphic::setWidth ( double width )

inline

Set de la largeur

Definition at line 103 of file TYPanelGraphic.h.

◆ update()

void TYPanelGraphic::update ( bool force = false )

virtual

Mets a jour l'objet 3D associe a cet objet graphique metier. Remarque : Lorsque cette methode est surchargee, un appel de l'implementation parent (TYElementGraphic::update()) doit etre fait a la fin.

Parameters

force Outrepasse l'etat du flag 'modified' et effectue la mise a jour.

Reimplemented from TYElementGraphic.

Definition at line 50 of file TYPanelGraphic.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ _backColor

OColor TYPanelGraphic::_backColor

protected

Definition at line 169 of file TYPanelGraphic.h.

◆ _font

LPOGLFont TYPanelGraphic::_font

protected

Definition at line 158 of file TYPanelGraphic.h.

◆ _fontColor

OColor TYPanelGraphic::_fontColor

protected

Definition at line 172 of file TYPanelGraphic.h.

◆ _height

double TYPanelGraphic::_height

protected

Definition at line 166 of file TYPanelGraphic.h.

◆ _posX

double TYPanelGraphic::_posX

protected

Definition at line 161 of file TYPanelGraphic.h.

◆ _posY

double TYPanelGraphic::_posY

protected

Definition at line 162 of file TYPanelGraphic.h.

◆ _width

double TYPanelGraphic::_width

protected

Definition at line 165 of file TYPanelGraphic.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/gui/gl/TYPanelGraphic.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/gui/gl/TYPanelGraphic.cpp
