Acoustic model for the default solver. More...

#include <TYAcousticModel.h>

Inheritance diagram for TYAcousticModel:

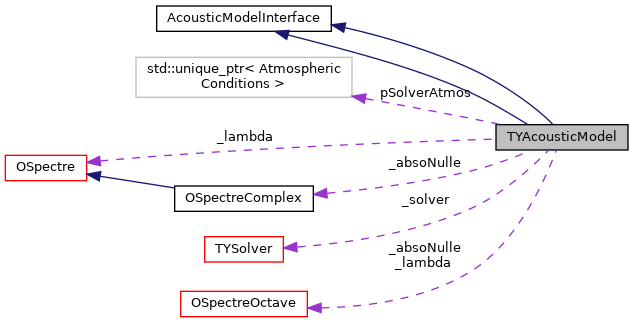

Collaboration diagram for TYAcousticModel:

[legend]

Public Member Functions
	TYAcousticModel (TYSolver &solver)

virtual	~TYAcousticModel ()

virtual void	compute (const std::deque< TYSIntersection > &tabIntersect, TYTrajet &trajet, TabPoint3D &ptsTop, TabPoint3D &ptsLeft, TabPoint3D &ptsRight)
	Main entry point, trigger acoustic computations. More...

void	init ()
	Initialize the acoustic model. More...

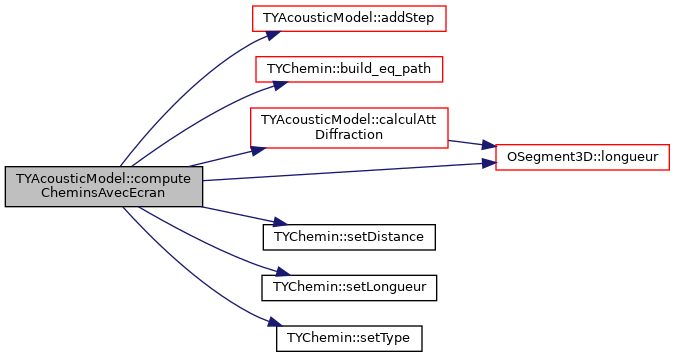

virtual bool	computeCheminsAvecEcran (const OSegment3D &rayon, const tympan::AcousticSource &source, const TabPoint3D &pts, const bool vertical, TYTabChemin &TabChemins, double distance, const bool left) const
	Compute barrier attenuation effect on the direct path for the considered geometrical path (top, left or right) More...

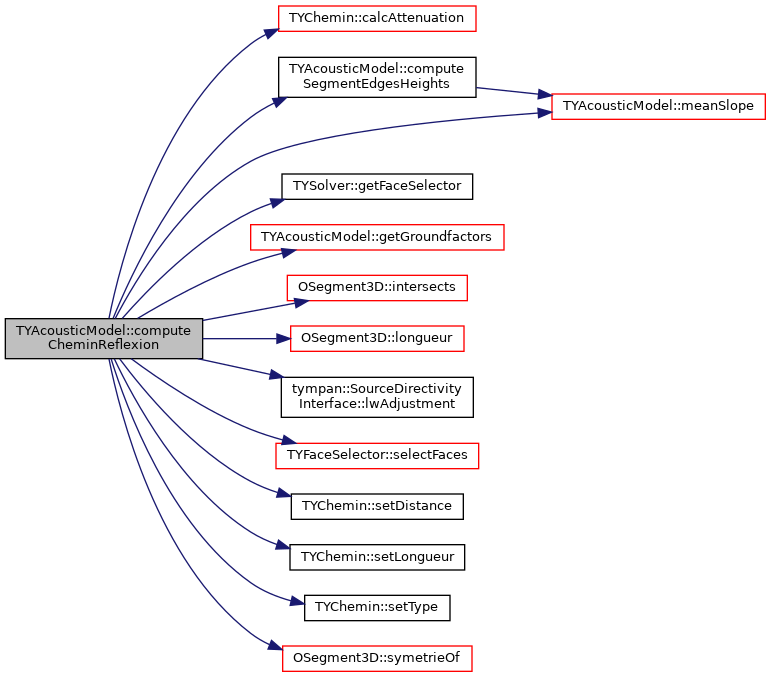

void	computeCheminReflexion (const std::deque< TYSIntersection > &tabIntersect, const OSegment3D &ray, const tympan::AcousticSource &source, TYTabChemin &TabChemins, double distance) const
	Compute the list of path generated by reflection on the vertical walls. More...

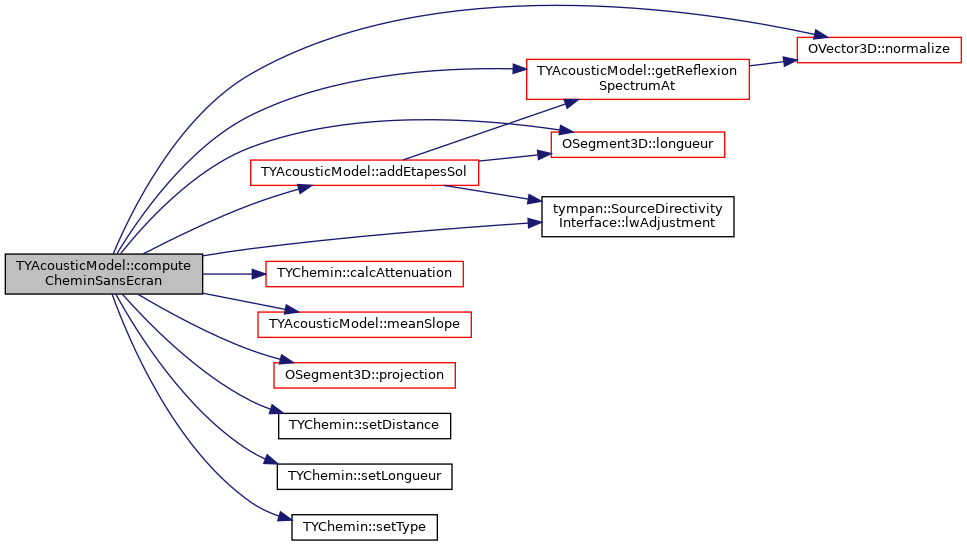

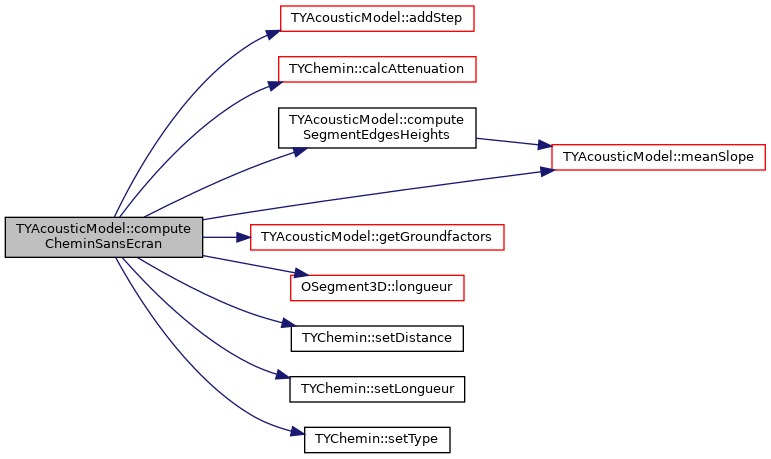

void	computeCheminSansEcran (const std::deque< TYSIntersection > &tabIntersect, const OSegment3D &rayon, const tympan::AcousticSource &source, TYTabChemin &TabChemins, double distance, bool conditionFav=false) const
	Compute the main path between source and receptor. In 9613 solver, this path includes all attenuation effects, except reflexion one. More...

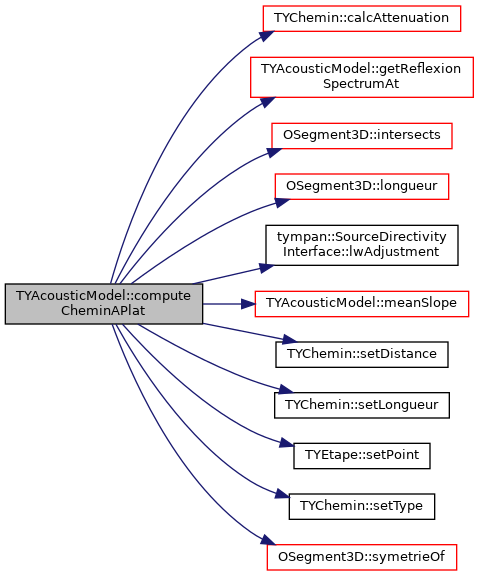

void	computeCheminAPlat (const OSegment3D &rayon, const tympan::AcousticSource &source, TYTabChemin &TabChemins, double distance) const
	Compute the list of paths for a perfectly flat and reflective ground. More...

OSpectreOctave	calculC3 (const double &epaisseur) const
	Compute the spectrum of the C3 factor used in the diffraction calculation. More...

OSpectreOctave	calculAttDiffraction (const OSegment3D &ray, const double &re, const double &dss, const double &dsr, const double &width, const bool &vertical) const
	Compute the attenuation from the diffraction on the screen. More...

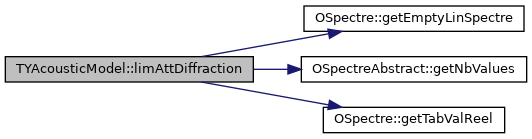

OSpectreOctave	limAttDiffraction (const OSpectreOctave &sNC, const OSpectreOctave &C) const
	Limit the screen attenuation value with a frequency dependent criteria. More...

bool	addStep (const OPoint3D &ptStart, const OPoint3D &ptEnd, const tympan::AcousticSource &source, const bool &fromSource, TYTabEtape &Etapes) const
	Compute the different steps from a point to another via a reflection and a direct view. More...

bool	getGroundfactors (const std::deque< TYSIntersection > &tabIntersect, const OSegment3D &ray2D, double hs, double hr, double &Gs, double &Gm, double &Gr) const
	Get ground factors for source, middle and receptor zones. More...

bool	getGroundfactors (const std::deque< TYSIntersection > &tabIntersectUpSegment, const std::deque< TYSIntersection > &tabIntersectDownSegment, const OSegment3D &SO2D, const OSegment3D &OR2D, double hs, double hr, double &Gs, double &Gm, double &Gr) const
	Get ground factors for source, middle and receptor zones for a reflected path. More...

OSpectreOctave	computeEffectiveBarAttenuation (const OSpectreOctave &Abar_top, const OSpectreOctave &Abar_left, const OSpectreOctave &Abar_right)

OPlan	buildMeanSlopePlan (const OSegment3D &penteMoyenne) const

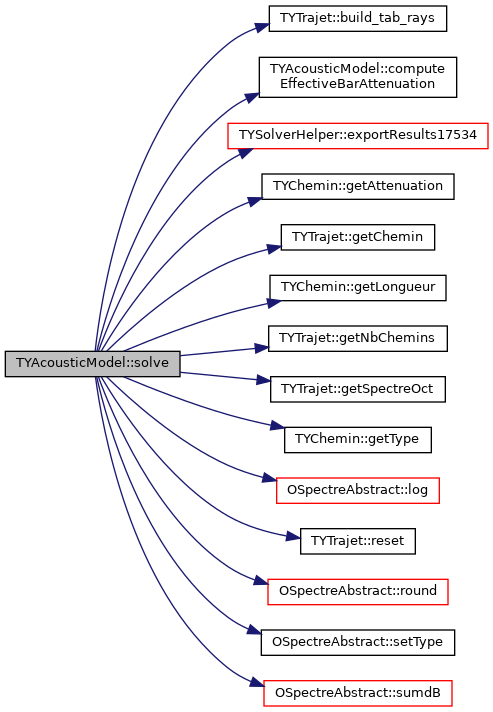

bool	solve (TYTrajet &trajet)
	Compute the source contributions to the receptor point. More...

	TYAcousticModel (TYSolver &solver)

virtual	~TYAcousticModel ()

virtual void	compute (const std::deque< TYSIntersection > &tabIntersect, TYTrajet &trajet, TabPoint3D &ptsTop, TabPoint3D &ptsLeft, TabPoint3D &ptsRight)

void	init ()
	Initialize the acoustic model. More...

virtual bool	computeCheminsAvecEcran (const OSegment3D &rayon, const tympan::AcousticSource &source, const TabPoint3D &pts, const bool vertical, TYTabChemin &TabChemins, double distance, bool conditionFav=false) const
	Compute the segment path from the list of the points of the TYTrajet journey. It takes in account the ground reflection. More...

void	computeCheminReflexion (const std::deque< TYSIntersection > &tabIntersect, const OSegment3D &rayon, const tympan::AcousticSource &source, TYTabChemin &TabChemins, double distance) const
	Compute the list of path generated by reflection on the vertical walls. More...

void	computeCheminSansEcran (const OSegment3D &rayon, const tympan::AcousticSource &source, TYTabChemin &TabChemins, double distance, bool conditionFav=false) const
	Compute the list of paths generated by reflection on the ground if there is no screen. More...

void	computeCheminAPlat (const OSegment3D &rayon, const tympan::AcousticSource &source, TYTabChemin &TabChemins, double distance) const
	Compute the list of paths for a perfectly flat and reflective ground. More...

OSpectre	calculC (const double &epaisseur) const
	Compute the spectrum of the C factor used in the diffraction calculation. More...

OSpectre	calculAttDiffraction (const OSegment3D &rayon, const OSegment3D &penteMoyenne, const bool &miroir, const double &re, const double &epaisseur, const bool &vertical, const bool &avantApres, bool &bDiffOk, bool conditionFav=false) const
	Compute the attenuation from the diffraction on the screen. More...

OSpectre	limAttDiffraction (const OSpectre &sNC, const OSpectre &C) const
	Limit the screen attenuation value with a frequency dependent criteria. More...

bool	addEtapesSol (const OPoint3D &ptDebut, const OPoint3D &ptFin, const OSegment3D &penteMoyenne, const tympan::AcousticSource &source, const bool &fromSource, const bool &toRecepteur, TYTabEtape &Etapes, double &longueur) const
	Compute the different steps from a point to another via a reflection and a direct view. More...

void	addEtapeDirectToChemins (const TYEtape &EtapeDirecte, TYTabChemin &TabChemin) const
	Add a direct journey to all the paths. More...

bool	solve (TYTrajet &trajet)
	Compute the source contribution to the point. More...

Public Member Functions inherited from AcousticModelInterface
	AcousticModelInterface ()

virtual	~AcousticModelInterface ()

Private Member Functions

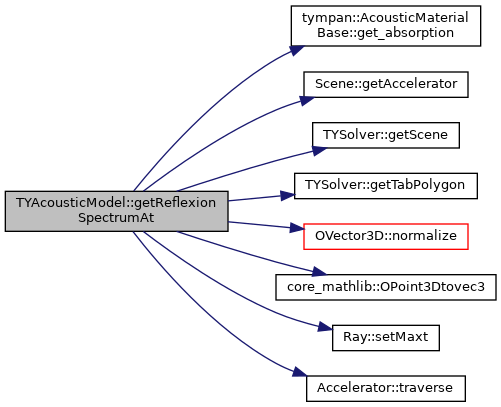

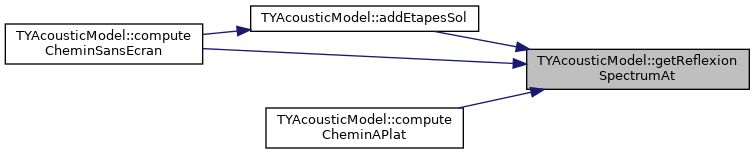

OSpectreOctave	getReflexionSpectrumAt (const OSegment3D &incident, double length, const OSegment3D &segPente, const tympan::AcousticSource &source) const
	Find Reflexion spectrum at point defined by the end of an incident segment. More...

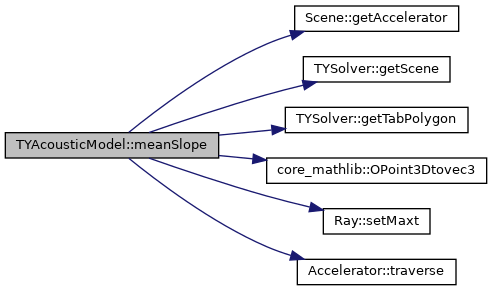

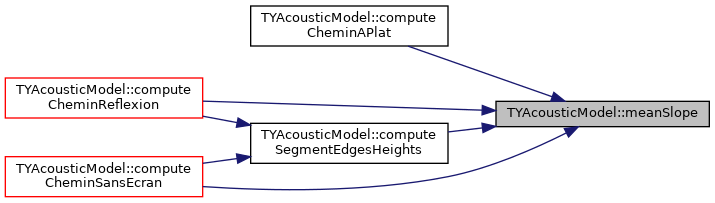

void	meanSlope (const OSegment3D &director, OSegment3D &slope) const
	Create a segment corresponding to the projection of "director" segment on the ground. More...

bool	computeSegmentEdgesHeights (double &hauteurA, double &hauteurB, const OSegment3D &meanSlope, const OSegment3D &ray) const
	Compute heights relative to real ground, of the edges of a segment. More...

bool	computeGZone (const OPoint3D &ptDebut, const OPoint3D &ptFin, double &GZone, double &dpZone, const std::deque< TYSIntersection > &tabIntersect) const
	Compute GZone and dpZone for the segment between ptDebut and ptFin. More...

OSpectreComplex	getReflexionSpectrumAt (const OSegment3D &incident, double length, const OSegment3D &segPente, const tympan::AcousticSource &source) const
	Find Reflexion spectrum at point defined by the end of an incident segment. More...

void	meanSlope (const OSegment3D &director, OSegment3D &slope) const
	Create a segment corresponding to the projection of "director" segment on the ground. More...

	FRIEND_TEST (test_TYAcousticModel, calculAttDiffraction)

	FRIEND_TEST (test_TYAcousticModel, calculC)

	FRIEND_TEST (test_TYAcousticModel, limAttDiffraction)

	FRIEND_TEST (test_TYAcousticModel, computeCheminReflexion)

Private Attributes
bool	_useSol

bool	_useReflex

int	_propaCond

bool	_useAtmo

bool	_interference

double	_paramH

std::unique_ptr< AtmosphericConditions >	pSolverAtmos

OSpectreOctave	_lambda

OSpectreOctave	_absoNulle

TYSolver &	_solver
	Reference to the solver. More...

OSpectre	_lambda

OSpectreComplex	_absoNulle

Detailed Description

Acoustic model for the default solver.

Definition at line 32 of file TYAcousticModel.h.

Constructor & Destructor Documentation

◆ TYAcousticModel() [1/2]

TYAcousticModel::TYAcousticModel ( TYSolver & solver )

Definition at line 31 of file TYAcousticModel.cpp.

Here is the call graph for this function:

◆ ~TYAcousticModel() [1/2]

TYAcousticModel::~TYAcousticModel ( )

virtual

Definition at line 38 of file TYAcousticModel.cpp.

◆ TYAcousticModel() [2/2]

TYAcousticModel::TYAcousticModel ( TYSolver & solver )

◆ ~TYAcousticModel() [2/2]

virtual TYAcousticModel::~TYAcousticModel ( )

virtual

Member Function Documentation

◆ addEtapeDirectToChemins()

void TYAcousticModel::addEtapeDirectToChemins	(	const TYEtape &	EtapeDirecte,
		TYTabChemin &	TabChemin
	)		const

Add a direct journey to all the paths.

Parameters

[in]	EtapeDirecte	Direct journey.
[out]	TabChemin	Array of all paths.

◆ addEtapesSol()

bool TYAcousticModel::addEtapesSol	(	const OPoint3D &	ptDebut,
		const OPoint3D &	ptFin,
		const OSegment3D &	penteMoyenne,
		const tympan::AcousticSource &	source,
		const bool &	fromSource,
		const bool &	toRecepteur,
		TYTabEtape &	Etapes,
		double &	longueur
	)		const

Compute the different steps from a point to another via a reflection and a direct view.

Parameters

[in]	ptDebut	Starting point.
[in]	ptFin	Ending point.
[in]	penteMoyenne	Mean slope.
[in]	source	Acoustic source.
[in]	fromSource	Boolean if the starting point is the source.
[in]	toRecepteur	Boolean if the ending point is the receptor.
[out]	Etapes	Array of all the computed TYEtape steps.
[out]	longueur	Total length of the different steps

Returns: bool true if succeeds; false if not.

Definition at line 633 of file TYAcousticModel.cpp.

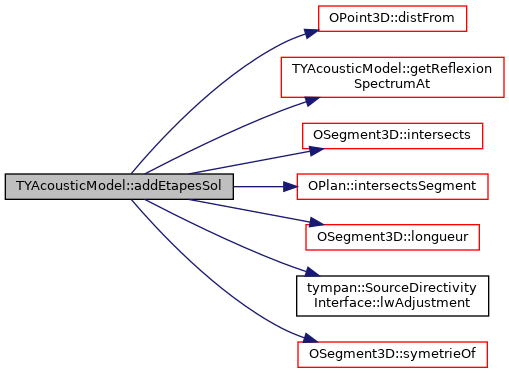

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addStep()

bool TYAcousticModel::addStep	(	const OPoint3D &	ptStart,
		const OPoint3D &	ptEnd,
		const tympan::AcousticSource &	source,
		const bool &	fromSource,
		TYTabEtape &	Etapes
	)		const

Compute the different steps from a point to another via a reflection and a direct view.

Parameters

[in]	ptStart	Starting point.
[in]	ptEnd	Ending point.
[in]	source	Acoustic source.
[in]	fromSource	Boolean if the starting point is the source.
[out]	Etapes	Array of all the computed TYEtape steps.

Returns: bool true if succeeds; false if not.

Definition at line 331 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildMeanSlopePlan()

OPlan TYAcousticModel::buildMeanSlopePlan ( const OSegment3D & penteMoyenne ) const

Definition at line 648 of file TYAcousticModel.cpp.

◆ calculAttDiffraction() [1/2]

OSpectreOctave TYAcousticModel::calculAttDiffraction	(	const OSegment3D &	ray,
		const double &	re,
		const double &	dss,
		const double &	dsr,
		const double &	width,
		const bool &	vertical
	)		const

Compute the attenuation from the diffraction on the screen.

Parameters

[in]	ray	A segment describing the direct path between source and receptor.
[in]	re	Path length to take into account for the walking difference computation
[in]	dss	Length between source and first edge of the obstacle
[in]	dsr	Length between last edge of the obstacle and receptor
[in]	width	Total width of the obstacle.
[in]	vertical	Boolean to indicate we deal with the vertical plane (maximal attenuation is limited)

Returns: Attenuation from the diffraction on the screen.

Definition at line 955 of file TYAcousticModel.cpp.

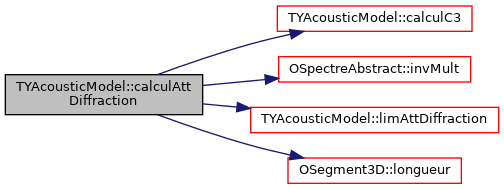

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculAttDiffraction() [2/2]

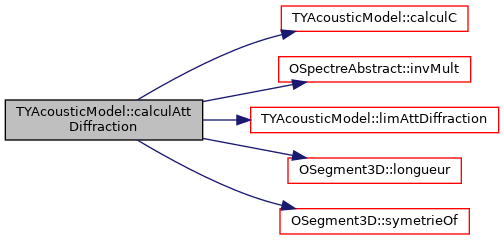

OSpectre TYAcousticModel::calculAttDiffraction	(	const OSegment3D &	rayon,
		const OSegment3D &	penteMoyenne,
		const bool &	miroir,
		const double &	re,
		const double &	epaisseur,
		const bool &	vertical,
		const bool &	avantApres,
		bool &	bDiffOk,
		bool	conditionFav = `false`
	)		const

Compute the attenuation from the diffraction on the screen.

Parameters

[in]	rayon	A segment describing the direct path between source and receptor.
[in]	penteMoyenne	Mean slope between source and receptor
[in]	miroir	Boolean to indicate if we should use the source (false) or the image source (true) during the walking difference computation
[in]	re	Path length to take into account for the walking difference computation
[in]	epaisseur	Total thickness of the obstacle.
[in]	vertical	Boolean to indicate we deal with the vertical plane (maximal attenuation is limited)
[in]	avantApres	Boolean to indicate if we are before (false) or after (true) the obstacle
[out]	bDiffOk	Set to false if the walking difference is <=0, true otherwise
[in]	conditionFav	specify if favorite condition or not (false by default)

Returns: Attenuation from the diffraction on the screen.

Definition at line 999 of file TYAcousticModel.cpp.

Here is the call graph for this function:

◆ calculC()

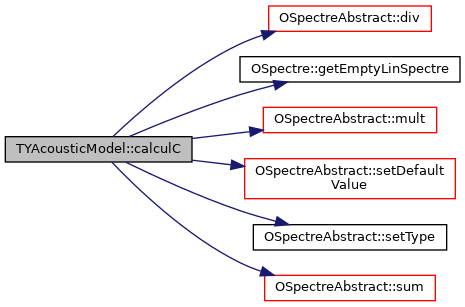

OSpectre TYAcousticModel::calculC ( const double & epaisseur ) const

Compute the spectrum of the C factor used in the diffraction calculation.

Parameters

epaisseur Total thickness of the obstacle.

Returns: A OSpectre giving the correction coefficient for each frequency.

Definition at line 972 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculC3()

OSpectreOctave TYAcousticModel::calculC3 ( const double & epaisseur ) const

Compute the spectrum of the C3 factor used in the diffraction calculation.

Parameters

epaisseur Total thickness of the obstacle.

Returns: A OSpectreOctave giving the correction coefficient for each frequency.

Definition at line 928 of file TYAcousticModel.cpp.

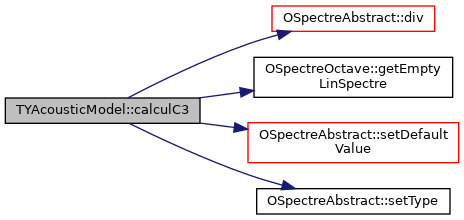

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compute() [1/2]

void TYAcousticModel::compute	(	const std::deque< TYSIntersection > &	tabIntersect,
		TYTrajet &	trajet,
		TabPoint3D &	ptsTop,
		TabPoint3D &	ptsLeft,
		TabPoint3D &	ptsRight
	)

virtual

Main entry point, trigger acoustic computations.

Parameters

[in]	tabIntersect	Array of intersections.
[in]	trajet	Route between source and receptor.
[in]	ptsTop	List of points of the vertical path (in EV plane).
[in]	ptsLeft	List of points of the left lateral path (in EL plane).
[in]	ptsRight	List of points of the right lateral path (in EL plane).

Definition at line 66 of file TYAcousticModel.cpp.

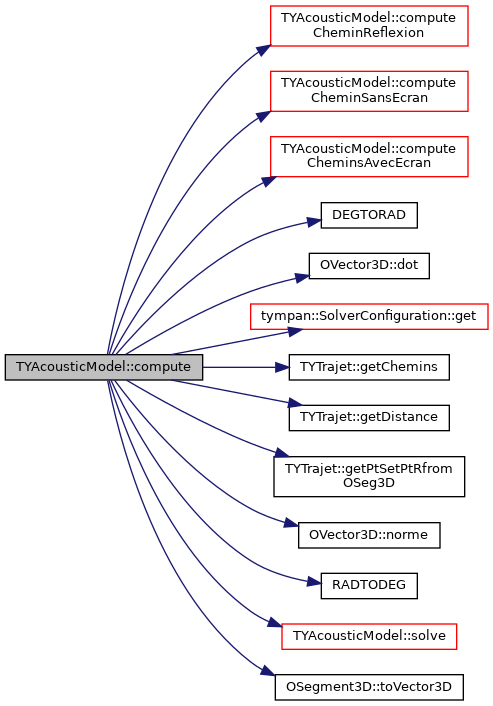

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compute() [2/2]

virtual void TYAcousticModel::compute	(	const std::deque< TYSIntersection > &	tabIntersect,
		TYTrajet &	trajet,
		TabPoint3D &	ptsTop,
		TabPoint3D &	ptsLeft,
		TabPoint3D &	ptsRight
	)

virtual

◆ computeCheminAPlat() [1/2]

void TYAcousticModel::computeCheminAPlat	(	const OSegment3D &	rayon,
		const tympan::AcousticSource &	source,
		TYTabChemin &	TabChemins,
		double	distance
	)		const

Compute the list of paths for a perfectly flat and reflective ground.

Not used in 9613 Solver for the time being

Parameters

[in]	rayon	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[out]	TabChemins	Paths list of the journey generated.
[out]	distance	Route (source-receptor) 3D distance

Definition at line 134 of file TYAcousticModel.cpp.

Here is the call graph for this function:

◆ computeCheminAPlat() [2/2]

void TYAcousticModel::computeCheminAPlat	(	const OSegment3D &	rayon,
		const tympan::AcousticSource &	source,
		TYTabChemin &	TabChemins,
		double	distance
	)		const

Compute the list of paths for a perfectly flat and reflective ground.

Parameters

[in]	rayon	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[out]	TabChemins	Paths list of the journey generated.
[out]	distance	Journey distance

◆ computeCheminReflexion() [1/2]

void TYAcousticModel::computeCheminReflexion	(	const std::deque< TYSIntersection > &	tabIntersect,
		const OSegment3D &	ray,
		const tympan::AcousticSource &	source,
		TYTabChemin &	TabChemins,
		double	distance
	)		const

Compute the list of path generated by reflection on the vertical walls.

Parameters

[in]	tabIntersect	Array of intersections
[in]	ray	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[out]	TabChemins	Paths list of the journey generated by reflection.
[out]	distance	Route (source-receptor) 3D distance

Definition at line 785 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeCheminReflexion() [2/2]

void TYAcousticModel::computeCheminReflexion	(	const std::deque< TYSIntersection > &	tabIntersect,
		const OSegment3D &	rayon,
		const tympan::AcousticSource &	source,
		TYTabChemin &	TabChemins,
		double	distance
	)		const

Compute the list of path generated by reflection on the vertical walls.

Parameters

[in]	tabIntersect	Array of intersections
[in]	rayon	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[out]	TabChemins	Paths list of the journey generated by reflection.
[out]	distance	Journey distance

◆ computeCheminSansEcran() [1/2]

void TYAcousticModel::computeCheminSansEcran	(	const OSegment3D &	rayon,
		const tympan::AcousticSource &	source,
		TYTabChemin &	TabChemins,
		double	distance,
		bool	conditionFav = `false`
	)		const

Compute the list of paths generated by reflection on the ground if there is no screen.

Parameters

[in]	rayon	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[out]	TabChemins	Paths list of the journey generated (1 or 2 under favorables conditions).
[out]	distance	Journey distance
[in]	conditionFav	specify if favorite condition or not (false by default)

Definition at line 231 of file TYAcousticModel.cpp.

Here is the call graph for this function:

◆ computeCheminSansEcran() [2/2]

void TYAcousticModel::computeCheminSansEcran	(	const std::deque< TYSIntersection > &	tabIntersect,
		const OSegment3D &	rayon,
		const tympan::AcousticSource &	source,
		TYTabChemin &	TabChemins,
		double	distance,
		bool	conditionFav = `false`
	)		const

Compute the main path between source and receptor. In 9613 solver, this path includes all attenuation effects, except reflexion one.

Parameters

[in]	tabIntersect	Array of intersections
[in]	rayon	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[in]	conditionFav	True if propagation conditions are DownWard, False else. Not used in 9613Solver.
[out]	TabChemins	Paths list of the journey generated
[out]	distance	Route (source-receptor) 3D distance

Definition at line 359 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeCheminsAvecEcran() [1/2]

virtual bool TYAcousticModel::computeCheminsAvecEcran	(	const OSegment3D &	rayon,
		const tympan::AcousticSource &	source,
		const TabPoint3D &	pts,
		const bool	vertical,
		TYTabChemin &	TabChemins,
		double	distance,
		bool	conditionFav = `false`
	)		const

virtual

Compute the segment path from the list of the points of the TYTrajet journey. It takes in account the ground reflection.

Parameters

[in]	rayon	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[in]	pts	The list of points of the journey.
[in]	vertical	boolean to indicate we deal with the vertical plane
[out]	TabChemins	Paths list of the journey
[out]	distance	Journey distance
[in]	conditionFav	specify if favorite condition or not (false by default)

Returns: true if succeeds; false otherwise.

◆ computeCheminsAvecEcran() [2/2]

bool TYAcousticModel::computeCheminsAvecEcran	(	const OSegment3D &	rayon,
		const tympan::AcousticSource &	source,
		const TabPoint3D &	pts,
		const bool	vertical,
		TYTabChemin &	TabChemins,
		double	distance,
		const bool	left
	)		const

virtual

Compute barrier attenuation effect on the direct path for the considered geometrical path (top, left or right)

Parameters

[in]	rayon	A segment describing the acoustic ray.
[in]	source	The acoustic source.
[in]	pts	The list of points of the journey.
[in]	vertical	boolean to indicate we deal with the vertical plane
[in]	left	boolean to indicate we deal with the lateral left side
[out]	TabChemins	Paths list of the journey
[out]	distance	Route (source-receptor) 3D distance

Returns: true if succeeds; false otherwise.

Definition at line 227 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeEffectiveBarAttenuation()

OSpectreOctave TYAcousticModel::computeEffectiveBarAttenuation	(	const OSpectreOctave &	Abar_top,
		const OSpectreOctave &	Abar_left,
		const OSpectreOctave &	Abar_right
	)

Definition at line 630 of file TYAcousticModel.cpp.

Here is the caller graph for this function:

◆ computeGZone()

bool TYAcousticModel::computeGZone	(	const OPoint3D &	ptDebut,
		const OPoint3D &	ptFin,
		double &	GZone,
		double &	dpZone,
		const std::deque< TYSIntersection > &	tabIntersect
	)		const

private

Compute GZone and dpZone for the segment between ptDebut and ptFin.

Parameters

[in]	ptDebut	Starting point of the considered segment
[in]	ptFin	Ending point of the considered segment
[in]	tabIntersect	Array of intersections
[out]	GZone	Ground factor computed for the considered segment
[out]	dpZone	2D distance of the considered segment

Definition at line 679 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeSegmentEdgesHeights()

bool TYAcousticModel::computeSegmentEdgesHeights	(	double &	hauteurA,
		double &	hauteurB,
		const OSegment3D &	meanSlope,
		const OSegment3D &	ray
	)		const

private

Compute heights relative to real ground, of the edges of a segment.

Parameters

[in]	meanSlope	Mean slope on real ground between segement edges
[in]	ray	Segment whose edges heights are computed
[out]	hauteurA	Height of ray._ptA segment edge
[out]	hauteurB	Height of ray._ptB segment edge

Definition at line 1246 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FRIEND_TEST() [1/4]

TYAcousticModel::FRIEND_TEST	(	test_TYAcousticModel	,
		calculAttDiffraction
	)

private

◆ FRIEND_TEST() [2/4]

TYAcousticModel::FRIEND_TEST	(	test_TYAcousticModel	,
		calculC
	)

private

◆ FRIEND_TEST() [3/4]

TYAcousticModel::FRIEND_TEST	(	test_TYAcousticModel	,
		computeCheminReflexion
	)

private

◆ FRIEND_TEST() [4/4]

TYAcousticModel::FRIEND_TEST	(	test_TYAcousticModel	,
		limAttDiffraction
	)

private

◆ getGroundfactors() [1/2]

bool TYAcousticModel::getGroundfactors	(	const std::deque< TYSIntersection > &	tabIntersect,
		const OSegment3D &	ray2D,
		double	hs,
		double	hr,
		double &	Gs,
		double &	Gm,
		double &	Gr
	)		const

Get ground factors for source, middle and receptor zones.

Parameters

[in]	tabIntersect	Array of intersections.
[in]	ray2D	Considered ray projected on horizontal plane.
[in]	hs	Height of the starting edge.
[in]	hr	Height of the ending edge
[out]	Gs	Ground factor of the source zone.
[out]	Gm	Ground factor of the middle zone.
[out]	Gr	Ground factor of the receptor zone.

Returns: bool true if succeeds; false if not.

Definition at line 398 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getGroundfactors() [2/2]

bool TYAcousticModel::getGroundfactors	(	const std::deque< TYSIntersection > &	tabIntersectUpSegment,
		const std::deque< TYSIntersection > &	tabIntersectDownSegment,
		const OSegment3D &	SO2D,
		const OSegment3D &	OR2D,
		double	hs,
		double	hr,
		double &	Gs,
		double &	Gm,
		double &	Gr
	)		const

Get ground factors for source, middle and receptor zones for a reflected path.

Parameters

[in]	tabIntersectUpSegment	Array of intersections for segment source to reflexion point.
[in]	tabIntersectDownSegment	Array of intersections for segment reflexion point to receptor.
[in]	SO2D	Ray between source and reflexion point projected on horizontal plane.
[in]	OR2D	Ray between reflexion and receptor point projected on horizontal plane.
[in]	hs	Height of the starting edge.
[in]	hr	Height of the ending edge
[out]	Gs	Ground factor of the source zone.
[out]	Gm	Ground factor of the middle zone.
[out]	Gr	Ground factor of the receptor zone.

Returns: bool true if succeeds; false if not.

Definition at line 471 of file TYAcousticModel.cpp.

Here is the call graph for this function:

◆ getReflexionSpectrumAt() [1/2]

OSpectreComplex TYAcousticModel::getReflexionSpectrumAt	(	const OSegment3D &	incident,
		double	length,
		const OSegment3D &	segPente,
		const tympan::AcousticSource &	source
	)		const

private

Find Reflexion spectrum at point defined by the end of an incident segment.

Not used in 9613 Solver

Definition at line 1111 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getReflexionSpectrumAt() [2/2]

OSpectreComplex TYAcousticModel::getReflexionSpectrumAt	(	const OSegment3D &	incident,
		double	length,
		const OSegment3D &	segPente,
		const tympan::AcousticSource &	source
	)		const

private

Find Reflexion spectrum at point defined by the end of an incident segment.

◆ init() [1/2]

void TYAcousticModel::init ( )

Initialize the acoustic model.

Definition at line 40 of file TYAcousticModel.cpp.

Here is the call graph for this function:

◆ init() [2/2]

void TYAcousticModel::init ( )

Initialize the acoustic model.

◆ limAttDiffraction() [1/2]

OSpectre TYAcousticModel::limAttDiffraction	(	const OSpectre &	sNC,
		const OSpectre &	C
	)		const

Limit the screen attenuation value with a frequency dependent criteria.

Parameters

sNC	Non corrected spectrum
C

Definition at line 1085 of file TYAcousticModel.cpp.

Here is the call graph for this function:

◆ limAttDiffraction() [2/2]

OSpectreOctave TYAcousticModel::limAttDiffraction	(	const OSpectreOctave &	sNC,
		const OSpectreOctave &	C
	)		const

Limit the screen attenuation value with a frequency dependent criteria.

Parameters

sNC	Non corrected spectrum
C

Definition at line 995 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ meanSlope() [1/2]

void TYAcousticModel::meanSlope	(	const OSegment3D &	director,
		OSegment3D &	slope
	)		const

private

Create a segment corresponding to the projection of "director" segment on the ground.

Definition at line 1172 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ meanSlope() [2/2]

void TYAcousticModel::meanSlope	(	const OSegment3D &	director,
		OSegment3D &	slope
	)		const

private

Create a segment corresponding to the projection of "director" segment on the ground.

◆ solve() [1/2]

bool TYAcousticModel::solve ( TYTrajet & trajet )

Compute the source contributions to the receptor point.

Parameters

trajet Route

Definition at line 1026 of file TYAcousticModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ solve() [2/2]

bool TYAcousticModel::solve ( TYTrajet & trajet )

Compute the source contribution to the point.

Parameters

trajet Journey

Member Data Documentation

◆ _absoNulle [1/2]

OSpectreOctave TYAcousticModel::_absoNulle

private

Definition at line 273 of file TYAcousticModel.h.

◆ _absoNulle [2/2]

OSpectreComplex TYAcousticModel::_absoNulle

private

Definition at line 214 of file TYAcousticModel.h.

◆ _interference

bool TYAcousticModel::_interference

private

Definition at line 267 of file TYAcousticModel.h.

◆ _lambda [1/2]

OSpectreOctave TYAcousticModel::_lambda

private

Definition at line 272 of file TYAcousticModel.h.

◆ _lambda [2/2]

OSpectre TYAcousticModel::_lambda

private

Definition at line 213 of file TYAcousticModel.h.

◆ _paramH

double TYAcousticModel::_paramH

private

Definition at line 268 of file TYAcousticModel.h.

◆ _propaCond

int TYAcousticModel::_propaCond

private

Definition at line 265 of file TYAcousticModel.h.

◆ _solver

TYSolver & TYAcousticModel::_solver

private

Reference to the solver.

Definition at line 276 of file TYAcousticModel.h.

◆ _useAtmo

bool TYAcousticModel::_useAtmo

private

Definition at line 266 of file TYAcousticModel.h.

◆ _useReflex

bool TYAcousticModel::_useReflex

private

Definition at line 264 of file TYAcousticModel.h.

◆ _useSol

bool TYAcousticModel::_useSol

private

Definition at line 263 of file TYAcousticModel.h.

◆ pSolverAtmos

std::unique_ptr< AtmosphericConditions > TYAcousticModel::pSolverAtmos

private

Definition at line 270 of file TYAcousticModel.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/solvers/9613Solver/TYAcousticModel.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan-fbessou/checkouts/latest/Tympan/solvers/9613Solver/TYAcousticModel.cpp

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TYAcousticModel() [1/2]

◆ ~TYAcousticModel() [1/2]

◆ TYAcousticModel() [2/2]

◆ ~TYAcousticModel() [2/2]

Member Function Documentation

◆ addEtapeDirectToChemins()

◆ addEtapesSol()

◆ addStep()

◆ buildMeanSlopePlan()

◆ calculAttDiffraction() [1/2]

◆ calculAttDiffraction() [2/2]

◆ calculC()

◆ calculC3()

◆ compute() [1/2]

◆ compute() [2/2]

◆ computeCheminAPlat() [1/2]

◆ computeCheminAPlat() [2/2]

◆ computeCheminReflexion() [1/2]

◆ computeCheminReflexion() [2/2]

◆ computeCheminSansEcran() [1/2]

◆ computeCheminSansEcran() [2/2]

◆ computeCheminsAvecEcran() [1/2]

◆ computeCheminsAvecEcran() [2/2]

◆ computeEffectiveBarAttenuation()

◆ computeGZone()

◆ computeSegmentEdgesHeights()

◆ FRIEND_TEST() [1/4]

◆ FRIEND_TEST() [2/4]

◆ FRIEND_TEST() [3/4]

◆ FRIEND_TEST() [4/4]

◆ getGroundfactors() [1/2]

◆ getGroundfactors() [2/2]

◆ getReflexionSpectrumAt() [1/2]

◆ getReflexionSpectrumAt() [2/2]

◆ init() [1/2]

◆ init() [2/2]

◆ limAttDiffraction() [1/2]

◆ limAttDiffraction() [2/2]

◆ meanSlope() [1/2]

◆ meanSlope() [2/2]

◆ solve() [1/2]

◆ solve() [2/2]

Member Data Documentation

◆ _absoNulle [1/2]

◆ _absoNulle [2/2]

◆ _interference

◆ _lambda [1/2]

◆ _lambda [2/2]

◆ _paramH

◆ _propaCond

◆ _solver

◆ _useAtmo

◆ _useReflex

◆ _useSol

◆ pSolverAtmos
